How to Filter Pivot Tables in Excel Using OR Logic

When conducting rigorous data analysis in Excel, the ability to filter information precisely and efficiently is paramount. While Pivot Tables stand out as exceptionally robust tools for summarizing, grouping, and organizing vast amounts of source data, applying complex filtering logic—specifically an OR condition—often presents a significant challenge when relying solely on standard, built-in functionalities. The native filtering options are generally optimized for simple inclusion or exclusion criteria, making multi-field logical filtering cumbersome or impossible.

This expert guide is dedicated to providing a comprehensive, detailed, and step-by-step methodology for successfully filtering your Pivot Table using an OR condition. We will introduce and demonstrate a highly practical and scalable technique that leverages an auxiliary column, commonly referred to as a helper column, within your source data. This method is crucial for unlocking advanced filtering capabilities that extend far beyond the scope of simple direct selections, ensuring you can extract precise and targeted insights from even the most complex datasets.

Understanding the Limitations of Native Pivot Table Filtering

In the context of data modeling and analysis, an OR condition serves as a core logical operation, dictating that a data record should be included in the results if it satisfies at least one of the multiple criteria specified. For example, a business analyst might require a report that includes transactions originating from “Region X” OR transactions exceeding a value of $5,000. While Pivot Tables inherently handle selecting multiple items within a single field (which functions as a natural OR operation for that specific field) or applying an AND condition across separate fields, they struggle significantly when faced with a multi-criteria OR condition spanning different data columns.

The primary limitation stems from the design architecture of native Pivot Table filtering. When you place multiple fields in the Filters area, Excel treats these filters as cumulative, meaning all conditions must be satisfied simultaneously—the definition of an AND condition. There is no direct, intuitive interface to instruct the Pivot Table to show records that meet criteria A, B, or C residing in different columns. This structural constraint necessitates a strategic preprocessing step to ensure that the underlying data source is already categorized according to the desired logical operation before the Pivot Table even attempts to summarize it.

To circumvent this inherent limitation and empower your analysis with flexible logical requirements, the most effective solution is the implementation of a dedicated helper column directly within your source dataset. This preprocessing step involves utilizing powerful logical functions within Excel formulas to evaluate your specific OR condition for every single row. The result is a simple, binary field (e.g., “Yes/No” or “Show/Hide”) that the Pivot Table can easily use for filtering, transforming a complex multi-field query into a simple single-field selection.

Strategic Data Preparation: Implementing the Helper Column

Before we construct the summarized report, we must first prepare the source data to correctly identify records that satisfy our complex OR logic. Consider the following dataset, which contains statistics for individual players, including their team affiliations, positions, and points scored. Our analytical goal is specific: we wish to summarize the total points, but only for players who meet one of two criteria: belonging to the Mavs team OR holding the position of Guard.

To fulfill this precise filtering requirement, we must introduce a new, dedicated column—our helper column—which will act as a logical flag for each row. This column will evaluate the team and position simultaneously and assign a simple categorical label. For best practice, this column should be placed immediately adjacent to your existing data range, ensuring the entire table remains contiguous. In this scenario, we will title this new column “Filter” and begin its calculation in cell D2.

The crucial step lies in the formula applied to this new column. We must combine the logical OR function with the conditional IF function to output a clear label. The resulting formula, which dictates whether a record meets the criteria, is as follows:

=IF(OR(A2="Mavs", B2="Guard"), "Show", "Hide")

This formula operates by first using the OR function to check if cell A2 (Team) equals “Mavs” OR if cell B2 (Position) equals “Guard.” If the OR function returns TRUE (meaning at least one condition is met), the outer IF function assigns the text string “Show.” Conversely, if both conditions are false, the IF function returns “Hide.” This categorization effectively pre-sorts your data based on the desired multi-criteria logic.

Building and Configuring the Pivot Table Structure

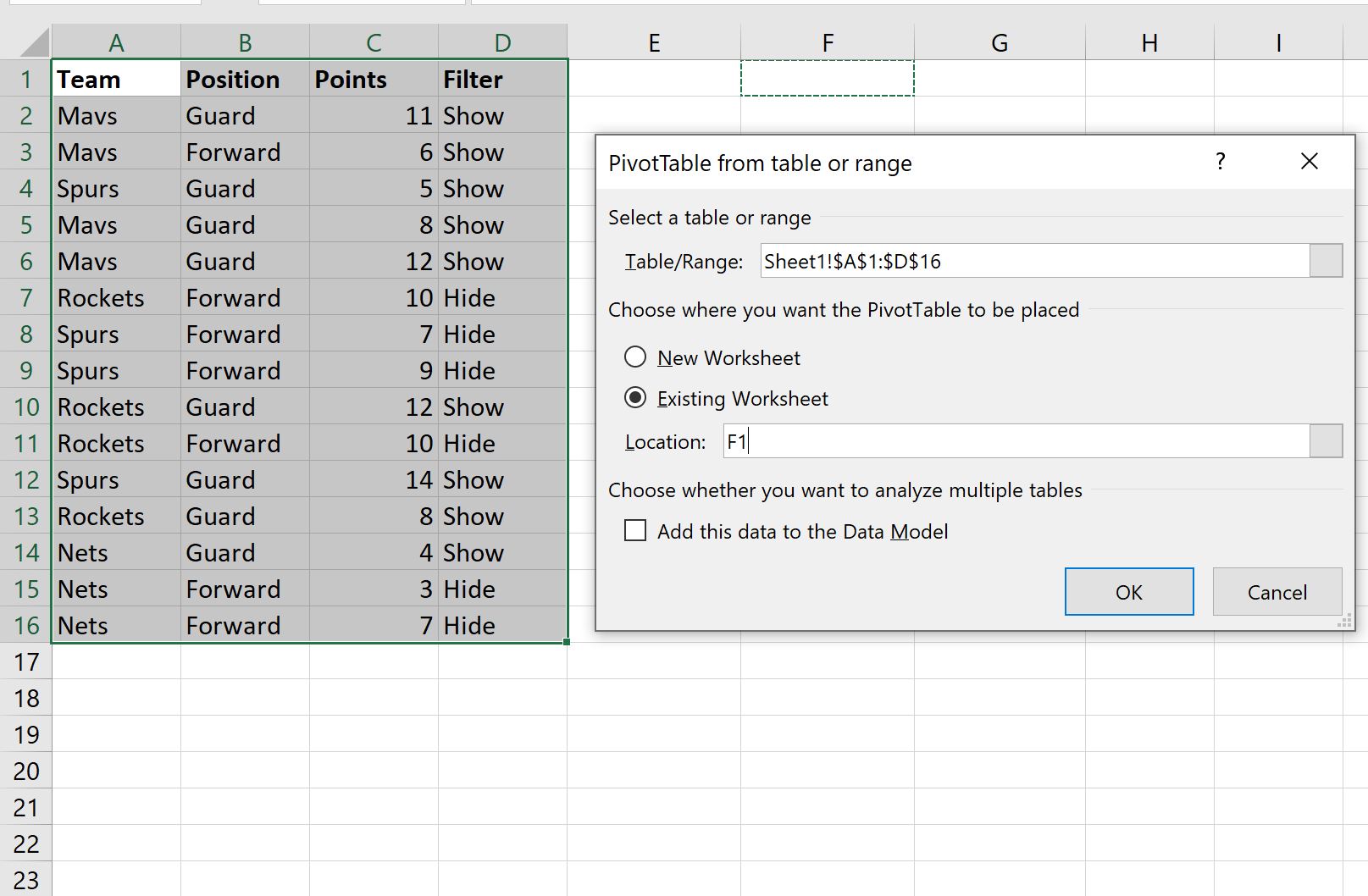

Once the helper column is fully populated across the entire dataset, you possess a single, filterable field that encapsulates your complex OR logic. This prepares us for the construction of the Pivot Table itself. Begin by selecting the entire source data range, ensuring that the newly created “Filter” column is included in the selection. In our example, the required range is A1:D16. With the data selected, navigate to the Insert tab located on the ribbon and click the PivotTable icon within the “Tables” group.

A dialog box titled “Create PivotTable” will prompt you to confirm the data range, which should already be correct, and to specify the placement for the new report. For organizational clarity and ease of viewing, it is often beneficial to place the Pivot Table on the same existing worksheet. For this tutorial, we will choose to insert the report starting at cell F1 of the current sheet. Confirm these settings and click OK to generate the initial, blank Pivot Table structure and display the “PivotTable Fields” pane.

Next, we configure the structure of the summarized report using the “PivotTable Fields” pane. This setup defines how the data will be aggregated before the filter is applied. To achieve a comprehensive summary of points by team and position, drag the following fields into their corresponding areas:

• Drag Team to the Rows area. This establishes the highest level of grouping.
• Drag Position to the Rows area, placing it directly beneath Team. This creates a nested, hierarchical structure, allowing us to see position totals within each team total.
• Drag Points to the Values area. By default, Excel will automatically apply the SUM function, calculating the total points scored for every unique combination of Team and Position currently present in the source dataset.

At this juncture, the Pivot Table displays the aggregated totals for all teams and all positions, irrespective of our specific OR criteria. The table now serves as a complete summary of the raw data. The critical final step is to introduce the filtering mechanism using the “Filter” helper column to isolate only the players who met the criteria defined by our complex formula.

Applying the Advanced Filter Using Slicers

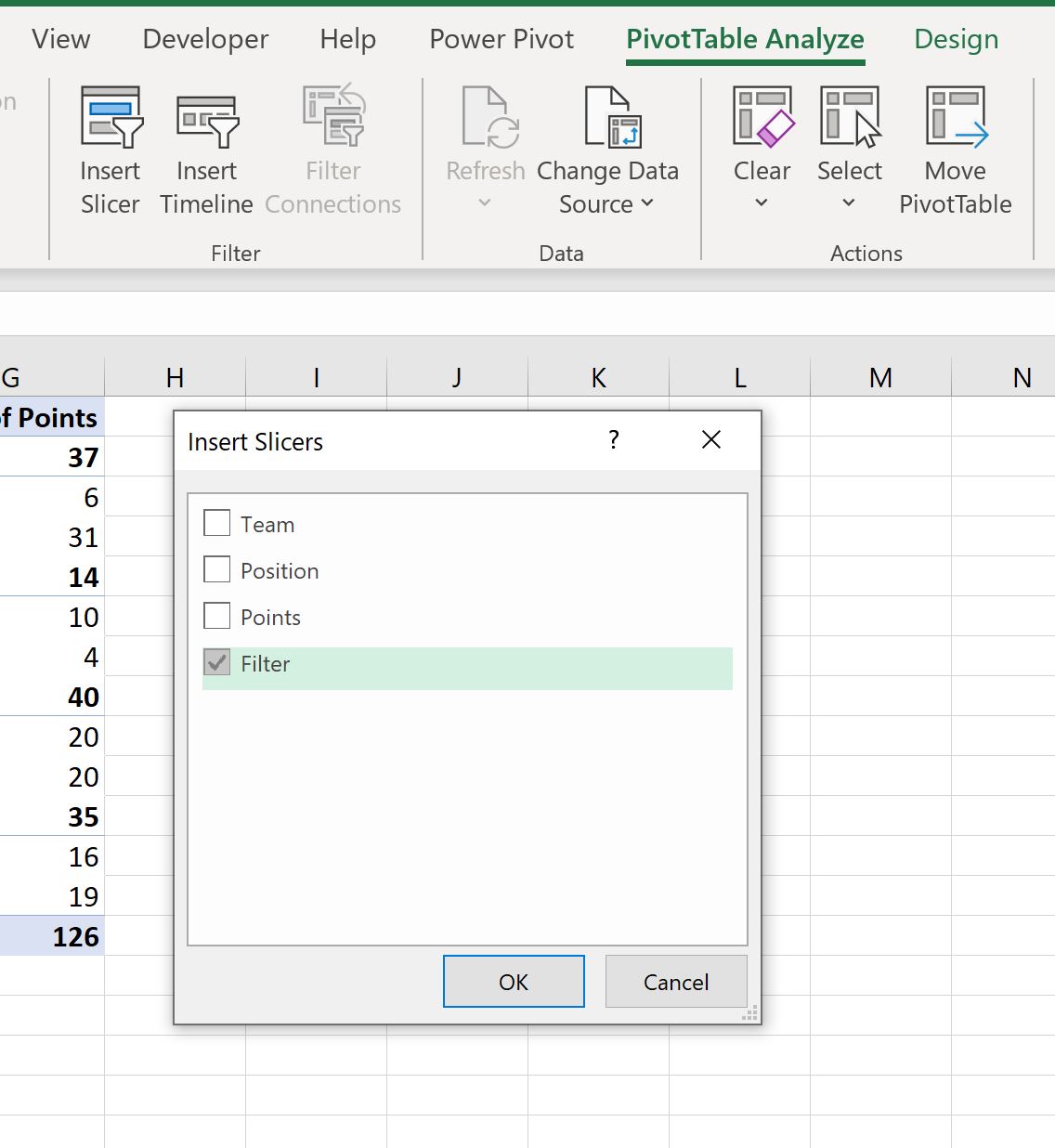

While you could drag the “Filter” column into the Pivot Table’s “Filters” area, a more visually appealing, interactive, and user-friendly method is to employ an Excel Slicer. Slicers function as graphical filter controls, simplifying the process of dynamic data manipulation for anyone interacting with the report. To insert a slicer, first ensure that any cell within your Pivot Table is selected. Then, navigate to the PivotTable Analyze tab (or the equivalent Analyze tab) found in the top ribbon interface. Within the “Filter” command group, click on the Insert Slicer option.

The “Insert Slicers” dialog box will display all available fields from your source data. Locate and check the box corresponding to your helper column, which we labeled Filter. After making this selection, click OK. A new slicer object will immediately appear on your worksheet, typically positioned over the data. Because our helper column only contains two unique values—”Show” and “Hide”—the slicer will display these two buttons as filtering options.

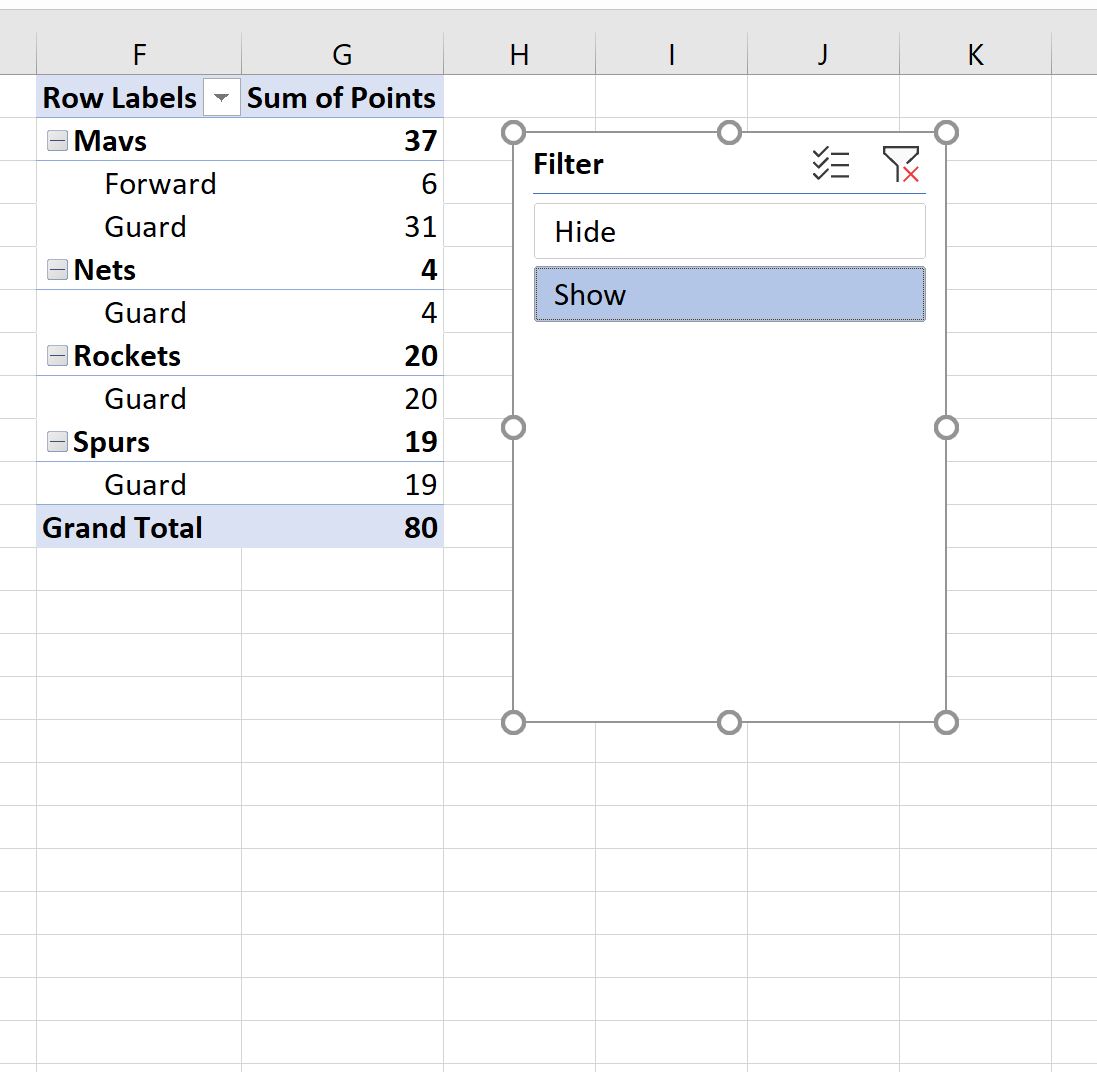

The final action is the simplest yet most crucial: to apply the OR condition filter to your report, simply click the “Show” button on the newly created slicer. This interactive step instantly triggers the filtering mechanism, collapsing the Pivot Table to display only the aggregated points for records that were tagged “Show.” These are precisely the players who are either members of the Mavs team OR hold the position of Guard, validating the effectiveness of the helper column methodology for implementing complex logical filtering.

Conclusion: Mastering Complex Logical Filters in Excel

The technique of strategically employing a helper column within the source data—prior to the construction of the Pivot Table—provides a powerful and essential workaround for implementing advanced logical criteria, such as the OR condition, that are not directly supported by standard Pivot Table filtering tools. This method separates the complex logical decision-making from the aggregation process, resulting in a flexible and robust analytical solution. By creating a single, definitive field that flags records for inclusion or exclusion, we transform a multi-dimensional filtering problem into a straightforward binary selection.

A key advantage of this methodology is its high adaptability. The formula used in the helper column can be easily modified to accommodate virtually any combination of logical conditions—including complex nested structures involving AND, OR, and NOT functions—across any number of fields in your source dataset. This significantly extends the filtering capabilities of your Pivot Table, enabling far more nuanced and precise data analysis, ultimately streamlining your reporting workflows in Excel.
