Learning to Filter the Top 10 Values in Excel Pivot Tables

Mastering Data Summarization with Pivot Tables

In the modern landscape of data analysis, the ability to quickly transform massive, complex datasets into focused, actionable summaries is essential for informed decision-making. Microsoft Excel remains the industry standard for this task, primarily through its dynamic and robust PivotTable feature. Pivot tables are indispensable tools that enable users to aggregate, analyze, explore, and present key metrics from raw source data with remarkable efficiency. Specifically, one of the most common requirements in business intelligence is identifying the highest performers or most significant contributors within a given metric.

This comprehensive guide provides a precise, step-by-step methodology for applying an advanced filter to isolate the top 10 values within an Excel PivotTable. By mastering this technique, analysts can cut through data noise, focusing instantly on critical data points without the tedious necessity of manual sifting. This technique streamlines reporting, enhances visual clarity, and ensures that managerial attention is directed toward the elements yielding the greatest impact.

We will utilize a practical scenario involving hypothetical sales figures to ensure the process is illustrated clearly and effectively. This structured approach, moving from data preparation to filtering and final presentation, ensures that by the conclusion of this tutorial, you will be fully proficient in leveraging Excel’s powerful filtering mechanisms to extract and highlight key information, thereby making your data presentations more authoritative and your strategic recommendations more sound.

Step 1: Preparing and Structuring the Source Data

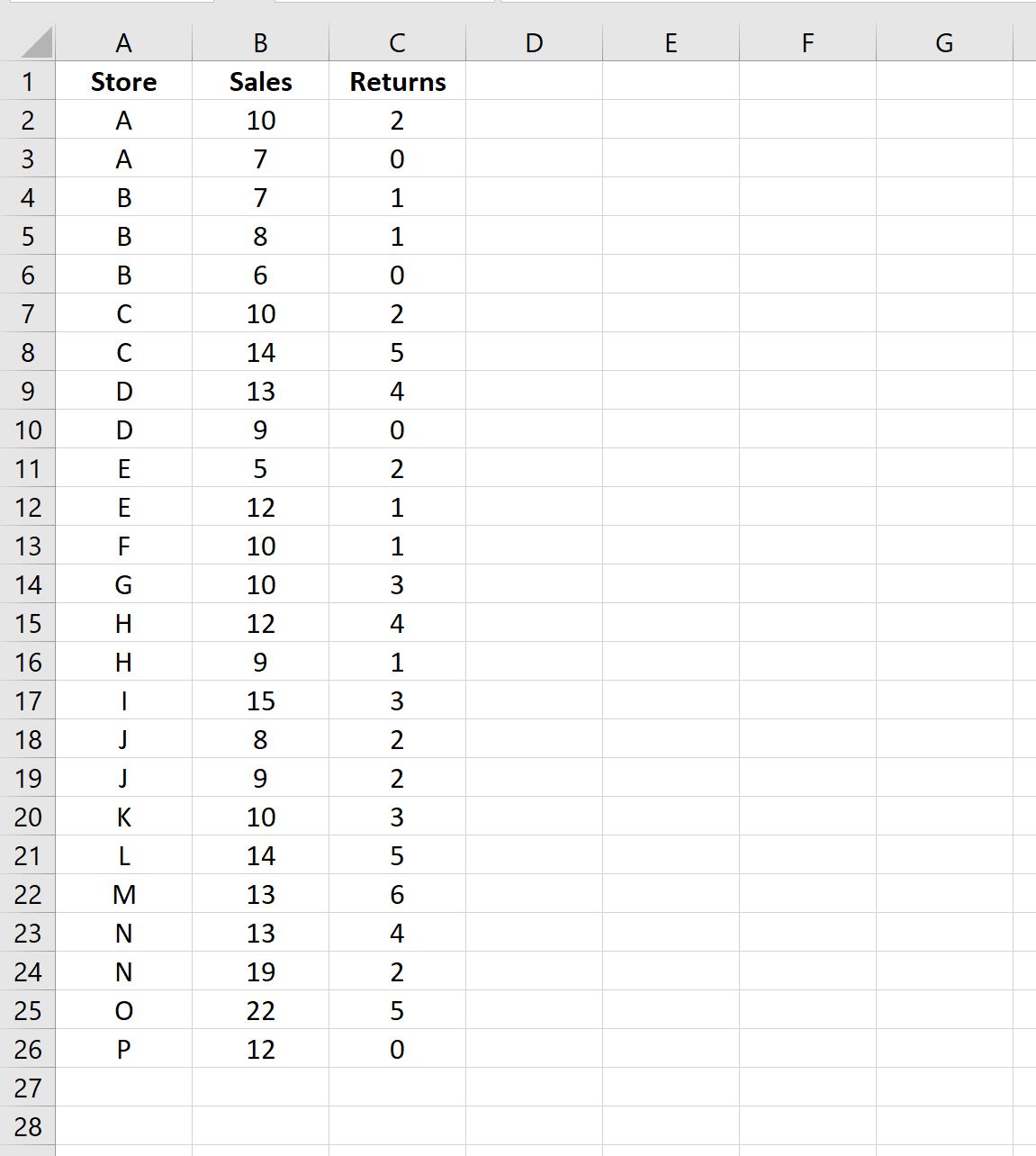

The foundation of any successful data analysis using a PivotTable is a properly structured source dataset. Before initiating the analysis, it is paramount that your data resides in a clean, tabular format. For demonstration purposes, we will begin by populating an Excel worksheet with simulated sales data. This data set includes sales records and corresponding returns for twenty-six distinct store entries, offering a realistic backdrop for applying our top-performing filtering techniques.

To follow along precisely, please enter the provided data into a new Excel sheet, ensuring meticulous accuracy. The organization of this raw data is critical: each column must possess a unique, meaningful header (e.g., “Store”, “Sales”, “Returns”). These headers define the fields that Excel will recognize and utilize when building the subsequent PivotTable structure. This initial organization prevents errors and significantly simplifies the data aggregation process.

A clean, continuous data range, where each row represents a unique transactional record and each column represents a specific attribute, is the only prerequisite for PivotTable creation. By dedicating time to ensure data integrity at this stage, you guarantee a seamless transition to the analytical phase. Furthermore, consistency in data formatting (e.g., ensuring all sales figures are recognized as numerical values) will prevent aggregation issues later on.

Step 2: Constructing the Excel Pivot Table Structure

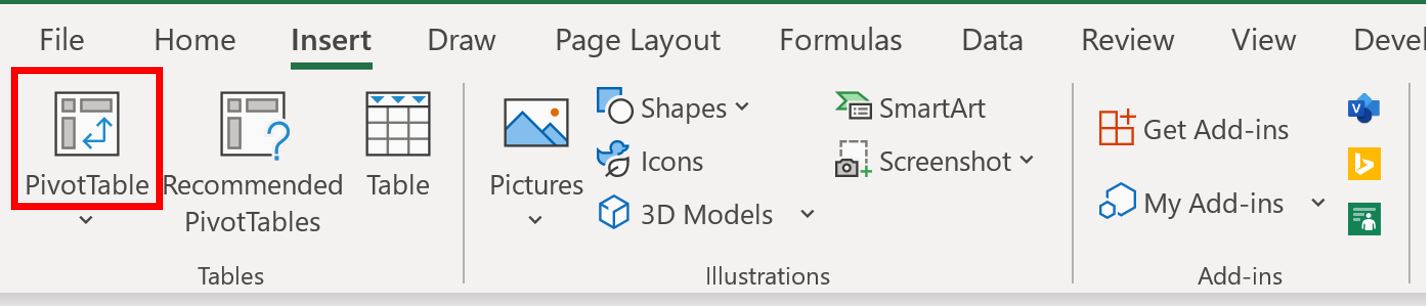

Once your source data is correctly entered and structured on the worksheet, the next mandatory step is the creation of the PivotTable itself. This involves invoking Excel’s dedicated function to convert the static raw data into a dynamic summary tool. To begin, navigate to the Insert tab, which is located in the upper section of the ribbon interface. Within this tab, locate and click the PivotTable icon to launch the creation wizard.

The “Create PivotTable” dialog box requires two fundamental inputs: the exact source data range and the intended location for the resulting table. For this example, specify the range A1:C26, which accurately encompasses all headers and data rows established in Step 1. Next, select the option to place the pivot table in the Existing Worksheet and designate cell E1 as the starting point. Placing the pivot table adjacent to the raw data is standard practice for easy cross-referencing and validation. Click OK to proceed.

Once the table skeleton is created, the PivotTable Fields panel will appear on the right side of your screen. This panel is the central interface for defining the layout and calculations of your summary table. It lists all the column headers (fields) from your source data and provides four key quadrants: Filters, Columns, Rows, and Values. The arrangement of fields in these areas dictates how the data is summarized.

To configure our performance analysis table, drag the Store field into the Rows box. This action tells Excel to list every unique store name vertically down the left side of the table. Subsequently, drag both the Sales and Returns fields into the Values box. These fields represent the quantitative data we wish to measure. Excel automatically defaults to summing these numerical fields, providing a concise summary of “Sum of Sales” and “Sum of Returns” corresponding to each individual store.

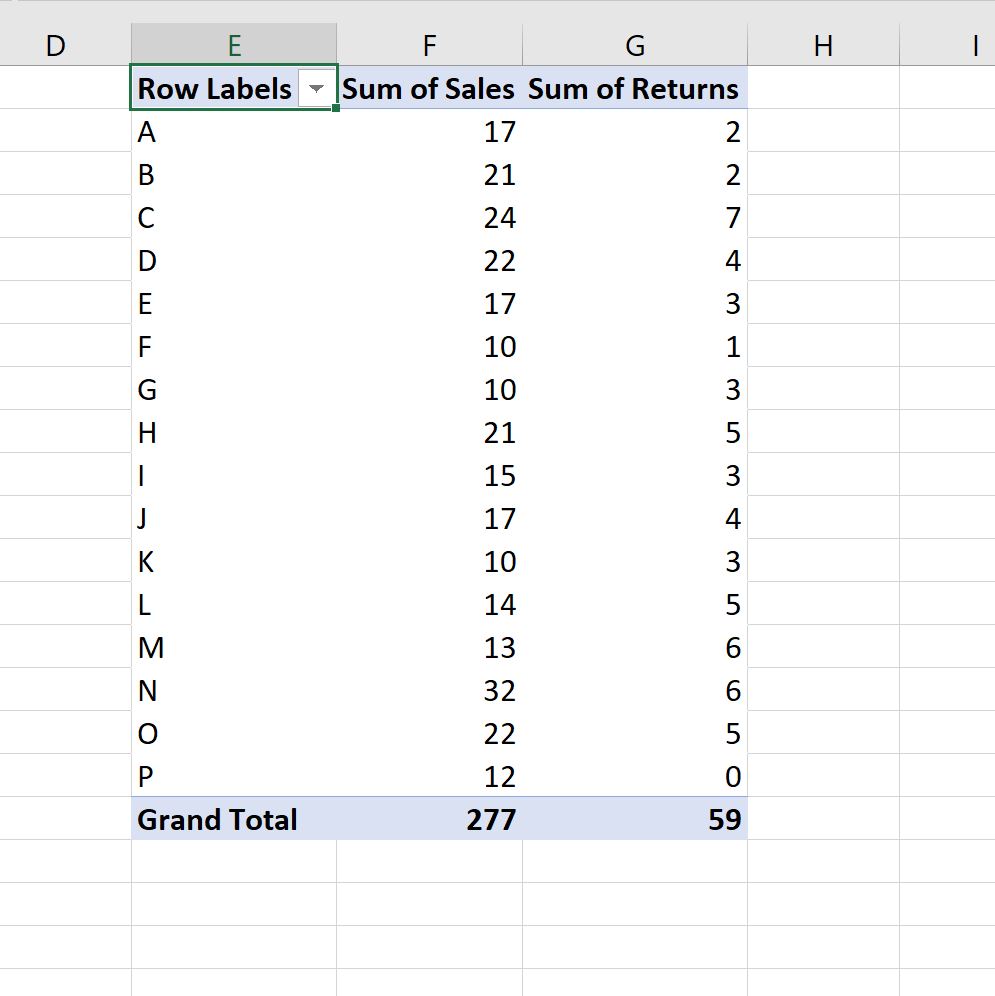

Upon correct field placement, your PivotTable will instantaneously populate, showing the aggregated sales and returns for every store in the dataset. This foundational view is the necessary precursor to applying the specific ranking filter required to identify the top performers.

Step 3: Implementing the Top 10 Ranking Filter

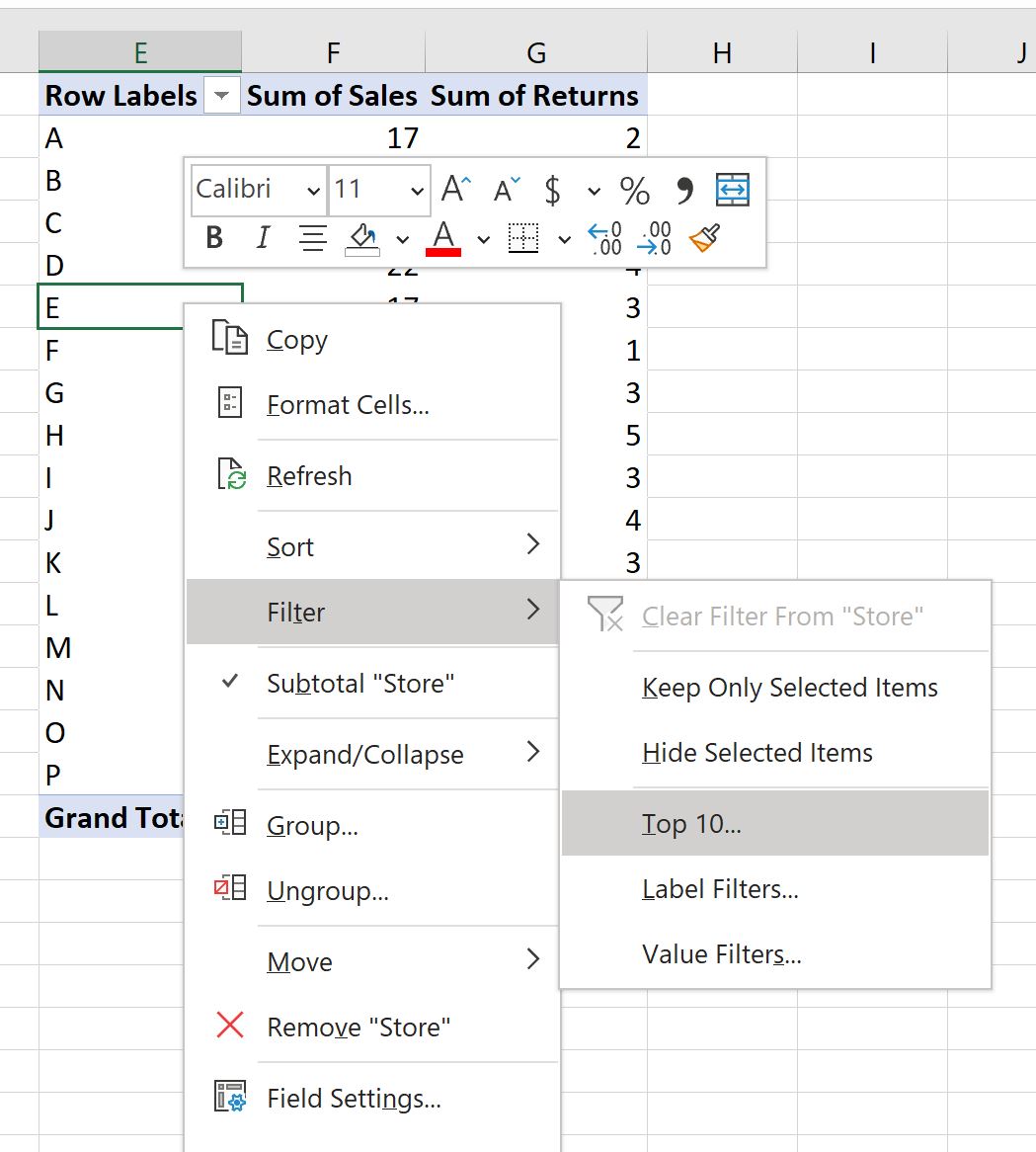

With the summary PivotTable successfully configured, we now execute the core objective: applying the Top 10 filter. This powerful mechanism allows for the rapid identification of the leading entities based on a chosen metric, which, in our scenario, is the “Sum of Sales.” To access this feature, locate any of the store names listed in the row labels (the “Store” column) of your pivot table and right-click on the cell.

A detailed context menu will appear upon right-clicking. Hover your cursor over the Filter option, which will prompt a secondary, cascading sub-menu to emerge. Within this sub-menu, you must select the Top 10 option. This selection opens a specialized dialog box designed for applying advanced ranking criteria to the data fields within the pivot table.

The “Top 10 Filter” dialog box allows for precise customization of the ranking criteria. Ensure that the first dropdown menu displays “Top.” In the central input box, verify that the number “10” is entered, defining the number of items you wish to see. Crucially, the third dropdown menu dictates the value by which the ranking should be calculated; here, you must select Sum of Sales. This instruction directs Excel to rank all stores based on their total aggregated sales figures. After confirming these settings, click OK to apply the filter immediately.

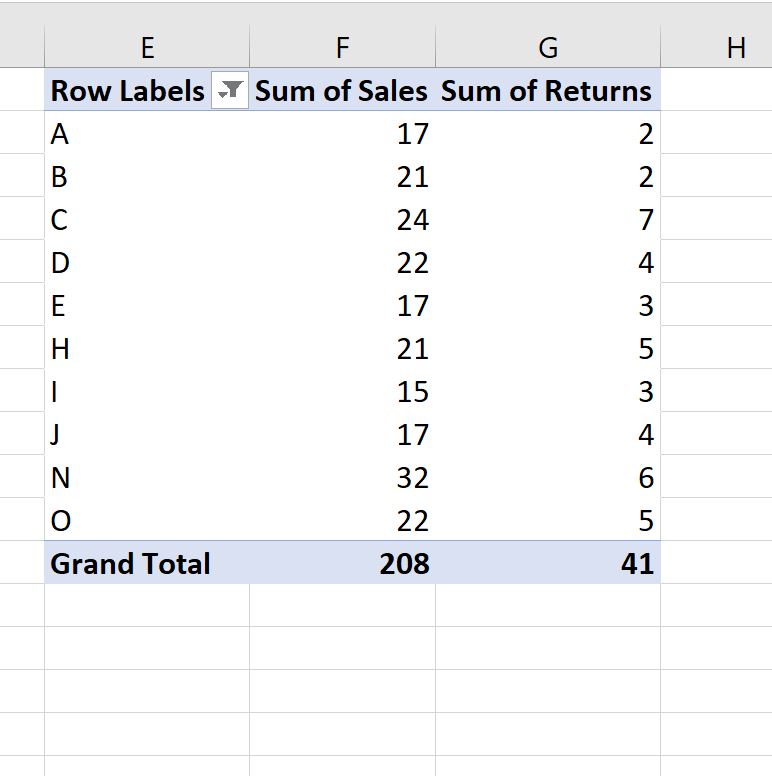

The resulting transformation in your PivotTable is immediate and dramatic. It will now display only the 10 stores that achieved the highest “Sum of Sales” values across the entire original dataset. All other stores, deemed non-top performers, are effectively hidden from view, providing a highly focused and streamlined report essential for performance review and strategic resource allocation.

It is important to emphasize the versatility of the “Top 10 Filter.” While we focused on the top 10, this feature allows significant flexibility. You can adjust the numerical value to filter for the top 5, top 20, or even switch the first dropdown from “Top” to “Bottom” to identify the bottom performers in your dataset. This adaptability makes it an exceptionally useful and versatile component of your analytical toolkit.

Step 4: Ensuring Clarity Through Data Sorting (Optional but Recommended)

Although applying the “Top 10” filter successfully isolates the relevant data, you may notice that the resulting 10 stores are not automatically presented in a ranked order. To maximize the interpretability and visual impact of your report, it is highly recommended to sort the filtered results. Sorting the data from highest to lowest sales figures transforms the report into a clear, hierarchical performance ranking, instantly identifying the absolute market leader.

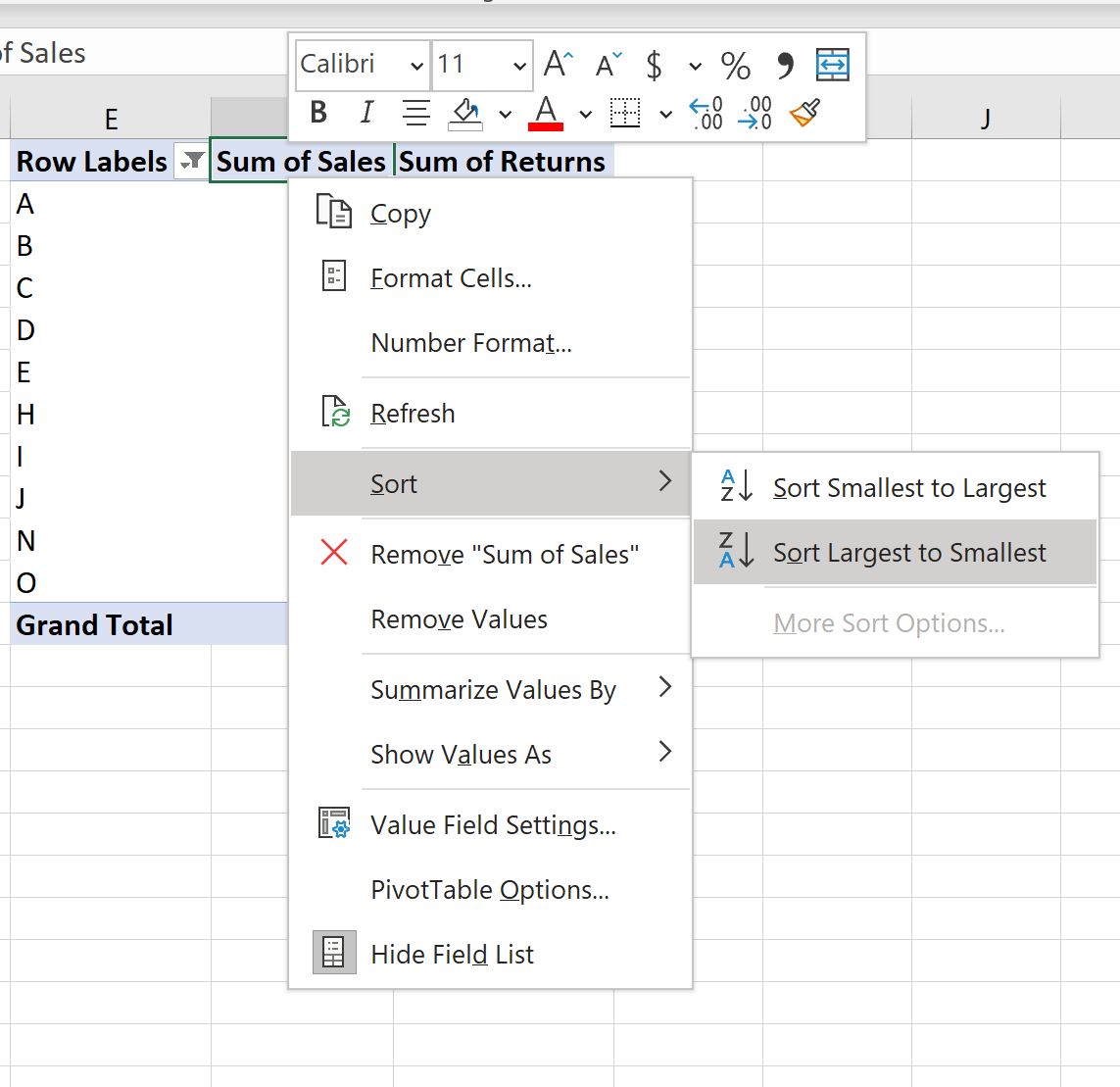

To sort the displayed stores based on their sales metrics, move your cursor to any numerical cell within the Sum of Sales column and right-click. This will reveal the context menu once more. Hover over the Sort option to open the sorting cascade. For ranking top performers, select Sort Largest to Smallest. This specific sort order ensures that the highest sales figure is positioned at the top of the list, providing the clearest visualization of performance ranking.

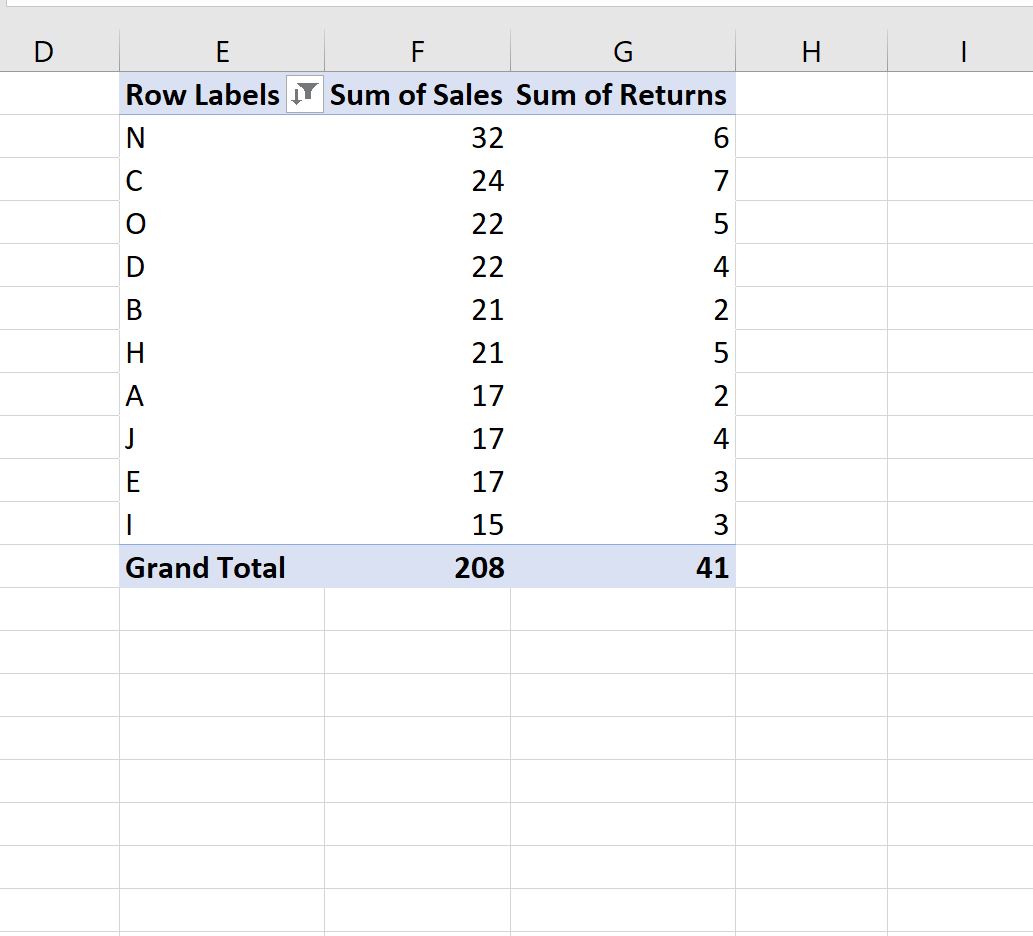

Once the sort is applied, your PivotTable will instantly rearrange the filtered stores. The top 10 will now be meticulously ordered, starting with the store holding the highest sales total and descending to the tenth. This final presentation step ensures that your data is not only accurate and focused but also highly intuitive and immediately digestible for any stakeholder, maximizing the utility of the analysis.

Conclusion: Unlocking Advanced Reporting Capabilities

The mastery of efficient data manipulation—specifically the ability to filter and sort ranked information within an Excel PivotTable—is a cornerstone skill for professional data analysts. By diligently following the sequential steps detailed in this guide, you can confidently convert a large, unwieldy volume of raw data into a targeted, visually coherent report that highlights the top 10 values. This technique proves invaluable for discerning key performance indicators, identifying high-yield entities, and grounding strategic planning in concrete, data-driven evidence.

It is important to always remember that the inherent strength of pivot tables lies in their dynamic flexibility. The methodology presented here is easily adapted: you can modify the criteria to filter for different numbers of top or bottom items, analyze alternative metrics (such as returns, profit margins, or customer count), and explore your summarized data from virtually countless analytical perspectives. Consistent application and experimentation with these powerful features will significantly enhance your analytical proficiency and unlock deeper levels of insight from your datasets.

We strongly encourage continuous experimentation with various datasets and diverse filtering parameters to fully internalize the versatility of Excel‘s PivotTable functionality. The more you explore the tool’s capabilities, the more adept you will become at extracting meaningful, critical information and presenting it in a compelling and effective manner, driving better business outcomes.

Further Learning and Recommended Resources

To further expand your expertise in advanced data modeling and reporting using Excel and PivotTable manipulation, consider delving into additional official tutorials that cover other essential and complex tasks, such as calculated fields, grouping, and conditional formatting. Continuous skill development is paramount to maintaining mastery over data analysis tools and techniques in a rapidly evolving professional environment.
