Learn to Display Time as Minutes and Seconds in Excel

Welcome to this comprehensive guide dedicated to accurately managing and displaying time durations within Microsoft Excel. While Excel is a powerful tool for numerical analysis, handling duration data—specifically measurements recorded purely in minutes and seconds—presents a common hurdle. This difficulty arises because Excel inherently interprets time values using a default hours-minutes-seconds structure. Fortunately, the robust Format Cells feature offers an elegant solution by employing a specific custom number format. This article will meticulously detail the process of applying the syntax [mm]:ss, ensuring your time data is accurately represented and prepared for precise subsequent calculations.

We will delve into the critical logic of how Excel manages sequential time, identify the common input errors that occur when recording durations shorter than a full hour, and provide a clear, step-by-step tutorial on implementing the necessary formatting technique. By the conclusion of this tutorial, you will possess the ability to display duration metrics, such as race times or manufacturing process measurements, cleanly and correctly, eliminating the ambiguity introduced by extraneous hour notations.

Understanding Excel’s Date and Time System

To fully grasp why custom formatting is a necessary step, it is imperative to understand the foundational mechanism by which Excel handles date and time data internally. Excel does not store time as human-readable text; rather, it stores dates as sequential serial numbers, where the starting point (Day 1) is January 1, 1900. Time, conversely, is represented as a precise fractional component of a 24-hour day. For instance, 6:00 AM translates internally to 0.25 (one-quarter of the day), and midday (12:00 PM) is stored as 0.5. This standardized approach, known as the Date and Time system, is highly efficient for chronological arithmetic but demands specific data input when dealing with pure durations.

When a user inputs a value that resembles time, such as typing “10:15,” Excel automatically attempts to align this input with its default internal structure. By default, this structure is interpreted as Hours:Minutes:Seconds (H:MM:SS). If you enter 10:15 without further specification, Excel incorrectly reads this as 10 hours and 15 minutes, rather than the intended 10 minutes and 15 seconds. This fundamental misinterpretation is the most frequent source of error for users tracking short-period durations.

The primary challenge surfaces when the duration being tracked is less than one hour. If your goal is to record 10 minutes and 15 seconds, but you input 10:15, the resulting underlying numerical value (which represents 10 hours) is drastically incorrect compared to the value representing 10 minutes. Consequently, the essential initial step is ensuring the time value is entered into the spreadsheet accurately, so that the underlying serial number is correct, even if the default display format initially appears misleading or overly verbose.

Ensuring Accurate Input for Pure Durations

To successfully capture a duration measured solely in minutes and seconds, we must explicitly instruct Excel that the duration commences with zero hours. Adhering to standard time notation conventions, the complete required input syntax includes three components—hours, minutes, and seconds—each separated by a colon. Therefore, if the desired time value is 10 minutes and 15 seconds, you must explicitly include the zero for the hours component. The mandatory correct input format is thus 0:10:15.

This strict adherence to the H:MM:SS format guarantees that the underlying numerical representation of the time is calculated correctly by the software. Once the data is entered using this three-part structure (even when the hour component is zero), Excel correctly identifies it as a valid time value, making it suitable for necessary mathematical operations such as summing, averaging, or subtracting durations. Crucially, omitting the leading zero (by typing only 10:15) causes the system to register 10 hours, which will profoundly corrupt any subsequent calculations based on that data.

Consider a practical scenario where we are inputting several event durations, none of which exceed sixty minutes. We must rigidly follow the 0:MM:SS structure for every single entry. The following illustration demonstrates how various time values—such as 10 minutes 15 seconds, 19 minutes 1 second, and 5 minutes 30 seconds—are correctly entered into a designated cell range in preparation for the subsequent formatting steps:

While the initial display may show verbose default formats like “0:10:15 AM,” the essential point is that the raw data’s underlying numerical value is now correctly interpreted by Excel, paving the way for visual refinement.

Step-by-Step Guide to Applying the Custom Format

With the time data accurately entered as described above, the next phase involves modifying the display appearance to hide the unnecessary hours component, leaving only the required minutes and seconds visible. This transformation is executed through the Format Cells dialogue box.

1. Select the Data Range: Begin by highlighting the entire cell range containing the time values you intend to format. In the context of our ongoing example, this designated range is typically A2:A10.

2. Access Format Cells: Right-click anywhere within your selected range to invoke the context menu. From this menu, choose the Format Cells option. Alternatively, users can utilize the universal keyboard shortcut: Ctrl+1 (or Cmd+1 if operating on a Mac system).

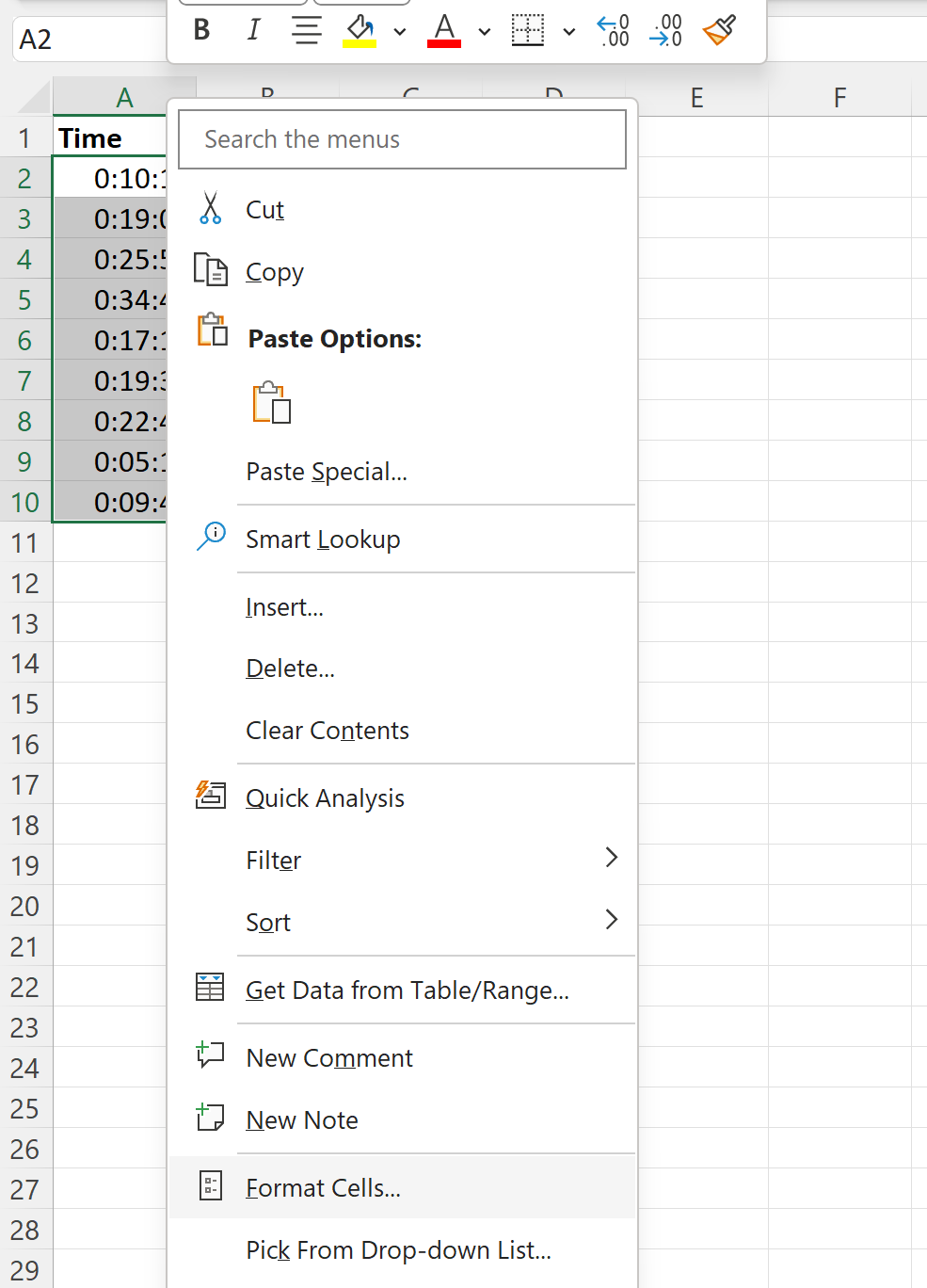

The visual representation below confirms the required selection process and the action of accessing the necessary formatting options:

Once the Format Cells window is open, navigate directly to the Number tab. This section is dedicated to defining the precise visual appearance of your data without making any modifications to its underlying numerical value. The core of our solution resides within the Custom category.

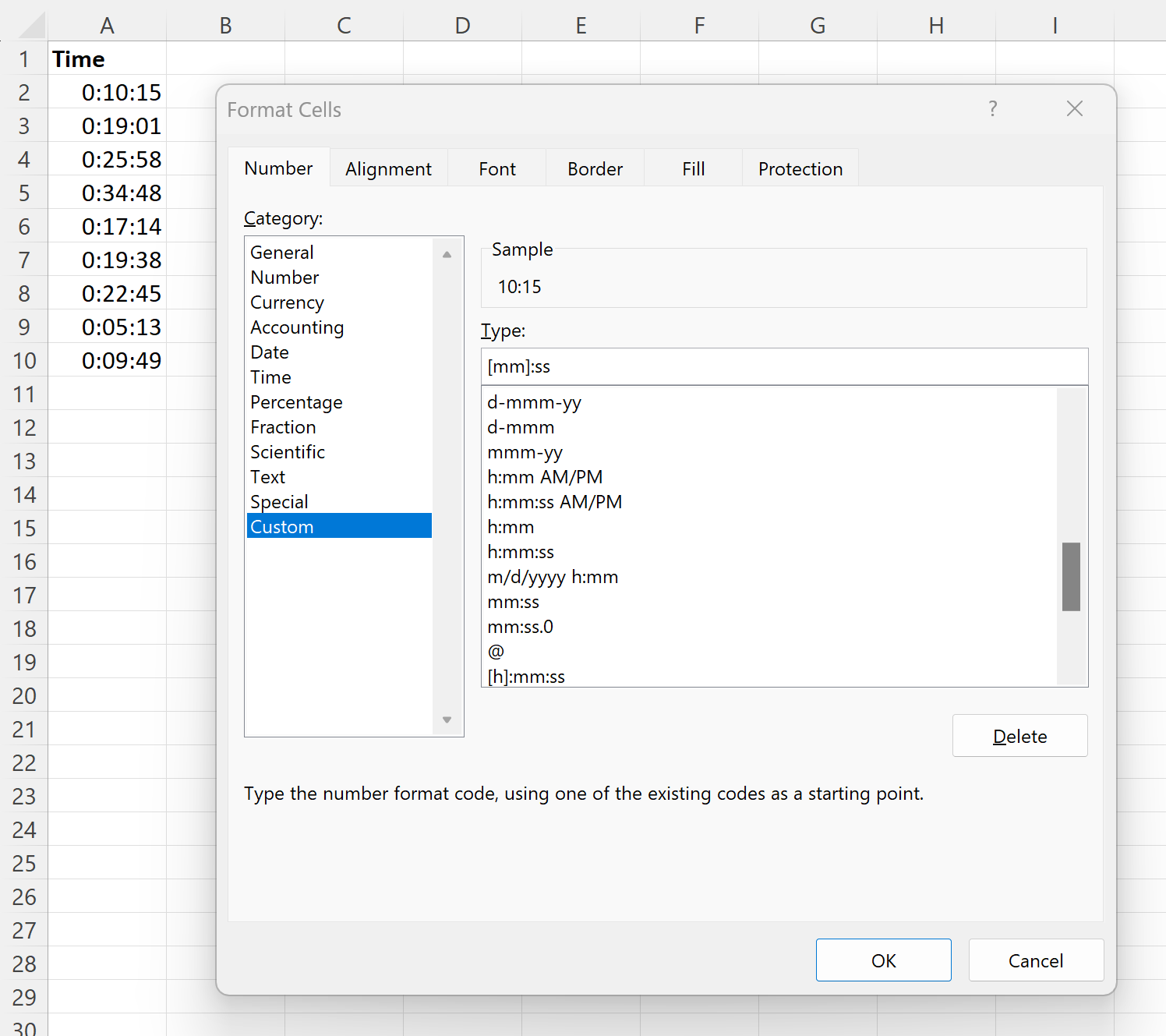

3. Define the Custom Format: Locate the Category list on the left side and select Custom. This action reveals a text field labeled Type. This field is where you input specialized codes that instruct Excel exactly how the numerical value should be displayed. Enter the specific format code: [mm]:ss into the Type box.

This input is paramount because the square brackets enclosing the minutes component ([mm]) are what prevent the time display from cycling back to zero once the duration surpasses 59 minutes. If you were to use mm:ss without the brackets, a duration of 65 minutes would erroneously display as 05:00 (since the system would treat 60 minutes as one hour and reset the minute count). We will thoroughly examine the technical rationale behind this crucial code in the next section.

4. Apply the Format: Click OK to finalize and apply the newly defined custom number format to the selected cell range. The data in the specified column will instantly update to show only the minutes and seconds, effectively removing the preceding hour component and providing a clean, duration-specific visual presentation of your data.

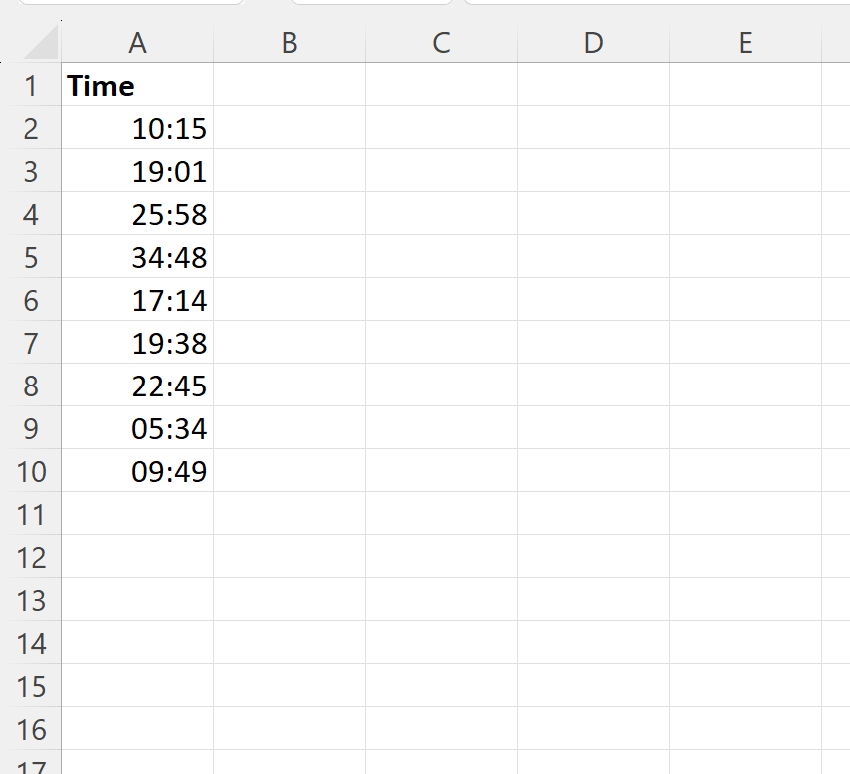

The final formatted data visually confirms the intended durations, ready for use:

Deconstructing the Accumulating Format Code: [mm]:ss

A deep understanding of the individual components within the custom number format [mm]:ss is crucial for advanced manipulation of time values in Excel. This specific structure is engineered to overcome the inherent limitations imposed by standard time display formats.

• mm: This standard code signifies the minutes component of the time value. The use of two ‘m’ characters ensures appropriate padding; minutes less than 10 will always be displayed with a leading zero (e.g., 05 instead of 5).

• ss: This component represents the seconds of the time value, mirroring the ‘mm’ convention by guaranteeing a leading zero for single-digit seconds (e.g., 01 instead of 1).

• The Colons (:): The colon functions as a literal separator, maintaining the established convention for displaying time components.

• The Brackets ([ ]): This element is the most vital modifier. When a time unit code (such as ‘h’, ‘m’, or ‘s’) is enclosed within square brackets, Excel forces that unit to accumulate beyond its typical cyclical limit. In the specific case of [mm], this means the minute counter will not reset to 00 upon reaching 60 (which is the normal behavior when the hour ticks over). Instead, the minute value accrues indefinitely. This feature is essential for representing durations that may exceed multiple hours but must be displayed purely as total minutes and seconds. For example, 125 minutes and 45 seconds would correctly display as 125:45, rather than the standard time format of 2:05:45.

In essence, if your requirement was strictly limited to displaying minutes and seconds within a single hour (i.e., a maximum duration of 59:59), the simpler format mm:ss would be sufficient. However, because we require the minutes count to potentially surpass 59 without rolling over into an hour display, the accumulating format [mm]:ss is the definitive and reliable choice for representing pure duration data in Microsoft Excel.

Verifying Calculation Integrity

A major benefit of combining the correct 0:MM:SS input method with the custom number format is that the underlying data retains its status as a valid time value, enabling completely accurate arithmetic operations. Unlike simple text formatting, which only alters the visual presentation, this technique ensures that Excel continues to recognize the true duration represented by the serial number, regardless of the simplified display.

To conclusively demonstrate this functionality, let us assume we need to calculate the sum of two durations previously entered: the duration in cell range A2 (10 minutes 15 seconds) and the duration in A3 (19 minutes 1 second). We can place a standard summation formula in cell A11:

=A2 + A3

When this calculation is executed, Excel correctly adds the underlying time serial numbers. Provided that the destination cell A11 automatically inherits the [mm]:ss custom format (or if it is manually formatted), the result is presented in the exact minutes and seconds format required.

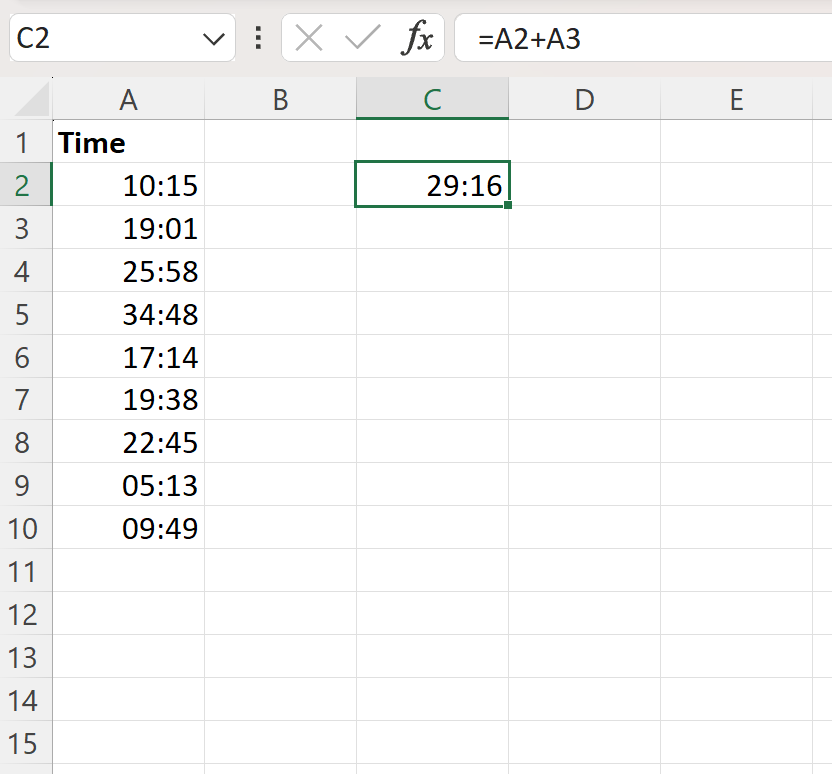

As clearly illustrated, Excel successfully calculates the sum of the two durations, resulting in a total time of 29 minutes and 16 seconds. The resulting display, 29:16, confirms that the formatting is purely a cosmetic layer, allowing the system to maintain computational integrity while delivering a clean, duration-specific output to the user. This capacity to accurately perform arithmetic on visually simplified data is the core advantage derived from mastering this specific custom formatting technique.

Conclusion and Best Practices

For professionals in fields such as sports timing, manufacturing analysis, or laboratory research, mastering the input and formatting of duration data in Excel is non-negotiable for maintaining accurate records. The central principle to remember is the absolute necessity of inputting the time using the complete three-part structure (H:MM:SS), even when the hour component is zero (e.g., 0:10:15). If the initial data entry is fundamentally incorrect, no amount of custom formatting can rectify the underlying numerical error.

Furthermore, the strategic use of the accumulating minutes format, [mm]:ss, prevents the display from resetting hours, thereby ensuring that the total accumulated duration is always clearly and correctly displayed. Users should consistently apply this custom number format through the Custom category within the Format Cells dialogue box to achieve maximum reliability and persistence in their spreadsheet operations.

By diligently employing these proven techniques, you can ensure that your Excel spreadsheet is not only highly readable and professional but also completely functional for any advanced time-based analysis or reporting requirements.
