Learning to Use Excel IF Statements with Cell Color Formatting

Data analysts frequently encounter scenarios in which they need to automate actions or calculations based on the visual characteristics of a cell, such as its background color. While it is standard practice to use an IF statement in Microsoft Excel to evaluate numerical or textual values, native Excel formulas are fundamentally limited when it comes to assessing formatting attributes—like font style, borders, or, crucially, fill color. This inherent limitation means a direct formula like =IF(Cell_Color="Green", "Do Something", "") is impossible using standard functions.

Overcoming this hurdle requires moving beyond conventional functions and adopting a powerful, albeit non-standard, methodology. If your objective is to trigger a specific calculation or label a data point solely because its background is green, you must employ an advanced technical workaround. This technique involves combining a sophisticated feature known as the Defined Name with a robust but often overlooked legacy tool: the Excel 4.0 Macro function GET.CELL.

This approach effectively tricks Excel into treating the cell’s visual formatting as an evaluable criterion. By successfully configuring the necessary custom element—the Defined Name—we can unlock robust conditional logic that responds directly to visual attributes, providing a powerful layer of analysis based on data visualization.

The Advanced Solution: Leveraging Legacy Macro Functions

The solution to linking conditional logic to visual cues like cell color necessitates the use of functions designed specifically to query formatting properties. Since standard formulas cannot achieve this, we rely on the historic capabilities of the Excel 4.0 Macro language, which contains functions explicitly built for inspecting workbook structure and cell characteristics.

The foundation of this technique rests upon the creation of a custom Defined Name that encapsulates the legacy function GET.CELL. This function is uniquely capable of retrieving detailed information about a cell’s formatting, including its background fill. Importantly, GET.CELL does not return the color name (e.g., “green”) but rather a numerical identifier, known as the Color Code, which corresponds to the specific shade used in the workbook’s palette.

The specific syntax required is =GET.CELL(38, Sheet1!A2). The first argument, 38, is crucial; it acts as the specific reference code that instructs the function to retrieve the background fill color index. The second argument, Sheet1!A2, refers to the cell whose color we want to check. It is vital that this reference is defined as a relative reference when creating the Defined Name. This relativity ensures that when the custom name is deployed across a range of cells (e.g., dragged down Column B), it dynamically checks the color of the adjacent cell in Column A, maintaining the integrity of the conditional logic.

Step-by-Step Implementation: Configuring the Defined Name for Color Retrieval

To illustrate this process, consider a scenario where a list of athletic data points is maintained, and green cell shading in Column A signifies that the player has achieved a specific milestone, such as being selected as an All-Star. Our ultimate objective is to automatically populate Column B with the appropriate text label (“All-Star” or “Not All-Star”) based on the color of the corresponding cell in Column A.

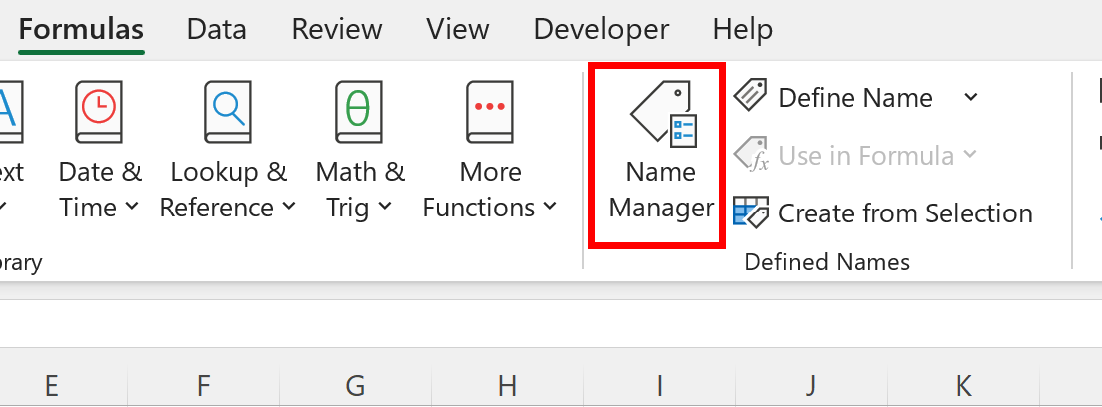

The initial and most critical practical step is the construction of the custom function that will extract the color index. Begin by navigating to the Formulas tab located in the top ribbon interface of Microsoft Excel. Within this tab, locate and select the Name Manager icon. This specialized tool is the central location for creating, editing, and managing custom definitions that extend the functionality of your workbook.

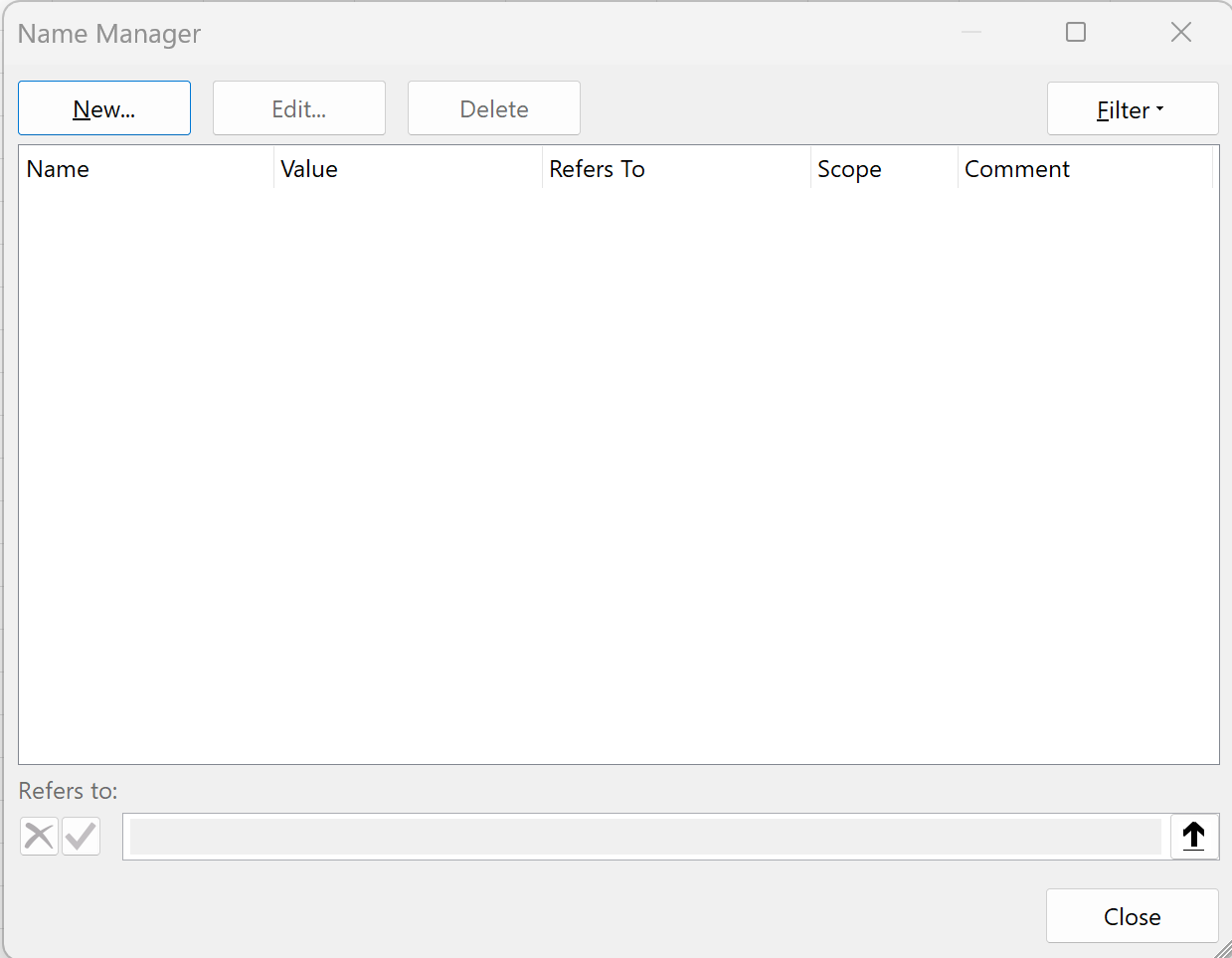

Once the Name Manager dialogue box is active, click the New button, which is typically situated in the top-left section of the window. This action will initiate the configuration dialogue required to establish your new custom function, which Excel will recognize as a Defined Name.

In the subsequent configuration dialogue, input the parameters with precision. Assign a descriptive name to your custom function, such as GreenCell, within the Name field. Crucially, in the Refers to box, you must input the Excel 4.0 Macro function formula: =GET.CELL(38,Sheet1!A2). It is paramount that the cell reference A2 points to the first cell in your data range where the color check should begin. After confirming all entries, click OK. This completes the setup of the color-querying function.

Determining the Specific Color Code Index

Before the final conditional logic can be constructed, a mandatory testing phase must be executed. We must accurately identify the unique numerical Color Code that Microsoft Excel assigns to the exact shade of green used in the dataset. This step is critical because any variation in color (e.g., light green vs. dark green, or a custom RGB color) will result in a different numerical index. The accuracy of the subsequent IF statement relies entirely on matching this specific index.

To determine the output of the newly defined name, temporarily enter the formula =GreenCell directly into the corresponding output cell, for instance, cell B2. Once entered, use the fill handle to click and drag this formula down through the remaining cells in Column B. This action forces the custom function GET.CELL(38, ...) to execute for each row, temporarily displaying the raw color index value returned for the associated cell in Column A.

Upon reviewing the temporary results, we observe that for the specific green shade applied in this particular example, the function consistently returns the numerical identifier 35. This unique identifier (35) is the key metric that represents the “green” status we are targeting. Conversely, any cell lacking shading or possessing an alternative color will return a different value, most often 0 or a separate index number. This confirmed index (35) is now ready to be integrated into our final conditional formula.

Implementing the Final Conditional Logic with the IF Statement

With the specific color code (35) successfully identified, the final stage is to replace the temporary test formula in cell B2 with the definitive conditional formula. This formula leverages the power of the IF statement, utilizing the custom GreenCell defined name to check if the returned index matches our target value, and subsequently outputting the required text label.

Input the following conditional formula into cell B2. This logic instructs Excel to evaluate the output of the GreenCell function: if the color index equals 35 (confirming the cell is green), the formula returns “All-Star”; otherwise, it returns “Not All-Star”.

=IF(GreenCell=35, "All-Star", "Not All-Star")

After entering the formula in the initial cell, extend its application by clicking and dragging the formula down through the entire range of Column B. This completes the operation, providing a derived status for every player, driven purely by the background color attribute extracted using the legacy GET.CELL function.

The resulting table in Column B now accurately reflects the conditional status based on the corresponding cell shading in Column A, demonstrating a successful bypass of Excel’s native limitations regarding formatting evaluation.

Critical Considerations for Recalculation and Legacy Use

While the combination of the GET.CELL function and a Defined Name provides an elegant solution for conditional formatting logic, users must be mindful of several critical operational nuances related to legacy functions.

Firstly, the numerical index—such as 35 in our example—is strictly dependent on the exact color and palette configuration. If the workbook’s default color palette is modified, or if a different custom shade of green is applied, the resulting index number retrieved by GET.CELL(38, ...) will change. This underscores why the preparatory test phase (determining the color code index) is indispensable and must be repeated anytime the underlying formatting standard is altered.

Secondly, it is crucial to recognize that Excel 4.0 Macro functions are classified as legacy features and do not behave identically to modern functions. Specifically, they generally do not automatically recalculate when a cell’s formatting is manually changed. They are designed to recalculate primarily when standard worksheet values change or when the sheet structure is modified.

Therefore, if you manually change a cell’s background color from white to green, the dependent formula in Column B may not update immediately. To ensure the results are current, you will need to force a full workbook recalculation. This is typically achieved by pressing the F9 key or by saving the file. Awareness of this recalculation lag is essential for maintaining data accuracy when working with formatting-dependent conditional logic.

Additional Resources for Advanced Excel Techniques

To further enhance your proficiency in advanced data manipulation and conditional logic within the platform, we recommend exploring the following tutorials and documentation.

• Understanding and applying complex nested IF statements.

• Techniques for managing custom formulas and definitions using the Name Manager.

• Guides on using array formulas for complex data evaluation in Microsoft Excel.
