Learn How to Check if a Value is Within a Range Using Excel’s IF and AND Functions

Mastering Conditional Logic for Data Range Analysis

The rigorous analysis of large datasets frequently demands the ability to test whether a specific numerical data point resides within a clearly defined range. In the powerful environment of Microsoft Excel, executing this sophisticated conditional check—for example, verifying if a value is strictly greater than a lower boundary but simultaneously less than an upper boundary—is accomplished by seamlessly integrating two fundamental logical functions: the IF function and the AND function. This strategic combination empowers users to evaluate multiple, interlocking criteria simultaneously before generating a single, definitive output. Developing a deep understanding of how to correctly nest these functions is absolutely essential for achieving advanced data validation, implementing complex business rules, and producing comprehensive, automated reports that go far beyond simple single-condition checks.

The necessity for nesting these functions arises because the standard, isolated IF statement is inherently limited to handling only one logical test at any given time. However, when the requirement is to satisfy two distinct conditions concurrently—that a value must be above a designated minimum limit AND below a designated maximum limit—we must engage the AND function. The primary role of the AND function is to conduct its own internal evaluation of multiple arguments, subsequently yielding a unified TRUE or FALSE output contingent upon whether all internal logical arguments have been met successfully. This singular output then becomes the core input for the outer IF function’s logical test argument, ultimately dictating the final result of the entire compound formula. This precise approach constitutes the industry-standard methodology for implementing both inclusive and exclusive range checks within the confines of a single, clean Excel formula structure, ensuring remarkably efficient and reliable data processing across even the most extensive datasets.

Consider a practical scenario where we need to instantly determine if the numerical value stored in cell B2 is greater than 20 but explicitly less than 30. To achieve this, we construct the following compact and computationally efficient formula. This specific structure forms the bedrock of complex spreadsheet analysis, providing an immediate and automated means of categorizing numerical data based on highly specific, user-defined thresholds. It is critical to note that the application of relational operators (> and <) mandates the non-inclusive nature of the boundary conditions; consequently, if the values 20 or 30 themselves were present in cell B2, the formula would appropriately return a “No” output, as they do not strictly satisfy the conditions.

=IF(AND(B2>20,B2<30),"Yes", "No")

This formula elegantly captures the required logic: it first rigorously verifies that the value contained in B2 satisfies both the condition of being greater than 20 and the condition of being less than 30. If, and only if, both of these individual conditions resolve to a TRUE result based on fundamental Boolean logic, the AND function itself returns TRUE, which in turn causes the outer IF function to execute the value_if_true argument, outputting “Yes.” Conversely, if either condition fails or resolves to FALSE, the AND function immediately returns FALSE, prompting the IF function to return “No.” This highly precise and structured mechanism provides a definitive answer regarding whether the cell value is located within the specified non-inclusive interval (20, 30).

Deconstructing the Nested IF(AND()) Syntax

To fully harness and appreciate the immense utility of this powerful conditional expression, it is necessary to systematically break down and analyze its individual nested components. The entire formula invariably commences with the IF function, which serves as the overarching control structure, dictating the overall flow of execution and determining the final output value. The general syntax governing the IF function is universally defined as IF(logical_test, value_if_true, value_if_false). In the context of compound range testing, the crucial logical_test argument is entirely supplanted by the AND function, which is thus solely responsible for rigorously evaluating the complex, compound condition. This particular nesting technique is considered standard, best-practice procedure when dealing with logical conditions that explicitly require the simultaneous satisfaction of two or more criteria.

The inner AND function is designed to accept multiple logical arguments, which must be separated by commas, and will only return TRUE if every single logical argument it contains evaluates positively to TRUE. Within the specific context of range testing, our two required arguments are the distinct logical tests: B2>20 and B2<30. Excel processes and evaluates these two tests completely independently. For instance, if cell B2 contains the number 25, the first test (25 > 20) evaluates to TRUE, and the second test (25 < 30) also evaluates to TRUE. Since both constituent tests are true, the AND function correctly returns TRUE to the outer IF function. Conversely, should B2 contain the number 15, the first test (15 > 20) immediately resolves to FALSE, causing the entire AND function to return FALSE instantly, regardless of the outcome of the second test (which happens to be true), thereby ensuring the absolute integrity of the conditional assessment.

Finally, the value_if_true and value_if_false arguments determine the actual output generated once the combined logical test has been definitively resolved. While we utilize the straightforward text strings “Yes” and “No” in this introductory demonstration, these arguments possess significant flexibility and can be readily substituted with much more complex calculations, references to other cells in the spreadsheet, or even other subsequent nested functions. For example, if the primary condition is met, one might instruct Microsoft Excel to calculate a specific financial bonus amount; if the condition is not met, the formula might instead return a specific, predefined error code or a zero value. It is vital to adhere to standard Excel syntax rules, which dictate that any text string used in these output arguments must be securely enclosed in double quotation marks, whereas numerical results or calculations should stand without quotes, ensuring correct interpretation of data types and robust formula construction.

Practical Application: Setting Up the Data Test

To effectively illustrate the practical, real-world utility of this powerful formula, let us apply it to a relatable dataset concerning the performance metrics of basketball players. Imagine we have meticulously compiled a list detailing various teams and the individual number of points scored by each player. Our immediate objective is to rapidly identify and classify those players who have achieved a moderately successful scoring range—specifically, those whose scores are strictly greater than 20 points but strictly fewer than 30 points, thereby excluding the boundary values themselves. This type of targeted classification is exceedingly common and critical in fields such as sports analysis, financial risk modeling, quality control, and inventory management, where individual data points must be reliably categorized based on precisely defined performance tiers.

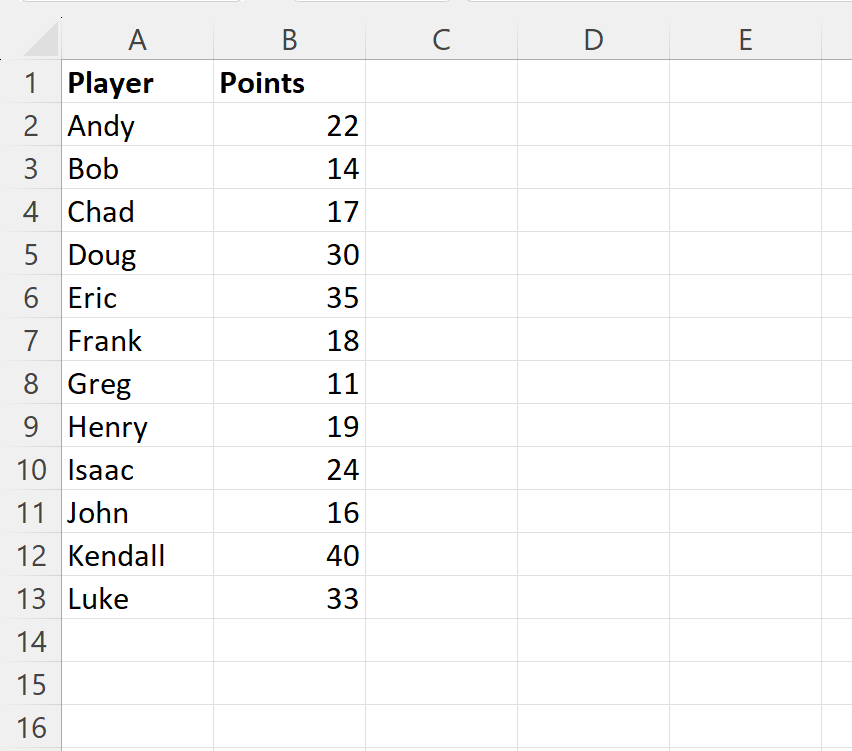

The hypothetical dataset is structured clearly with Player Names located in Column A, the raw Points Scored data situated in Column B, and an empty column, Column C, designated to display our resulting classifications. This organizational setup facilitates a clear, immediate, side-by-side comparison between the raw input data and the resulting conditional categorization produced by the formula. Prior to the application of any formula, visualizing the data structure is a crucial preparatory step for ensuring accurate cell referencing and confirming that the formula is correctly applied to the appropriate input column. The initial dataset is structured as follows, awaiting the introduction of our logical range test.

Our specific operational goal is to populate Column C with either a “Yes” or a “No” indicator, based entirely on the criteria that the value found in the Points Scored column (Column B) must be greater than 20 and concurrently less than 30. This process begins by entering the complete formula into the first data row, typically row 2, and then efficiently replicating that formula down the entire length of the results column. By leveraging the principle of relative cell referencing—where the initial reference to B2 automatically and sequentially adjusts to B3, B4, and so on as the formula is copied downwards—we guarantee that every single player’s score is accurately tested against the fixed, constant boundaries (20 and 30) without requiring any manual intervention or adjustment for each individual row within the dataset.

Implementing and Scaling the Conditional Formula

To commence the evaluation process, we must accurately input the complete IF(AND()) formula into the designated starting cell of our results column, which is cell C2. This specific cell will execute the logical test exclusively for the data point located immediately adjacent to it in B2. Absolute precision in typing the formula’s syntax is paramount: ensuring that all parentheses are correctly balanced, and critically, that the relational operators are used appropriately to define the desired boundaries. Given our requirement for the comparison to be strictly greater than 20 and strictly less than 30, the use of the non-inclusive > and < operators is essential. Should the requirement change to include the boundaries (e.g., greater than or equal to 20), we would necessarily swap the operators for >= and <=, which would fundamentally alter the definition of the acceptance range.

The exact formula, which must be typed into cell C2, is restated here for unequivocal clarity, emphasizing the crucial role of cell B2 as the single input variable being tested against the two constant boundary values, 20 and 30. This formula effectively serves as a robust template that can be easily adapted for virtually any range-bound conditional assessment simply by modifying the input cell reference (B2) and adjusting the boundary constants (20 and 30) to meet new analytical needs.

=IF(AND(B2>20,B2<30),"Yes", "No")

Once the formula has been correctly entered into C2, the subsequent step involves rapidly applying this logical structure to the remaining entries in the dataset. This efficient scaling is accomplished by utilizing the fill handle—the small, distinct square positioned at the bottom right corner of the selected cell. By clicking and dragging this handle down Column C, Microsoft Excel automatically and intelligently adjusts the relative cell references in each new row. Specifically, the formula in C3 will correctly check B3, the formula in C4 will check B4, and so forth, continuing down the entire column. This automatic functionality represents one of the most powerful and time-saving features of spreadsheet software, enabling the instantaneous scaling of complex, multi-layered calculations across potentially thousands of rows of data, drastically reducing the time required compared to tedious manual entry or adjustment.

Interpreting Results and Defining Boundary Conditions

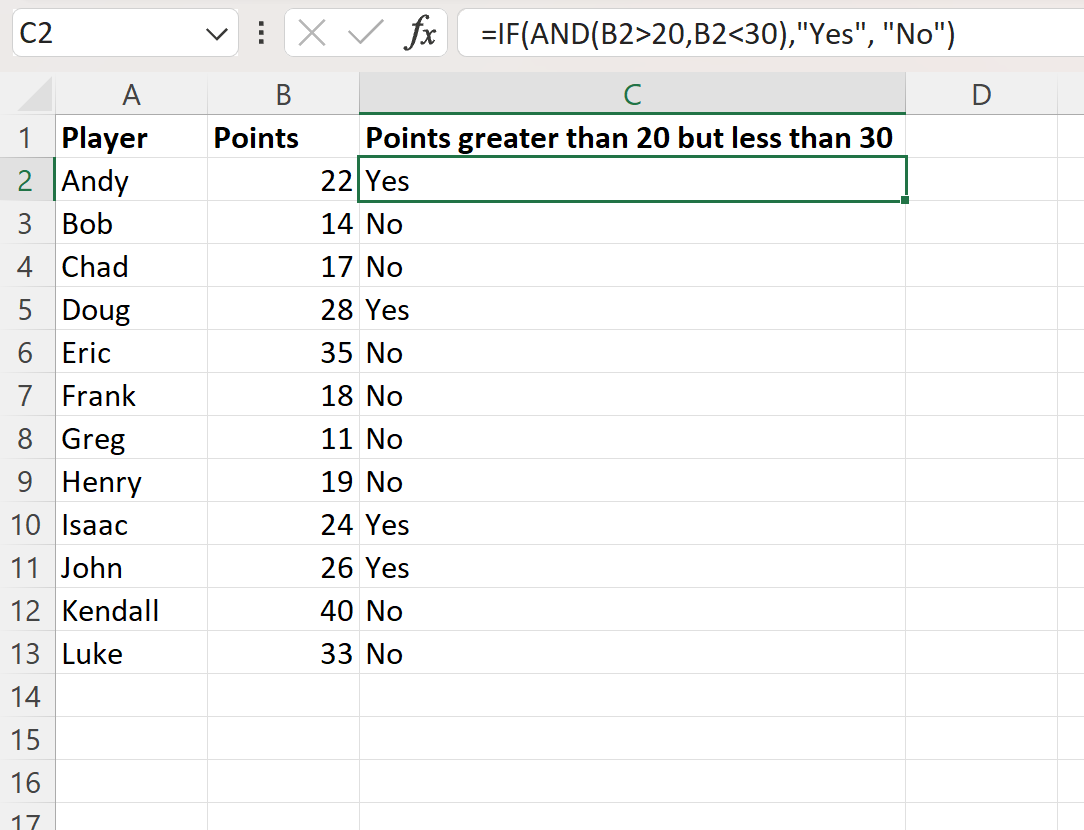

Following the successful deployment of the formula down the entire column, Column C is immediately populated with binary results, providing an instant, clear visual audit of exactly which players meet the stringent scoring criteria. This transformation is visually confirmed in the resulting dataset image, which clearly demonstrates the classification based on the applied IF(AND()) logic. The capacity to rapidly generate such categorical flags is invaluable for subsequent data manipulation, including filtering, sorting, and statistical analysis, enabling analysts to quickly isolate specific subsets of data that strictly adhere to complex performance criteria defined by the nested logical test.

A close examination of specific examples drawn from the generated results unequivocally confirms the formula’s accuracy and its rigid adherence to the specified, non-inclusive boundary conditions:

• The value 22 is tested: 22 > 20 (TRUE) AND 22 < 30 (TRUE). Since both conditions are true, the AND function is true, and the formula correctly returns Yes.
• The value 14 is tested: 14 > 20 (FALSE). The AND function fails immediately upon encountering the first false condition, so the formula returns No.
• The value 30 is tested (if it were present in the data): 30 > 20 (TRUE) AND 30 < 30 (FALSE). Since the second condition is false, the formula returns No, strictly upholding the non-inclusive nature of the upper boundary defined by the operator <.

It is important to emphasize once more that the specific output values, such as “Yes” and “No,” are entirely customizable based on analytical needs. For example, if this analysis were part of a financial audit, one might prefer to return text strings like “Flagged” and “OK,” or perhaps return numerical values such as 1 for true and 0 for false. Utilizing numerical outputs is particularly advantageous if the results column is intended to be used later for aggregation or subsequent calculations. This inherent flexibility to define the value_if_true and value_if_false outputs makes the IF function supremely adaptable to virtually any reporting or categorization requirement, solidifying its status as a core, indispensable component of advanced Excel usage.

Addressing Edge Cases and Advanced Alternatives

While the IF(AND()) structure serves as the definitive, canonical method for most basic conditional range testing, users must remain highly mindful of critical edge cases, particularly regarding the precise handling of boundary values and unexpected data types like text inputs. As clearly demonstrated, employing the strict relational operators > and < strictly excludes the boundary numbers (20 and 30) from the acceptance range. If the analytical requirement were to explicitly include these boundaries, the syntax must be carefully adjusted to =IF(AND(B2>=20, B2<=30), "Yes", "No"). Misunderstanding the appropriate choice of relational operators for the required level of inclusion or exclusion (i.e., exclusive vs. inclusive) is a remarkably common source of error in complex spreadsheet modeling, which can lead to the serious misclassification of critical data points that fall precisely on the threshold.

Furthermore, for analytical scenarios that involve multiple possible outcomes based on a cascading series of ranges (e.g., grading scales), the simple binary IF(AND()) structure quickly becomes inadequate, necessitating the deployment of the modern IFS function (available in newer versions of Excel) or multiple, sequentially nested IF statements. For example, if the goal was to categorize scores as “Low” (less than 20), “Medium” (between 20 and 30 inclusive), or “High” (greater than 30), a single IF(AND()) formula would be insufficient. Instead, one would chain multiple IF statements together, where the value_if_false argument of one IF function contains the logical test for the next category. This cascading approach, though syntactically more challenging to write and read, allows for a comprehensive, sequential evaluation of all possible ranges until a condition is finally met, enabling robust categorical assignment based on complex, multi-tiered criteria.

A final, important consideration involves performance optimization when working with extremely large datasets containing hundreds of thousands or millions of rows. Although the IF(AND()) function is generally considered computationally inexpensive, replicating it across massive ranges can still noticeably impact spreadsheet calculation time. In situations demanding maximum efficiency, especially when the classification criteria are completely fixed, advanced users might opt to explore alternatives such as utilizing specialized array formulas or leveraging Excel’s built-in data validation tools. While these advanced methods often require sacrificing some degree of formula flexibility in exchange for raw speed, for the vast majority of standard business intelligence and data processing tasks, the superior clarity, readability, and reliability of the nested IF(AND()) formula make it the preferred and most trusted solution for conditional range checks in professional analysis.

Conclusion: The Power of Nested Logical Functions

The technique of deliberately nesting the IF function with the AND function represents the definitive and most robust methodology for conducting non-inclusive range tests within Microsoft Excel. This foundational approach ensures that a target numerical value rigorously satisfies two simultaneous logical requirements—a non-negotiable prerequisite for accurately classifying data points that must fall within a specific operational or performance band. By correctly defining both the lower and upper bounds within the inner AND function, data analysts can achieve remarkably precise conditional categorization, thereby streamlining complex data review and auditing processes significantly.

Key instructional takeaways regarding the successful application of this methodology include understanding the critical role of Boolean logic in determining the final output, recognizing the paramount importance of selecting the correct relational operators (e.g., > versus >=) based on whether the boundaries must be included, and appreciating the ease with which the formula can be scaled across massive datasets using efficient relative cell referencing. Mastery of this fundamental nesting technique acts as a gateway, opening the door to the creation of sophisticated, automated spreadsheets capable of handling complex decision-making processes embedded directly within the data structure itself.

For users committed to broadening their skills in conditional analysis, exploring the complementary logical functions, such as OR (used for situations where at least one condition, but not necessarily all, must be met) and NOT (used for negating a logical result), provides crucial additional flexibility. These specialized tools, when combined with the foundational knowledge of the IF(AND()) structure, form the essential bedrock of complex logical modeling necessary for performing advanced data analysis, validation, and reporting within any professional Excel environment.
