Learning to Limit Values in Excel Formulas Using the MIN Function

Understanding the Need for Maximum Constraints in Excel

In data analysis and financial modeling, it is often necessary to impose strict limits or constraints on the results of a calculation. Whether you are managing budgets, calculating commissions that cannot exceed a defined cap, or dealing with grading systems where the total score is limited, the ability to specify the maximum value not to exceed is a critical skill. Standard arithmetic functions like the SUM function will always return the true aggregated total, but we frequently require a formula to automatically adjust and cap that total when it surpasses a specific threshold.

The most efficient and elegant method for achieving this constraint in Excel involves leveraging the built-in MIN function. The concept is simple yet powerful: by comparing the calculated result against a predetermined maximum limit, the formula ensures that the output is always the smaller of the two values. This technique provides a robust mechanism for enforcing business rules directly within your spreadsheet models, guaranteeing compliance with established limits without manual intervention.

We can use the following fundamental structure in Excel to specify the absolute maximum value that can be returned by any formula or calculation:

=MIN(300,(SUM(B2:D2)))

This particular formula calculates the sum of values found within the range B2:D2. However, if the resulting sum is greater than the specified limit of 300, the formula immediately truncates the result, returning only 300. This simple combination of functions is highly versatile and forms the basis for many advanced conditional calculations in spreadsheet management.

Deconstructing the Formula for Capping Values

To fully appreciate the efficiency of this method, it is essential to understand how the components interact. The formula =MIN(300, (SUM(B2:D2))) relies on two core elements: the limiting constant and the dynamic calculation. This approach effectively creates a numerical ceiling for the calculation result.

The MIN function, short for minimum, accepts multiple arguments and returns the smallest numerical value among them. In our construction, the syntax is MIN(Argument1, Argument2).

• Argument 1 (The Cap): This is the fixed value, 300, representing the ceiling or maximum allowable result. This value acts as the immutable constraint.
• Argument 2 (The Calculation): This is the result of the underlying calculation we wish to cap, in this case, (SUM(B2:D2)). This calculation provides the actual, uncapped total.

The MIN function automatically compares these two arguments: the fixed cap (300) and the variable sum. If the sum is 350, the function returns the minimum of (300, 350), which is 300. If the sum is 250, the function returns the minimum of (300, 250), which is 250. This guarantees that the final output never exceeds the predetermined maximum value, thereby enforcing the necessary constraint programmatically and efficiently.

Step-by-Step Example: Implementing a Score Ceiling

Let us apply this powerful technique using a practical scenario, such as calculating total student scores where the maximum possible score across all exams is capped at 300, regardless of the raw total achieved. Suppose we have the following dataset in Excel, containing individual exam scores for various students in a class. The objective is to calculate the total score for each student while ensuring the result does not surpass the ceiling of 300.

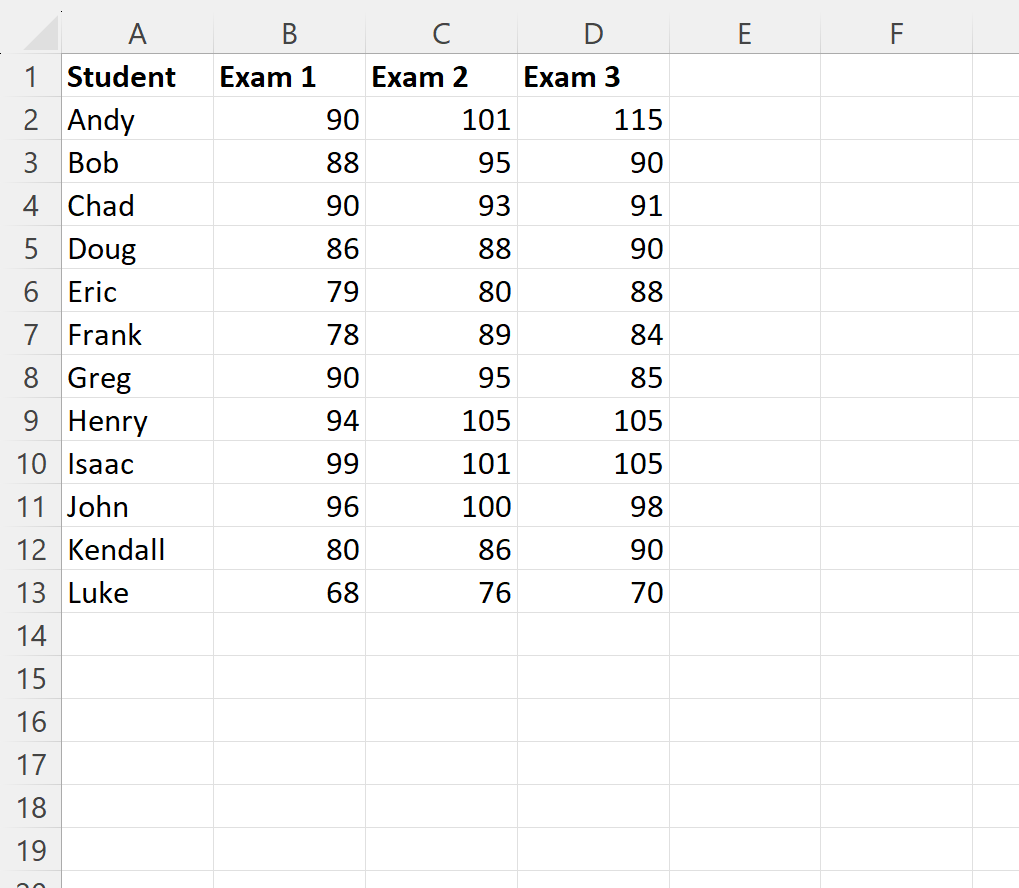

The dataset structure appears as follows, detailing scores across three different exams (Exam 1, Exam 2, and Exam 3). We will input our capping formula into Column E (Total Score).

To implement the ceiling, we type the following formula into cell E2, corresponding to the row for the first student, Andy:

=MIN(300,(SUM(B2:D2)))

Once entered, we can then click and drag this formula down to apply it to every remaining cell in column E, quickly calculating the capped total scores for all students in the dataset. This action automatically adjusts the cell references (B2:D2 becomes B3:D3, B4:D4, and so on) while keeping the cap value (300) constant across all rows using relative referencing for the range and absolute referencing (implicitly) for the constant.

Analyzing Output Scenarios and Edge Cases

The resulting totals in Column E clearly demonstrate the effectiveness of the combined MIN function and SUM function approach. The formula intelligently decides whether to return the raw calculated score or the imposed maximum limit based on a simple comparison.

Let us examine the calculation for each student:

• The sum for Andy (Row 2) is 90 + 101 + 115 = 306. Since 306 is greater than the cap of 300, the MIN function compares (300, 306) and returns the minimum, which is 300.
• The sum for Bob (Row 3) is 88 + 95 + 90 = 273. Since 273 is less than the cap of 300, the MIN function compares (300, 273) and returns the minimum, which is 273.
• The sum for Chad (Row 4) is 90 + 93 + 91 = 274. Since 274 is less than the cap of 300, the MIN function compares (300, 274) and returns the minimum, which is 274.

This methodology is highly robust. It ensures that every cell in the ‘Total Score’ column either returns the actual, lower sum of the exam scores or the value 300 if the sum is greater than the ceiling. This mechanism is crucial for maintaining integrity when external rules dictate a hard upper limit on calculated results. It also handles various edge cases, such as dealing with negative numbers (if they were present in the source data) or extremely large datasets, always prioritizing the lower value between the cap and the calculation result.

Alternative Techniques: Using the IF Function

While the MIN function provides the most concise and often preferred method for setting a hard maximum, it is valuable to understand alternative approaches, particularly the use of conditional logic via the IF function. The IF function allows for explicit testing of a condition and returns different results based on whether that condition evaluates to true or false.

The equivalent logic implemented using the IF function would look like this, assuming we are calculating the sum of B2:D2 and capping it at 300:

=IF(SUM(B2:D2)>300, 300, SUM(B2:D2))

In this structure, the formula first calculates the sum. If the sum is greater than 300 (the condition is TRUE), it returns 300. If the sum is 300 or less (the condition is FALSE), it returns the raw SUM(B2:D2) result. While functionally identical to the MIN method, the IF approach requires calculating the SUM function twice, potentially making it slightly less efficient and certainly less readable than the straightforward MIN(Cap, Calculation) structure. For simple capping requirements, the MIN function is overwhelmingly preferred due to its elegance and reduced complexity.

It is also important to note the distinction between setting a maximum value (a ceiling constraint) and the mathematical Ceiling function. While the term “ceiling” is often used colloquially to describe the limit, Excel also has dedicated functions (like CEILING.MATH or CEILING) that round a number up to the nearest multiple of significance. Our technique, using the MIN function, is strictly about enforcing a hard numerical limit rather than rounding the output.

Summary and Further Excel Resources

The method of combining the calculated result within the MIN function provides a robust, clean, and highly effective way to ensure that the output of any formula never exceeds a specified maximum value. This technique is indispensable for financial modeling, grading systems, and regulatory compliance where upper limits must be strictly adhered to. The foundational principle—always returning the smaller of the cap or the calculation—guarantees accuracy and adherence to necessary constraints.

By mastering simple function combinations like this, users can significantly enhance the sophistication and reliability of their spreadsheet models in Excel. We encourage you to practice implementing this technique across various datasets to solidify your understanding of maximum value constraints.
