How to Use Excel Conditional Formatting to Find Values Not in a List

In the expansive domain of data management and analysis, upholding data integrity is a foundational requirement. A frequent and critical challenge encountered by users of Excel involves systematically identifying discrepancies between two separate lists or datasets. Specifically, advanced users often need a dynamic method to visually flag any value in a primary list that fails to appear within a designated, authorized, or reference list.

This validation process is indispensable for tasks such as quality assurance, inventory reconciliation, compliance checks, and overall data cleansing initiatives. Attempting to manually scan large volumes of data for missing items is exceptionally inefficient and highly prone to human error. Fortunately, Excel provides a sophisticated yet accessible solution through its robust built-in features, primarily the New Rule functionality nested within Conditional Formatting. This comprehensive guide will walk you through the precise, step-by-step methodology required to implement this powerful validation technique effectively.

We will employ a practical, real-world example to illustrate the exact custom Formula needed and detail the configuration steps necessary to achieve instant, automated visual feedback. By mastering this technique, you significantly enhance your data analysis capabilities, enabling the rapid isolation of outliers, unauthorized entries, or critical omissions within your primary dataset.

Understanding the Necessity of Conditional List Validation

The requirement for conditional list validation emerges whenever dataset compliance depends on adherence to a finite, specific set of known or approved values. Consider a common administrative situation: you maintain a master roster containing all current personnel, alongside a secondary, authorized list of those employees who have successfully completed mandatory annual training. The immediate identification of personnel on the master list who are absent from the authorized training list is a critical operational task.

Traditional data comparison approaches, such as complex nested functions or manual side-by-side reviews, often demand the creation of auxiliary columns or involve tedious, time-consuming checks that must be repeated regularly. By contrast, leveraging Conditional Formatting allows us to apply a specific visual cue—such as a distinctive background color—directly to the cell that fails the validation test. This immediate highlighting directs the user’s attention precisely to the data points that require correction, review, or administrative action.

The fundamental principle underpinning this technique is the establishment of a logical test that returns a TRUE result exclusively when a value in the checked list cannot be located within the reference list. This mechanism transforms data cleanup from a reactive, manual effort into a proactive, automated data integrity verification system. This automation is particularly invaluable when working with data streams that are frequently updated or modified, as the conditional rule evaluates new entries against the fixed reference list instantly, ensuring ongoing compliance without manual intervention. This prerequisite knowledge prepares us for selecting the appropriate Excel function necessary to perform the required lookup and comparison across the defined ranges.

Structuring Your Data Environment for Discrepancy Checks

To provide a clear, practical demonstration of this technique, we will utilize a scenario involving two distinct lists of sports teams. Our primary objective is to evaluate every entry in the comprehensive “All Teams” list against the smaller, approved “Good Teams” list. Any team name present in the “All Teams” column that is conspicuously absent from the “Good Teams” column must be visually highlighted for immediate review and reconciliation.

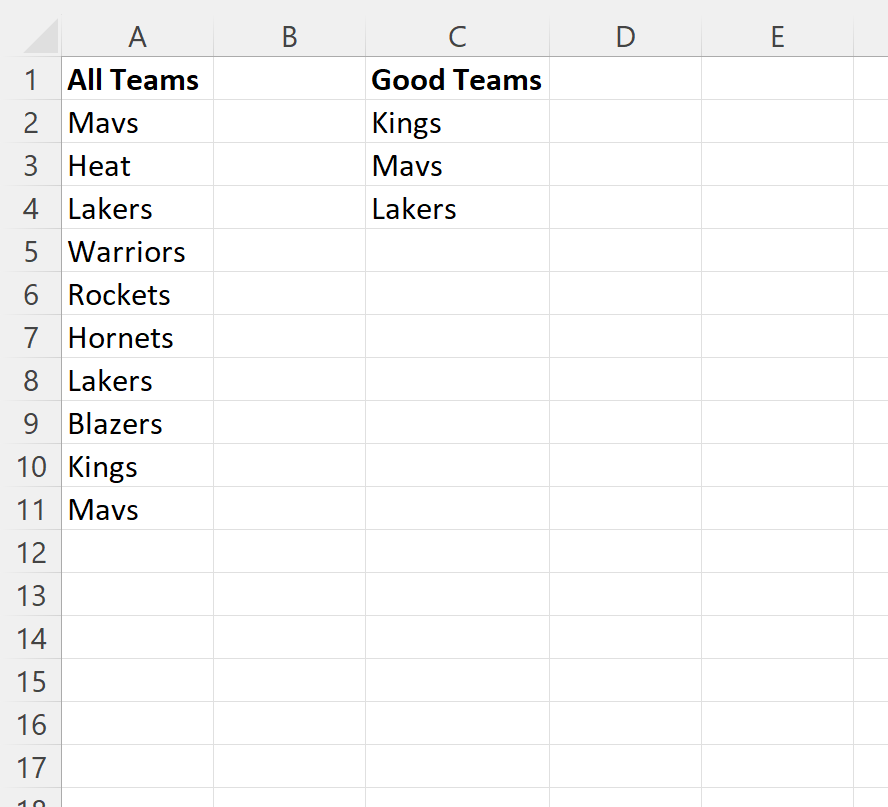

For this example, assume we have the following two lists of teams organized within Excel, placed in columns A and C, respectively:

The list designated All Teams spans the range from A2 through A11, representing the data we need to validate. Conversely, the authoritative reference list, Good Teams, occupies the range C2 through C6. Our ultimate goal is to apply highlighting to every cell within the All Teams list (A2:A11) whose contents do not exist within the fixed reference range C2:C6. Achieving this setup mandates the careful selection of the target range first, followed by the precise creation of the conditional rule, ensuring the Formula is correctly configured relative to the first cell of the chosen selection.

Leveraging the COUNTIF Function for Logic Testing

The key functional component required to successfully execute this complex validation is the selection of an Excel function capable of counting occurrences across a specified range. The most suitable tool for this purpose is the COUNTIF function. The structure of COUNTIF enables us to define a fixed range (the reference list) and a criterion (the value from the cell currently being checked), returning the total number of times that criterion appears in the reference range.

If an entry from the All Teams list successfully appears in the Good Teams list, the COUNTIF function will yield a value of 1 or higher. Conversely, if the entry is decisively not present in the reference list, the COUNTIF result will be 0. This zero result is the critical trigger upon which our conditional logic is based. By constructing a Formula that specifically tests whether the COUNTIF output equals zero, we create the perfect logical condition for Conditional Formatting: if the result is 0 (evaluating to TRUE), the formatting is applied; otherwise (FALSE), the cell remains visually unchanged.

The practical application of this rule requires a deliberate sequence of actions within the user interface. First, the entire range intended for checking (A2:A11) must be selected. Following this, accessing the Conditional Formatting manager allows the definition of a custom rule that relies on a formula. This sophisticated method provides the maximum possible flexibility, enabling complex logical evaluations that far exceed the scope of simple, predefined formatting rules like “Text Contains” or “Duplicate Values.”

Detailed Implementation Steps for the Conditional Rule

To successfully implement this validation technique, follow these precise steps, ensuring that the correct target range is selected before you proceed to the rule definition dialogue:

1. Select the Target Range: Carefully highlight the entire cell range that you intend to conditionally format. In our illustrative example, this range is A2:A11, which encompasses the complete All Teams list.

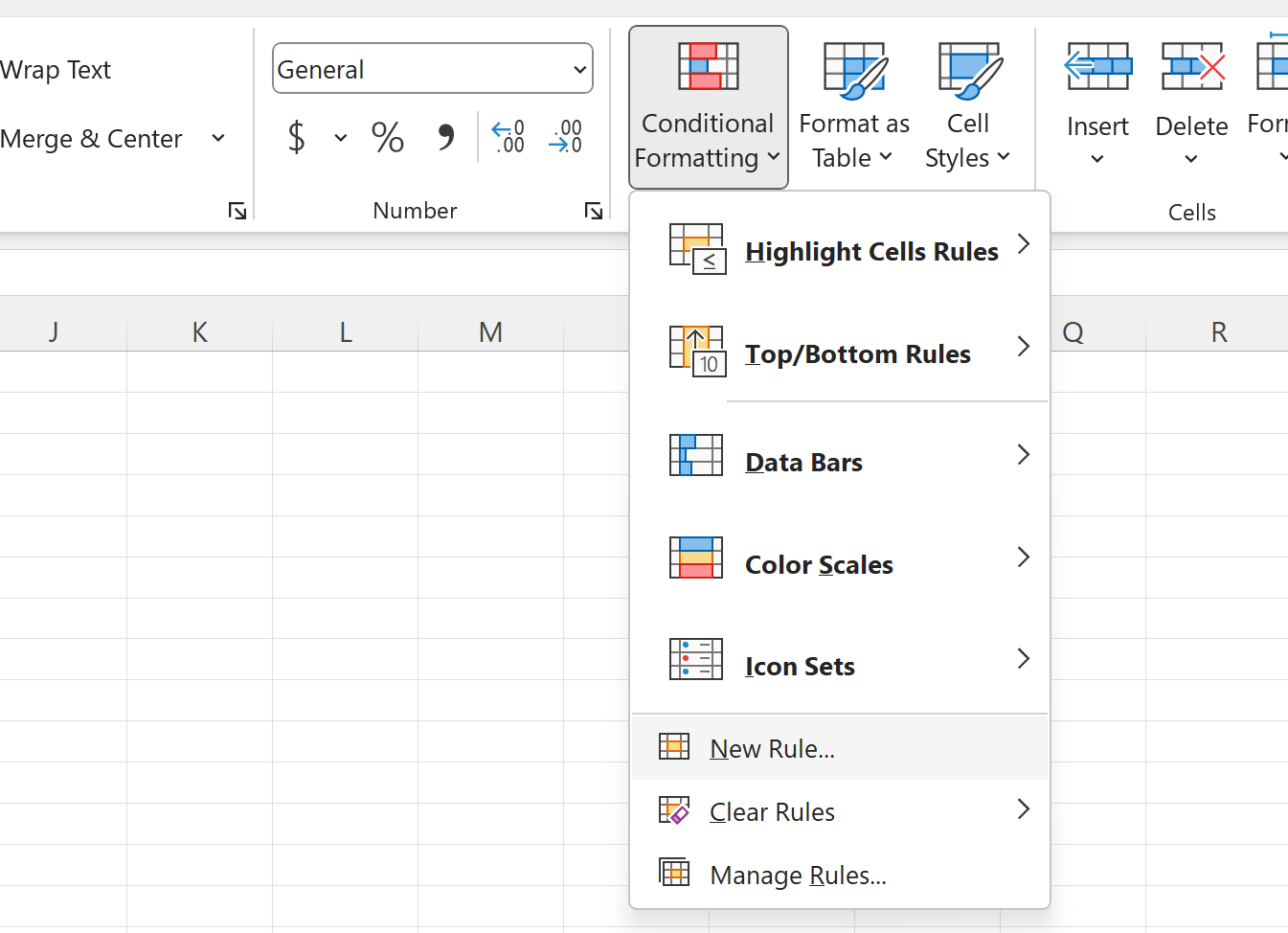

2. Access Conditional Formatting: Navigate to the Home tab located on the Excel ribbon. Find and click the Conditional Formatting icon. From the resulting dropdown menu, select the option labeled New Rule.

3. Choose Formula Type: Within the “New Formatting Rule” dialogue box that appears, click the option titled Use a formula to determine which cells to format. This specific selection will reveal a text input box where the core validation logic must be entered.

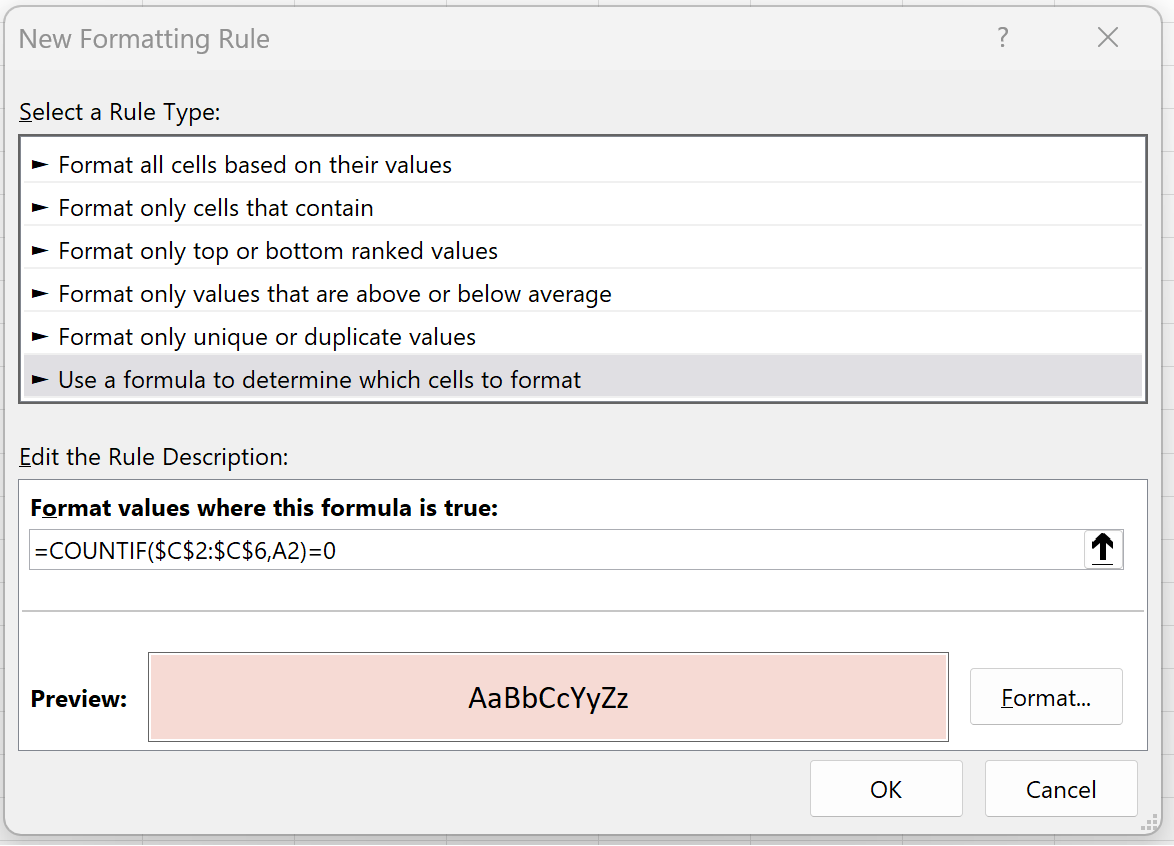

4. Enter the Validation Formula: In the designated text box, accurately type the following Formula. It is essential to include the dollar signs ($) to ensure the reference list remains fixed—a concept known as Absolute Reference—while allowing the cell being checked (A2) to remain relative:

=COUNTIF($C$2:$C$6,A2)=0

This formula operates by checking if the value currently in cell A2 exists anywhere within the fixed range C2:C6. The application of Absolute Reference to C2:C6 ensures that as the Conditional Formatting rule evaluates cells A3, A4, and subsequent cells, it consistently refers back to the fixed range C2:C6. Conversely, the absence of dollar signs on A2 permits the reference to automatically shift down (A3, A4, etc.) as the rule is iteratively applied across the entire selected target range A2:A11.

5. Define the Format: Click the Format button to precisely define the visual style that will be applied to cells satisfying the condition (i.e., those not present in the reference list). You have the flexibility to select font styles, borders, or, most typically for visibility, a distinct fill color. For clear identification of missing teams, we recommend selecting a light red background fill.

6. Apply the Rule: Conclude the process by clicking OK in the Format Cells dialogue box, and then clicking OK once more in the New Formatting Rule dialogue box to successfully apply the newly created rule to your selected range.

Deconstructing the Validation Formula Logic

A thorough understanding of the logic embedded within the formula =COUNTIF($C$2:$C$6,A2)=0 is crucial for accurate troubleshooting and future adaptation of this powerful technique across varying datasets. This single, concise line of logic executes a highly efficient, two-stage validation process within the Excel computation engine.

The initial and primary component, COUNTIF($C$2:$C$6,A2), functions as the counting and lookup mechanism. It explicitly commands Excel to search the absolute range of the Good Teams list (C2:C6) and tally the number of times the value currently under evaluation in the All Teams list (A2) makes an appearance. As previously established, the use of dollar signs ensures that this reference range remains fixed, regardless of which cell within A2:A11 is currently being checked by the rule.

The second, and arguably most crucial, component is the logical comparison: =0. This operator converts the numerical output generated by the COUNTIF function into a Boolean value (TRUE or FALSE). If the count returned is zero, it definitively signifies that the value in A2 was absent from the reference list, causing the entire logical statement to evaluate to TRUE. Since Conditional Formatting applies the defined format only when the formula result is TRUE, only those values that are entirely missing from the reference list will satisfy this condition and receive the visual highlighting.

For comparison, if the Formula were written as =COUNTIF($C$2:$C$6,A2)>0, the formatting would instead highlight all cells that are successfully present in the list, clearly demonstrating the inherent flexibility of this logical approach. By strategically focusing the condition on the zero count, we successfully isolate the missing or unauthorized entries, thereby accomplishing our core objective of highlighting critical data disparities.

Analyzing Results and Expanding Application

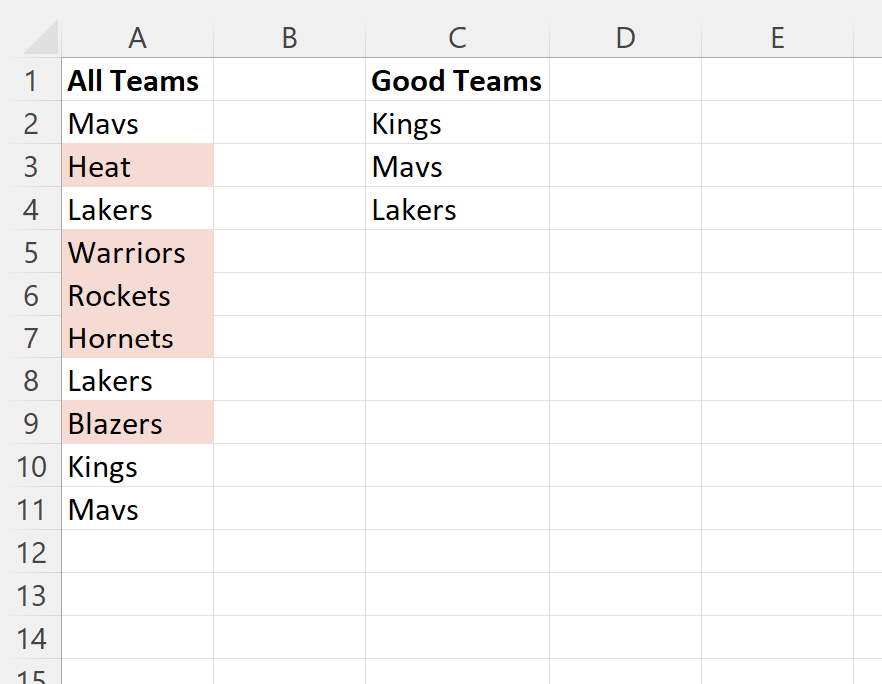

Immediately after clicking OK, the conditional rule processes the entire range A2:A11 against the reference list C2:C6. Every cell in the All Teams list that lacks a corresponding entry in the Good Teams list will be automatically highlighted using the chosen light red color, providing instantaneous, unambiguous feedback regarding data integrity issues:

This clear visual representation immediately flags the teams that are missing from the authorized list. Importantly, this technique exhibits high adaptability; if, for instance, your goal was to verify that a list of product IDs contained only entries found in a master inventory sheet, you would apply this identical logical structure, simply adjusting the ranges to correspond with your specific data configuration. Furthermore, this method is fully dynamic. Should you add a new team name to the Good Teams list (C2:C6) that was previously highlighted in red, the conditional formatting automatically recalculates and removes the highlight, confirming the team’s newly authorized status without requiring any manual refreshing or intervention.

The capacity to instantly validate data against a fixed master list represents an exceptionally powerful feature for maintaining data cleanliness, consistency, and compliance across complex, large-scale spreadsheets. This method minimizes the reliance on complex array functions or VBA scripting, offering a robust, non-volatile, and easily managed solution accessible directly through the standard Excel user interface.
