How to Identify and Highlight Duplicate Values Across Multiple Excel Sheets

Identifying and highlighting specific data points is absolutely fundamental to effective data analysis and visualization. When working with complex workbooks, the task of locating duplicate values that span across separate worksheets can seem daunting, yet it is often a critical requirement for data reconciliation and auditing. Fortunately, Excel provides a sophisticated, formula-driven mechanism to achieve this crucial cross-sheet comparison. This technique relies on the powerful synergy between Conditional Formatting and specific logical functions, enabling analysts to instantly flag entries in a primary dataset that match data residing in a reference sheet, ensuring data integrity is maintained effortlessly.

To successfully implement this technique, users must utilize the New Rule option found within the Conditional Formatting dropdown menu, which is conveniently located on the Home tab of the Excel Ribbon. While Excel’s native features excel at handling duplicates within a single range, a cross-sheet lookup demands the use of advanced logical functions. We specifically leverage the combination of MATCH and ISNUMBER to construct a dynamic rule capable of querying an external sheet. This comprehensive guide will walk you through the implementation of this solution, ensuring your primary data sheet instantaneously reflects matches found in your secondary reference sheet, thereby significantly streamlining your data auditing and cleaning processes.

Mastering this specific application of conditional logic is indispensable for professionals managing complex, multi-tab workbooks, such as those used for financial reconciliation, inventory tracking, or large-scale survey data analysis. The immediate visual feedback generated by highlighting these duplicates eliminates countless hours that would otherwise be dedicated to manual list comparisons. The core principle is that the conditional formatting rule, defined by a custom formula, evaluates every cell in the applied range independently. If the cell’s value returns a “True” status upon lookup across the external sheet, the specified format is applied, offering immediate clarity regarding data overlap and discrepancies.

The following sections detail the exact formula construction and provide a meticulous, step-by-step procedure required to implement this advanced technique. We will use a practical, real-world example involving sports data to clearly illustrate the concept of dynamically comparing two disparate lists within a single workbook.

Understanding the Core Challenge: Data Setup and Goal Definition

To effectively demonstrate the process of cross-sheet duplicate highlighting, we must first establish a clear and practical scenario involving two distinct sheets within an Excel workbook. We will designate our primary sheet, where highlighting will occur, as all, and our secondary reference sheet, containing the values we wish to check against, as playoffs. Our objective is straightforward: to visually flag every single entry in the all sheet that has an exact counterpart within the playoffs sheet. This configuration perfectly models numerous common business requirements, such as validating a master vendor list against a record of recently paid invoices, or checking product inventory against current sales orders.

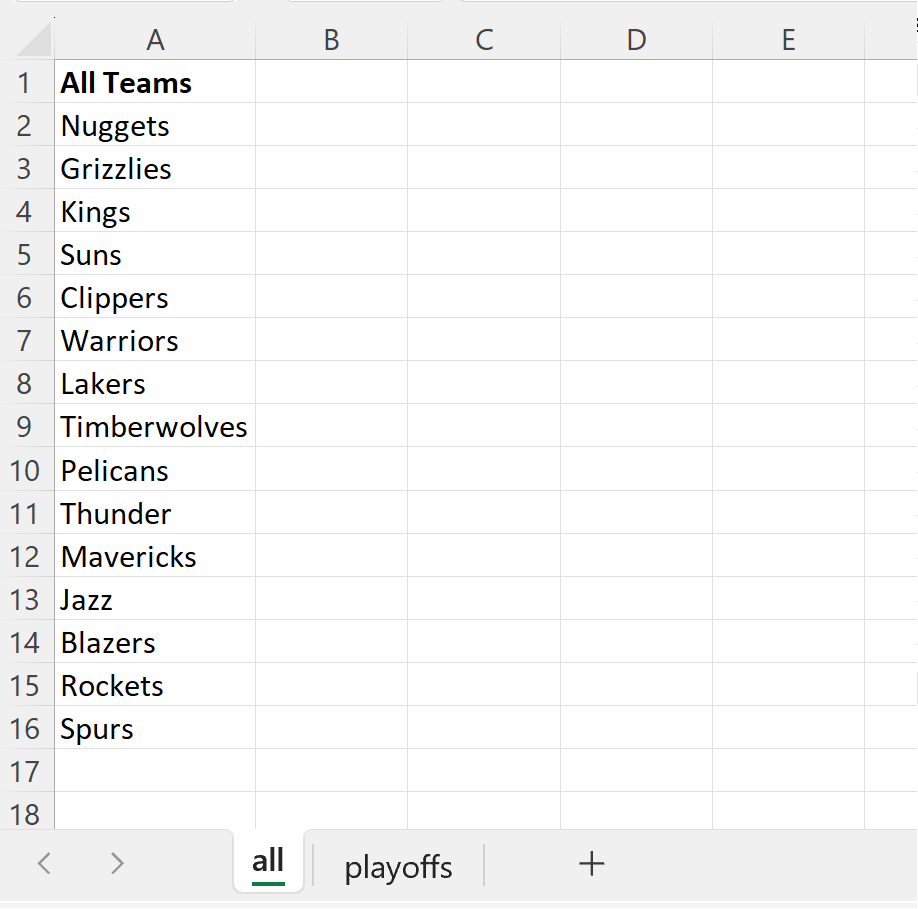

Consider the sheet named all as containing the complete, comprehensive list of all teams belonging to the Western Conference of the NBA. This list represents our full universe of possible data entries. Conversely, the sheet named playoffs holds a smaller, filtered subset—specifically, only those teams from the Western Conference that successfully advanced beyond the regular season. Although both lists contain team names, only the teams that appear in the playoffs sheet are considered “duplicates” in the context of our desired highlighting operation when viewed from the perspective of the all sheet. This distinction is crucial for understanding the logic flow.

The crucial requirement in this challenge is ensuring the highlighting mechanism operates dynamically. If the team list in the playoffs sheet were to be updated, the formatting in the all sheet must immediately reflect those changes without any manual intervention from the user. This necessity dictates the use of a formula-based rule within the Conditional Formatting feature, as standard duplicate-finding tools are strictly limited to evaluating data within the current sheet or selected range. Our goal is not merely to find intrinsic duplicates within the all sheet itself, but rather to identify values in all that are equivalent to values residing in the external playoffs sheet.

The Mechanism: Leveraging Conditional Formatting and Formulas

The entire architecture for this cross-sheet comparison is housed within the Conditional Formatting New Rule dialogue box. This versatile interface empowers users to define a custom formula that must return a definitive boolean value—either True or False—for every individual cell in the selected range. If the formula evaluates to True for a specific cell, the formatting specifications are applied; conversely, if it evaluates to False, the cell remains visually unchanged. For complex lookup tasks that span different worksheets, the industry-standard approach leverages the combined efficiency and reliability of the MATCH and ISNUMBER functions.

To initiate the process, the user must first meticulously select the target range in the primary sheet (all) where the visual highlighting is intended to appear. Following our example, this is the range A2:A16, which contains the list of all Western Conference team names. Once this range is highlighted, the user must navigate the following sequence on the Excel Ribbon: Home tab > Conditional Formatting > New Rule. This opens the essential interface required to define the custom condition.

The subsequent precise step involves selecting the option: Use a formula to determine which cells to format. This action transitions the interface away from simpler, predefined rules (such as “Greater Than” or “Date Occurring”) toward a blank input field, allowing the entry of complex lookup logic. It is absolutely crucial at this juncture to ensure the formula references the first cell of the selected range (in this case, A2) using a relative reference. This ensures that as Excel applies the rule across the entire selection, it automatically adjusts the row reference (checking A3, A4, A5, and so on) for each corresponding team name.

The custom formula employed must be meticulously structured to efficiently perform the lookup operation across the secondary sheet. After defining this critical condition, the user finalizes the rule by selecting the desired visual formatting—such as a specific fill color, a distinct font style, or a bold border—by clicking the Format button. This step ensures that whenever the formula successfully returns a positive match, the data element stands out clearly, thereby fulfilling the initial requirement for immediate, visual data identification.

Deconstructing the Formula: ISNUMBER and MATCH Explained

The operational core of this powerful conditional formatting solution is encapsulated in the formula: =ISNUMBER(MATCH(A2, playoffs!A:A, 0)). Although this formula appears complex, it represents an extremely elegant and highly efficient method for verifying the existence of a value from one sheet within a list defined on another. Grasping the mechanism requires understanding how the inner function executes before the outer function processes its result.

The inner function, the MATCH function, is specifically designed to search for a specified item within a given range of cells and subsequently return the relative position (index) of that item within that range. The standard syntax is MATCH(lookup_value, lookup_array, match_type). In our scenario, A2 serves as the lookup_value—the team name from the current sheet that we are verifying. playoffs!A:A defines the lookup_array, instructing Excel to search the entirety of Column A on the sheet specifically named “playoffs.” The final argument, 0, is paramount as it mandates an exact match requirement, ensuring precision in the comparison.

If the MATCH function successfully locates the value from cell A2 within the playoffs list, it returns a numerical value corresponding to its position (e.g., 1, 3, 10). However, if the value is absent from the reference list, the MATCH function returns the standard #N/A error value. Since conditional formatting rules strictly demand a clear True or False output, we cannot solely rely on the MATCH function, as error values are not natively interpreted as a False boolean result.

This is precisely why the outer function, ISNUMBER, is essential. The ISNUMBER function evaluates whether a provided value is, in fact, a number. It returns TRUE if the value is numerical, and FALSE if it is anything else (such as text, a logical value, or, crucially, an error like #N/A). When MATCH returns a position number (indicating a successful duplicate find), ISNUMBER processes this number and returns TRUE. Conversely, when MATCH returns the #N/A error (indicating no duplicate was found), ISNUMBER processes the error and returns FALSE. This transformation into a definitive boolean result satisfies the exact requirement of the Conditional Formatting rule, dictating whether the defined style is applied or ignored.

The true elegance of this formula resides in its combination of efficient data lookup (via the MATCH function) and robust error handling coupled with boolean conversion (via the ISNUMBER function). It effectively automates the essential cross-sheet comparison, establishing it as a foundational technique for advanced Excel users who regularly manage large, distributed datasets across multiple tabs within complex workbooks.

Step-by-Step Implementation Guide

Implementing this advanced conditional formatting rule demands precision, particularly in selecting the correct range and accurately inputting the formula syntax. By following these detailed steps, you can successfully highlight duplicate entries from the playoffs sheet onto your primary all sheet, ensuring accurate visual data auditing.

1. Select the Target Range: On the primary all sheet, use your mouse to click and drag, highlighting the exact cells that contain the data you intend to check against the secondary sheet. For our NBA example, this critical range is A2:A16.

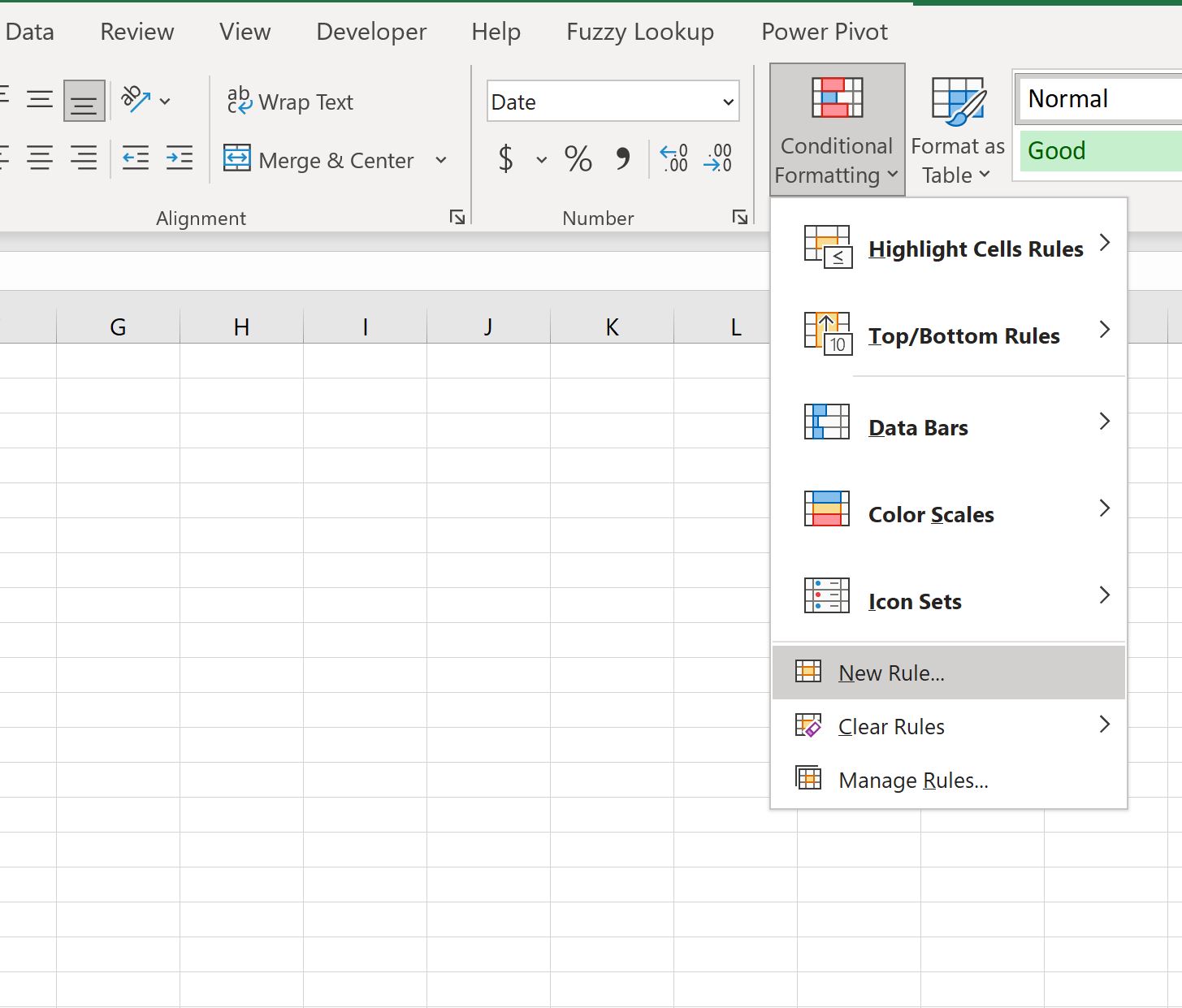

2. Access Conditional Formatting: Navigate to the Home tab located on the Excel Ribbon. Within the Styles group, click the Conditional Formatting dropdown menu, and subsequently select the New Rule… option.

3. Choose Formula Type: In the resulting New Formatting Rule dialogue box, scroll down and select the final rule type: Use a formula to determine which cells to format. This action opens the necessary input field for the custom formula.

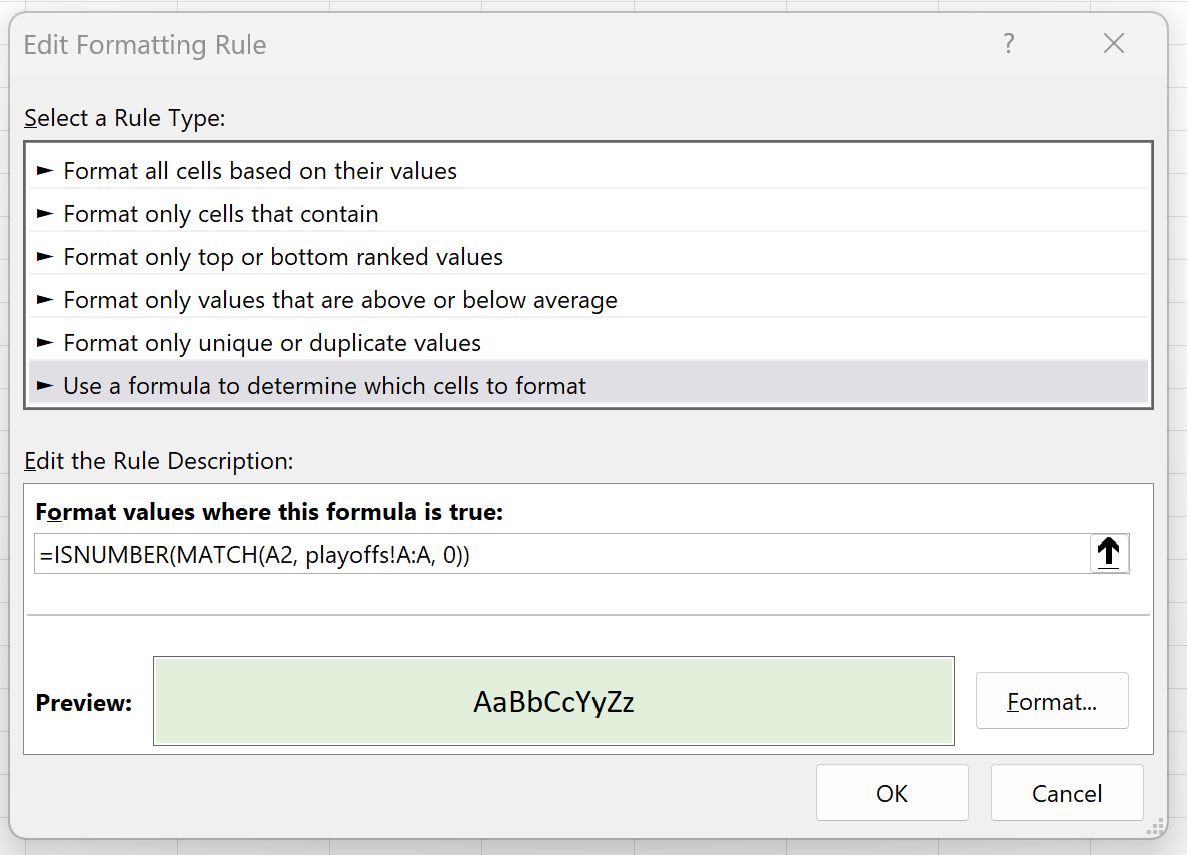

4. Input the Custom Formula: Carefully type or paste the following formula into the input field, ensuring absolute accuracy, especially regarding the reference to the external lookup sheet:

   =ISNUMBER(MATCH(A2, playoffs!A:A, 0))

   Remember that A2 must be the first cell in your currently selected range (the cell immediately below the column header), using a relative reference. The term playoffs!A:A must precisely reference the column containing the data on your reference sheet.

5. Define the Format: Click the Format… button. A new window will appear, providing extensive options to select the desired visual formatting. For optimal visibility, click the Fill tab and select a distinct, high-contrast color (such as light green or bright yellow). Click OK to confirm your format settings.

6. Apply the Rule: Thoroughly review the formula and the preview of the chosen formatting within the New Formatting Rule dialogue box. Once you are completely satisfied that all parameters are correct, click OK to apply the rule instantly to the entire selected range (A2:A16).

Upon successful application, Excel immediately executes the custom formula for every cell across the range A2:A16. Any cell that generates a TRUE result—meaning its value was successfully located by MATCH and confirmed as a numerical position by ISNUMBER—will instantly adopt the chosen conditional formatting style. This dynamic linkage ensures your primary dataset remains visually synchronized with any changes or additions made to your crucial reference sheet.

Reviewing and Customizing the Results

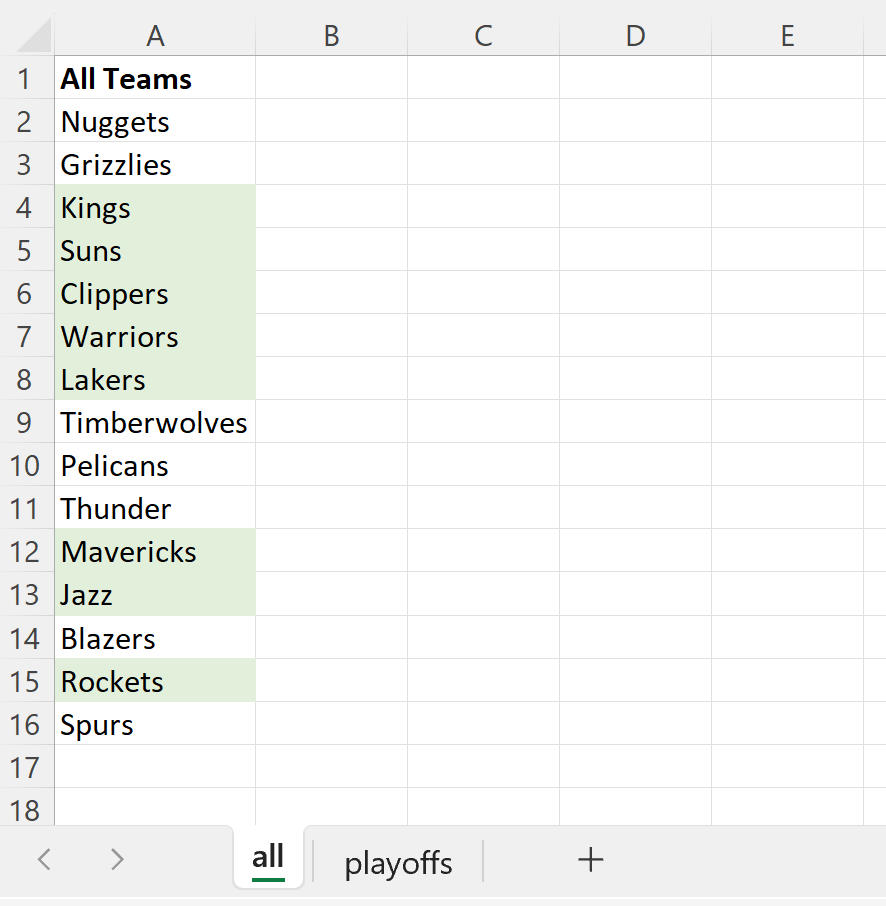

Once the formula-based Conditional Formatting rule has been successfully established and applied, the immediate visual feedback provides powerful confirmation regarding which items in the all sheet are indeed present in the playoffs sheet. In our specific NBA example, the eight teams that secured a playoff berth are now prominently highlighted within the master list, offering instant and unambiguous insight into the data overlap. This successful outcome demonstrates the robust capabilities of the cross-sheet formula configuration.

It is vital to recognize the sheer flexibility of the Conditional Formatting feature, extending far beyond simple background fill colors. While we chose a light green fill in this illustration for maximum clarity, users retain complete creative control over the visual output. Advanced customization options include applying specific bold or italic font styles, altering the text color for emphasis, or defining custom borders. When the objective is rapid identification of critical data points, selecting a high-contrast style that adheres to organizational reporting standards and accessibility guidelines is always recommended.

Furthermore, users should capitalize on the decision to reference an entire column (i.e., playoffs!A:A) within the formula. This structural choice means that if the data size on the playoffs sheet expands or contracts—for example, if more teams are added or removed—the conditional formatting rule requires absolutely no manual updating, provided the relevant data remains within Column A. This technique, utilizing full column references, dramatically enhances the robustness and scalability of the solution, making it highly preferable to defining a fixed range (e.g., playoffs!A2:A100), which would inevitably require tedious manual adjustment whenever the data boundaries shifted.

Conclusion and Advanced Data Auditing

The proficiency to dynamically highlight duplicate values across separate sheets in Excel by implementing a formula-based conditional formatting rule represents an invaluable skill set for any serious data professional. By strategically combining the MATCH function for precise data lookups and the ISNUMBER function for converting lookup results into clear boolean values, we establish a dynamic, robust mechanism for sophisticated cross-sheet data auditing. This method ensures that all overlaps, discrepancies, or required matches between different datasets are immediately and visually flagged, resulting in much faster analysis, minimized human error, and exceptionally accurate reporting.

While the initial setup of this formula requires careful attention to syntax and cell references, this approach yields substantial long-term returns in operational efficiency and data integrity management. Always double-check that the relative cell reference in the MATCH function (e.g., A2) correctly corresponds to the first cell of your applied range. Maintaining this relative reference is critical for the rule to accurately cascade down and evaluate every single cell across the entire selection.
