Excel: Highlight Duplicates in Two Columns

The Necessity of Identifying Cross-Column Duplicates in Data Analysis

In the realm of data management, especially when engaging in complex reconciliation tasks or merging information from disparate sources, the immediate ability to identify entries shared across two or more columns is fundamentally important. While readily spotting duplicates within a single column is simple using basic tools, locating values that exist simultaneously in two distinct data sets—a process known as finding the intersection—demands a specialized and efficient methodology. This capability is pivotal for maintaining high data integrity, supporting critical operations such as verifying transactional records, reconciling inventory manifests, or, as we explore in this tutorial, comparing large team rosters for overlap or error.

Fortunately, Microsoft Excel is equipped with powerful, built-in functionalities that address this requirement without necessitating the construction of intricate, time-consuming formulas. The core mechanism we will employ is the highly versatile Conditional Formatting feature. This tool provides a dynamic, visual layer over your raw data, allowing analysts to automatically apply specific formatting criteria—suchg as a distinctive background color or font style—to cells that satisfy predetermined logical conditions. By mastering this simple yet powerful technique, users can rapidly convert vast quantities of raw numerical or textual data into visually actionable insights.

This comprehensive guide will detail a practical, step-by-step procedure, illustrating precisely how to utilize the Highlight Cells Rules located within the Conditional Formatting engine. This method offers an instant and reliable way to flag common entries shared between two separate lists or columns, thereby significantly enhancing the accuracy and expediting the overall data validation workflow.

Leveraging Conditional Formatting for Visual Data Integrity

Before proceeding to the practical application steps, it is essential to appreciate why Conditional Formatting stands out as the optimal choice for this specific data identification task. Unlike conventional spreadsheet formulas that merely return a logical (TRUE/FALSE) or numerical result in an adjacent cell, conditional formatting directly modifies the visual presentation of the data based on its underlying content. This immediate, high-contrast visual feedback is an invaluable asset when an analyst is tasked with reviewing and auditing substantial volumes of information.

The specific rule that we harness for cross-column duplicate detection is the Duplicate Values rule, which is readily accessible within the Highlight Cells Rules menu. When this rule is judiciously applied across a contiguous range spanning two or more columns, Excel executes an automated comparison: every cell within the selected range is systematically checked against every other cell in that same selection. If a particular value is found to be replicated anywhere else within the defined area, it is automatically classified as a Duplicate Value, and the user-specified formatting is instantly rendered. This inherent simplicity completely circumvents the need for arduous manual comparisons or the deployment of complex array formulas for basic duplicate identification needs.

The following illustration clearly depicts the typical navigation path required to access the necessary feature within the main Microsoft Excel ribbon interface:

This critical functionality is consistently located under the Home tab, ensuring it remains highly accessible for analysts performing routine data cleansing and management tasks. By adopting this intuitive process, users can achieve reliable results far more quickly and efficiently than any traditional manual auditing method would allow, particularly when managing large spreadsheets.

Practical Example: Step-by-Step Roster Comparison Implementation

To provide a clear demonstration of this methodology, let us consider a common business scenario: comparing the official rosters of two distinct basketball teams, designated Team A and Team B. Our primary objective is to swiftly determine which players, if any, are listed on both teams, which might indicate a shared athlete or, more likely, a potential data entry error requiring reconciliation. We begin with the following foundational dataset, where the player names are organized in two adjacent columns:

Achieving the desired visual output requires the precise and sequential execution of the following implementation steps, ensuring the rule is applied correctly across the entire comparative range:

1. Define and Select the Entire Range: The foundational step involves accurately defining the comprehensive scope of your duplicate search. In this specific roster comparison example, you must select the entire span of cells encompassing both lists, which corresponds to the range A2:B13. It is absolutely essential to include every data point intended for comparison, even if the individual columns contain unequal numbers of rows or incorporate blank cells.

2. Access Conditional Formatting: Navigate deliberately to the Home tab situated on the primary Excel ribbon. Once there, locate and click the Conditional Formatting icon, which is usually grouped alongside the number formats and styling options.

3. Specify the Rule Type: A dropdown menu will subsequently appear; hover your cursor over the Highlight Cells Rules option. This dedicated section hosts a collection of predefined rules tailored for common data conditions. From the ensuing submenu, make the selection for Duplicate Values….

This precise sequence of actions successfully initiates a specialized window, enabling the user to customize the visual output of the identified duplicates, thereby reinforcing the intuitive and user-friendly nature of Excel’s robust data management capabilities. The image provided below serves as a visual confirmation of the correct initial selection and subsequent menu navigation:

Customizing Formatting and Interpreting the Final Results

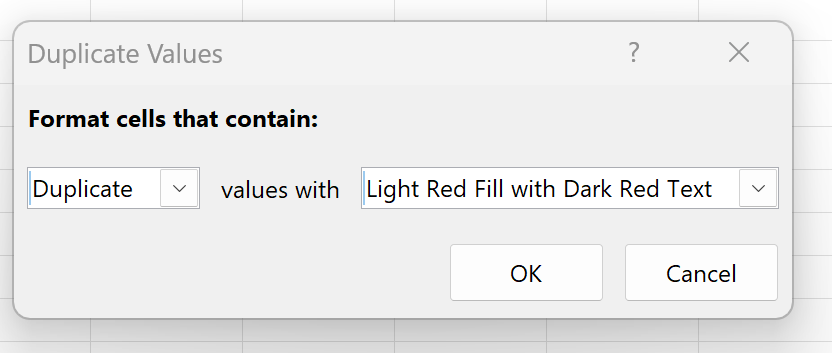

Once the Duplicate Values… option has been activated, a dedicated dialog box will immediately prompt the user to define the visual appearance of the highlighted entries. This stage is critically important, as selecting a clear, high-contrast format ensures the immediate and unmistakable visibility of the shared entries against the background of the non-duplicated data. The typical dialog box allows comprehensive customization of both the cell fill color and the text color, providing granular control over the final visual result:

Although Conditional Formatting offers numerous preset options (e.g., Yellow Fill, Green Text, or highly customized formats), for this demonstration, we will proceed using the standard default setting: Light Red Fill with Dark Red Text. This choice provides an extremely strong visual alert, ensuring that the duplicate player names instantly stand out against the unformatted cells. After confirming the desired formatting selection, click OK to apply the rule and execute the comparison.

The application of the rule yields an immediate transformation, applying the chosen conditional formatting across the entire selected range (A2:B13). Crucially, every player name that appears in both the Team A roster list and the Team B roster list is now distinctly highlighted in red. This visual transformation provides instant, unambiguous clarity regarding the shared elements between the two data columns:

Based purely on this visual output, we can definitively and rapidly identify the following names as shared entries, confirming their presence in the rosters of both Team A and Team B:

• Andy
• Chad
• Frank
• Henry
• John

Addressing Edge Cases: Unequal Ranges and Case Sensitivity Constraints

A frequent query arises concerning how this technique manages datasets where the two columns are of significantly unequal sizes. It is critical to understand that the Conditional Formatting rule is designed to successfully process ranges of dissimilar lengths without issue. For instance, if Column A comprises 50 rows of data and Column B only contains 10 rows, selecting the comprehensive range (A1:B50) will nonetheless correctly identify any duplicates shared between the two columns. Excel treats the blank cells that fall outside of the shorter list as non-matches, preventing false positives. This inherent flexibility makes the method robust and applicable across a wide variety of diverse data structures without requiring users to manually pad or truncate lists.

However, analysts must acknowledge a fundamental limitation of the default process: Excel’s Duplicate Values rule is inherently not case-sensitive. This operational design means that text entries such as “john” and “John” will be interpreted as identical and subsequently highlighted as duplicates. If your specific data analysis requires strict case-sensitive duplicate checking—for example, when differentiating technical product codes like “ID-A” and “Id-a”—you must pivot to a more advanced solution. This typically involves constructing a custom formula that incorporates functions like EXACT and applying it via the Conditional Formatting rules engine. This limitation underscores the difference between the quick visual tool and a fully logic-driven analysis.

Furthermore, it is vital to remember that this technique highlights *all* duplicates found anywhere within the selected range. If, hypothetically, the name ‘Smith’ appears twice within Team A’s roster itself, both instances of ‘Smith’ will also be highlighted. If the ultimate goal is strictly to identify the items unique to the intersection of the two lists (those shared between A and B, but not duplicated within A or B separately), additional steps are required. After applying conditional formatting, you may need to apply data filters to isolate the highlighted cells, followed by manual verification, or use a more complex, formula-based approach for verification.

Advanced Techniques: Precision Duplication Identification Using Formulas

While the standard built-in Duplicate Values rule offers superb visual identification capabilities, many data reconciliation scenarios necessitate a level of granular control that the quick rule cannot provide. For example, you might need to highlight a value in Column A *only* if it is present in Column B, deliberately ignoring any duplicates that exist solely within Column A. Alternatively, the analysis might require defining duplicates based on multiple criteria, such as matching both the Name AND the Date field. In these complex situations, leveraging a custom formula within the Conditional Formatting structure becomes not just beneficial, but mandatory.

The most frequently employed function for this specific purpose is the powerful COUNTIF function. To execute the specific logic of highlighting values in Column A that successfully appear in Column B, you would first select the entirety of Column A (starting at cell A2) and then input a conditional formatting formula structured similarly to this: =COUNTIF($B$2:$B$100, A2)>0. This formula systematically checks how many times the value present in A2 exists within the entire defined range of Column B ($B$2:$B$100). If the resulting count is greater than zero (meaning at least one match was found), the condition is satisfied, and the corresponding cell in Column A is highlighted. Crucially, applying this particular formula to Column A ensures that only matches found in Column B trigger the highlight, successfully isolating the true intersection and disregarding any duplicates internal to Column A.

This formula-driven approach provides vastly superior precision and control, particularly when implementing specific intersection logic or when handling extremely large datasets where manually filtering the output of the simple rule would prove overly burdensome. A professional analyst must understand the critical difference between the immediate, visual method and the logic-driven formula method to ensure they select the most appropriate and effective tool for their specific data reconciliation and audit needs.

Conclusion and Additional Resources for Data Management

The ability to confidently identify and manage duplicate entries is a fundamental skill essential for maintaining high standards of data integrity across any organization. By mastering the application of both the simple, built-in Duplicate Values rule and the more versatile, complex formula-based conditional formatting, you ensure that you are fully equipped to tackle virtually any data verification or cleansing task with speed and precision.
