Learning to Highlight Entire Rows Based on Cell Value in Excel

In the expansive world of data analysis, the ability to rapidly distinguish critical information from noise within extensive datasets is perhaps the most essential skill. When dealing with large volumes of information in Microsoft Excel, static spreadsheets can quickly become overwhelming, hindering effective decision-making. To overcome this challenge, analysts rely on dynamic visual aids, and one of the most powerful techniques available is the ability to highlight entire rows based on a specific cell value. This methodology transforms static tables into interactive, responsive tools, significantly streamlining the process of identifying key entries, anomalies, or compliance breaches without tedious manual review.

Consider the practical implications of managing substantial organizational records—be it detailed inventory tracking, quarterly sales figures, or comprehensive student performance reports. Attempting to manually scan thousands of rows for a particular status (e.g., “Out of Stock,” “High Priority,” or “Failed Audit”) is not only extremely time-consuming but also highly susceptible to human error. By implementing intelligent, row-level highlighting rules, you effectively automate the visual identification process. This guarantees that crucial data points are instantaneously emphasized, dramatically improving the speed and accuracy of your data review and subsequent strategic planning.

To further illustrate, imagine maintaining a complex resource allocation spreadsheet. You need immediate visibility into every project that has exceeded 90% of its budget, or perhaps every server that requires immediate maintenance. By setting a conditional rule to flag these specific records, the visual distinction immediately pulls focus to the relevant records. This makes the entire dataset significantly more manageable, informative, and readily actionable for stakeholders who need to make swift, data-driven decisions based on real-time visual feedback.

The Powerhouse Feature: Understanding Conditional Formatting in Excel

The foundational capability that drives this dynamic highlighting mechanism within Excel is universally known as Conditional Formatting (CF). This sophisticated tool grants users the ability to automatically apply specific aesthetic changes—such as modifying the background color (fill), altering the font appearance, or applying borders—to individual cells or predefined ranges of cells. The application of this formatting is entirely contingent upon whether the data within those cells meets a set of rigorous, user-defined conditions or logical rules. It stands as an absolutely indispensable component for effective data visualization within Excel, effortlessly transforming intricate numerical data into easily digestible visual information.

While Conditional Formatting is equipped with a comprehensive array of pre-built rules designed for common analytical tasks—such as automatically highlighting numbers above a certain median, identifying duplicate entries, or showcasing the top 10% of values—its true potential for advanced customization is unleashed when utilizing custom formulas. These custom logical expressions allow you to define virtually any precise condition relevant to your data structure. By mastering the application of a custom formula, you gain granular control over exactly which data points, and crucially, which associated records, receive special visual emphasis.

Crucially, most of the built-in CF rules are designed to affect only the cell containing the value that triggers the rule. However, when working with tabular data structures where rows represent unique records, merely highlighting a single cell is often insufficient. To maintain context and clarity, we need the visual effect to span the entire record. This guide focuses specifically on how to harness a custom formula structure to extend that conditional highlighting effect seamlessly across the full width of the row. This technique ensures that when a specific criterion is met within any cell of a row, all associated data fields for that record become immediately and visually prominent.

Data Preparation: Setting Up Your Dataset for Conditional Highlighting

To provide a clear and practical demonstration of this sophisticated application of Conditional Formatting, we will utilize a typical, realistic dataset scenario. Let us assume we are working with an Excel worksheet that meticulously tracks student performance metrics. This sheet includes essential details such as the student’s identification number, the total hours they dedicated to studying, their final examination score, and, most importantly for our purpose, a “Passed” status column indicating whether they successfully completed the course. Our primary objective is simple yet powerful: to visually isolate and distinguish all students who have achieved a passing status from those who have not.

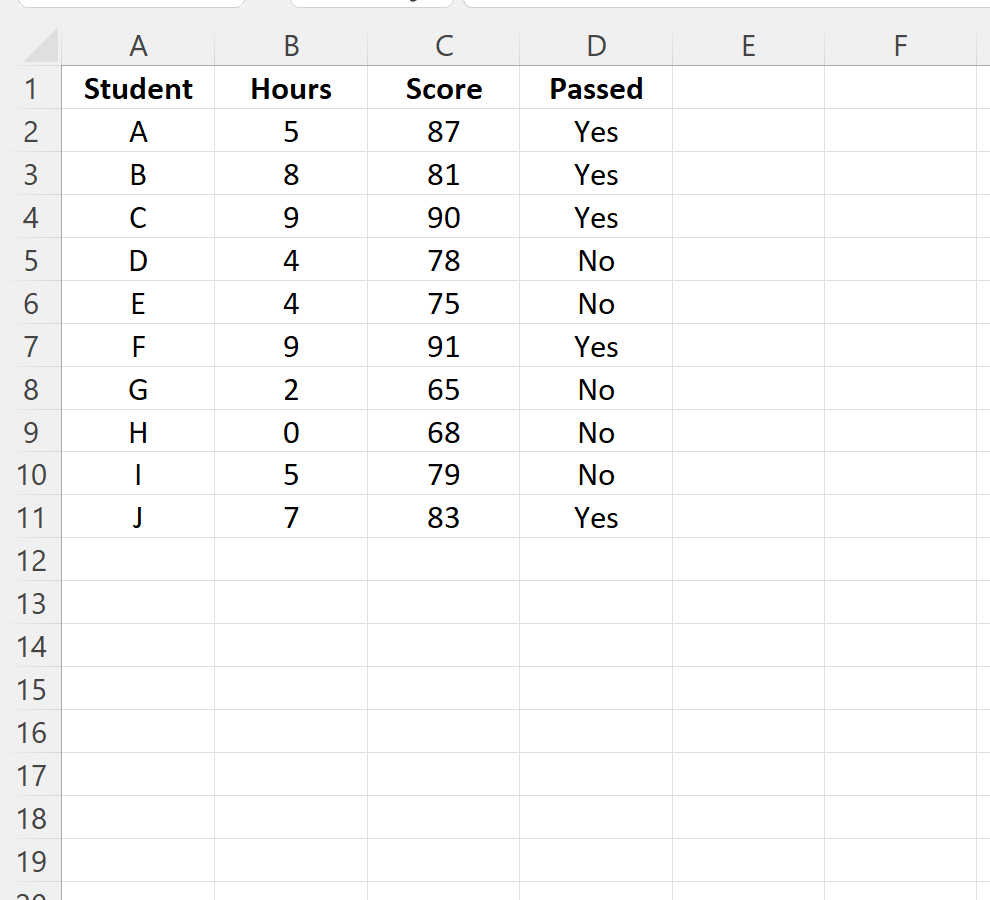

This representative dataset is structured with columns labeled for clarity: Student ID (Column A), Hours Studied (Column B), Exam Score (Column C), and the crucial Passed Status (Column D). The values in the Passed Status column are simple text strings: “Yes” or “No”. For instance, if our data begins in row 2, the structure would look like this:

In the context of this specific example, our precise goal is to implement a rule that triggers a visual change for every row where the value contained in the Passed Status column (Column D) is an exact match for the string “Yes.” By achieving this, we instantly draw the reader’s eye to the successful outcomes, facilitating rapid identification, categorization, and subsequent analysis of student performance data.

Implementing the Rule: Step-by-Step Guide to Applying Conditional Highlighting

Implementing effective row-based highlighting is a highly systematic yet straightforward procedure within Excel. Following these precise, sequential steps will enable you to successfully configure the Conditional Formatting rule for your dataset, ensuring correct and reliable visual output.

1. Step 1: Define and Select Your Data Range: The initial and most critical step is accurately selecting the entire range of cells that you intend to be potentially affected by the conditional highlighting. It is absolutely vital that you include all columns that constitute the records you wish to emphasize. Returning to our student example, if your dataset spans from the top-left corner (cell A2) down to the bottom-right corner (cell D11), you must meticulously highlight the complete range, specifically designated as A2:D11. Note that you should generally exclude the header row (row 1) from this selection, as it is not part of the data records being evaluated.

2. Step 2: Navigate to Conditional Formatting Tools: Once the range is selected, locate the Home tab situated on the main Excel ribbon interface. Within the Styles grouping, you will find and click on the prominent Conditional Formatting icon. From the resulting drop-down menu that appears, select the option labeled New Rule…. This action initiates the setup process for our custom rule.



3. Step 3: Define the Rule Type (Using a Formula): The “New Formatting Rule” dialog box will subsequently open. This interface requires you to specify the methodology for rule determination. It is imperative to select the option explicitly titled Use a formula to determine which cells to format. Choosing this setting allows you to input a custom, logical test—our formula—that Excel will evaluate independently for every single row within your selected range.

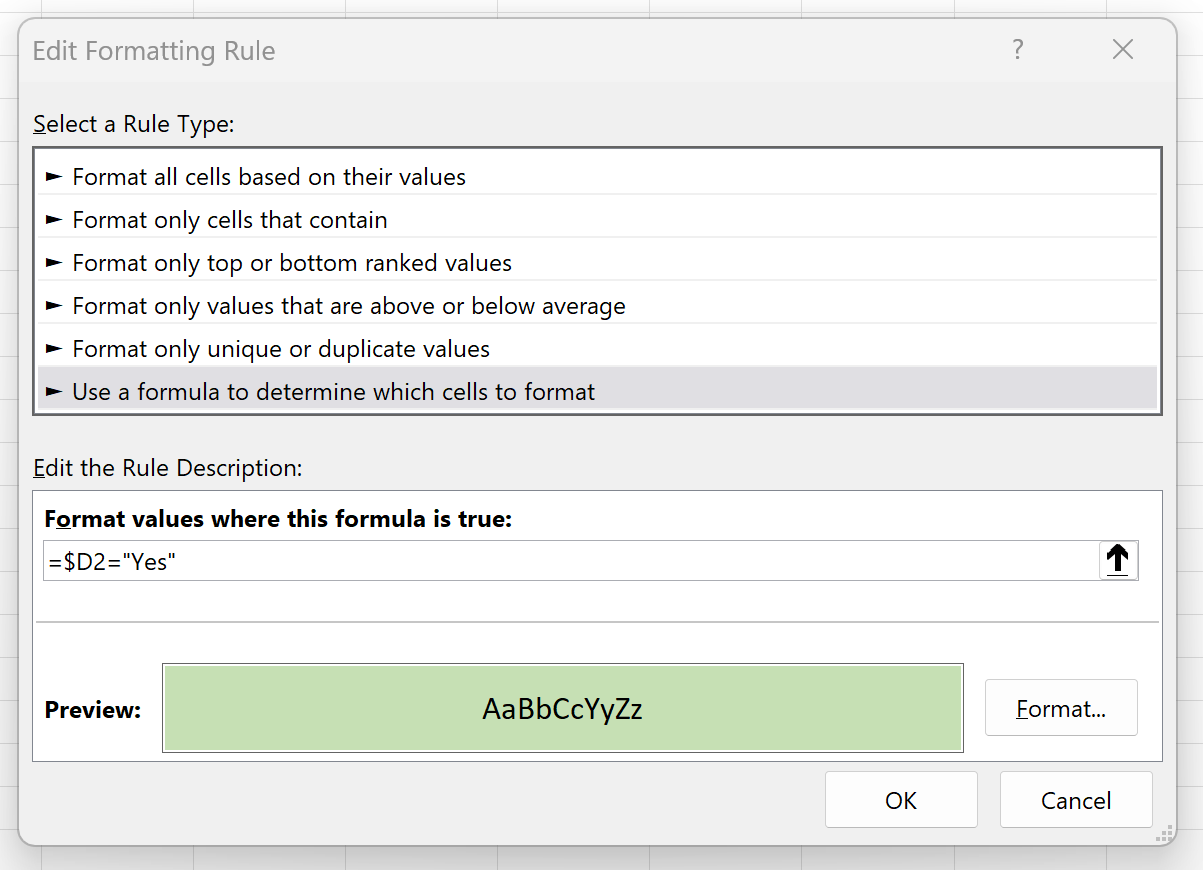

4. Step 4: Input the Custom Formula: Inside the designated input box labeled “Format values where this formula is true,” you must enter the core logical expression: =$D2=”Yes”. This formula is the architectural centerpiece of the conditional rule. The use of the dollar sign ($) preceding the column letter ($D) renders the column reference absolute. This critically ensures that no matter which cell in the currently evaluated row Excel is checking (e.g., A2, B2, C2), the formula always strictly refers back to column D for the condition check. Conversely, the row number (2) is left relative, meaning it dynamically adjusts as the rule is applied down the range (it becomes $D3 for row 3, $D4 for row 4, and so forth). This specific mixed reference combination is essential for successfully highlighting entire rows, not just single cells.

5. Step 5: Define the Visual Format: After accurately inputting the formula, proceed by clicking the Format… button. This action opens the “Format Cells” dialog box, allowing you to personalize the visual appearance of the highlighted rows. Navigate to the Fill tab and select the background color that provides the best contrast and visual emphasis—perhaps a light green for success. You also have the option here to modify font styles, add custom borders, or adjust number formats if required. Confirm your choices by clicking OK to exit the “Format Cells” dialog box.



6. Step 6: Final Application and Verification: Conclude the process by clicking OK one final time within the “New Formatting Rule” dialog box. Excel will immediately execute the rule across the selected range. You should instantly observe that all data rows that satisfy the condition (where the Passed Status column contains the value “Yes”) are now visually highlighted using your chosen format, confirming the successful implementation of the row-based Conditional Formatting rule.

Analyzing and Customizing the Dynamic Output

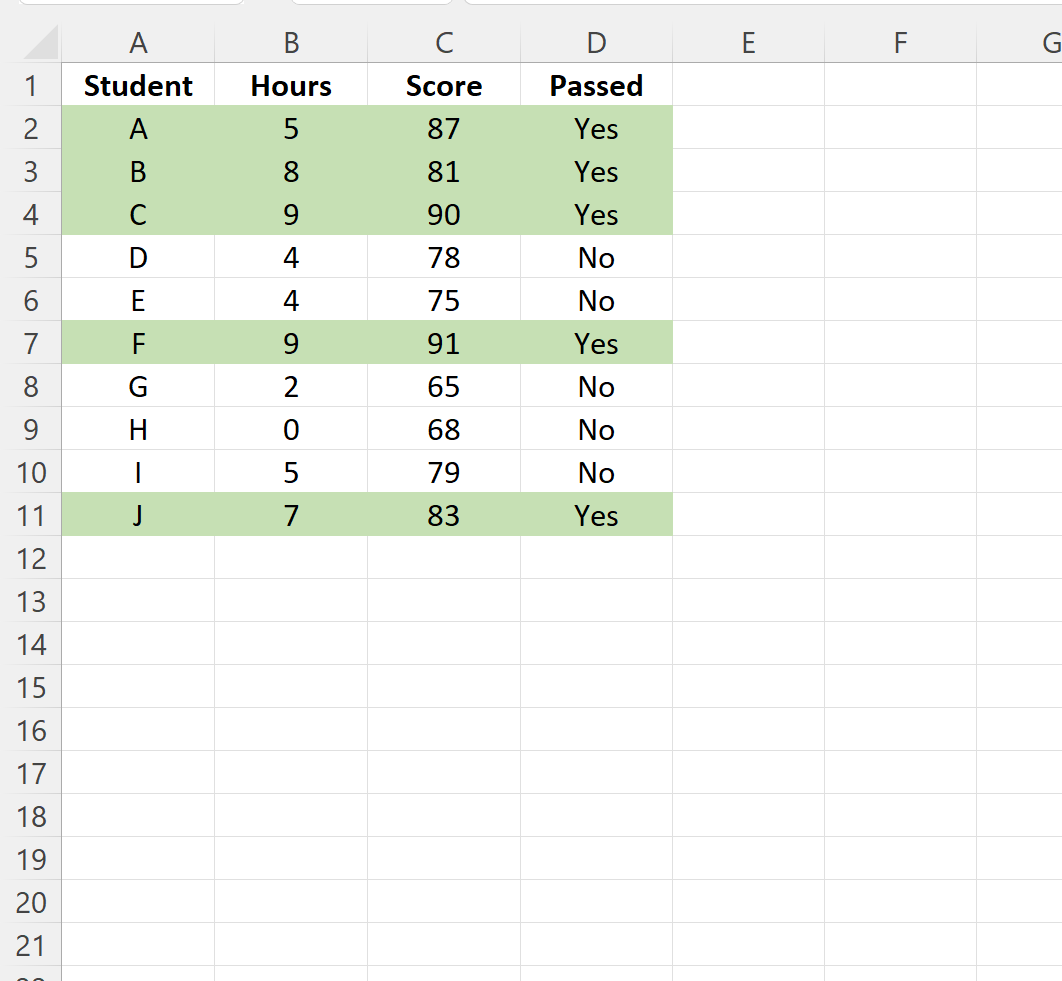

Once the conditional rule has been successfully applied, your Excel sheet experiences a significant visual transformation. The designated rows immediately stand out, greatly improving the sheet’s readability. In our student performance example, every student record featuring “Yes” in the Passed Status column is now distinguished by a vibrant background color, while the records marked “No” retain their original, unformatted appearance. This visual hierarchy ensures that successful performance data is immediately prioritized in the viewer’s attention.

A key advantage of Conditional Formatting is its inherent flexibility and wide range of customization options. While the demonstration used a simple light green fill, your choices are far from limited. Utilizing the Format button within the “Edit Formatting Rule” window grants you access to the entire spectrum of formatting controls. You can select highly contrasting colors for alerts, use specific font treatments (e.g., red bold text for high-risk items), or even apply intricate border styles to visually group related records. This level of customization allows you to align the visual output perfectly with internal reporting standards or personal preference, significantly enhancing the overall quality of your data visualization.

Furthermore, the true utility of this method lies in its dynamic and responsive nature. Cell value changes trigger instantaneous updates to the formatting. If a student’s status is retrospectively updated from “No” to “Yes,” the corresponding row will automatically and immediately receive the chosen highlight color. Conversely, if a condition is no longer met, the highlighting is automatically removed. This real-time synchronization ensures that the visual emphasis provided by the formatting always reflects the absolute current state of your data, making the spreadsheet a truly live analytical tool for continuous data analysis.

Advanced Considerations: Mastering References and Complex Logic

Achieving mastery over row-based Conditional Formatting fundamentally requires a deep understanding of relative and absolute references within Excel formulas. As previously detailed, the structure =$D2=”Yes” is successful because the absolute reference on the column ($D) locks the evaluation to the criteria column, preventing the formula from shifting horizontally. Simultaneously, the relative reference on the row number (2) permits the formula to correctly iterate down the range, checking D3, D4, D5, and so on. If one were to incorrectly use a fully absolute reference, such as $D$2=”Yes”, Excel would only ever evaluate the second row, resulting in either the entire range being highlighted or none of it, depending on the value in D2.

A crucial best practice involves aligning the starting row of your formula precisely with the starting row of your selected data range. If, for instance, your dataset begins on row 5 (A5:D10), your formula must consequently start checking column D at row 5. The correct logical expression would therefore be =$D5=”Yes”. Failure to align these starting points will cause the highlighting to be offset, potentially missing the first few rows of data or incorrectly highlighting the footer rows. Always double-check this alignment immediately after applying a new rule.

For scenarios demanding more intricate screening criteria, you can significantly expand the power of your custom formula by integrating Excel’s robust logical functions, such as AND() or OR(). This allows you to combine multiple disparate conditions into a single rule. For example, if you needed to highlight a row only if the student “Passed” (Column D = “Yes”) AND their “Exam Score” (Column C) was greater than 90, your combined formula would be =AND($D2=”Yes”, $C2<70). This level of logical precision is invaluable for complex data analysis tasks.

Finally, effective rule management is paramount, particularly in complex workbooks that feature overlapping rules or multiple conditions. You must periodically review and maintain your rules by navigating to Conditional Formatting > Manage Rules…. This dedicated dialog box provides the functionality to edit existing rules, permanently delete obsolete rules, and, most importantly, reorder them. Since Excel evaluates rules sequentially, the order matters greatly: if two rules apply to the same range, the first rule that evaluates as true will often dictate the final formatting applied, potentially masking the result of a later rule.

Conclusion: Leveraging Conditional Formatting for Enhanced Clarity

The skill of efficiently highlighting entire rows based on specific cell values using custom Conditional Formatting formulas is far more than a simple cosmetic trick—it is an indispensable technique for any professional engaged in serious data management within Excel. This methodology fundamentally enhances both the visual readability and the analytical capabilities of your spreadsheets, enabling the swift identification of critical data points, outliers, or exceptions.

By diligently following the comprehensive steps and guidelines detailed in this expert guide, you are now equipped to confidently implement sophisticated, custom conditional rules. This ability allows you to instantly transform raw, dense data into visually intuitive and actionable reports. We strongly encourage you to experiment further with varying conditions, explore diverse formatting styles, and practice combining logical functions. Mastering the dynamic highlighting feature is crucial: it turns your spreadsheet into a powerful instrument for informed, rapid decision-making, moving beyond static data storage toward proactive data visualization.
