Learn How to Highlight the Maximum Value in Each Row Using Excel

In the vast landscape of data analysis and reporting, the immediate visualization of critical information is paramount for efficiency. Highlighting key metrics within a spreadsheet dramatically enhances readability and facilitates rapid, informed decision-making. A frequent requirement, especially when dealing with time-series data, comparative performance metrics, or financial records organized horizontally, is the need to swiftly pinpoint the maximum value specific to each row. This specialized technique is invaluable across diverse disciplines, ranging from tracking project milestones and identifying peak financial returns to analyzing the highest recorded test scores in academic records.

Fortunately, Microsoft Excel provides a robust, native solution through its Conditional Formatting feature. This functionality empowers users to apply distinct visual styles—such as custom background colors, font variations, or specialized borders—to cells that successfully meet a predefined logical criterion. While Conditional Formatting includes numerous standard presets, achieving row-specific maximum highlighting necessitates leveraging its ability to implement a custom, formula-based rule. This approach yields a dynamic visual aid that automatically updates whenever the underlying data changes, ensuring your analysis is perpetually accurate and current.

This comprehensive guide is meticulously structured to walk you through the precise mechanics required to set up this specialized formatting rule. We will explore how to utilize the New Rule option within the Conditional Formatting menu to engineer a tailored solution that solves the row-maximum challenge. By the conclusion of this tutorial, you will possess a complete understanding of the necessary formula logic and the practical implementation steps, enabling you to confidently apply this powerful technique to any of your complex datasets.

Defining the Objective: Isolating the Row Maximum

Before initiating the technical configuration, it is essential to establish a clear conceptual distinction regarding the goal of this operation. Our objective is specifically to isolate and highlight the single cell within a given row that contains the highest numerical value, independently of all other rows. This is fundamentally different from finding the overall maximum value across an entire sheet or identifying the largest number within a single column, where the scope of comparison is monolithic. For instance, if you are monitoring the quarterly performance metrics of multiple departments, you want to identify the best quarter for Department A, regardless of the best performance achieved by Department B.

The core complexity lies in designing a formula that possesses the intelligence to dynamically adjust its evaluation boundaries for every row it processes. When the rule is applied across a large selection, the formula must internally execute the logic: “For the cell I am currently evaluating, is its value the absolute highest among all of its horizontal peers?” Achieving this sophisticated, row-constrained evaluation requires a precise application of Excel’s referencing system, specifically employing a blend of relative and absolute cell references to lock the column span while allowing the row index to float.

Mastering this row-wise evaluation methodology offers profound analytical advantages. Instead of relying on the time-consuming and often error-prone method of manually scanning large datasets, the highest values become immediately conspicuous through the visual highlight. This instant visual feedback accelerates insight generation, helps quickly pinpoint areas of peak performance, highlights anomalies, and ultimately streamlines the entire data interpretation workflow, shifting analytical focus from tedious data scrutiny to strategic decision-making.

Illustrative Scenario: Analyzing Sports Performance Data

To provide a clear, practical demonstration of this powerful technique, we will utilize a common scenario: analyzing sports statistics. Consider a situation where we are evaluating the performance of several basketball teams across a standardized four-game series. Our raw data set lists the names of the teams in the first column (Column A) and their respective game scores in the subsequent four columns (B through E). The primary goal is to visually confirm the highest-scoring game achieved by every team within the series, offering an immediate snapshot of their peak achievement.

For this practical example, the numerical data is organized such that team names occupy Column A, and the specific game scores span the range from Columns B to E. The objective is to apply a distinctive visual format, such as a contrasting background color, to only the single cell in each row that registers the maximum score for that team:

By applying this conditional highlight, we can instantly discern, for example, which game the ‘Lakers’ recorded their top score, and visually compare that peak performance against the maximal achievements of all other teams. This visual cue is exceptionally effective for detailed comparative analysis across multiple distinct entities evaluated over a standardized time period or set of events.

Step-by-Step Implementation Guide

Implementing the row-wise maximum highlighting rule requires a precise and systematic sequence of actions within the Excel environment. Accuracy in defining the initial data range and constructing the custom formula is absolutely essential for the successful execution of this feature.

1. Preparing the Data and Selecting the Range

The foundational step involves accurately defining the scope of your data and selecting the precise cell range that needs to be evaluated and subsequently formatted. In our basketball scores example, the numerical data requiring analysis is contained within the range B2:E8. This specific range encapsulates all the scores recorded for all participating teams across all games. It is critical to ensure that only the raw numerical data cells are selected—explicitly excluding any header rows, identifying team names, or summary total columns—as only these cells will be subjected to the maximum value test.

To begin the process, use your mouse to click and drag, highlighting the entire target area starting from cell B2 and extending downward and to the right until cell E8 is included. This selection defines the exact boundaries for Excel’s evaluation engine. If the range is selected incorrectly, the powerful formula we are about to create will either format the wrong cells or fail to apply the rule completely, emphasizing the importance of double-checking your initial selection.

2. Accessing the Conditional Formatting Options

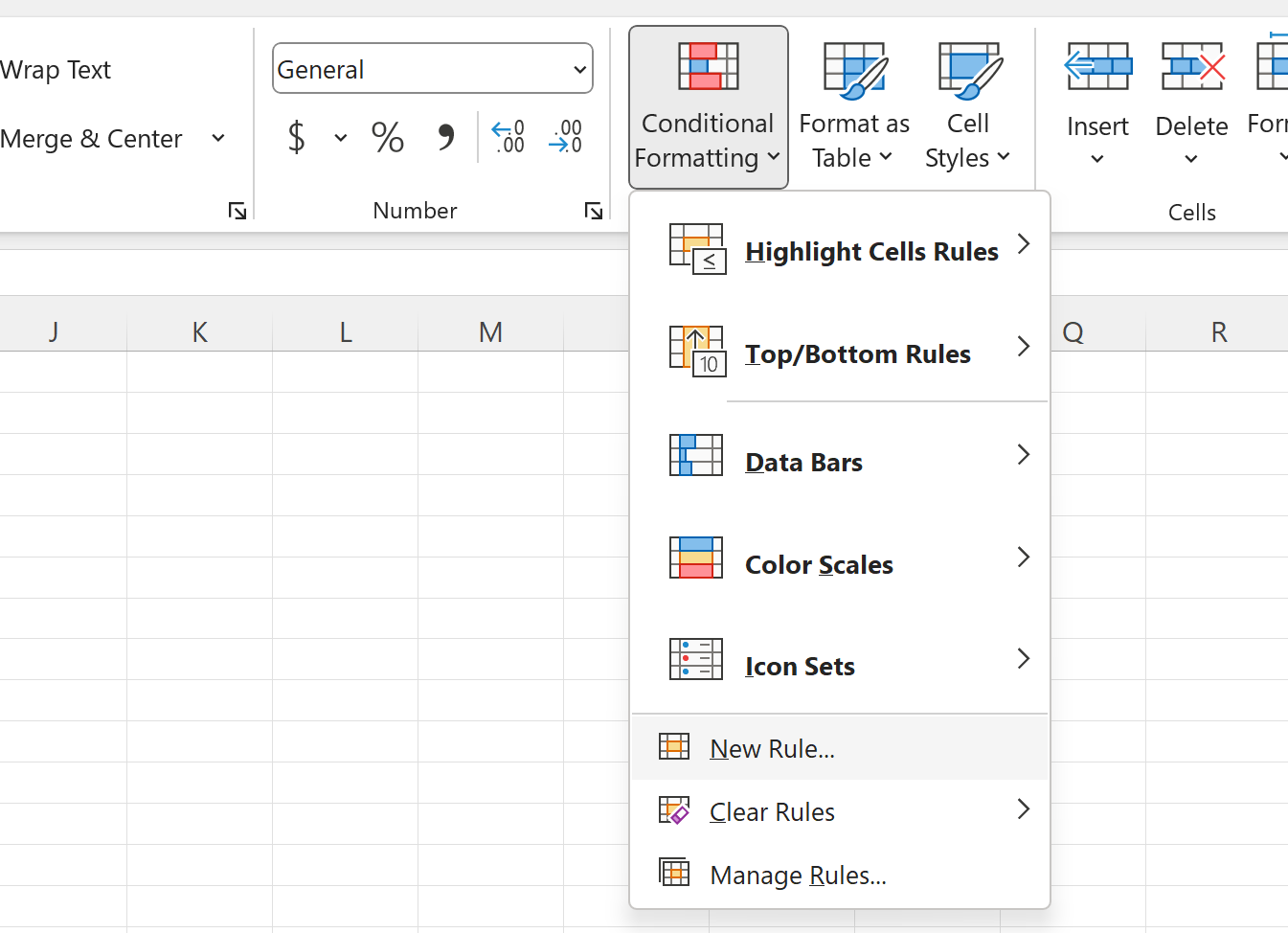

With the target cell range successfully highlighted, navigate your attention to the Excel Ribbon located at the top of your worksheet. Ensure that you are currently viewing the Home tab. Within the Styles command group on the Home tab, locate and click the dedicated Conditional Formatting icon. This action will trigger a dropdown menu that presents various options for creating, managing, and applying rules.

From the ensuing dropdown list, you must select the option labeled New Rule. Selecting this option will open the “New Formatting Rule” dialog box, which serves as the primary interface for defining both the logical conditions and the visual style of your custom conditional rule. This step represents the crucial gateway to implementing the formula-based formatting required for precise row-wise data analysis.

3. Crafting the Custom Formula Rule

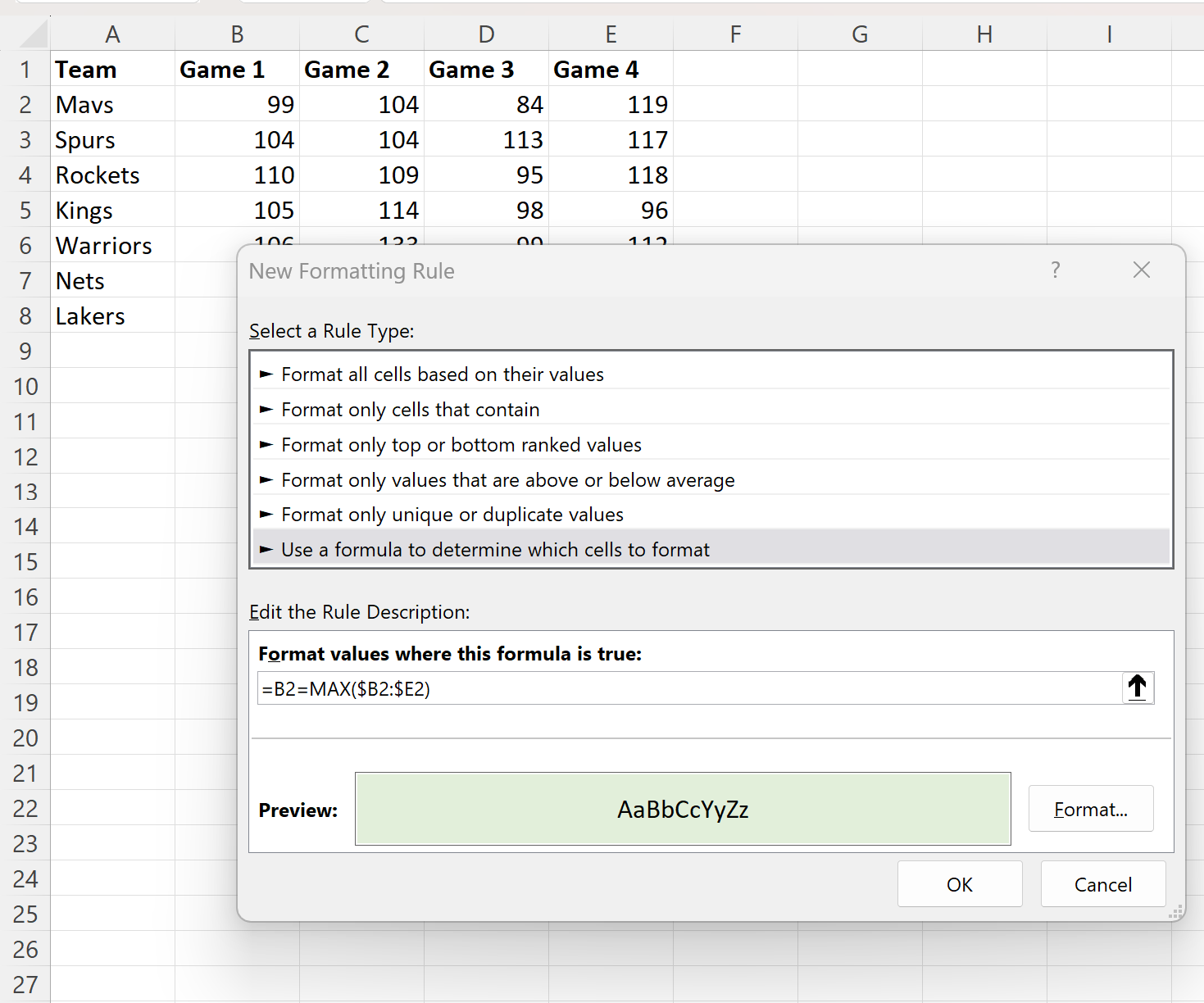

Inside the “New Formatting Rule” dialog box, the rule type must be specified first. Select the final category: Use a formula to determine which cells to format. This selection immediately activates the input field where we will meticulously enter the logical test that Excel will apply independently to every cell within the selected range.

In the input field titled “Format values where this formula is true:”, enter the following formula exactly as shown:

=B2=MAX($B2:$E2)

This concise line of code is the operational heart of the entire solution, and its strength lies in its carefully constructed structure that guarantees row isolation. The formula performs a check: it verifies if the value of the current cell (represented by the first cell in the selection, B2) is mathematically equal to the maximum value found exclusively within the horizontal range $B2:$E2. Crucially, notice that the dollar signs are only applied to the column letters ($B and $E), making the column range absolute, while the row number (2) remains relative. This specific mixed referencing ensures that when the rule moves down to row 3 (e.g., cell B3), the MAX function automatically adjusts to =B3=MAX($B3:$E3), thereby correctly constraining the maximum calculation to only the third row.

4. Defining the Visual Format

Once the custom formula is successfully entered, click the Format button to open the “Format Cells” dialog box. This is where you define the specific visual style that will be applied to any cell for which the condition evaluates to TRUE. The “Format Cells” dialog provides extensive options for customization, including adjustments to font, borders, and, most commonly, the background fill.

For optimal visual impact and clarity, it is generally advised to use a distinct fill color that offers high contrast against your spreadsheet’s default background. Navigate to the Fill tab and select a color—such as a light gold, professional green, or subtle blue—that effectively highlights the peak performance indicators. After finalizing your preferred format, click OK in the “Format Cells” dialog and then click OK again in the “New Formatting Rule” dialog to finalize and instantly apply the rule across your selected sheet area.

5. Dynamic Results and Verification

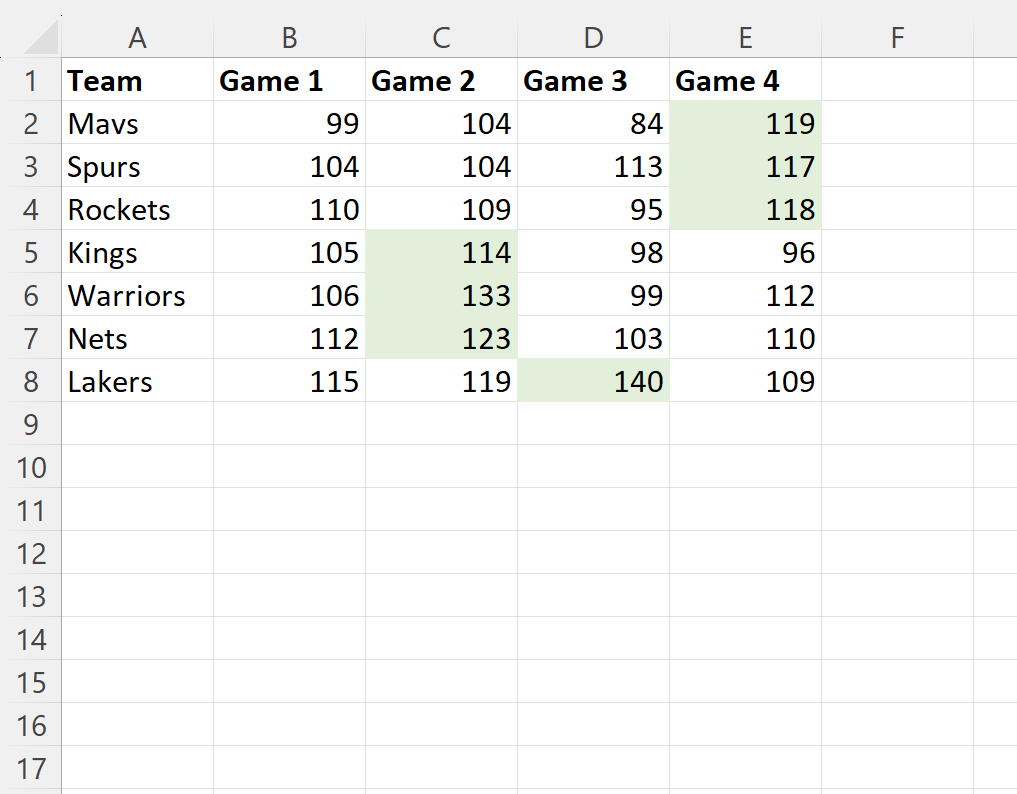

Upon clicking the final OK, Excel immediately executes the newly defined rule across the entire B2:E8 range. You should instantly observe the highest value in each individual row highlighted with the custom format you selected. This instantaneous visual feedback confirms the successful application of the rule and transforms your raw tabular data into an immediately insightful visualization.

A significant advantage of employing conditional formatting is its inherent dynamic nature. Should the data change—for example, if a retrospective correction results in a higher score for the ‘Jazz’ in Game 4—Excel will automatically re-evaluate the condition. If the revised score becomes the new maximum for that row, the highlight will instantaneously shift to the corrected cell. This dynamic behavior ensures that your data visualization remains completely accurate without requiring any manual intervention, making this technique invaluable for monitoring live or regularly updated reports and dashboards.

The Power of Mixed Referencing in the Formula

Achieving true mastery in creating complex custom conditional formatting rules necessitates a thorough understanding of the formula structure =B2=MAX($B2:$E2), particularly the deliberate and careful use of relative and absolute cell references. When Excel processes a conditional formatting rule across a multi-cell range, it does not apply the rule once; instead, it internally simulates running the formula for every single cell, adjusting the references based on the cell’s position relative to the starting cell (B2).

Let’s analyze precisely how the components of this formula interact during Excel’s internal evaluation process:

• The Comparison Cell (e.g., B2): The initial part of the formula, B2, is defined as a fully relative reference (it contains no dollar signs). As Excel iterates horizontally across the selected range, this reference updates accordingly. For cell C2, the reference becomes C2; for cell D2, it becomes D2. This ensures that the cell currently being analyzed is the one being tested against the calculated maximum value for its row.
• The MAX Range ($B2:$E2): This segment utilizes a critical mixed reference. The column letters ($B and $E) are absolute, effectively locking the comparison range horizontally from the start of column B to the end of column E. However, the row number (2) is deliberately kept relative.
• Dynamic Vertical Adjustment: When Excel shifts its focus vertically down to row 3, the entire range reference dynamically changes to $B3:$E3. This mechanism guarantees that the MAX function correctly calculates the maximum value exclusively within the precise horizontal boundaries of row 3, and no other row.

If the dollar signs were omitted entirely (e.g., =B2=MAX(B2:E2)), the comparison range would float freely, leading to inaccurate results when applied to subsequent rows. Conversely, if the row numbers were strictly locked (e.g., =B2=MAX($B$2:$E$2)), every cell in the entire selection would be incorrectly compared only against the maximum value found in row 2, completely defeating the purpose of row-wise highlighting. The mixed reference is thus the non-negotiable technique required to contain the scope of the maximum calculation precisely to the current row.

Broader Applications and Strategic Benefits

The specialized technique of highlighting the maximum value per row extends its utility far beyond simple academic or sports scorekeeping; it serves as a foundational tool for advanced data interpretation across a multitude of professional domains. Firstly, this functionality dramatically improves data visibility and accelerates analysis speed. When analysts are confronted with extensive and dense datasets, manual visual scanning is inherently inefficient and highly susceptible to human error. Automating this identification through conditional formatting instantly flags critical data points, drastically reducing the time required for initial data assessment and consequently accelerating the strategic decision-making cycle.

Secondly, this method proves invaluable for rigorous performance benchmarking and comparative studies. Whether you are systematically assessing the quarterly sales figures of regional branch offices, analyzing the resource consumption metrics of different production lines, or evaluating the lead times of various suppliers, isolating the single peak performance metric for each category provides clear, quantifiable comparative insights. It enables analysts to effortlessly identify immediate outliers, determine truly best-in-class performance within specific operational constraints, and focus management attention precisely where performance is highest or anomalies are present.

Finally, row-wise highlighting significantly elevates the quality of reporting and stakeholder communication. By providing strong visual emphasis on the most important figures, reports are transformed from complex tables of raw numerical data into clear, visually guided narratives. This targeted visual emphasis ensures that key stakeholders—who often lack the time for deep data scrutiny—can quickly and accurately grasp the central takeaway points, leading to more focused discussions and ultimately more informed, strategic conclusions.

Conclusion and Next Steps

Implementing a conditional formatting rule designed to highlight the maximum value in each row of an Excel spreadsheet is a high-impact, low-effort technique that yields significant improvements in both data visualization and analytical efficiency. By systematically adhering to the detailed steps presented in this guide, you can successfully establish a dynamic, self-updating rule that instantly draws critical attention to peak performance indicators within your row-oriented data structure.

The true mastery of this solution hinges on recognizing and correctly applying the advanced principles of mixed cell referencing—specifically, locking the column references using dollar signs while intentionally keeping the row references relative. This foundational technical knowledge is highly transferable to virtually all complex, formula-based conditional formatting challenges, unlocking a wide array of possibilities for customized data presentation, analysis, and dashboard design. We strongly encourage you to continue experimenting with different formatting styles and exploring other logical tests to continually refine your professional Excel proficiency.
