Learning to Filter Data in Excel: A Comprehensive Guide to the FILTER Function

Introduction to Dynamic Array Formulas and the FILTER Function

The efficient extraction and listing of all matching records based on specific criteria stands as a fundamental requirement for advanced data analysis within Microsoft Excel. For many years, achieving this level of conditional data retrieval was notoriously complex, demanding the construction of cumbersome legacy array formula combinations. These methods often involved intricate nesting of functions like INDEX, SMALL, ROW, and IF, and crucially, required the user to commit the formula using the special keyboard shortcut, Ctrl+Shift+Enter. This approach was error-prone, difficult to maintain, and challenging for novice users to master.

A paradigm shift occurred with the introduction of Dynamic Array Formula capabilities in modern versions of Excel (available to Microsoft 365 subscribers). This innovation fundamentally changed how formulas handle arrays of data. Instead of needing complex manual input for array handling, results now automatically “spill” into adjacent cells, adjusting their output size dynamically based on the volume of matching data. This change radically simplified complex data manipulation tasks.

The central tool facilitating this extraction is the powerful FILTER function. This function was specifically designed to filter a range or array of data based on a defined set of logical conditions. By automating the return of an array of results that spill into the spreadsheet grid, the function eliminates the need for manual cell dragging or complex setup, resulting in a data extraction process that is significantly more intuitive, robust, and less susceptible to user error.

The following concise formula structure demonstrates the core usage of the function, allowing you to list every matched instance of a specified value within your spreadsheet:

=FILTER(B2:B11, F2=A2:A11)

This configuration operates by instructing Excel to compare the lookup value located in cell F2 against the entire comparison range, A2:A11. For every row where this condition evaluates to true—meaning a match is found—the corresponding data point from the results range, B2:B11, is returned. The resulting array automatically expands downwards from the cell where the formula is entered, displaying all records that satisfy the defined criteria seamlessly.

Deciphering the Syntax and Arguments of the FILTER Function

To harness the full potential of conditional data extraction, a thorough understanding of the FILTER function‘s syntax is essential. The function relies on three key parameters: two mandatory arguments that define what to return and how to filter it, and one optional argument for error handling. The standard syntax structure is defined as =FILTER(array, include, [if_empty]).

1. Array (Required): This argument is the primary source range or array of values that you intend to return as the final output. It is the column or block of data that you want the formula to extract. In the initial example, this was the range B2:B11, containing the scores we aimed to retrieve. It is absolutely critical that the dimensions (specifically the number of rows) within the array align perfectly with the dimensions of the include argument; otherwise, the function cannot map the conditions correctly to the results.

2. Include (Required): This is arguably the most crucial component, as it defines the criteria or logical condition used to filter the data. The output of this argument must be a Boolean array—an array composed exclusively of TRUE and FALSE values—that possesses the exact same height or length as the array argument. Our introductory example utilized the conditional statement F2=A2:A11. Excel evaluates this statement row-by-row: if the value in a row in column A matches the value in F2, it generates a TRUE for that row, indicating inclusion; otherwise, it returns FALSE, indicating exclusion.

3. If_empty (Optional): This argument provides a fallback mechanism, specifying a custom value or text string to return if no rows in the source data meet the filtering criteria established by the include argument. If this argument is omitted and no matches are found, the function defaults to returning the standard #CALC! error. Utilizing this optional argument is highly recommended practice for developing robust and user-friendly spreadsheet models, perhaps setting it to a clear string such as “No Matches Found” or “N/A.”

The inherent value of the FILTER function is rooted in its dynamic behavior. Once the formula is correctly entered into the starting cell of the desired output area (e.g., cell E2), the resulting array instantly spills the output down. This dynamic adjustment of the output range ensures that if the source data changes or the filtering criteria are modified, the result set instantaneously updates without any manual intervention, providing a massive advantage over static, traditional array methods.

Practical Implementation: Conditional Extraction of Dataset Records

To concretely illustrate the power and application of this technique, let us examine a typical data scenario involving performance metrics. Imagine we are analyzing a large dataset containing basketball statistics, where we have recorded the points scored by various players assigned to different teams. Our objective is to efficiently query this data to retrieve and list every single corresponding score associated with a specific, user-defined team name.

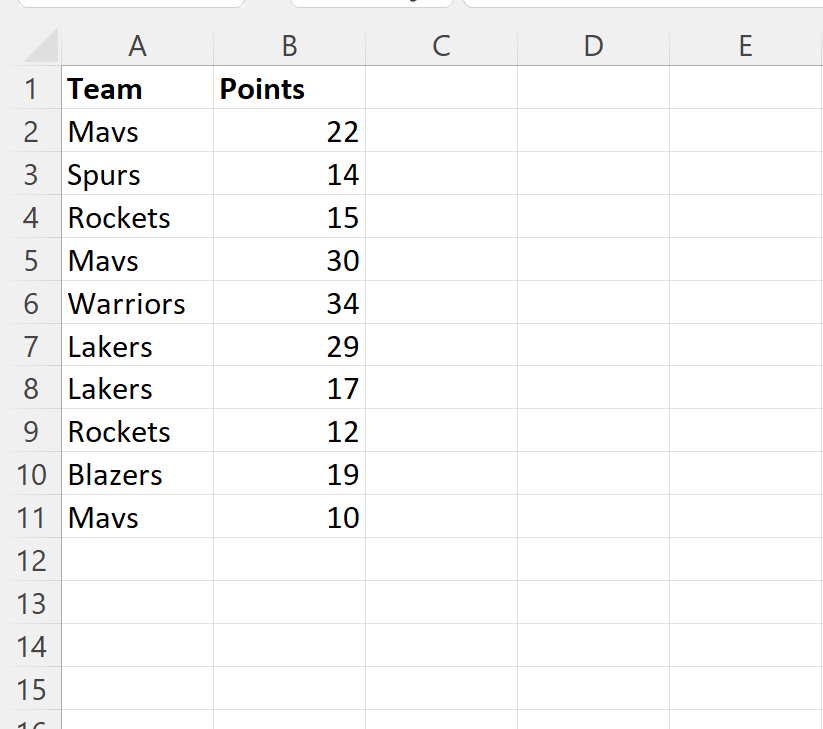

The source dataset is structured simply: the “Team” identifier resides in Column A, and the “Points” scored are in Column B. Crucially, the lookup criterion—the specific team name we wish to search for—will be placed in a dedicated cell, F2. This setup allows the end-user to dynamically modify the search parameters (the team name) without ever having to edit the core filtering formula, ensuring maximum flexibility and usability.

In this specific demonstration, our aim is to search for the team name “Mavs” throughout the entire Team column range (A2:A11). For every instance where “Mavs” appears, we require the formula to return the corresponding points value from the Points column (B2:B11). This functionality is vital because it addresses the core limitation of older lookup functions, such as VLOOKUP, which are inherently limited to returning only the first match they encounter. The FILTER function, conversely, is designed to yield a comprehensive list of all occurrences.

Executing the Formula and Verifying Dynamic Output

To perform this conditional extraction, we must input the FILTER function into the designated starting output cell. Assuming we want the results to begin in cell E2, we enter the following structure. It is important to remember that cell F2 currently contains the text “Mavs,” serving as the dynamic input for our search:

=FILTER(B2:B11, F2=A2:A11)

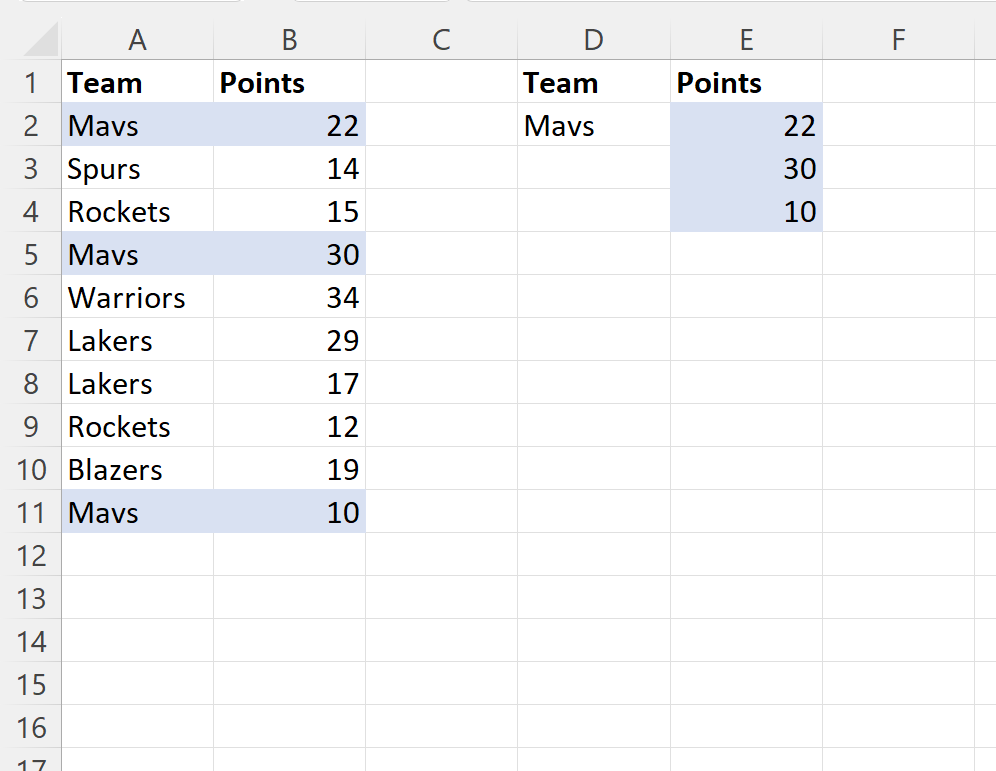

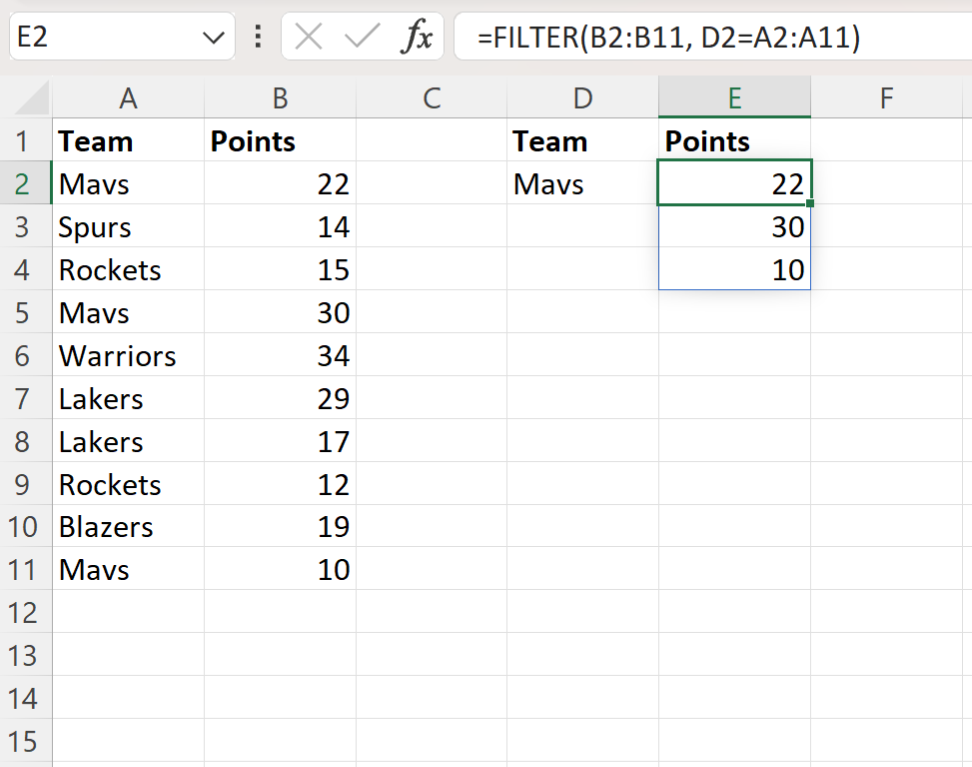

As soon as the Enter key is pressed, the formula executes instantaneously. Thanks to its Dynamic Array Formula characteristics, the resulting array of values automatically spills downward, populating cells E2, E3, E4, and so on, until every corresponding points value is listed. The visual outcome of applying this formula within the spreadsheet environment clearly demonstrates the efficiency of the modern Excel engine:

A key observation here is how the function successfully isolates all rows where “Mavs” appears in the Team column, and subsequently returns only the corresponding points values: 22, 18, and 30. This process offers high integrity and can be easily verified by manually cross-referencing the original source dataset. By scanning the Team column and comparing the rows to the returned scores, users can quickly confirm the accuracy of the conditional data extraction, reinforcing confidence in the automated result.

Extending Functionality: Multi-Criteria and Data Type Versatility

While the preceding example focused on retrieving numerical values (Points), the FILTER function is exceptionally versatile and handles virtually all data types with equal efficacy—including text strings, dates, currencies, or even returning entire rows of data simultaneously. If, instead of the scores, we had needed a list of the player names associated with the “Mavs” team, the only modification required would be to change the first argument (the array) to reference the column containing the player names. Critically, the second argument (the include condition) would remain unchanged, as it solely defines the selection criteria regardless of the specific output column chosen.

A major strength of this function lies in the flexibility offered by the include argument, which facilitates the creation of complex conditional logic. You are not limited to a single criterion lookup. To filter data based on multiple criteria—for example, retrieving scores where the Team equals “Mavs” AND the Points scored are greater than 20—you employ mathematical operators to combine separate logical tests.

To create an AND condition (requiring both conditions to be TRUE), you use the multiplication operator (*): =FILTER(B2:B11, (A2:A11="Mavs") * (B2:B11>20)). Alternatively, to create an OR condition (requiring at least one condition to be TRUE), you utilize the addition operator (+): =FILTER(B2:B11, (A2:A11="Mavs") + (A2:A11="Bulls")). This advanced capability transforms the function into an incredibly powerful tool for intricate data segmentation and reporting requirements.

Finally, revisiting the optional if_empty argument underscores the commitment to building robust spreadsheets. If the lookup value in F2 is changed to a team that does not exist in the source dataset (3/3) (e.g., “Rockets”), the formula will, by default, return the opaque #CALC! error. To gracefully handle such non-matches, we modify the formula to include a user-friendly message: =FILTER(B2:B11, F2=A2:A11, "Team Not Found"). This minor enhancement significantly improves the clarity and professionalism of the resulting Excel report by providing contextual feedback to the user.

Resources for Advanced Excel Operations and Dynamic Array Mastery

For analysts seeking to significantly expand their data manipulation skills beyond single-criterion filtering, the principles demonstrated by the FILTER function are foundational to mastering modern Excel operations. A solid grasp of how Dynamic Array Formulas behave is the essential prerequisite for leveraging other powerful new functions, including SORT, UNIQUE, SORTBY, and SEQUENCE.

These new functions allow users to perform sophisticated, instantaneous data transformations that were previously impossible or required complex VBA code. By combining functions like FILTER with SORT, you can not only extract all matching records but also present those results automatically ordered by score, date, or name.

The following resources outline pathways to performing other common and advanced operations in Excel, building directly upon the concepts of array handling and conditional logic discussed in this article:

• How to Utilize the UNIQUE Function to Extract Distinct Values from a List.
• Combining the FILTER and SORT Functions for Ordered Conditional Output.
• Implementing the XLOOKUP Function for Flexible, Modern Search Capabilities.
• Creating Dynamic Dependent Drop-Down Lists using Dynamic Array Formulas.

For the complete and authoritative technical documentation regarding the syntax, limitations, and detailed examples of the Excel FILTER function, users should always refer directly to the official Microsoft support documentation online. Continued practice with these dynamic tools will unlock significantly greater efficiency in data management within Excel.
