Learn How to Dynamically Mirror Excel Tables Across Multiple Sheets

Introduction to Dynamic Table Mirroring in Excel

Microsoft Excel remains the premier application for sophisticated data management, complex analysis, and detailed reporting across almost every industry. A frequent requirement for users is the need to present identical datasets, typically organized as an Excel table, on multiple sheets within the same workbook. While the temptation might be to use the standard copy-and-paste function, this approach only creates a static snapshot. A static copy is fundamentally disconnected from the source data, meaning any subsequent additions, deletions, or modifications to the original dataset will not be reflected in the pasted version, leading rapidly to data inconsistency and manual reconciliation errors.

To ensure absolute data integrity and simplify reporting workflows, a solution involving dynamic synchronization, commonly referred to as “mirroring,” is essential. Dynamic mirroring establishes a live link between the source data and its representation on another sheet. This synchronization guarantees that the secondary view updates instantaneously and automatically whenever changes occur in the primary source table. This capability is paramount in professional settings where high-stakes reporting, such as real-time financial modeling, inventory tracking, or project status dashboards, depend entirely on having consistent and up-to-the-minute data visualization across various summary locations. Relying on manually updated or static data views in such scenarios introduces significant risk and severely limits the utility of the workbook.

Fortunately, Excel offers a robust and remarkably efficient method to achieve this live link by leveraging the unique capabilities of its structured reference syntax. Unlike traditional A1 notation, structured references are designed specifically to interact with formal Excel Tables, referencing their components—such as headers, entire columns, or the complete data payload—by their assigned names. By employing structured references, we can instruct the application to project the entirety of a named table object onto a new sheet, thereby creating a true, live mirror image that ensures all dependent views of the data remain perfectly current.

The Critical Prerequisite: Converting Data to a Named Excel Table

The foundation of this dynamic mirroring technique rests on a single, non-negotiable prerequisite: the source data must be formally designated as an official Excel table object. It is insufficient merely to have data arranged neatly in rows and columns with gridlines applied. An Excel table, fundamentally different from a standard range, is a dedicated object that possesses specialized properties. These properties include automatic handling of data expansion, dedicated formatting features (like banded rows), built-in filtering, and, most crucially for our purposes, native support for structured reference syntax. Without this conversion, the mirroring formula will fail to recognize the data range as a named, cohesive object.

The process of converting a standard data range into an Excel table is quick and straightforward. First, select any single cell within the data range you wish to convert. Next, execute the keyboard shortcut Ctrl + T, or alternatively, navigate to the Insert tab on the Ribbon and select the “Table” option. Excel will subsequently display a dialog box prompting you to confirm the range boundaries and whether your data includes headers. Once this confirmation is accepted, the range instantly transforms into a specialized table object, acquiring all the necessary properties to support dynamic linking.

Following the conversion, the next essential step is to provide a meaningful name for this new table object, as the mirroring formula depends entirely on this unique identifier. By default, Excel assigns generic, sequential names such as Table1, Table2, and so on. For improved clarity, organization, and long-term maintainability—especially in workbooks containing multiple data sources—it is highly recommended that you rename your table to something descriptive, such as ProjectBudget_Q3 or RawInventoryData. To rename the table, simply click anywhere inside the table, navigate to the contextual Table Design tab that appears on the Ribbon, and modify the name displayed in the Table Name field located on the far left. For the subsequent steps in this guide, we will proceed assuming the table retains the default designation, Table1, on the source sheet (e.g., Sheet1).

Implementing the Dynamic Mirror Formula

With the source data correctly structured and named as an Excel table, the core mechanism for creating the dynamic mirror can be applied. This powerful method is centered on utilizing a highly specific form of structured reference that references the entire object by name. The key to successful implementation is placing this formula in the top-left cell of the destination sheet—the exact cell where the mirrored data is intended to begin. If your source table is named Table1 and you want the mirror to start at cell A1 on Sheet2, A1 is the required entry point.

The formula that facilitates this complete and dynamic mirroring process is elegantly simple. It requires only the table’s name followed by a special item specifier designed to include all components of the data structure. This single formula instructs Excel to pull the entire contents of the named table, headers and all, into the current location. It is crucial to remember that this process relies on the source range having been formally converted into a named Excel Table object, as standard ranges do not support this syntax.

The easiest and most effective way to mirror a named table dynamically onto another worksheet in Excel is by entering the following formula into the designated top-left cell:

=Table1[#All]

This syntax utilizes the specifier [#All], which is an intrinsic, crucial part of the structured reference language. This specifier explicitly instructs Excel to encompass every element of the named table object: the header row, all existing data rows, and any total rows that might be configured. By including [#All], we ensure a perfect, complete replication of the source data structure, including the essential context provided by the header row, thereby achieving a comprehensive live mirror.

Practical Example and Spill Functionality

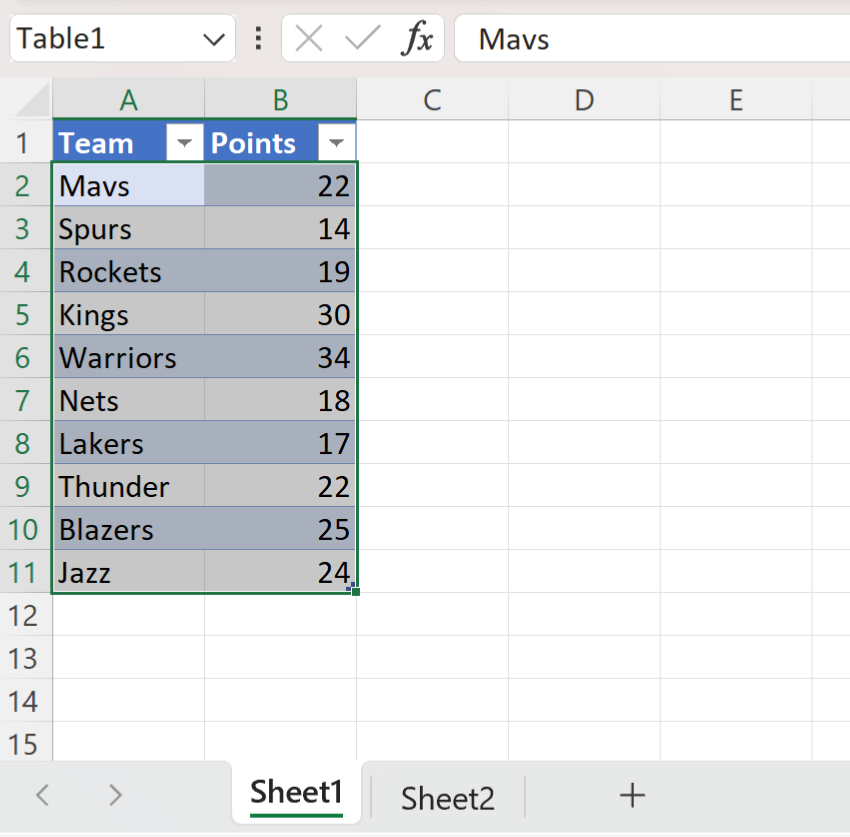

To demonstrate the effectiveness of this technique, we will walk through a common scenario. Assume we have a source table named Table1 residing on Sheet1, containing detailed statistics for basketball players, structured as follows:

This source table, Table1, serves as the definitive source of truth. Our objective is to create an exact mirror of this table onto Sheet2. This mirrored view will be used exclusively for reporting purposes and must maintain perfect synchronization with the data on Sheet1 at all times, reflecting any changes instantly.

To initiate the mirroring process, we first navigate to the destination sheet, Sheet2. We must select the cell designated as the top-left corner of the mirrored table—in this example, cell A1 of Sheet2. Within this selected cell, we enter the specific structured reference formula that targets all components of the source table:

=Table1[#All]

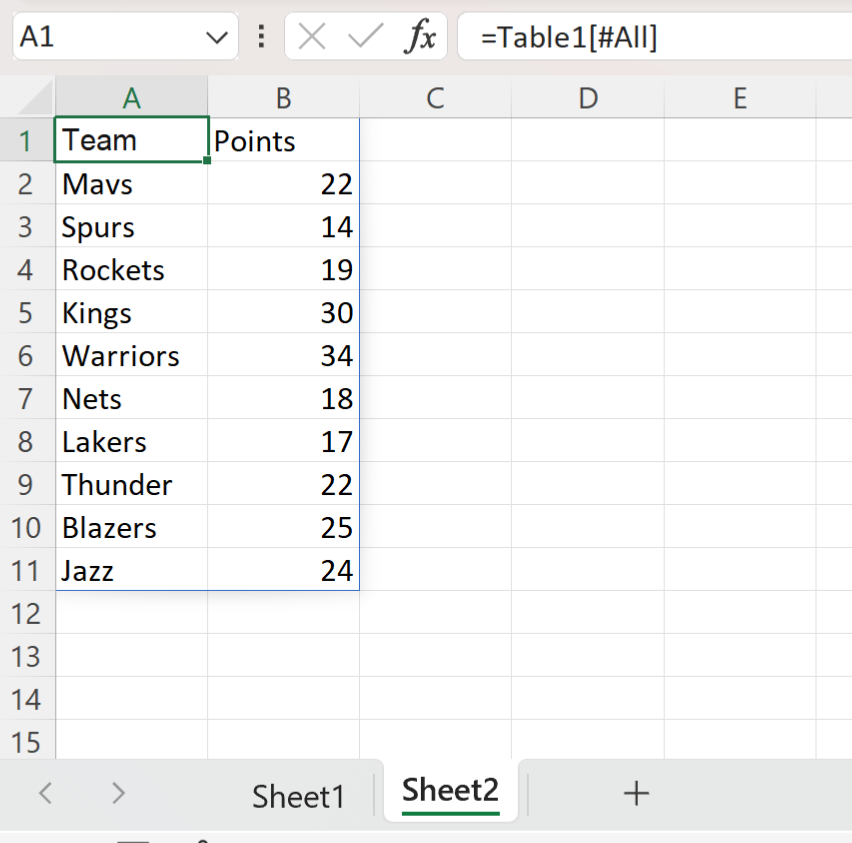

Upon execution (pressing Enter), the formula immediately triggers Excel’s modern Dynamic Arrays functionality, often referred to as “spilling.” This feature automatically populates the entire necessary range on Sheet2, precisely duplicating the source table structure and content. The resulting mirrored table on Sheet2 appears exactly as intended:

It is critical to observe the resulting structure: cell A1 of Sheet2 contains the single array formula, while the remaining cells in the mirrored area are spill results. This means the mirrored data is dynamic and inherently read-only; these cells cannot be manually edited, which serves as a robust mechanism for guaranteeing the integrity and continuous synchronization of the mirrored data with its source.

Verifying Synchronization: The Power of Dynamic Linking

The foremost benefit of employing the =Table1[#All] technique, when compared to traditional methods like pasting values or using simple cell-by-cell references (e.g., =Sheet1!A1), is the preservation of robust dynamic updating. Because the mirror is created using a single array formula based on a structured reference, any modification made to the values, structure, or dimensions of the original table (Table1 on Sheet1) will be instantaneously reflected in the mirrored table on Sheet2. This feature completely eliminates the risk of working with outdated information and dramatically boosts workflow efficiency in data-intensive tasks by ensuring all dependent reports are always current.

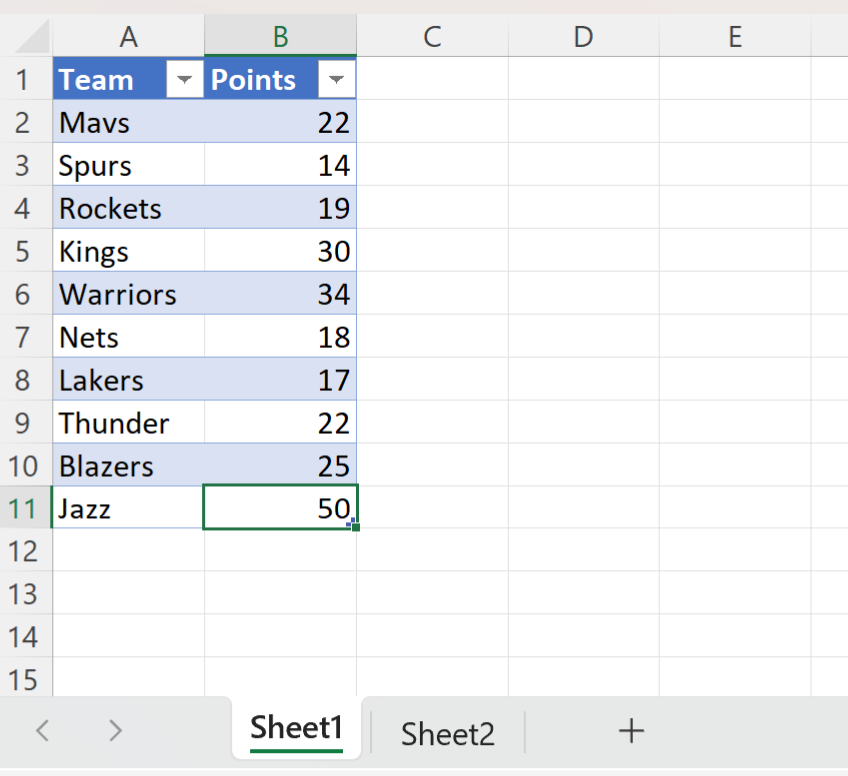

Consider a scenario where the source data requires correction or updating. Suppose we update the final value in the Points column of Table1 on Sheet1, changing it to 50:

Due to the live link established by the structured reference formula, this change is automatically and immediately propagated to the mirrored table on Sheet2 without requiring any manual intervention or refresh action:

Furthermore, this dynamic synchronization extends beyond mere value changes. Any structural modifications—such as adding new rows of data to the bottom of the source table, deleting existing records, or even changing column headers—will automatically resize and update the mirrored table on the destination sheet. This inherent adaptability is a core benefit of using structured references and makes this technique invaluable for managing large, evolving datasets.

Troubleshooting, Compatibility, and Alternative Methods

While the structured reference technique using [#All] is exceptionally powerful, users must be aware of certain technical limitations and compatibility requirements. Firstly, this technique relies entirely on the modern Dynamic Arrays functionality, also known as “spilling,” which is a feature primarily available in current versions of Excel (Microsoft 365, Excel 2021, and newer). Users working with older versions of the software (such as Excel 2016 or earlier) will find that the formula may only return the value of the top-left cell rather than spilling the entire array, necessitating alternative methods for dynamic linking.

A second common challenge involves conflicting data in the destination range, which results in the #SPILL! error. The cell where the formula is entered (e.g., A1 on Sheet2) requires adequate empty space below and to the right to accommodate the entire source table structure. If any existing data is present within this necessary spill range, Excel cannot expand the array fully and will return the #SPILL! error. The resolution is straightforward: the user must locate and clear all conflicting cells within the spill range before attempting to re-enter the formula. Ensuring the target area is completely blank is paramount for successful mirroring.

For users who cannot leverage the Dynamic Arrays formula or who require advanced data transformation capabilities during the mirroring process, two primary alternatives exist. The first is traditional cell-by-cell linking, involving entering a formula like =Sheet1!A1 and manually dragging it across and down the required range. While this provides dynamic linking, it lacks the critical benefits of automatic resizing and scalability offered by structured references, requiring manual effort whenever the source table expands. The second, more professional and robust alternative is the use of Power Query, which, although involving a steeper learning curve, provides superior control over data connections, refreshing capabilities, and extensive transformation options.
