Learning Excel: How to Move the Horizontal Axis to the Bottom of a Chart

In the specialized realm of data visualization, the ability to communicate complex information clearly hinges on the precision and aesthetic arrangement of your graphical elements. Users working extensively with Microsoft Excel frequently encounter a critical formatting hurdle when their datasets include both positive and negative values: the default placement of chart axes. By convention, Excel often anchors the horizontal axis—also known as the category axis or X-axis—precisely at the zero point (y=0) on the vertical axis. While this configuration is functional for strictly positive data, it leads to significant visual clutter and obscured category labels when data points extend below the zero line, compromising the chart’s immediate interpretability.

Fortunately, Excel provides robust and granular controls through its Format Axis panel, allowing experts and power users alike to fine-tune every component of their visualizations. This comprehensive guide details the exact, technical procedure necessary to effectively relocate the horizontal axis to the absolute bottom boundary of your graph’s plot area. This modification is far more than a simple cosmetic change; it is a foundational step for enhancing the functional clarity of your data presentation, ensuring that all category labels remain distinct, unobstructed, and professionally segregated from the data series, regardless of whether the values plotted are positive or negative.

We will navigate through a detailed, step-by-step methodology, beginning with dataset preparation and concluding with the final, perfected axis repositioning. Mastering this essential formatting skill will dramatically elevate the quality of your data storytelling, guaranteeing that your audience can effortlessly grasp key findings without the impediment of visual conflicts inherent in poorly configured Excel charts. This knowledge is indispensable for generating clear, reliable, and high-impact data visualizations for any professional setting.

Understanding Chart Axes and the Zero-Point Default

To successfully implement targeted modifications, one must first establish a firm understanding of the fundamental mechanics governing axes within the Excel charting environment. Every standard two-dimensional chart, such as a bar, column, or line graph, is built upon two principal components. The vertical axis (known formally as the value axis or Y-axis) is tasked with quantifying numerical magnitudes, representing metrics like sales totals or percentage changes. Conversely, the horizontal axis (the category axis or X-axis) is responsible for defining the discrete groups, intervals, or categories being measured, such as months, products, or periods. Together, these axes establish the essential framework required for accurately plotting and interpreting any data series.

Excel employs a highly logical default placement based on the assumption of conventional data structures. In most column charts, the vertical axis begins at the minimum value (often zero) and extends upward, while the horizontal axis is typically anchored at the base of the plot area, aligning precisely with the zero point of the vertical axis. This default configuration ensures optimal clarity when the dataset is composed exclusively of positive values, as all data columns extend cleanly upwards from the horizontal baseline, leaving the category labels perfectly visible beneath them.

However, this visual harmony is immediately disrupted when a dataset incorporates negative values—data points representing concepts such as financial losses, performance deficits, or contractions. Since the horizontal axis remains rigidly fixed at the vertical axis’s zero point, any data bars extending into negative territory will inevitably pass through and intersect with the axis line itself. This intersection frequently results in the horizontal axis labels being partially obscured, cut off, or visually overlapping with the descending negative data points. This prevalent challenge clearly illustrates why manual, strategic adjustment is often a necessary technique to ensure that complex financial or performance data is presented with rigorous, unambiguous clarity.

Preparing Your Data for Effective Visualization

The initial and arguably most crucial phase in generating any professional chart in Excel is ensuring that your raw data is meticulously organized into a structured, robust, and clean dataset. For the practical purposes of this demonstration, we will utilize a hypothetical dataset that tracks the percentage sales growth across ten consecutive reporting periods. This specific type of performance data is ideal because it inherently contains both strong positive growth figures and periods of negative contraction, perfectly highlighting the necessity and effectiveness of relocating the horizontal axis. Recognizing that a well-structured table is the bedrock of any insightful visualization, we must ensure Excel can accurately plot all values and associations.

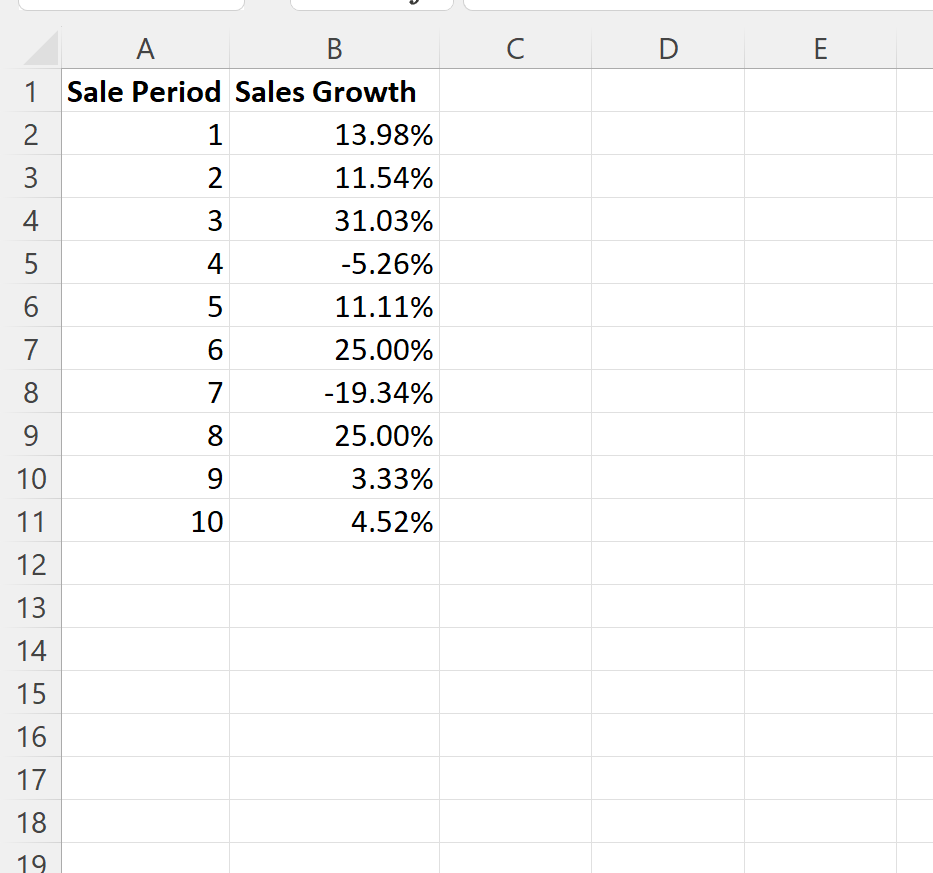

Our sample data, presented in the table below, displays the calculated sales growth percentages for each period. Of particular importance is the deliberate inclusion of negative percentages, which signify phases of sales decline or contraction. This strategic blend of positive and negative values is precisely what causes some data points to extend below the zero line, thus creating the label overlap that we aim to systematically resolve. This specific dataset structure serves as an exemplary case study for demonstrating how strategic axis positioning can dramatically improve a chart’s overall interpretability and visual flow for stakeholders.

To begin replicating this example, simply enter the data into your Excel worksheet exactly as structured below. It is essential to ensure that your column headers are descriptive and distinct, as these labels will be automatically used by Excel to label your chart axes and legend entries. Maintaining rigorous accuracy in data entry is paramount, as errors introduced at this foundational stage will fundamentally compromise the reliability, integrity, and overall trustworthiness of your resulting visualization.

Creating and Examining the Initial Column Chart

With the data accurately input and verified within the Excel worksheet, the immediate subsequent step involves converting this numerical information into a compelling and comparative visual representation. For the purpose of clearly comparing performance magnitudes across distinct categories or sequential time periods, the Clustered Column chart is recognized as an exceptionally strong choice, as it facilitates clear visual comparisons of scale. This chart type is highly effective for rapidly identifying trends, outlying results, and the performance differentials between adjacent periods.

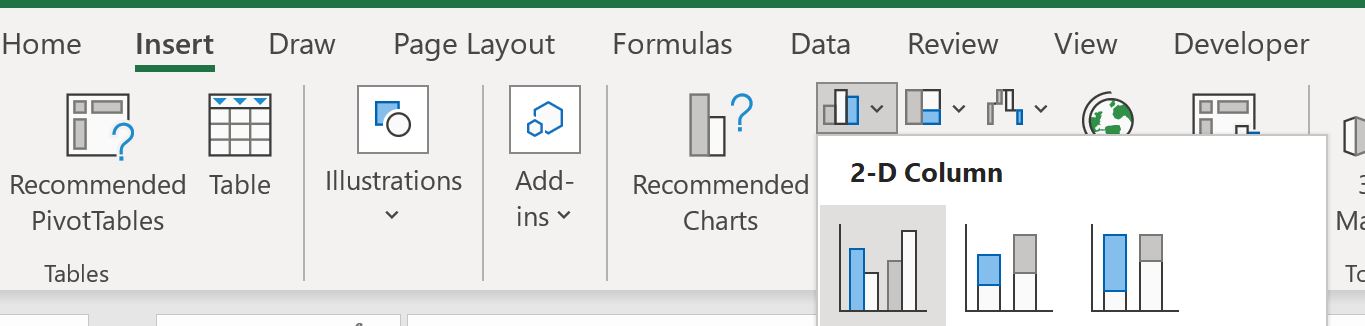

To generate the chart, first carefully highlight the specific range of values you intend to visualize—in this scenario, selecting the cells containing the period labels and the sales growth percentages. Next, navigate to the Insert tab located prominently on the Excel ribbon interface. Within the designated Charts group, click on the icon that represents the Clustered Column chart type. Excel will immediately render the initial graphical representation of your prepared data series using its standard default settings.

As illustrated in the subsequent images, the newly created chart is displayed according to Excel’s automatic configuration rules. The critical observation is that the horizontal axis, which displays the category labels (periods), is automatically positioned exactly where the value axis (Y-axis) is equal to zero (y=0). This default placement instantly exposes the core problem: data columns representing negative growth extend downwards, directly intersecting with, and consequently obscuring, the category labels fixed on the horizontal axis. This visual conflict is highly detrimental to quick and accurate data interpretation and forms the primary and compelling motivation for the advanced formatting steps that must follow.

The resulting chart will automatically appear:

By default, Excel places the horizontal axis at a value of y = 0, leading to the visual issue.

Initiating the Axis Formatting Process to Resolve Overlap

To effectively resolve the pressing issue of overlapping labels and significantly enhance the overall clarity and professional presentation of our visualization, the subsequent step necessitates accessing Excel’s sophisticated axis formatting functionalities. This procedure is expertly streamlined and provides the necessary granular controls to manage and precisely adjust every display property of the axis. Our immediate technical objective is to relocate the horizontal axis to the lowest possible boundary of the plot area, thereby guaranteeing that category labels are fully visible, distinct, and completely free from conflict with any negative data points.

To commence this crucial process, carefully direct your mouse cursor to any of the existing labels or values currently displayed on the horizontal axis of your chart. It is absolutely essential to perform a right-click directly on one of these textual elements to ensure that the context-sensitive menu specific to the axis properties appears. This specific action signals clearly to Excel that your intention is to modify the display characteristics of this particular axis, rather than altering the properties of the overall chart area, the plot area, or the data series itself.

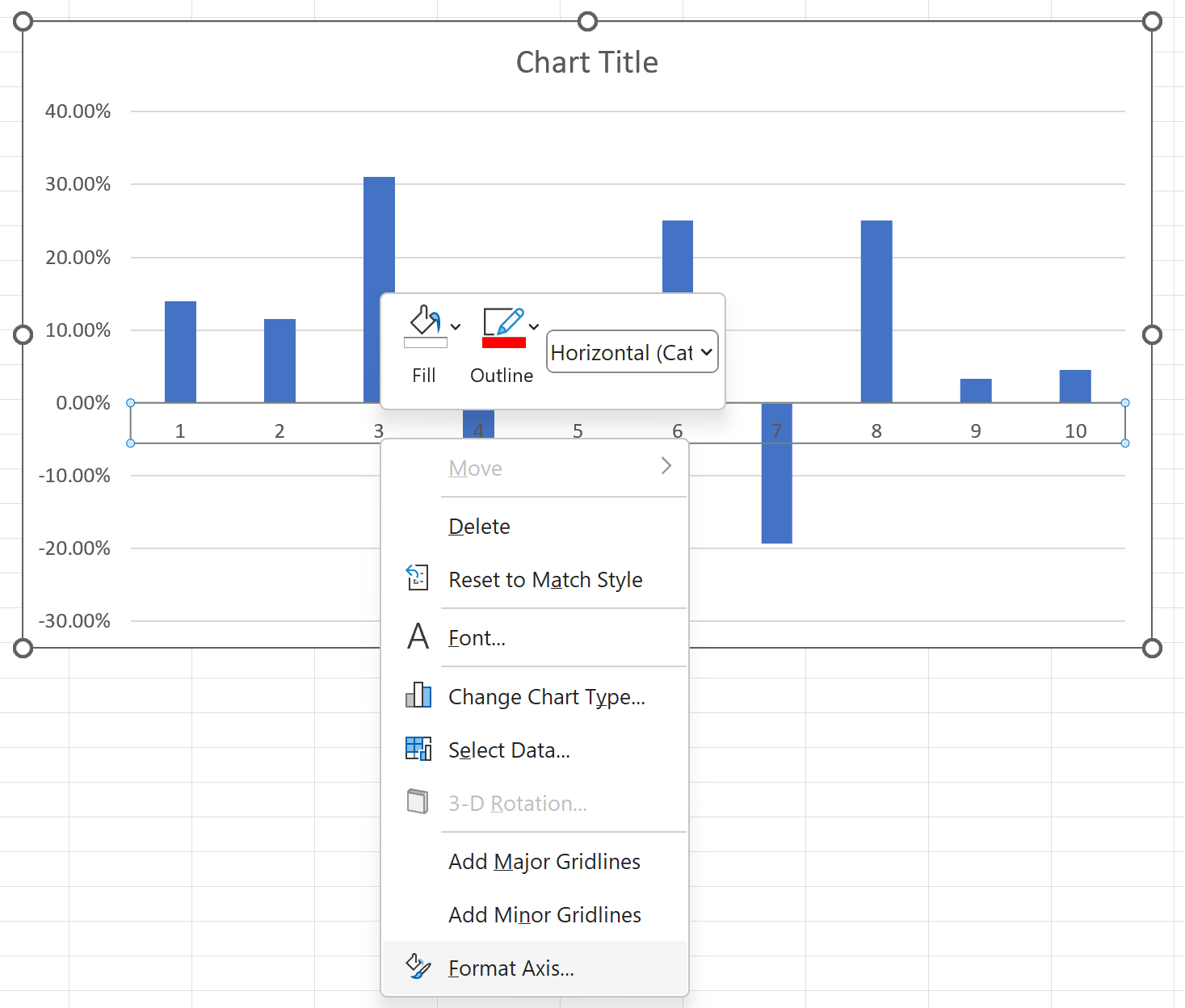

Upon executing the right-click, a contextual dropdown menu will be immediately displayed, offering a range of options relevant to the selected element. Locate and click on the specific option labeled Format Axis…. This critical action will open the dedicated Format Axis panel, which typically docks itself conveniently on the right-hand side of your Excel application window. This panel functions as the comprehensive control center, providing specialized tools to fine-tune aspects such as axis boundaries, measurement units, major and minor tick marks, number formats, and, most critically for our goal, the precise placement of the labels. It is within this powerful configuration panel that we will find the definitive setting needed to successfully reposition the horizontal axis to the bottom of the graph.

Configuring the Label Position for Maximum Clarity

Once the Format Axis panel is successfully opened and docked, you are presented with multiple tabs and categories for in-depth customization. To achieve our primary objective of moving the axis to the chart’s bottom edge, we must navigate to and modify the specific technical setting that governs label positioning. This panel is logically structured; you should locate the section specifically dedicated to Labels. If the relevant options are not immediately visible upon opening the panel, you may need to click on the small arrow or expand button next to the Labels heading to reveal the necessary sub-options.

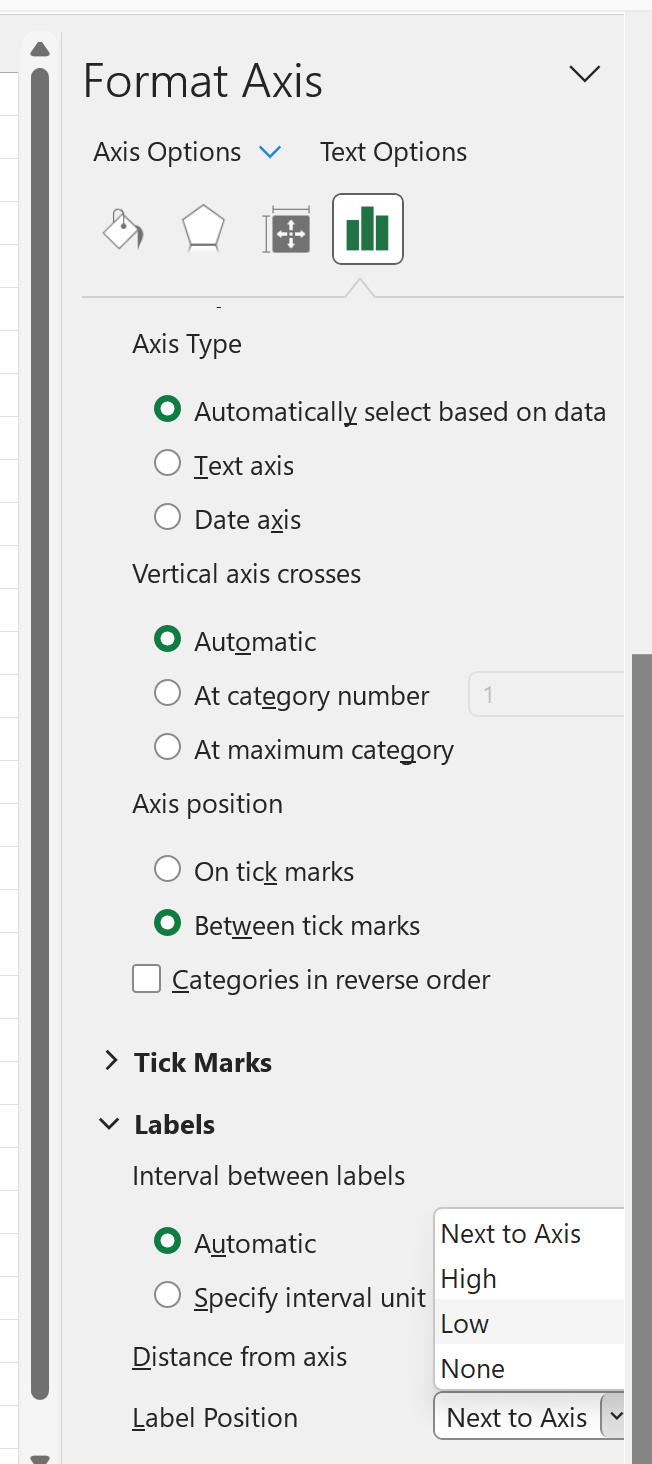

Within the expanded Labels configuration section, locate the crucial dropdown menu labeled Label Position. This particular setting is the mechanism that definitively dictates the spatial location of the category labels relative to the axis line itself.

The dropdown menu for Label Position consistently offers three distinct placement choices:

• Next to Axis: This typically represents the default setting where labels are placed immediately adjacent to the axis line, which is the cause of the unwanted overlap with negative data points.
• High: This option moves the labels to the “high” end of the axis, which, for a horizontal X-axis, corresponds to the top edge of the plot area. This setting is rarely useful for standard column charts but has niche applications in specialized visualizations.
• Low: This is the definitive setting required to achieve our goal. Selecting Low instructs Excel to reposition the horizontal axis labels, and consequently the associated axis line, to the absolute lowest position available within the chart’s boundaries. This critical action successfully moves the entire axis structure to the bottom of the graph, ensuring it is completely clear of any data bars, including those representing significant negative values.

Proceed to select the option labeled Low from this dropdown menu. The chart display will instantly update in real-time, providing immediate visual confirmation that the axis has been successfully repositioned to the chart’s base.

Observing and Utilizing the Enhanced Chart Clarity

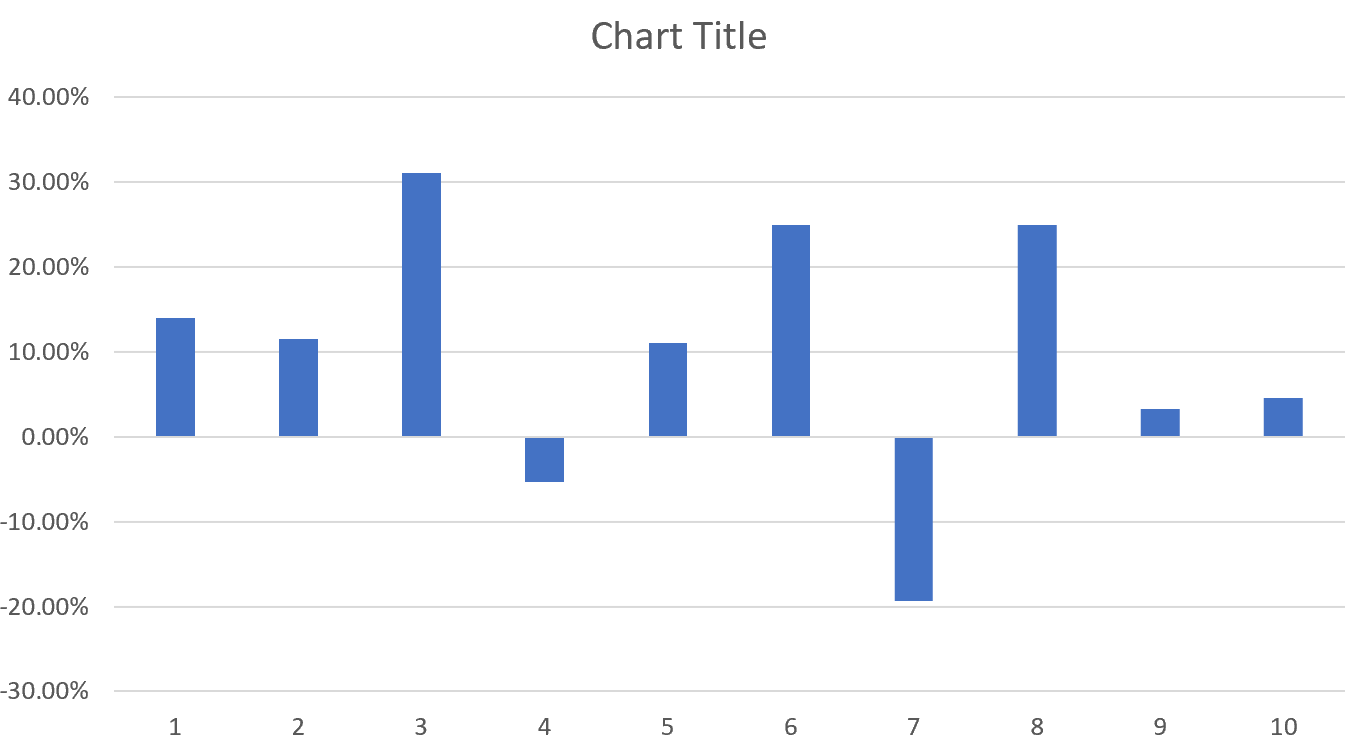

The moment the Low option is selected for the Label Position, Excel instantly executes a comprehensive reconfiguration of the visualization. You will observe a dramatic and immediate visual improvement as the entire horizontal axis, along with all its critical category labels, is shifted from its problematic default position at y=0 to the bottom-most boundary of the chart’s plot area. This transformation is the core, functional result of our targeted formatting effort.

The resulting chart now exhibits a significantly cleaner, more organized, and demonstrably professional aesthetic. The paramount benefit of this strategic adjustment is the total and complete elimination of any visual overlap between the axis labels and the data points, particularly those columns extending into negative territory. Where the labels were previously obscured, partially cut off, or visually tangled with the descending bars, they are now prominently and distinctly displayed beneath the entire data range. This single fix profoundly elevates the overall readability of your chart, enabling viewers to effortlessly and accurately associate each category label with its corresponding performance bar, irrespective of the value’s sign.

This seemingly minor but profoundly powerful repositioning technique not only satisfies an aesthetic requirement but also substantially enhances the chart’s functional effectiveness. By guaranteeing clear and unobstructed labels, you empower your audience to process the information more efficiently and accurately. The distinction between positive and negative results becomes instantly clearer, and the overall interpretation of complex trends is streamlined and expedited. This technique stands as a testament to how thoughtful and deliberate presentation can dramatically amplify the impact of data visualization, making complex information universally accessible and readily understandable to all stakeholders.

Notice that it’s much easier to read the axis labels now and the labels no longer overlap with any of the bars that have negative values.

Conclusion and Foundational Best Practices for Chart Design

The technical proficiency to accurately manipulate chart axes in Excel is an absolutely fundamental requirement for any professional engaged in data analysis and high-stakes business presentation. As rigorously demonstrated throughout this detailed guide, a straightforward adjustment to the horizontal axis’s label position can effectively transform a visually cluttered and confusing graph into a clear, coherent, and highly effective communication tool. By strategically moving the axis to the bottom boundary of the plot area, we proactively ensure that all category labels are prominently displayed, thereby preventing interference with the data points—a mandatory requirement when plotting datasets that contain both positive growth figures and negative contractions.

Building upon this specific axis technique, it is vital that practitioners adopt a comprehensive and holistic approach to chart design that consistently prioritizes visual clarity, analytical accuracy, and maximum communicative impact. Always keep your target audience and the central message you intend to convey at the forefront of every design decision. Ensure that your underlying source data is rigorously clean, well-validated, and appropriately structured before attempting any visualization. Furthermore, actively explore the vast array of available formatting options within Excel’s extensive chart toolset, including customizing chart titles, legends, data labels, and gridlines, to achieve the highest possible level of professional refinement in your visualizations.

Ultimately, the core purpose of any chart or graph is to demystify complex data, making it instantaneously understandable and actionable. By diligently applying these foundational best practices in data visualization and strategically leveraging Excel’s powerful formatting capabilities, you can routinely create compelling and rigorously accurate charts that not only accurately reflect your data but also powerfully communicate your insights, thereby driving informed and confident decision-making within your organization. Continue to practice and refine these technical skills, and you will quickly become adept at crafting truly engaging and intellectually sound data presentations.
