Learning to Use Excel Conditional Formatting: Shading Cells Based on Other Cell Values

One of the cornerstones of effective data analysis in Microsoft Excel is the capability to automatically apply visual formatting based on specific logical criteria. When navigating extensive datasets, analysts frequently encounter scenarios where information in one column must be visually highlighted or shaded based on the calculated or recorded value residing in a completely different column. This powerful dynamic shading technique is achieved using the advanced functionality within the Conditional Formatting feature, accessed via the New Rule option located on the Home tab of the ribbon. By mastering this method, users can generate highly effective and immediate visual summaries of complex data, drastically improving overall readability and data interpretation speed.

The implementation of cross-column conditional formatting requires the precise definition of a custom formula that dictates the condition. Crucially, this formula must ensure that the reference used correctly locks onto the comparison column while simultaneously remaining relative to the row currently being evaluated. This detailed tutorial guides you through the exact steps necessary to implement this technique, providing clarity on the underlying logic and the specific syntax needed to achieve perfectly aligned and precise visual results.

The Strategic Value of Dynamic Data Visualization

In the rapid environment of modern data analysis, static spreadsheets often fail to communicate necessary insights with sufficient efficiency. Dynamic formatting rules fundamentally transform a basic table of figures into an interactive and highly communicative document, acting as a form of streamlined data visualization. When we shade a cell based on the contents of an adjacent cell, we are effectively deploying an automated visual alert system. This system ensures the user’s immediate attention is drawn to critical data points—whether they are financial transactions exceeding a specified budget, inventory levels dipping below a safety threshold, or performance scores surpassing a key benchmark.

Implementing this function offers immense value, particularly when dealing with large datasets that undergo frequent updates or changes. Once the conditional rule is properly established, Excel takes over the responsibility of managing the visual appearance of the selected cells. If the numerical or categorical value in the reference column changes, the corresponding shaded cell will instantly update, either applying the defined color or removing it, based entirely on the logical outcome of the applied formula. This level of automation guarantees data consistency and saves substantial time compared to the tedious process of manually applying fill colors based on external checks.

Before proceeding to the practical setup, it is vital to internalize that cross-column formatting is entirely dependent on how Excel interprets cell references within the conditional rule environment. Unlike standard cell calculations, conditional formatting rules are applied iteratively across the entire designated range. Therefore, the formula must be constructed from the perspective of the very first cell in the chosen selection range, employing specific absolute and relative references to ensure that the condition correctly compares each row in the applied range against its corresponding reference cell in the comparison column.

Mastering Conditional Formatting: The Custom Formula Approach

The core technological foundation for this technique is the Conditional Formatting feature itself. This versatile tool suite enables users to apply various formats—including cell shading, specific font colors, or intricate borders—only when predefined conditions are met. While Excel provides many pre-built rules (such as highlighting the Top 10 items or values above average), complex requirements like cross-column comparison necessitate the creation of a custom rule using a logical formula. This approach provides the precise, granular control required over the logic applied to the selected cells.

To initiate this powerful function, the user must first navigate to the Home tab on the Excel ribbon. Locate the Styles group, and click the Conditional Formatting dropdown menu. Selecting New Rule opens the critical dialogue box where the formatting parameters are defined. Within this window, the essential choice is selecting the rule type: Use a formula to determine which cells to format. This specific option unlocks the sophisticated comparison capabilities necessary for referencing an external cell value.

It is paramount that the formula entered in this field resolves to a boolean result—meaning it must evaluate to either TRUE or FALSE. If the formula evaluates to TRUE for a particular cell, the chosen formatting is applied; conversely, if it evaluates to FALSE, the formatting is ignored for that cell. When applying this rule to an entire range (for example, A2:A11), Excel systematically tests the formula against every cell within that range, automatically adjusting the relative row references as it moves down the selection. This underlying mechanism highlights why meticulous management of cell references, particularly the correct placement of the dollar sign ($), is non-negotiable for success.

Case Study: Highlighting Data Based on Numerical Criteria

To clearly illustrate this concept, let us work with a straightforward dataset tracking basketball player statistics, featuring two essential columns: Team and Points. Our defined objective is to visually emphasize the team name in Column A only if the corresponding player achieved a score greater than 25 points in Column B. This targeted visual feedback instantly helps stakeholders and analysts identify high-performing teams or individuals based on their scores.

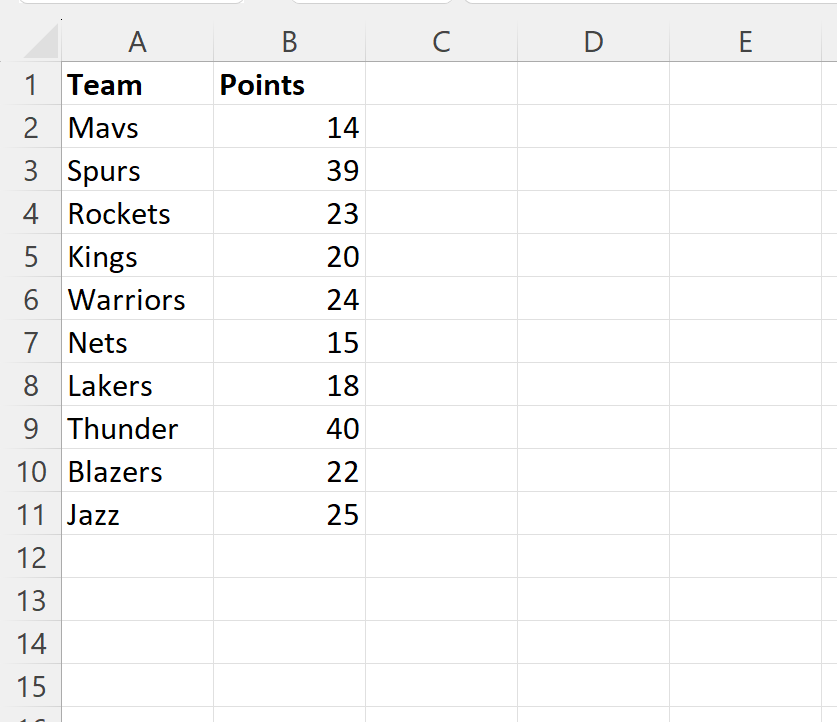

Imagine we are working with the following data table in Microsoft Excel, detailing points scored by various athletes:

Our specific task is to shade each cell in the Team column (Range A2:A11) when and only when the corresponding cell in the Points column (Range B2:B11) contains a value strictly greater than 25. This conditional linkage ensures that the context (the team name) is highlighted based directly on the associated numerical metric (the score).

Step-by-Step Implementation Guide

The first and most critical step involves accurately selecting the range of cells you intend to format. A common error is selecting both the reference column and the target formatting column; however, you must only select the cells where the shading will actually appear. For our example, we must highlight the cells in the range A2:A11. This action clearly defines the scope for the subsequent conditional rule.

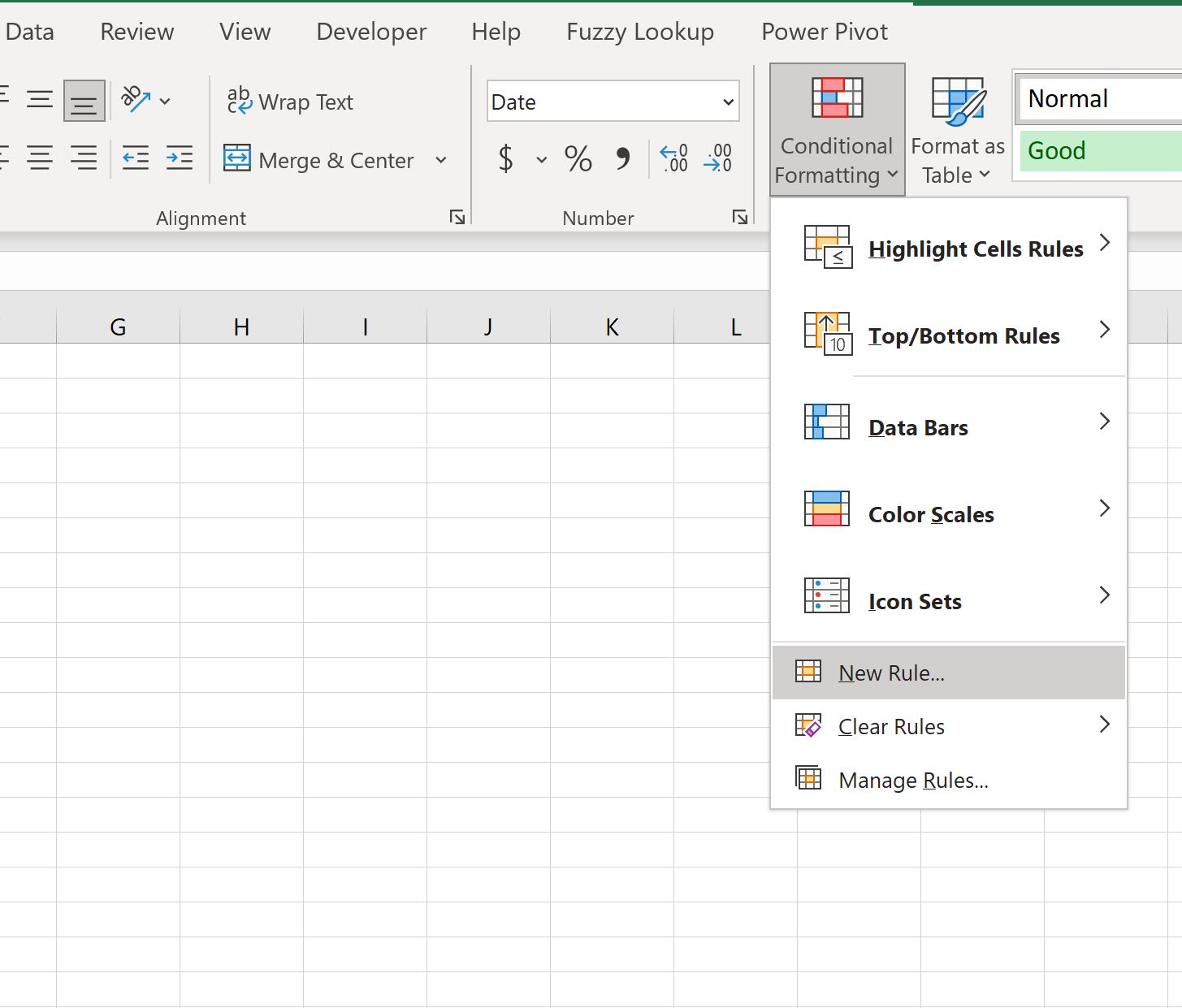

With the target range selected, navigate to the Home tab, click the Conditional Formatting dropdown menu, and select New Rule. This launches the dialogue box where the custom logic is established.

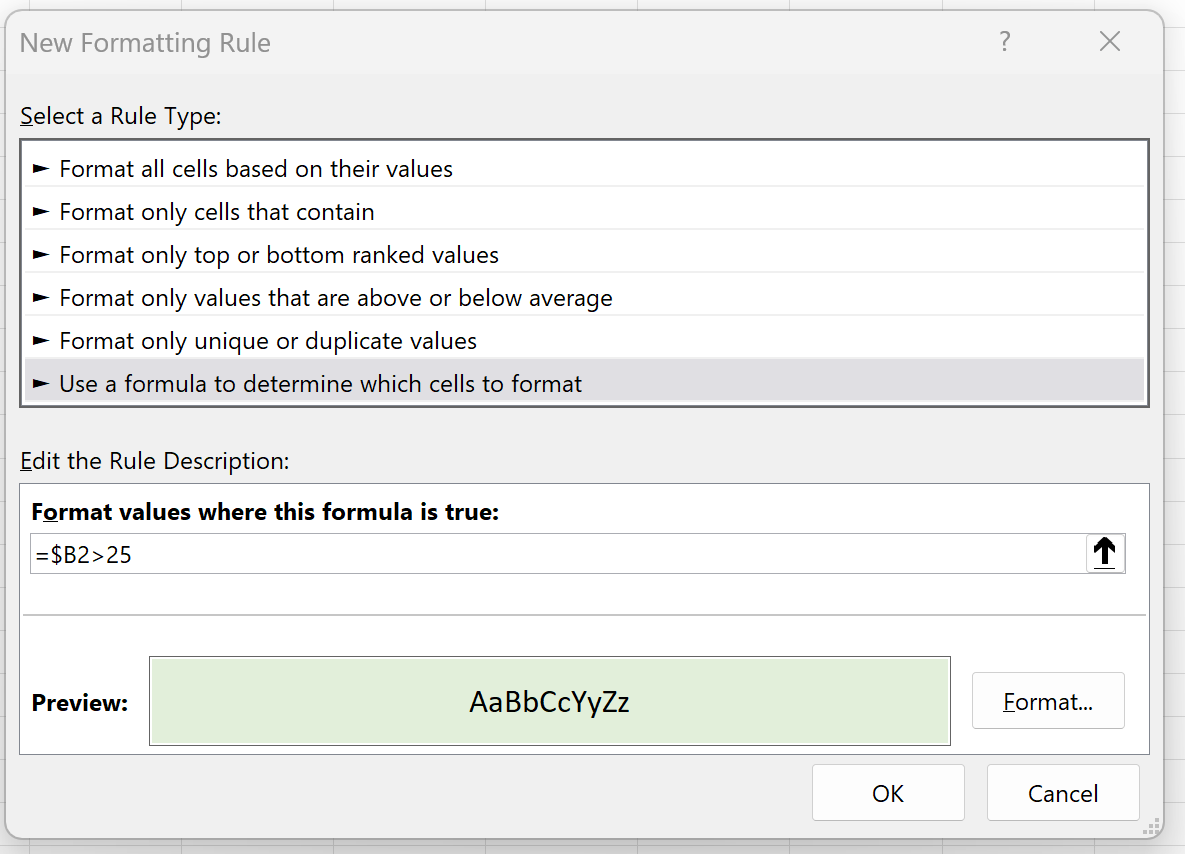

Within the New Formatting Rule dialogue box, select the rule type: Use a formula to determine which cells to format. This opens a dedicated input field for the comparison logic. Since our goal is to check if the value in Column B is greater than 25, starting from row 2, the custom formula input will be: =$B2>25. After entering the formula, click the Format button to choose the desired visual style, such as a light green fill color, and then confirm your selections by pressing OK twice.

Upon confirmation, Excel instantly evaluates and applies the formatting across the selected range (A2:A11). Consequently, every cell in the Team column that has a corresponding value in the Points column exceeding 25 will be successfully shaded, providing the required visual emphasis.

The Crucial Role of Mixed Cell References

The most pivotal aspect of crafting this conditional formatting rule lies in the precise structure of the formula: =$B2>25. A deep understanding of the dollar sign ($) placement is essential, as it determines how Excel translates and shifts the reference as it evaluates each individual cell within the applied range. This concept is entirely predicated on the distinction between absolute and relative cell references.

The formula is constructed as if it were being applied solely to the very first cell in the selected range, which is A2. When Excel tests cell A2, it checks the condition B2>25. However, when Excel moves iteratively to test cell A3, the formula must automatically adjust to check B3>25, and subsequently check B4, B5, and so on down the column.

Analyzing the structure =$B2>25 reveals its essential components:

• The dollar sign preceding the column letter ($B) renders the column reference absolute. This guarantees that regardless of which column the formatting is applied to horizontally (even if the range spanned multiple columns), the rule will consistently look back to Column B for the score comparison.
• The deliberate absence of a dollar sign before the row number (2) makes the row reference relative. This mechanism is critical because when the rule propagates to cell A3, the formula automatically updates to B3. When applied to A4, it checks B4. This dynamic adjustment allows the rule to correctly track the dataset row-by-row.

Had we incorrectly used =$B$2>25 (a fully absolute reference), every single cell in the entire selected range (A2 through A11) would only check the score in the single cell B2. This would lead to inaccurate results, either highlighting all cells if B2 met the condition or none if it did not. Therefore, the mixed reference =$B2 is the only configuration that ensures successful cross-column conditional formatting propagation.

Expanding Functionality: Text Comparisons and Advanced Logic

While the preceding example centered on numerical comparisons (using the greater than operator >), this methodology of using custom formula in Conditional Formatting is equally robust for text-based criteria. This capability is exceptionally useful for quickly highlighting categories, specific statuses, or identifiers based on string matches found in a reference column.

For instance, let’s reverse the goal: instead of shading the Team column based on points, we might want to shade the Points column (Column B) based on a text value found in the Team column (Column A). If our requirement is to highlight scores exclusively for players on the “Mavs” team, we would first select the range B2:B11. We would then create a new conditional rule using the following formula: =$A2=”Mavs”.

Key distinctions in the text-based formula include enclosing the text string (“Mavs”) in quotation marks to signify it as literal text for comparison, and adjusting the absolute reference to target Column A (the Team column) instead of Column B. This shift highlights the versatility of the custom formula approach, allowing Excel conditional formatting to adapt seamlessly whether comparing numbers using logical operators or comparing strings for exact textual matches. Remember that text comparisons in standard Excel formulas are typically case-insensitive.

Once the basic technique of shading a cell based on a single external cell value is firmly established, the complexity of the criteria can be significantly expanded. Conditional formatting formulas fully support complex logical functions such as AND() and OR(). This allows users to construct rules that require multiple conditions to be met simultaneously across several different reference columns.

For example, if we had a third column, “Position” (Column C), we could shade a cell in the Team column only if the Points were greater than 25 AND the player’s Position was “Guard.” The formula for this complex, multi-variable rule applied to range A2:A11 would be: =AND($B2>25, $C2=”Guard”). This demonstrates how conditional formatting transcends simple comparisons to enable sophisticated data filtering and visualization within the spreadsheet environment. Always ensure that column references are anchored (absolute) while row references remain relative to guarantee correct formula propagation across the applied range.
