Learning to Configure Pivot Table Row Labels for Horizontal Display in Microsoft Excel

Microsoft Excel, recognized universally as the industry standard for spreadsheet management and data manipulation, incorporates the pivot table as its most powerful feature for summarizing large datasets. When users analyze hierarchical data—information categorized across multiple nested levels, such as geographic Region, specific Product, and time-based Quarter—the resulting pivot table typically defaults to a visually appealing, but functionally restrictive, structure. This default structure is known as the Compact Form. While the Compact Form is space-efficient and excellent for high-level visual audits, it presents significant barriers when the summarized data must be used for subsequent calculations, exported to external systems, or viewed in a clear, non-hierarchical manner. The central problem is that, by default, Excel merges cells and uses indentation, failing to display all row labels on the same line, thereby creating empty spaces that severely impede conventional data processing methods.

Fortunately, advanced users of Excel have access to a straightforward mechanism designed to override this default behavior and enforce a consistent, single-line display for all row labels. This crucial layout transformation is managed via the Report Layout function, specifically by selecting the option Show in Tabular Form. Implementing this change fundamentally transforms the nested hierarchy into a flat, database-style record set. The resulting report is consequently far more robust and suitable for detailed data analysis and seamless integration with external reporting tools or statistical software. Understanding precisely when and how to apply the Tabular Form is an essential skill for anyone involved in serious spreadsheet management or advanced financial modeling.

The image provided below clearly illustrates the specific menu path required to activate the tabular display setting. It is vital to recognize that this functionality is not merely cosmetic; it fundamentally alters the underlying structure of the pivot table output, aligning it with the best practices for relational data presentation and exportability. The following sections will provide a comprehensive, step-by-step guide, beginning with a practical scenario that demonstrates the profound structural impact of switching from the limiting Compact Form to the highly functional Tabular Form.

Understanding the Default Compact Layout

To fully appreciate the necessity and power of the Tabular Form, we must first analyze the inherent limitations imposed by the default Compact Form. Whenever multiple fields are dragged into the Rows area of the pivot table field list, Excel automatically initiates nested fields. This means that inner fields are visually indented beneath the outer fields. For example, if a user groups data first by Region and then by Salesperson, the Salesperson entries will appear slightly offset, directly underneath their corresponding Region header. This structural choice is designed to mirror organizational or geographical hierarchies and conserve screen space by utilizing merged cells, listing the higher-level label only once to signify the scope of that grouping.

While this visual nesting appears concise, it introduces a critical flaw for large-scale data processing and analysis. The core operational issue is the presence of blank cells that are generated in the columns corresponding to the higher-level fields. For instance, in the example above, the Region column will only contain an entry next to the first Salesperson listed within that region; all subsequent rows belonging to that same region will have empty cells in the Region column. If an analyst attempts to copy this raw pivot table output and paste it into a different sheet, workbook, or external application, the resulting dataset is inherently incomplete. This requires time-consuming manual backfilling or formulaic interpolation to restore data integrity and re-establish the contextual relationship for every row.

Consequently, the strategic requirement to place all row labels on the same line is driven by the demands of data exportability and universal readability. Data presented in a true tabular format—where every single row constitutes a complete and independent record, including all categorical identifiers—represents the industry gold standard for subsequent processing. Whether the next step involves running statistical models, creating complex database queries, or simply accurately sorting and filtering the summarized report, the non-relational nature of the Compact Form renders it problematic for advanced users relying on reliable, clean output.

Practical Demonstration: Transforming Hierarchical Data

Let us consider a practical, relatable scenario involving a dataset that tracks performance metrics for various basketball players. This raw dataset includes categorical fields such as Conference, Team, and Position, alongside quantitative data like points scored. Our objective is to generate a pivot table that effectively summarizes the total points scored, grouped hierarchically by these three distinct organizational categories. This initial structured data forms the fundamental basis of our analytical data model.

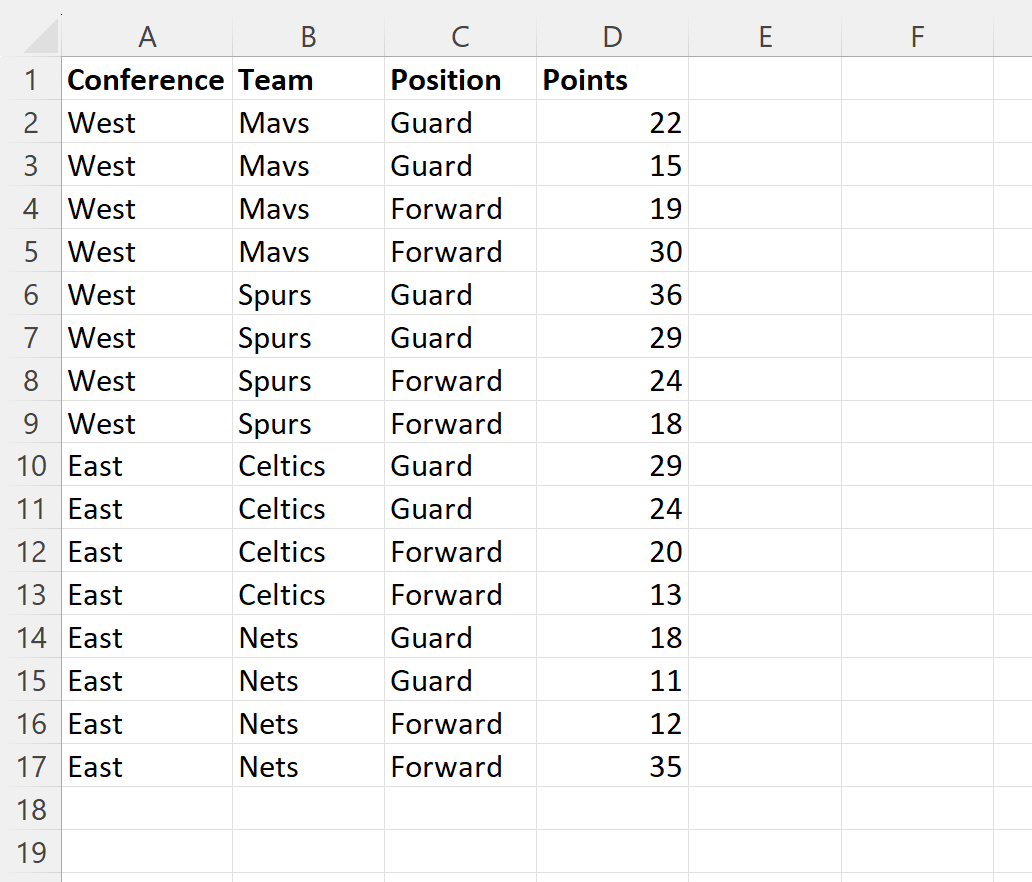

Suppose we begin with the following raw data structure within Excel. This data requires aggregation to provide meaningful insights into player performance across different organizational levels:

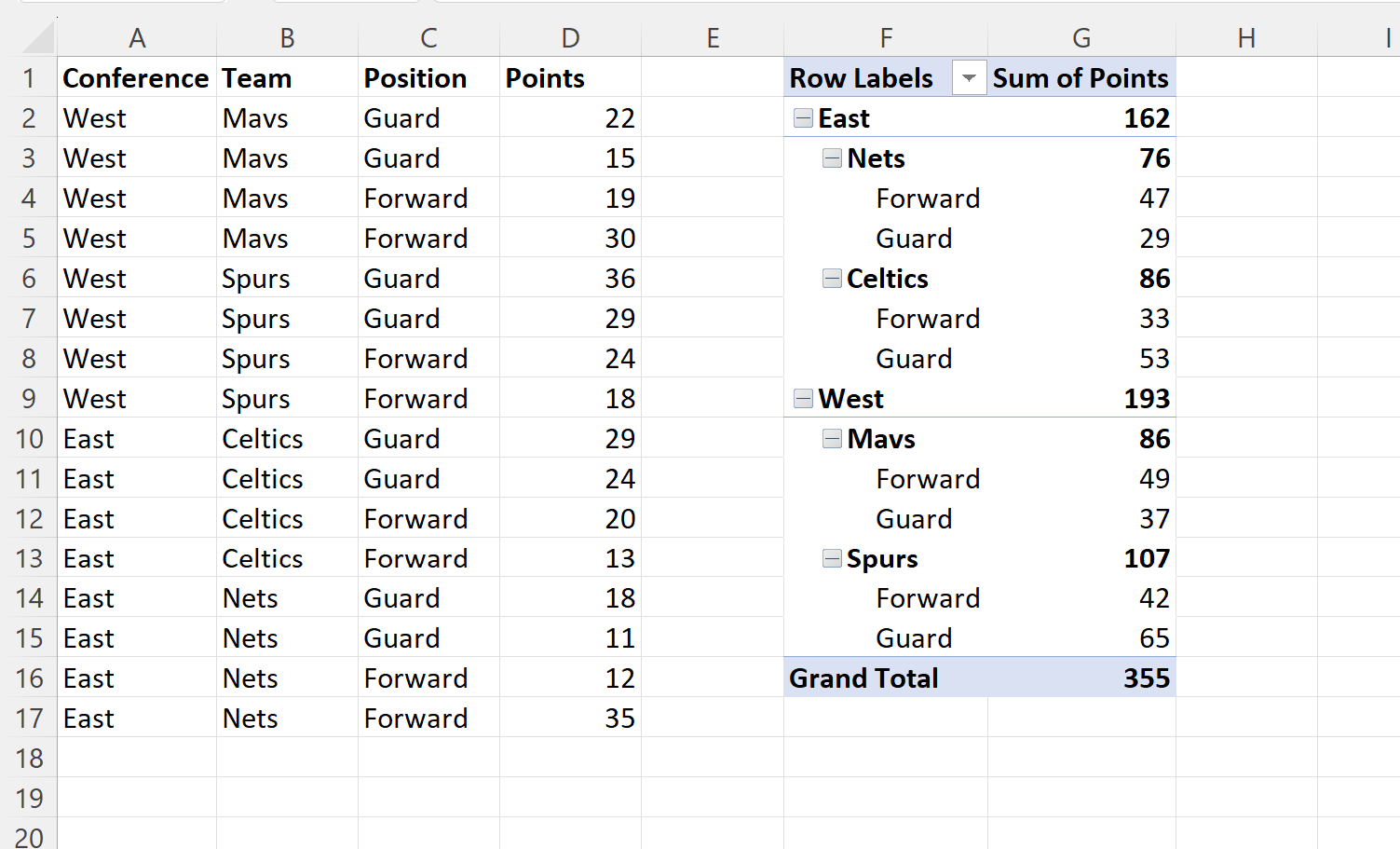

When the initial pivot table is created by dragging Conference, Team, and Position into the Rows field, and the sum of Points into the Values field, the default Compact Form is instantly displayed. Observe the immediate consequence: the Team and Position labels are heavily nested and indented. Crucially, the higher-level label, Conference (e.g., “East” or “West”), only appears once at the start of its grouping, leaving all subsequent rows in that column entirely blank. This structure, illustrated below, fundamentally complicates rapid identification of the conference affiliation for every single row entry without visually scanning back up the column, effectively demonstrating the core limitation of the default setting when summarizing multi-level data.

Implementing the Tabular Form Setting

To effectively resolve the functional issue of blank cells, merged regions, and nested labels, we must explicitly override the default settings and instruct the pivot table to adopt the Tabular Form. This critical process is initiated within the PivotTable Tools ribbon interface, which conveniently becomes visible only when a cell inside the pivot table structure is actively selected. While the steps are straightforward, they must be followed precisely to ensure the layout change is correctly applied across all row fields.

The following ordered list details the sequence required to activate this powerful feature:

1. Activate the Pivot Table: The first step is to click on any cell that resides within the existing pivot table boundaries. This action serves to activate the contextual PivotTable Analyze and Design tabs, which appear along the top ribbon interface of Excel.

2. Navigate to the Design Tab: Click the dedicated Design tab. This section contains all the structural formatting and layout options specifically relevant to the pivot table composition.

3. Access Report Layout: Within the Layout group (typically positioned on the far left of the Design tab), locate and click the Report Layout icon. This centralized feature controls the fundamental way the row labels are structured and displayed.

4. Select Tabular Form: From the resulting dropdown menu, click the option labeled Show in Tabular Form. This is the crucial transformation step that converts the visual hierarchical nesting into a clean, flat, column-based structure suitable for data export.

This sequence of actions forces the pivot table to assign a dedicated, independent column for each row field (e.g., Conference, Team, and Position). Crucially, it ensures that every single row record is structurally prepared to contain the corresponding label in its respective column, though the labels may still only appear on the first instance of a group. The illustration below highlights the simple menu path for accessing the Report Layout, emphasizing the ease of applying this powerful structural change.

Achieving Complete Data Integrity (Repeating Labels)

While activating the Show in Tabular Form is the primary step toward achieving a single-line display for row labels, it is often insufficient on its own for creating a truly export-ready dataset. In the Tabular Form, Excel still defaults to only displaying the label for higher-level fields (like Conference) on the first row of that group, leaving subsequent rows blank to maintain a slightly cleaner visual report. Although the fields are now in separate columns, the problem of incomplete records for downstream processes persists if data must be copied and pasted elsewhere.

To ensure every single cell in the newly created row label columns is populated, an essential secondary customization is required. Users must return to the Report Layout menu and select the option titled Repeat All Item Labels. This setting explicitly forces Excel to fill in the blank cells by duplicating the categorical labels down every row until the category changes. This combination—Tabular Form plus Repeat All Item Labels—guarantees a fully populated, non-merged, and robust data structure, making the resulting report an ideal foundation for any advanced data modeling or statistical processing.

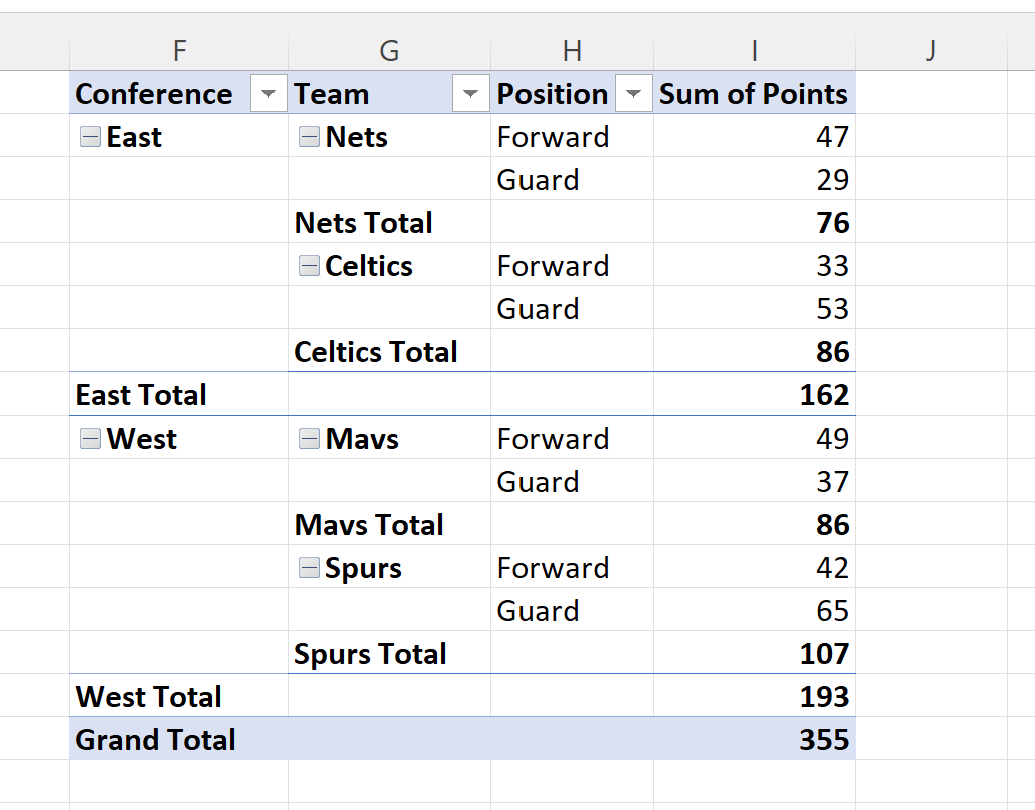

Once both settings have been correctly applied, the pivot table immediately updates to reflect this enhanced structure. The row labels for Conference, Team, and Position are now displayed consistently on the same line, with each category occupying its own distinct column, and every row containing the full context. This visualization, shown below, represents the gold standard for data output, offering unparalleled clarity and utility for data consumers who require clean, predictable inputs.

The resulting table ensures that every row summarizes the points scored for a specific, complete combination of Conference, Team, and Position. The elimination of blank cells under the row labels removes the ambiguity and potential data integrity risks inherent in the Compact Form. This structure is precisely aligned with the requirements for seamless integration with external databases, complex statistical software packages, or automated reporting scripts that rely heavily on predictable, non-merged cell organization.

Strategic Benefits for Advanced Workflows

The decision regarding the pivot table’s Report Layout transcends simple aesthetics; it is a fundamental strategic choice that significantly impacts the usability and integration potential of the pivot table output within a broader data model ecosystem. For professional environments where Excel pivot tables serve as a vital intermediate step—generating data that may eventually feed into a business intelligence dashboard, be used for regulatory compliance filings, or undergo sophisticated machine learning analysis—the Tabular Form is functionally non-negotiable. This fully populated, row-by-row structure precisely mirrors the ideal schema of a relational database table, guaranteeing that every data point summarized is uniquely and completely identified by all its categorical attributes.

For users managing datasets with a high volume of row labels, the advantages of the tabular arrangement become drastically more pronounced. Consider a complex report involving five or six nested row fields, such as Year, Quarter, Region, Product Line, and Sales Channel. In the default Compact Form, navigating and validating this deep hierarchy can be visually overwhelming and mentally taxing. The Tabular Form elegantly resolves this complexity by aligning all categorical identifiers horizontally. This transformation turns a potentially confusing nested list into a clear, linear report, which is essential for ensuring that key stakeholders, who might not possess expert knowledge of Excel functionality, can easily interpret and fully trust the aggregated summaries.

Furthermore, adopting the Tabular Form directly addresses issues frequently encountered with calculated fields and calculated items within pivot tables. When the source data structure is properly enforced in a clean, tabular manner, formulas that rely on referencing the pivot table cells (notably, GETPIVOTDATA functions) are significantly less likely to break or return inconsistent errors because the underlying cell references and data organization are predictable and consistent. For robust financial modeling or advanced predictive data analysis that leverages pivot table output, maintaining this structured, tabular format ensures the highest level of integrity and reliability for the overall data model.

Additional Pivot Table Layout Options

While the Tabular Form is generally the optimal choice for data export, interoperability, and clarity, Excel offers two other primary Report Layout options, each designed to serve a specific analytical or visual purpose. Understanding these alternatives provides users with comprehensive mastery over pivot table presentation and functionality.

• Compact Form (The Default Layout): This format is optimally suited for generating visual summaries and hierarchical reporting where screen space conservation is the top priority. It automatically indents inner fields and typically places subtotals above each grouped section. It excels at quick, high-level audits but proves detrimental when the data must be copied or exported.

• Outline Form: Structurally similar to the Tabular Form, the Outline Form utilizes separate, distinct columns for each row field. However, unlike the Tabular Form, the Outline Form retains the ability to place subtotals above each group by default. While it successfully separates the fields into columns, it may still leave blank cells for the higher-level fields unless the crucial “Repeat All Item Labels” option is simultaneously selected. This form often serves as an acceptable compromise between maintaining some visual hierarchy and adopting a columnar data structure.

Beyond selecting the main layout type, analysts should routinely utilize the Repeat All Item Labels setting. This setting is complementary and vital for both the Tabular and Outline forms. It explicitly forces every row, irrespective of the current grouping, to carry the full set of categorical identifiers. Failing to enable this option means that even the Tabular Form may only display higher-level labels (like Conference) on the first row of their respective group, effectively reverting to a partial, and thus flawed, tabular structure. Ensuring this option is enabled guarantees the highest level of data integrity required for reliable subsequent analyses.

Conclusion: Mastering Pivot Table Presentation

Mastering the intricacies of the Report Layout options in Excel pivot tables is an indispensable skill for any advanced data user. By strategically utilizing the Show in Tabular Form setting, often in conjunction with the Repeat All Item Labels function, analysts can effectively bypass the core limitations of the default Compact Form. This powerful transformation converts complex, hierarchical summaries into clean, export-ready datasets where all row labels are aligned consistently on the same line. This structural modification dramatically enhances the report’s universal readability, improves seamless compatibility with external databases and systems, and ensures the required data integrity for reliable data analysis and complex modeling.

The flexibility afforded by the ability to rapidly switch between the visually concise Compact Form and the structurally rigorous Tabular Form empowers analysts to meet a diverse range of reporting demands. This ensures that the valuable insights generated by the pivot table are always presented in the most effective, usable, and technically sound format possible.
