Learning to Sort and Align Data in Excel: A Step-by-Step Guide

In the world of data management, a common and critical challenge is the need to synchronize the order of values between two distinct columns within a spreadsheet application such as Excel. This technique, often referred to as a “matched sort” or “conditional alignment,” is essential when you need the items in the first list to be rearranged to precisely mirror the positional sequence of items found in the second list. Achieving this synchronization is mandatory for maintaining data integrity, performing accurate comparisons, or preparing data sets for advanced analysis, where row-by-row correspondence is paramount.

Consider a scenario where you possess two lists of items—for instance, team names—that are identical in content but completely misaligned in order. Our objective is to reorganize the first list so that its entries align perfectly with the predefined sequence of the second list, thereby establishing a clear and verifiable correspondence for every row. This complex operation requires more than simple alphabetical or numerical sorting; it demands a mechanism to map the desired position from one column onto the values of the other.

The following illustration visually represents the problem we aim to solve, demonstrating two lists containing the same elements but currently residing in different, unsynchronized orders:

This comprehensive, step-by-step tutorial provides the exact methodology required to execute this sophisticated, condition-based sorting operation efficiently using a combination of built-in Excel functions and standard sorting procedures. We will leverage a temporary column to generate the custom key necessary to dictate the final order.

Step 1: Preparing the Data and Defining the Reference List

The foundational step in initiating the matched sort process involves meticulously organizing the data and identifying the roles of each column. For this demonstration, we are utilizing two lists of basketball team names. It is crucial for this method to work that both lists contain the exact same set of unique values, even if they are currently arranged in wildly different sequences. The absolute key to success is firmly establishing which list represents the desired final order and which list is scheduled for rearrangement.

We will input the team names into their respective columns: we designate List 1 (the list that needs to be sorted) to reside in Column A, and List 2 (the reference list that defines the desired order) to reside in Column D. To facilitate the sorting mechanism, we must allocate an adjacent column, Column B, which will serve as a temporary helper column. This helper column is where we will store the calculated positional key necessary for the final custom sort operation.

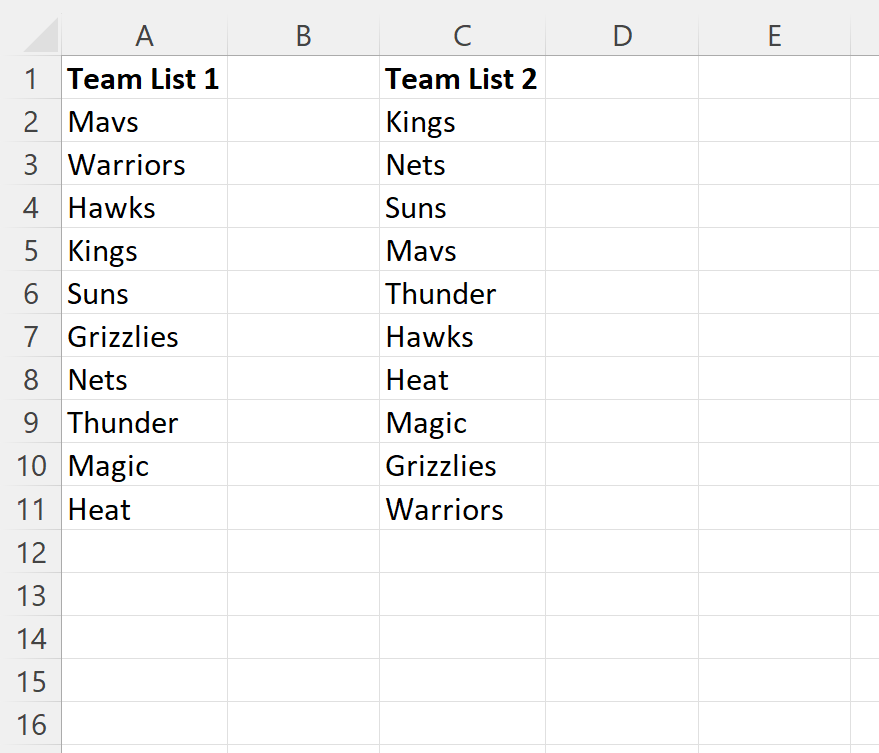

The image below illustrates the initial data setup, clearly showing the two separate lists before any sorting mechanism has been applied:

Step 2: Generating a Positional Key Using VLOOKUP

The core mechanism that enables the synchronization of these two lists is the generation of a unique numerical key for List 1, where that key represents the corresponding position of that item within the sequence of List 2. While the MATCH function is typically the function of choice for retrieving positional index numbers, we can strategically employ the VLOOKUP function in our helper column (Column B) to pull an associated numerical rank or index that corresponds to the item’s desired place in List 2.

To begin this critical assignment, we must enter a formula into cell B2. This formula looks up the value in Column D (List 2, our reference list) within the combined range of List 1 and the helper column itself, returning the corresponding value that will serve as the sort key. By defining the lookup range carefully, we force Excel to establish the necessary positional relationship. The formula entered into cell B2 is:

=VLOOKUP(D2, $A$2:$B$16, 2, FALSE)

Once entered into the first row of the helper column, this formula must be copied down to all remaining rows corresponding to the full length of the data set. The resulting numerical values that populate Column B now act as the custom Sort key. It is these values, derived from the structure of the lookup range, that ultimately define the mechanism needed to align the two lists perfectly.

Step 3: Understanding the Helper Column’s Role in Alignment

It is paramount to grasp the conceptual role of the helper column in this sophisticated sorting technique. Excel’s standard sorting functionality operates based on the values present in the column being sorted. Without this intermediate step, Excel cannot inherently know the desired sequence of List 1 merely by looking at the unordered contents of List 2. The calculated values in the helper column provide the crucial mapping mechanism.

The resulting values generated in Column B effectively assign a unique numerical rank to each item in List 1 based on where that item appears in the desired sequence of List 2. For instance, if “Team X” is the third entry in List 2, the helper column formula will calculate and assign a positional key of “3” next to “Team X” in List 1. When the final sort is executed, all items associated with the key “1” move to the top, those with “2” follow, and so forth, guaranteeing synchronization.

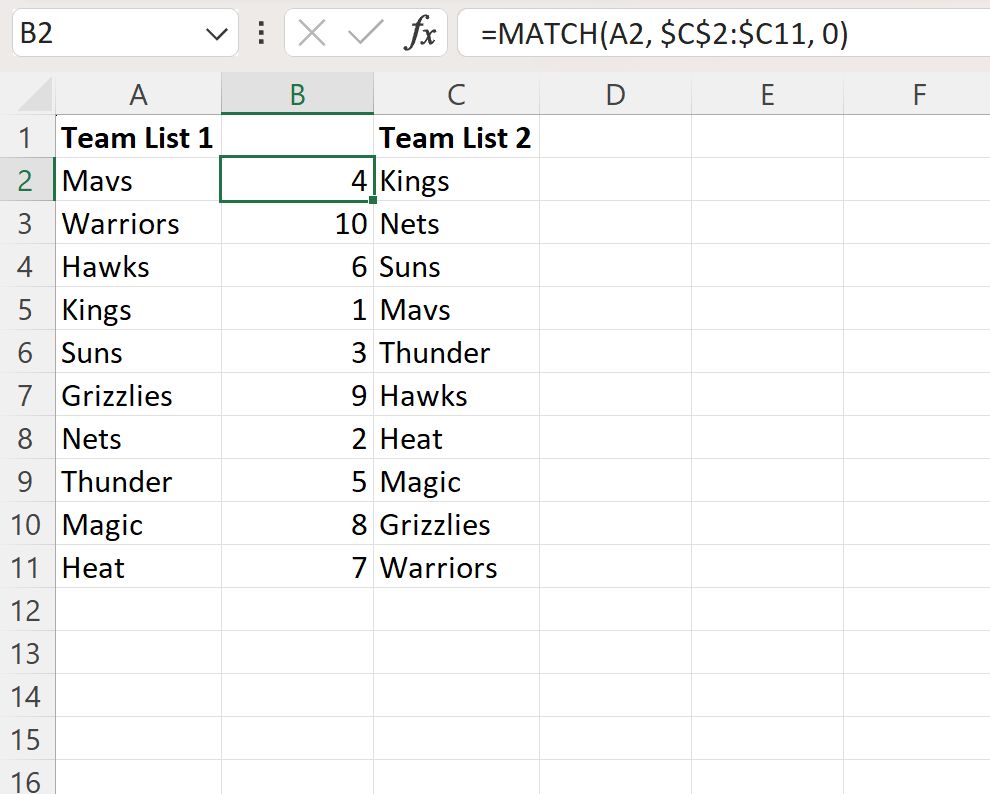

The visual outcome after applying the formula across the entire column clearly demonstrates how the values in Column B have been calculated, readying the data for the final sort:

Step 4: Executing the Custom Sort Operation

With the required positional key successfully generated and stored in the helper column (Column B), we are now prepared to proceed to the final sorting phase. This definitive action will rearrange the values in List 1 (Column A) exclusively based on the numerical sequence that has been established in Column B.

Follow these procedural steps precisely to execute the custom sort:

1. Highlight the entire relevant data range that encompasses both List 1 and the critical helper column. In the context of our example, this corresponds to the cell range A2:B11.
2. Navigate your cursor to the Data tab, which is prominently located within the top application ribbon interface of Excel.
3. Click on the Sort icon, typically found within the Data Tools group, to launch the comprehensive Sort dialog box. This dialog box allows for precise definition of the sorting criteria.

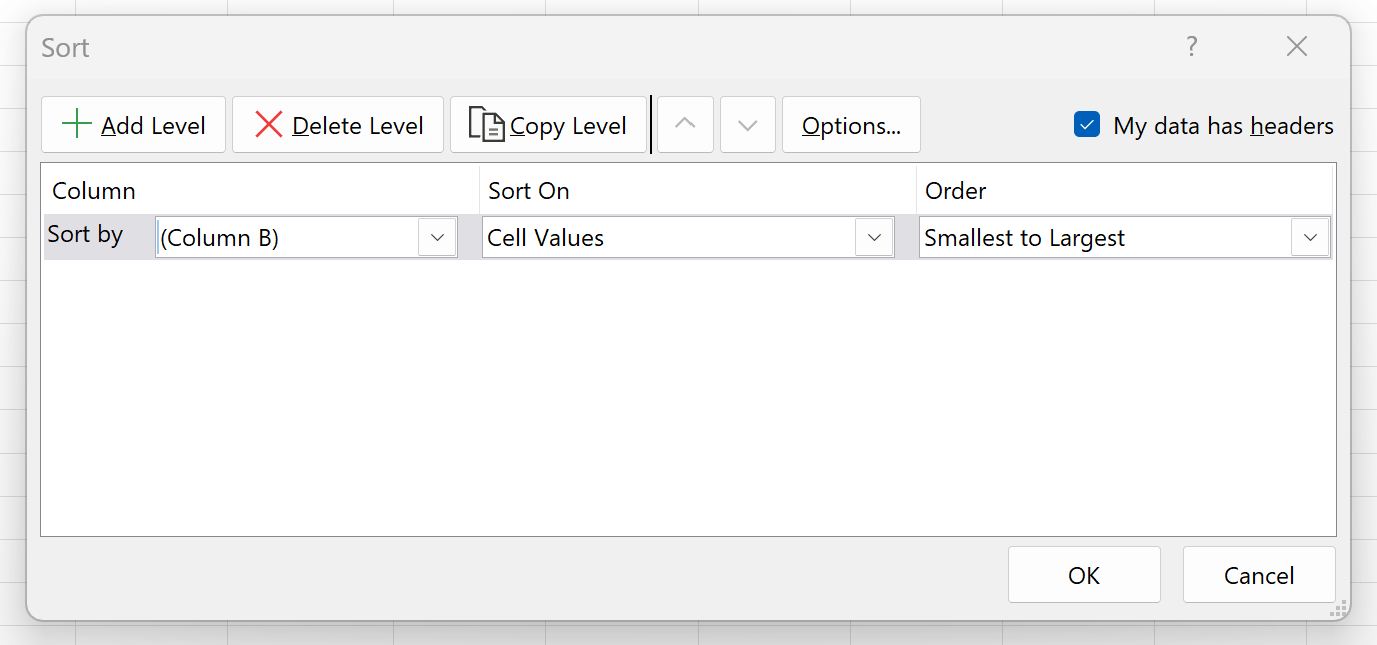

Step 5: Configuring the Sort Parameters for Alignment

Upon opening the Sort dialog box, it is vital to ensure that the sorting criteria are correctly established to utilize the positional keys we created. The primary key for the sorting process must be the helper column itself, as this column holds the necessary numerical sequence derived directly from List 2.

• If your data selection includes column labels (headers), confirm that the option “My data has headers” is checked. However, assuming we selected only the data rows A2:B11, this option should typically remain unchecked for this sort.
• Set the “Sort by” field to the column identifier corresponding to the helper column, which is Column B in our demonstration.
• Crucially, ensure that the “Order” is set to sort from Smallest to Largest (Ascending). Since the numerical values in the helper column represent the sequential rank (1st, 2nd, 3rd, etc.), sorting numerically ensures that the lists are aligned correctly based on the desired order.

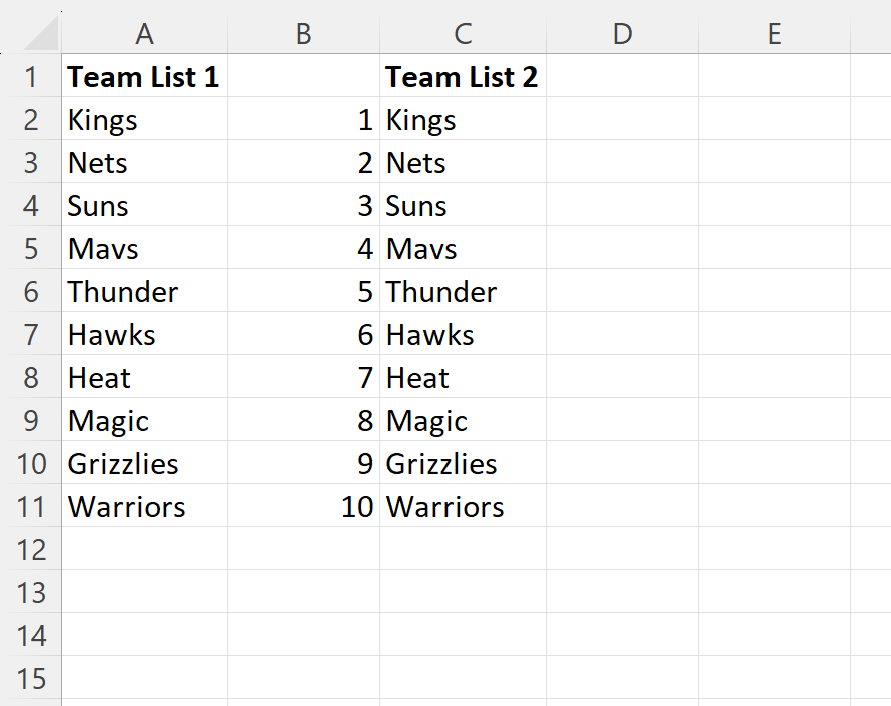

Once these parameters are confirmed and you click OK, the sort operation is finalized instantaneously. The entries residing in List 1 (Column A) will be rearranged instantly to match the sequence dictated by the numerical keys in Column B. Since these keys were generated directly based on the positional order of List 2 (Column D), List 1 is effectively forced into the exact same order as List 2.

Step 6: Cleaning Up the Worksheet and Conclusion

The primary objective of this intricate procedure—sorting List 1 to perfectly match the sequence of List 2—is now successfully complete. The helper column (Column B) has entirely fulfilled its temporary purpose by facilitating the complex positional sort based on the VLOOKUP calculations. This column is no longer needed for data integrity and should be removed to maintain a clean, professional, and streamlined worksheet.

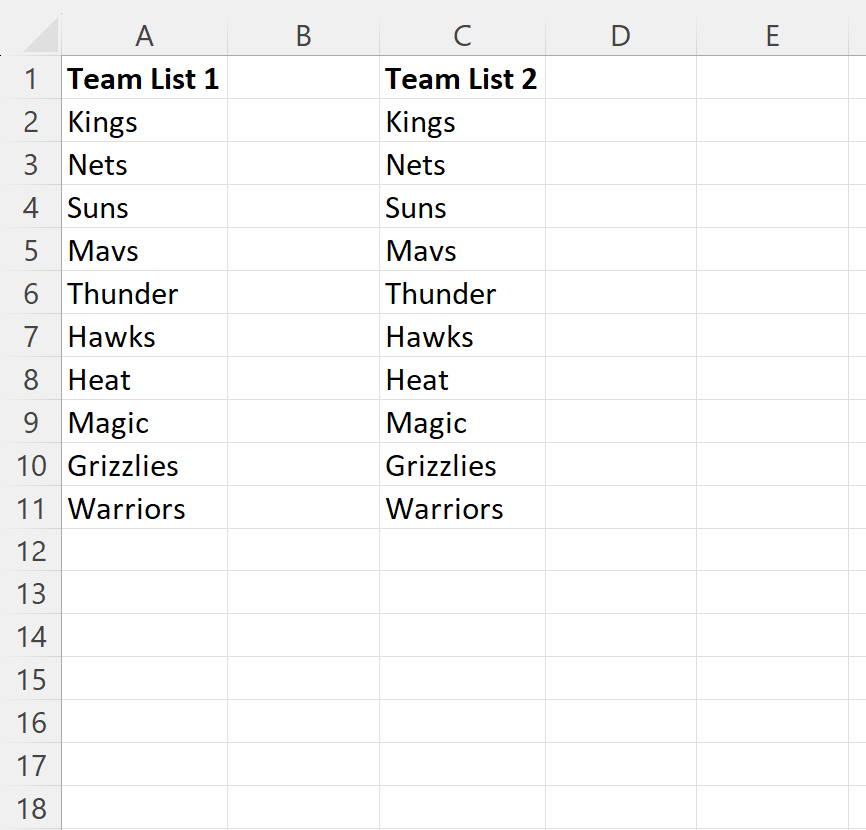

The final step is straightforward: simply select the entire contents of Column B and delete the values. The resulting worksheet will now clearly display both the original list and the reference list in the exact same sequential order, confirming the total success of the matched sort procedure and the alignment of the corresponding rows.

This powerful methodology provides a robust and scalable solution for synchronizing data order, particularly when manual rearrangement is impractical due to extensive data volumes. By intelligently combining function-based key generation with standard sorting tools, users gain sophisticated control over their data organization and analysis preparation.
