Excel: Split String by Specific Length

In the realm of Microsoft Excel, the necessity of manipulating and restructuring data is constant. A frequent challenge involves transforming large, monolithic fields—often containing standardized identifiers such as employee IDs, product SKUs, or specialized date codes—into structured, actionable components. This process, known as fixed-length string splitting, is essential for accurate reporting and analysis. Fortunately, Excel provides a highly capable, native tool for this task: the Text to Columns wizard, which allows for precise segmentation based on a specified character count.

This expert guide will thoroughly detail the primary, non-formulaic method for splitting strings using the Text to Columns utility in its Fixed Width mode. Furthermore, we will explore powerful, formula-based alternatives utilizing core text functions, ensuring you have the flexibility required for both static cleanup and dynamic data linking.

Understanding String Manipulation in Excel

When organizational data is generated by legacy systems or imported from external databases, it frequently arrives concatenated into a single cell, making direct analysis difficult. To perform meaningful analytical operations—such as isolating a department identifier, filtering by a specific year of entry, or counting sequential identifiers—it is imperative to break that code into its constituent parts. This is precisely the scenario where the concept of fixed-width string splitting proves invaluable for data preparation.

The Fixed Width option, accessible through the Text to Columns wizard, is engineered for situations where the length of each segment you wish to extract remains consistent across every row. For instance, if an inventory code is always 12 characters long, and you know the first four characters denote the warehouse and the last eight denote the item number, the fixed-width approach provides the necessary precision to define those exact boundaries.

It is vital to recognize that the Text to Columns feature is a destructive operation in the sense that it overwrites data in the destination columns. If maintaining the original source data is paramount, or if you require the segmented data to update automatically when the source changes, non-destructive methods using Excel formulas such as LEFT, MID, and RIGHT are highly recommended. We will explore these advanced techniques shortly.

Method 1: Utilizing the Text to Columns Wizard (Fixed Width)

The most accessible and effective method for the bulk segmentation of uniformly structured strings is the Text to Columns feature, conveniently located within the Data tab of the Excel ribbon. This intuitive wizard guides the user through a simple three-step process, allowing them to precisely define the character positions where the data should be segmented into new columns.

To illustrate this process, let us consider a practical scenario involving a column filled with nine-character employee IDs. Our goal is to parse these identifiers into three distinct components, with each new output column containing a three-character segment (e.g., characters 1–3, 4–6, and 7–9). This technique is indispensable for quickly standardizing imported data.

The following image depicts our starting point: a column of concatenated employee identification numbers ready for processing:

Our objective is clear: to transform this single column (Column A) into three new, separate columns, beginning the output in Column C. The entire transformation is predicated on the fixed length of three characters per segment.

Step-by-Step Implementation of Fixed Width Splitting

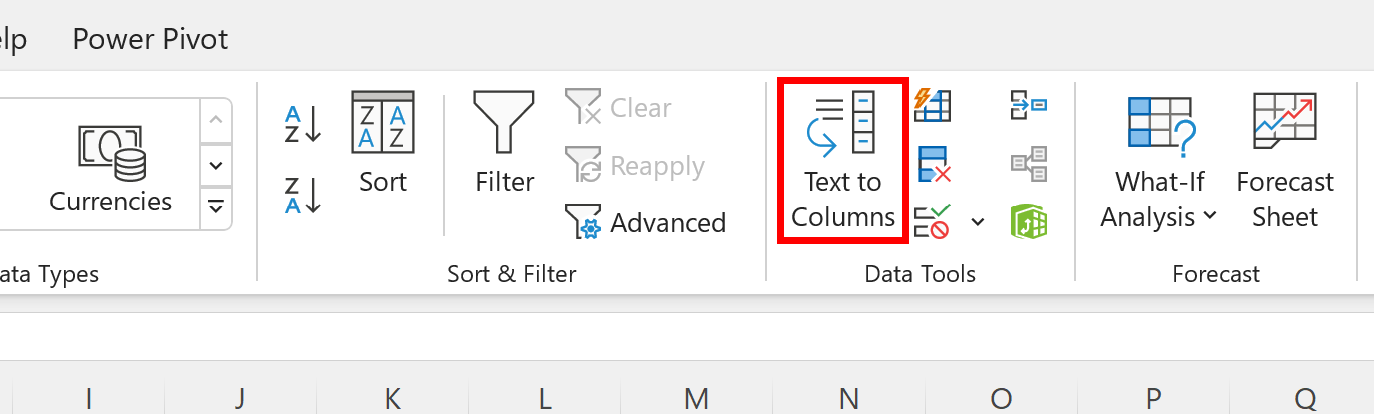

To commence the conversion process, first ensure you have selected the entire range of cells containing the source data—in this example, A2:A9. Once the range is highlighted, navigate to the Data tab on the ribbon. Within the Data Tools group, locate and click the Text to Columns icon.

The first step of the wizard requires defining how Excel should interpret the data. Since we are splitting based on character count and not common delimiters (like commas or tabs), select the option for Fixed Width. Confirm your selection and click Next to proceed to the crucial breakpoint definition stage.

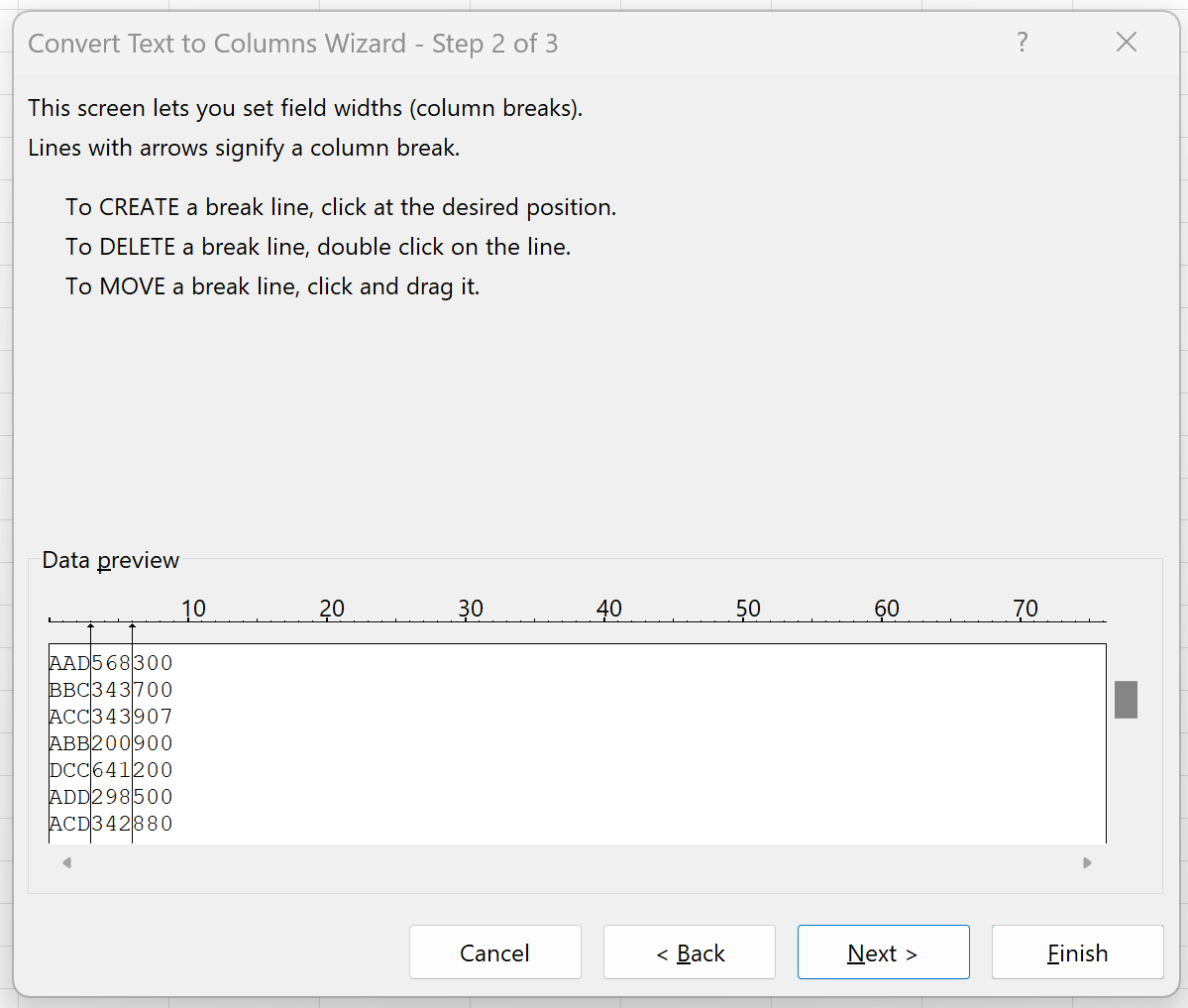

The second step involves visually defining the specific breakpoints that will define the new columns. The white data preview box displays a sample of your selected data. To establish a split line, simply click the mouse at the desired character position on the ruler situated directly above the data preview. A vertical line will immediately appear, indicating the separation point. For our requirement—splitting the nine-character string into three equal chunks of three characters—we must place two separation lines:

1. Click immediately after the third character (Position 3) to segment the first component.
2. Click immediately after the sixth character (Position 6) to segment the second component.

These actions correctly divide the data into three distinct, equal-length columns. Note that if you make an error, you can easily reposition a line by dragging it, or remove a line entirely by double-clicking it.

Once the separation lines are accurately positioned and confirmed, click Next to move to the final configuration screen of the wizard.

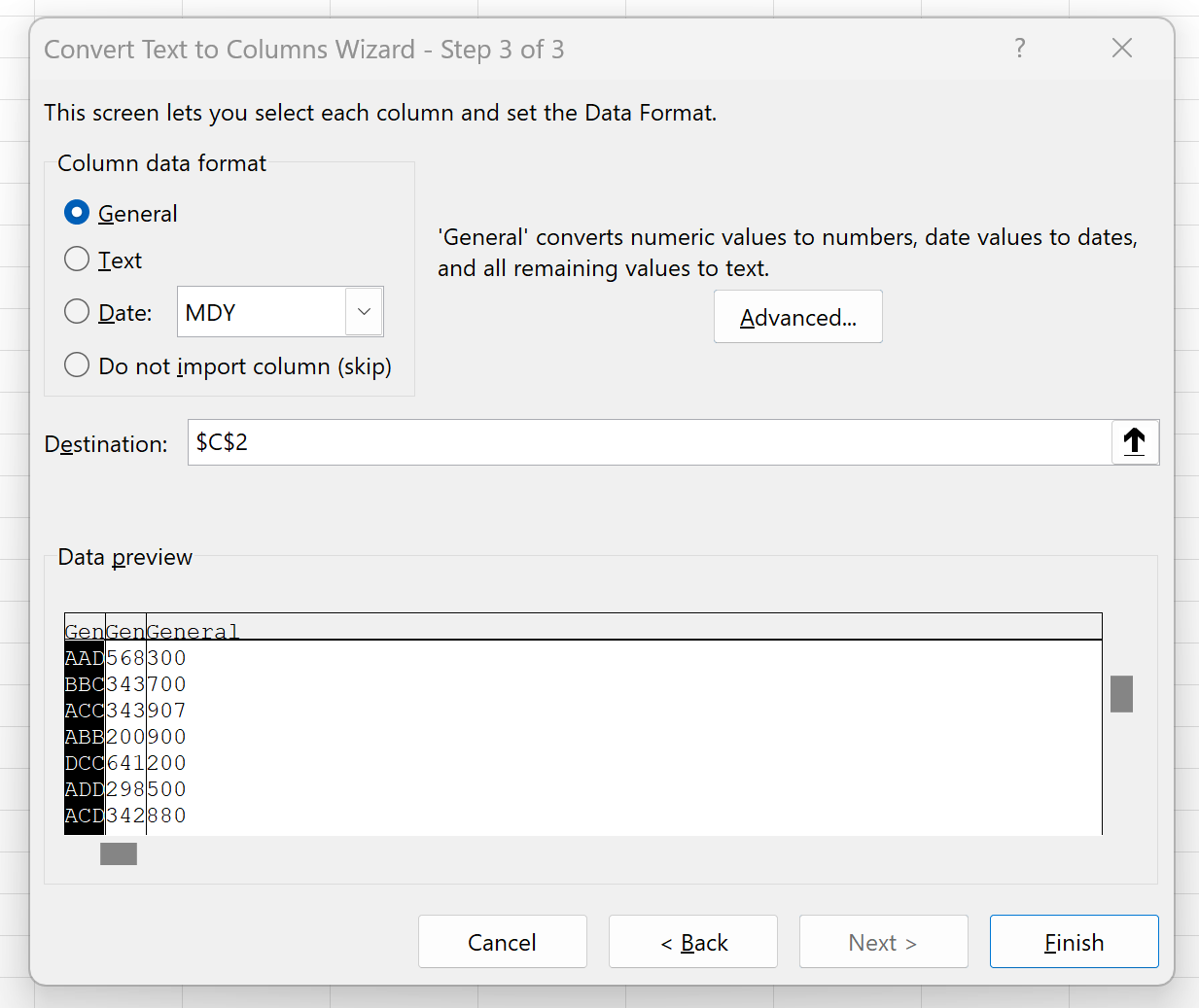

The final step controls the formatting of the resulting columns and, critically, determines the output destination. Excel’s default behavior is to attempt overwriting the original data in Column A. To ensure the preservation of the source data and direct the segmented output to a new location, you must explicitly define the Destination cell. In our example, we input $C$2 to instruct Excel to begin placing the split data starting in cell C2. Here, you can also apply specific data formats (such as General, Text, or Date) to each new column before clicking Finish.

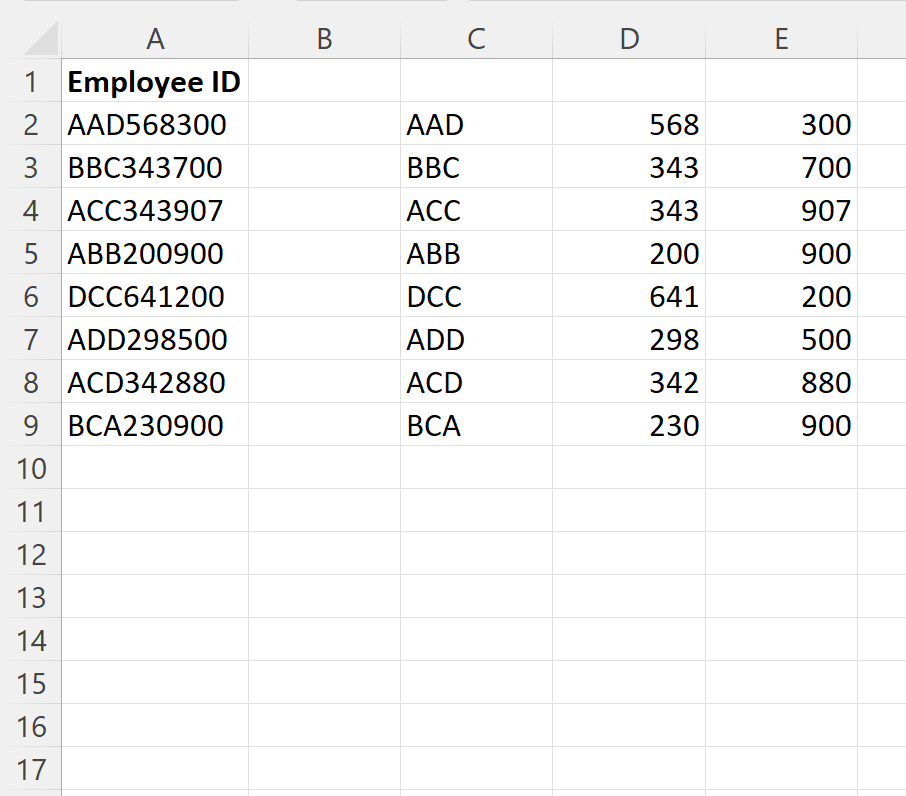

Upon clicking Finish, Excel instantly executes the split operation, successfully distributing the three segmented parts of the original string across columns C, D, and E, yielding the desired structured dataset:

It is important to note that although this example used a uniform fixed length of 3 characters, the Text to Columns feature is highly flexible. You can split by any combination of lengths (e.g., 4 characters, then 2, then 5) simply by adjusting the placement of the vertical line breaks in Step 2. This method remains the preferred choice when the structure of your source data is guaranteed to be perfectly consistent.

Method 2: Dynamic Splitting using Text Functions (LEFT, MID, RIGHT)

While the Text to Columns wizard offers efficiency for one-time data cleansing, it lacks the dynamic capability essential for evolving datasets or linked reports. If the source data is likely to be updated, or if the segmented data must integrate into complex, auto-updating calculations, a spreadsheet formula-based approach is demonstrably superior. This method relies on the core trio of text manipulation functions: LEFT, MID, and RIGHT.

These powerful built-in functions allow you to non-destructively extract specific portions of a string based purely on its position and desired length. Crucially, the results update automatically whenever the content of the original cell is modified. Using the same nine-character employee ID structure from Column A as our reference, we can construct three distinct formulas starting in Column C.

To extract the first three characters (the leftmost segment), we employ the LEFT function. This function requires only two arguments: the text source and the number of characters to return:

=LEFT(A2, 3)

This formula instructs Excel to analyze the contents of cell A2 and retrieve the initial three characters counting from the left side.

To extract the middle three characters, which begin at position 4, we use the MID function. The MID function is more complex, requiring three specific arguments: the text source, the designated starting position, and the number of characters required for the length:

=MID(A2, 4, 3)

The instruction here is to start the extraction process at the fourth character of A2 and proceed to retrieve a total length of three subsequent characters.

Finally, to extract the last three characters (the rightmost segment), we utilize the RIGHT function. Like the LEFT function, RIGHT only needs the text source and the number of characters to be returned:

=RIGHT(A2, 3)

By implementing and subsequently dragging these three functions down across your dataset, you achieve the exact same segmentation output as the Text to Columns wizard, but with the critical advantage of a live, dynamic link to the source data. This makes formula-based extraction the definitive choice for building robust, self-updating data models and dashboards.

Method 3: Accelerated Splitting with Flash Fill

For users operating modern versions of Microsoft Excel (specifically Excel 2013 and later), the Flash Fill feature provides a remarkably fast, pattern-based method for splitting and merging data. Although it is not exclusively designed for fixed-length splitting, it proves highly effective when Excel’s internal algorithm can reliably identify the intended pattern from minimal user input.

To engage Flash Fill, you simply need to provide Excel with a pattern example. Type the desired output for the first segment of the first source cell into an adjacent empty column. For instance, if cell A2 contains the ID “ABC123XYZ,” you would type “ABC” into cell C2. When you begin typing the next entry (“123”) into cell C3, Excel’s pattern recognition algorithm typically detects the fixed-width rule (extracting the first three characters) and instantly suggests the rest of the column data.

If the suggested pattern does not automatically appear, you can manually trigger Flash Fill by navigating to the Data tab and clicking the dedicated Flash Fill icon, or by using the convenient keyboard shortcut Ctrl + E. This process must be repeated independently for the second and third segments of the string.

The Key Advantage of this method is its speed and the complete absence of complex formula construction. However, the Key Disadvantage is significant: similar to Text to Columns, the results generated by Flash Fill are static values. They do not maintain a link to the original data, meaning if the source data in Column A changes, the segmented values will not update. Therefore, Flash Fill is best reserved for rapid, non-recurring data cleaning tasks.

Summary of Methods and Recommended Best Practices

The selection of the most appropriate technique for splitting strings by fixed length is highly dependent on the stability of your source data and the requirement for dynamic linkage. Each of the three methods presented offers unique benefits tailored to specific data manipulation needs.

We recommend utilizing the Text to Columns (Fixed Width) feature when:

• You are dealing with a substantial, unchanging (static) dataset.
• The structure of the string (the character counts) is guaranteed to be perfectly consistent across all records.
• You prioritize a quick, wizard-guided process over the manual writing and application of formulas.

Conversely, employ the LEFT, MID, and RIGHT Formulas when:

• The extracted data must maintain a dynamic, live link back to the source string.
• You intend to combine or nest the extracted segment within other calculations (e.g., converting the extracted text segment into a numeric value using the VALUE() function).

By mastering these core techniques—from the quick, static cleanup of Text to Columns to the robust, dynamic extraction via text functions—you gain the ability to efficiently transform raw, consolidated data into clean, structured components essential for detailed analysis and advanced reporting within Excel.

Additional Resources for Text and Data Manipulation

To further enhance your data preparation skills, the following tutorials explore other critical text and data manipulation operations commonly performed in Excel:

• Detailed instructions on using the CONCATENATE function (or the modern CONCAT function) to merge multiple strings into a single cell.
• A comprehensive guide to leveraging the FIND and SEARCH functions for determining dynamic character positions within a string.
• Splitting strings by user-defined delimiters (e.g., commas, spaces, hyphens) using the Text to Columns wizard’s Delimited option.
• Advanced techniques utilizing array formulas for highly complex text parsing scenarios.
