Excel: Stack Multiple Columns into One Column

Introduction to Data Restructuring and the VSTACK Function

In the realm of data analysis and preparation, efficiently restructuring datasets is a fundamental requirement. One common task involves consolidating data scattered across several vertical ranges into a single, cohesive column. Fortunately, modern versions of Excel simplify this process dramatically through the introduction of Dynamic Array functions. Specifically, the VSTACK function (Vertical Stack) is the premier tool for quickly and accurately merging multiple columns or ranges into one continuous vertical array.

Prior to the availability of VSTACK, users often relied on cumbersome methods involving complex combinations of the INDEX, ROWS, and IFERROR functions, or resorted to manual copying and pasting—techniques that were both time-consuming and prone to human error, especially when dealing with large or frequently updated data sets. The implementation of VSTACK represents a significant leap forward in spreadsheet efficiency, offering a clean, single-formula solution for vertical array concatenation.

The core utility of the VSTACK function is its ability to take multiple arrays or ranges as arguments and append them one after the other, forming a single output column. This is indispensable for tasks such as preparing data for pivot tables, creating consolidated reports, or formatting input required by specific statistical analysis tools. Understanding how to deploy this function is crucial for anyone seeking to master advanced Excel data manipulation techniques.

Syntax and Core Application of VSTACK

The syntax for VSTACK is straightforward, reflecting the user-centric design of Dynamic Array functions. It requires at least one argument, which is the range or array you wish to include, but typically involves two or more to perform the stacking operation effectively. The function processes these arguments sequentially, stacking the second argument directly below the first, the third below the second, and so forth.

The general form of the formula is =VSTACK(array1, [array2], [array3], ...). Each array argument represents a range of cells (e.g., A1:A7) or a calculated array. Because VSTACK is a dynamic function, the result will “spill” automatically into the required number of rows below the cell where the formula is entered, eliminating the need to select the entire output range manually or use Ctrl+Shift+Enter.

For example, if you wanted to consolidate the data contained within the first seven rows of columns A, B, and C into one single column, the required formula is remarkably simple and elegant:

=VSTACK(A1:A7, B1:B7, C1:C7)

This formula instructs VSTACK to first place the contents of A1:A7, then immediately follow that with B1:B7, and finally append C1:C7 to the bottom of the resulting array. This powerful approach ensures that data restructuring is both fast and dynamically linked to the source data. The following section demonstrates this specific application in a practical scenario.

Practical Example: Stacking Columns with Equal Lengths in Excel

Consider a scenario where we have three columns representing sales data for three different regions. Each column contains seven data points, and our objective is to merge these into a single column for streamlined analysis. Suppose these three columns of values are structured in the following manner within the spreadsheet:

We aim to stack the values in columns A, B, and C sequentially into a new output column, starting at cell E1. This consolidation is often necessary when preparing data for input into analytical tools that require a long-form structure rather than a wide-form structure. Despite the ranges being equal in length (A1:A7, B1:B7, C1:C7), the VSTACK function handles this concatenation seamlessly, regardless of the relative dimensions, as long as the ranges are vertical arrays.

To achieve this consolidation, we simply need to enter the following formula into cell E1. This is the only cell where the formula needs to be typed, due to the dynamic spilling capability:

=VSTACK(A1:A7, B1:B7, C1:C7)

Upon pressing Enter, the resulting array immediately populates the cells from E1 downwards, containing all 21 data points in the desired vertical sequence. The first seven rows (E1:E7) will contain the data from Column A, followed by the data from Column B (E8:E14), and finally the data from Column C (E15:E21). The following screenshot visually confirms the successful execution of this formula in practice:

As clearly demonstrated, the VSTACK function has successfully stacked each of the input columns into one single, contiguous output column, achieving the required data structure efficiently and dynamically.

Handling Uneven Column Lengths with VSTACK

One of the most practical benefits of using the VSTACK function is its inherent flexibility in handling source arrays that possess differing numbers of values. Unlike some older concatenation methods that might require manual adjustments for varying ranges, VSTACK seamlessly accommodates uneven column lengths. This versatility is crucial in real-world data environments where source systems rarely produce perfectly aligned data streams.

When VSTACK encounters a range that is shorter than others, it simply processes the available data in that range and then immediately moves on to the next array argument. If a range is specified that includes blank cells, those blank cells will be carried over into the output array as zeros (0) or blank strings, depending on the context, but VSTACK will generally return an #N/A error for completely empty cells if the input is defined as a range that includes blanks. However, when defining ranges precisely based on the populated data (e.g., A1:A7, B1:B3, C1:C5), the function stacks only the numerical data, ignoring the structural mismatch between the columns.

For example, suppose Column A contains seven values, Column B contains only three values, and Column C contains five values. We can use the following formula structure to stack these multiple columns into one, despite the varying number of values in each:

=VSTACK(A1:A7, B1:B3, C1:C5)

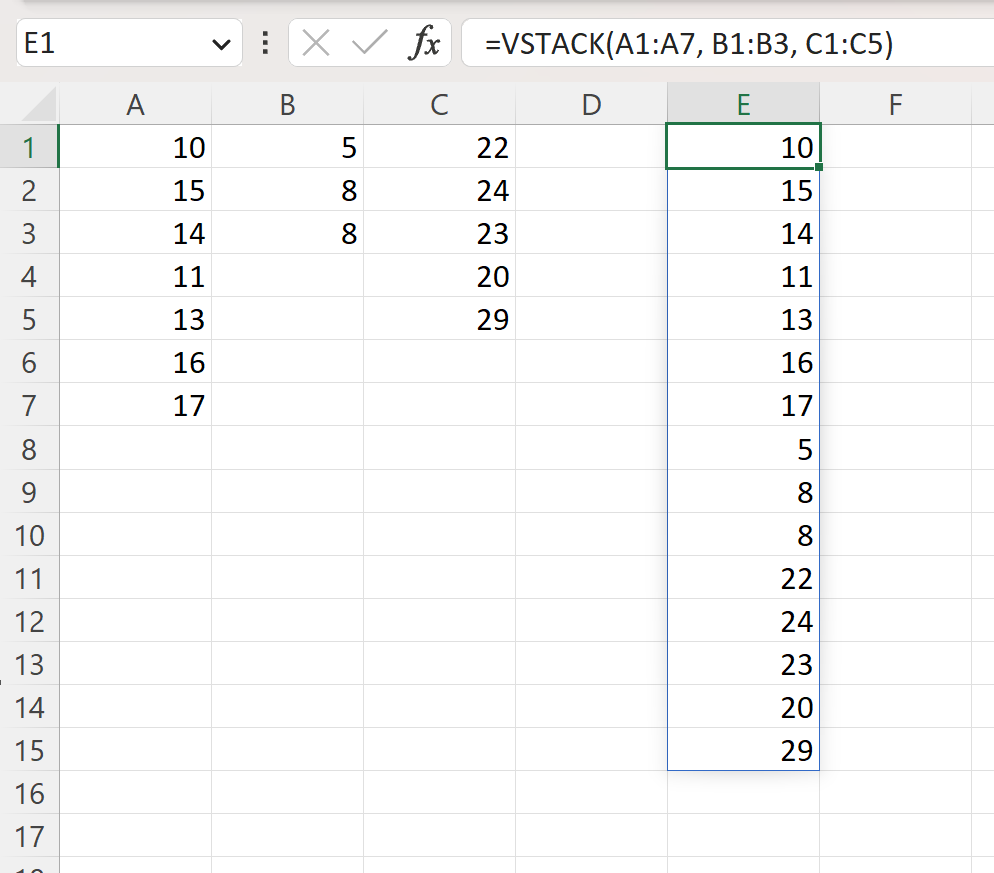

The resulting column will have a total of 15 rows (7 + 3 + 5), demonstrating the successful concatenation of the arrays based purely on the defined endpoints, irrespective of the length differences. The following screenshot illustrates the result of using this formula with uneven source data:

Once again, the VSTACK function has successfully stacked each of the columns into one single column, proving its reliability when dealing with common data imperfections such as inconsistent list lengths.

Advanced Considerations and VSTACK Limitations

While VSTACK is exceptionally powerful, especially when combined with other Dynamic Array functions like FILTER or UNIQUE, data analysts must be mindful of its operational context and limitations. First and foremost, VSTACK is designed for vertical stacking. For horizontal concatenation (side-by-side merging), the corresponding HSTACK function should be utilized.

A key operational note concerns blank cells. If a defined range contains genuinely empty cells (cells that have never had data entered), VSTACK, by default, treats them as empty strings or zeros, depending on surrounding data types. If the goal is to exclude blanks entirely, the input arrays must first be wrapped in a function like FILTER to remove empty values before passing the result to VSTACK. This pre-processing step maintains data integrity and prevents unwanted zeros or blank rows from appearing in the final consolidated column.

Furthermore, VSTACK is a relatively recent addition to the Excel function library, meaning it is only available in Microsoft 365 (formerly Office 365) and specific later versions of Excel. Users operating with older versions of the software (such as Excel 2019, 2016, or earlier) will not have access to this function and will need to rely on alternative, often more complex, methods like data restructuring using Power Query or traditional formula arrays.

Alternative Methods and Related Functions

While VSTACK provides the most efficient, formula-based solution for vertical stacking in modern Excel, it is useful to know the alternatives, especially when working in environments constrained by older software versions or when facing specific data cleaning challenges.

One robust alternative is Power Query (Get & Transform Data). Power Query offers a dedicated graphical interface for appending tables, which is the equivalent of vertical stacking. This method is often preferred for massive datasets or when the data requires significant cleaning (e.g., changing data types, removing errors, or transforming headers) before consolidation. Power Query’s ability to handle external data sources and automate refresh processes makes it superior for enterprise-level data aggregation tasks.

For users on older versions of Excel, combining INDEX and ROWS functions within an array formula (requiring Ctrl+Shift+Enter) was the standard workaround. This formula structure attempts to calculate the required row number dynamically across multiple ranges, but it is notoriously difficult to set up, debug, and maintain compared to the simplicity of the VSTACK function.

In summary, while older methods exist, the VSTACK function is the superior solution for formula-driven vertical array consolidation due to its native support for dynamic spilling, clean syntax, and seamless integration with other advanced Excel functions.

Additional Resources for Excel Mastery

To further enhance your skills in data preparation and manipulation within Excel, exploring related functions and advanced techniques is highly recommended. The VSTACK function is just one component of the powerful suite of dynamic array capabilities now available.

The following resources and tutorials explain how to perform other common operations in Excel:

• Complete documentation for the VSTACK function in Excel.
• Tutorials on using HSTACK for horizontal array merging.
• Guides to implementing FILTER and UNIQUE for cleaning data before stacking.
• Introduction to the TOCOL and TOROW functions for general data reshaping.
