Advanced Excel: Summing Values with Column and Row Criteria

1. Introduction to Advanced Conditional Summation Techniques

The core capability of advanced data analysis in Microsoft Excel rests on the ability to aggregate data dynamically. While functions like SUMIF and SUMIFS are essential tools for applying criteria across rows (vertical filtering), they often fall short when dealing with complex, two-dimensional datasets where filtering must occur simultaneously across both columns (headers) and rows (labels). When your data is structured as a matrix, isolating a value based on intersecting coordinates—such as summing results only for “Q4” (column criterion) and the “North Region” (row criterion)—requires a more sophisticated approach. This guide introduces a foundational technique for achieving precise, dual-axis conditional summing using a classic combination: the nested IF function statements encapsulated by the SUM function.

Traditional conditional aggregation methods are designed primarily for parallel ranges; they test a condition in one column and sum the corresponding values in a parallel column. However, when the descriptive criteria for summing are contained not just in a label column but also within a header row, a simple function cannot map this intersection. The method we explore utilizes logical tests to generate filtered arrays of TRUE/FALSE values. By mathematically combining these arrays, we pinpoint the exact data cells that satisfy both the horizontal (column) constraint and the vertical (row) constraint, thereby overcoming the limitations imposed by the matrix structure. This technique is invaluable for analysts handling multi-dimensional reports or summary tables where both axes carry critical contextual information.

By mastering this powerful array-based solution, you will gain the ability to construct highly robust formulas capable of navigating complex data layouts with precision. We will systematically break down the required syntax, analyze how Excel processes the nested logic internally, and walk through a detailed, practical example. Our focus is on demonstrating the efficiency of combining the IF and SUM functions to perform precise filtering based on dual-axis constraints, ensuring accurate extraction of highly specific data points from large datasets.

2. The Mechanics of Dual-Axis Filtering: SUM and Nested IF Logic

To successfully execute summation conditional upon intersecting row and column criteria, we must create a calculation environment that can handle two independent logical tests simultaneously. This is achieved by nesting two IF function statements within the overarching SUM function. The fundamental goal is to construct a virtual array containing only the values that meet the stringent requirements of both the column criteria (the outer IF) and the row criteria (the inner IF). Only when both logical tests return TRUE for a specific cell does its value get passed to the final summation process.

The structure of this powerful array construction is remarkably consistent. It is essential to recognize that in older versions of Excel, this type of calculation required entry as an Array Formula, necessitating the use of the Ctrl+Shift+Enter key combination (which adds curly braces `{}` around the formula). However, users of modern Excel environments often benefit from dynamic array capabilities, which handle this calculation natively without special entry.

The generalized syntax for this dual-axis filtering looks like this, using range placeholders for clarity. In this classic example, the formula calculates the sum of numerical values located within the core data range B2:F9 after applying two sequential logical checks:

=SUM(IF(B1:F1="Year 4",IF(A2:A9="Mavs",B2:F9)))

This formula is engineered to calculate the sum of numerical values within the core data range only where two specific conditions are met simultaneously: the first condition checks the horizontal header range, and the second checks the vertical label range. The beauty of the nested IF structure is that the inner condition (row criteria) is only evaluated if the outer condition (column criteria) is already satisfied. This hierarchical filtering guarantees precision, ensuring that aggregation only happens at the precise intersection point defined by the user’s horizontal and vertical constraints.

3. Deconstructing the Array Formula Structure

To effectively implement this conditional summing technique, one must understand the role of each defined range and how they interact to produce the final calculation. The entire formula relies on Excel’s ability to process ranges (arrays) of values simultaneously, rather than processing cell by cell.

• The Column Criteria Range (Outer IF): Identified in the example syntax as B1:F1, this range typically contains the descriptive column headers (e.g., years, quarters, product types). When tested against a specific value (e.g., “Year 4”), Excel generates a horizontal array of TRUE or FALSE values. A TRUE indicates a column that meets the specified criterion, and a FALSE indicates one that does not.

• The Row Criteria Range (Inner IF): Highlighted as A2:A9, this range usually contains the row labels or identifiers (e.g., team names, regions, employee IDs). When tested against its required value (e.g., “Mavs”), Excel generates a vertical array of TRUE or FALSE values, marking rows that satisfy the criterion.

• The Data Range to be Summed: Defined as B2:F9, this is the numerical matrix containing the actual values to be aggregated. Importantly, this range must perfectly align with the intersection of the column criteria range (B1:F1) and the row criteria range (A2:A9). Only the values from this range corresponding to a position where both the row and column tests yield TRUE are included in the final calculation performed by the SUM function.

The mechanism works because the nested IF statements effectively multiply the two Boolean arrays (TRUE/FALSE results) together. In Excel array math, TRUE evaluates to 1 and FALSE evaluates to 0. A value from the data range is only returned (and subsequently summed) if 1 x 1 (TRUE x TRUE) occurs at that specific coordinate. If either the row or column criterion is missed, the result of the logical multiplication is 0, and the corresponding value is ignored by the summation.

4. Practical Example: Calculating Performance Metrics by Team and Year

To concretely illustrate the necessity and power of this dual-criteria Microsoft Excel formula, let us apply it to a common business intelligence scenario. Suppose we maintain a dataset tracking the performance metrics—specifically, points scored—for several basketball teams across five different seasons. Our analytical objective is to determine the exact total points accumulated by one particular team during one specific year, filtering out all other scores.

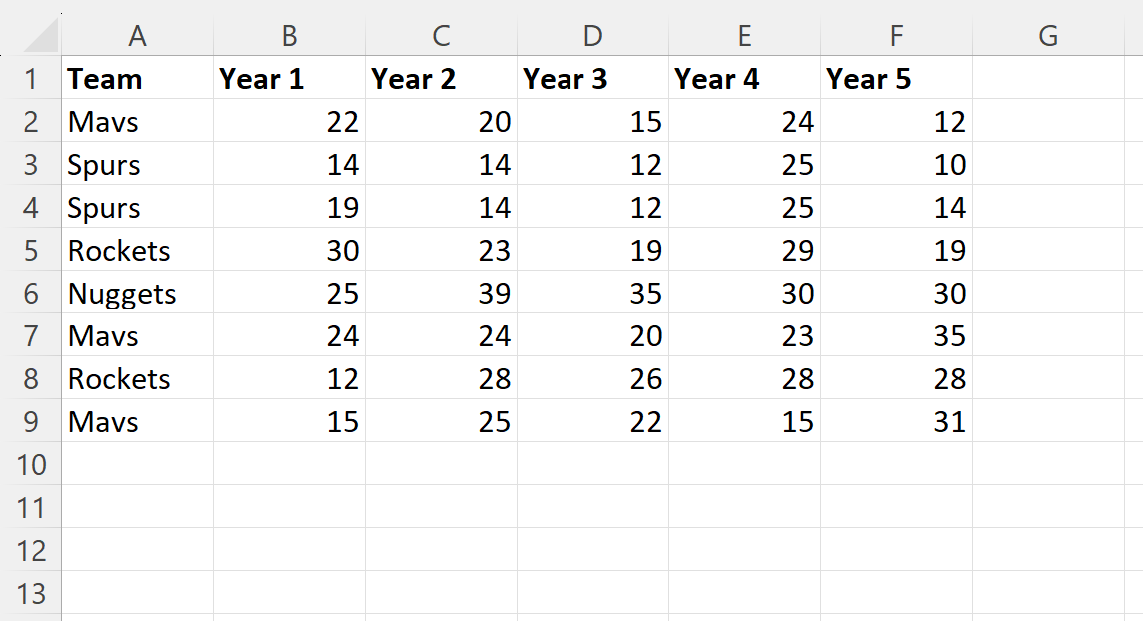

Our dataset is structured conventionally: team names populate the vertical axis (Column A), and the performance years are spread across the horizontal axis (Row 1). The intersection of these axes holds the raw, numerical performance data. The image below represents this sample dataset, detailing scores for various teams from Year 1 through Year 5:

In this context, our analytical requirement is highly specific: we need to sum only the values attributed to the Mavs team that occurred during Year 4. This necessitates applying “Mavs” as the vertical row criterion and “Year 4” as the horizontal column criterion simultaneously. Achieving this objective demands a formula capable of accurately mapping the precise convergence point of these two dimensions within the entire B2:F9 data matrix, systematically excluding all scores from other teams and other years.

This complex filtering requirement highlights why standard aggregation tools are insufficient. Functions like SUMIF or SUMIFS are designed for one-dimensional or parallel-range conditions. They cannot inherently handle a scenario where one criterion determines the column boundary (horizontal) and the other determines the row boundary (vertical), both acting together to isolate a subset of data within the matrix. The nested IF function and SUM technique is the classical, robust solution for this two-dimensional challenge.

5. Implementing and Verifying the Dual-Axis Summation

The implementation process requires meticulous attention to range definition. We will enter the final formula into an output cell, such as H2, ensuring that the defined criteria ranges precisely reflect the structure of our data table. Any misalignment in defining the header range, the label range, or the core data range will inevitably lead to calculation errors or skewed results, making this stage critical.

The exact formula tailored to our sports dataset, which aims to match “Year 4” in the header row (B1:F1) and “Mavs” in the label column (A2:A9), is structured as follows:

=SUM(IF(B1:F1="Year 4",IF(A2:A9="Mavs",B2:F9)))

Once this formula is entered (and confirming with Ctrl+Shift+Enter if required for older or non-dynamic versions, resulting in the curly braces `{}`), Excel initiates the array processing. It first generates a Boolean array for the column headers, identifying where “Year 4” appears. Then, nested within this, it generates a Boolean array for the row labels, identifying where “Mavs” appears. Finally, the SUM function aggregates only those values from the data range (B2:F9) that correspond to the precise intersection of the identified columns and rows.

The result, displayed in cell H2, provides the exact total points for the specified team and year. The visual confirmation below demonstrates the successful execution of this powerful nested conditional summing logic within the spreadsheet environment:

6. Verification and Expanding the Use Case

The formula successfully returns a calculated total of 62 points, which represents the combined score for the Mavs team during Year 4. In any advanced spreadsheet calculation, particularly those involving Array Formula structures, manual verification is highly recommended to build confidence in the result. We must manually cross-reference the original data table (B2:F9) to ensure the formula correctly isolated the intended data points.

By inspecting the intersection of the “Mavs” row label and the “Year 4” column header, we identify the following individual scores contributing to the total: 24, 23, and 15.

Calculating the sum of these manually (24 + 23 + 15) confirms a total of 62. Since the manual verification matches the output of the complex formula, we have validated the accuracy and effectiveness of the nested IF and SUM structure for dual-axis data filtering. This technique remains a cornerstone for advanced data manipulation.

Furthermore, the flexibility of this array formula is significant. Rather than hardcoding the criteria (e.g., “Mavs” and “Year 4”) directly into the formula, a superior practice is to reference cells containing those criteria. For example, if cell G1 contains “Year 4” and cell G2 contains “Mavs”, the formula becomes: =SUM(IF(B1:F1=G1, IF(A2:A9=G2, B2:F9))). This makes the formula dynamic and instantly responsive to changes in user input, allowing for rapid querying of the data matrix without needing to rewrite the underlying logic. Always remember to adjust the array references (A2:A9, B1:F1, B2:F9) if the size or scope of your data changes.

Additional Resources

Mastering conditional aggregation is crucial for advanced data manipulation in Microsoft Excel. Readers interested in exploring other powerful operations and alternatives to the SUM(IF) approach should consult the following specialized resources, building upon the foundational knowledge of conditional logic and array processing gained here:

• Deepening the understanding of array formulas, including the use of the SUMPRODUCT function, which can often perform this dual-axis summing without the need for Ctrl+Shift+Enter.

• Exploring techniques for using INDEX and MATCH or XLOOKUP for complex two-dimensional lookup operations that return a single cell value instead of a sum.

• Comparing and contrasting the functional differences between SUMIF, SUMIFS, and array-based SUM(IF) formulas for various aggregation needs.
