Learning to Use Nested IF and VLOOKUP Functions in Excel

Introduction to Nested Functions in Excel

Microsoft Excel is renowned for its powerful analytical capabilities, largely driven by its extensive library of functions. When these functions are combined, or nested, they unlock sophisticated data processing and automation potential. One of the most vital combinations for decision-making within a spreadsheet involves integrating the IF function inside a VLOOKUP function. This nesting technique enables users to retrieve specific data and immediately apply conditional logic to evaluate that result, producing dynamic and intelligent outputs.

The core strength of this strategy lies in extending the utility of both functions beyond their singular capabilities. While the VLOOKUP function is primarily designed for data retrieval from vertical tables, it lacks inherent decision-making capacity. By leveraging the IF function, you transform the retrieved data into a logical test. This allows the formula to transition from simply finding a value to making a judgment—such as determining “Pass/Fail,” “High/Low,” or assigning custom text or numerical values based on a predefined criterion.

This comprehensive article serves as a guide to mastering the construction and implementation of the nested IF and VLOOKUP formula in Excel. We will systematically dissect the fundamental structure, analyze its core components, and then apply it to a practical, real-world example to fully demonstrate the dynamic results and analytical power this technique affords.

Understanding the Core Formula: IF and VLOOKUP

The mechanism for nesting the IF function and the VLOOKUP function is crucial for executing a data retrieval operation followed by an immediate evaluation against a specified threshold. The fundamental structure shown below places the VLOOKUP entirely within the logical test argument of the outer IF function:

=IF(VLOOKUP(D2,$A$1:$B$11,2,FALSE)>100,"Yes","No")

To utilize this powerful formula effectively, it is essential to understand how the components interact. At its heart, the VLOOKUP function acts as the primary data source, searching for a value in the leftmost column of a designated table range and returning a corresponding value from a specified column in that same row. This returned value is then passed to the outer IF function to complete the logical comparison.

The IF function structure requires three arguments: the logical test, the value if true, and the value if false. In this nested scenario, the output of the VLOOKUP, combined with the comparison operator (>100), constitutes the entire logical test, determining the final outcome of the formula.

• Deconstructing the VLOOKUP Component:

  • D2: This is the lookup_value. It identifies the item or record that VLOOKUP must locate within the first column of the data array. Here, it references the content found in cell D2.
  • $A$1:$B$11: This defines the table_array, representing the entire range of cells where the search and retrieval process will occur. The dollar signs ($) are critical, establishing an absolute reference, which prevents the table array from shifting if the formula is copied down to adjacent cells.
  • 2: The col_index_num dictates which column’s value should be returned once the match is found. In this example, 2 indicates the second column of the table_array (Column B).
  • FALSE: The range_lookup argument is set to FALSE to ensure the function searches only for an exact match to the lookup_value. If no exact match exists, the function will return the #N/A error.

The output generated by the VLOOKUP is then immediately subjected to the comparison: >100. This comparison forms the complete logical_test for the IF function. If the retrieved value satisfies this condition (i.e., is greater than 100), the function proceeds to the value_if_true; otherwise, it moves to the value_if_false.

• Evaluating the IF Component:

  • "Yes": This is the value_if_true. If the logical test—the VLOOKUP result being greater than 100—evaluates to true, the formula will output the text string “Yes”.
  • "No": This is the value_if_false. If the logical test is false (meaning the retrieved value is 100 or less, or an error occurred), the formula will return the text “No”.

Practical Application: A Step-by-Step Example

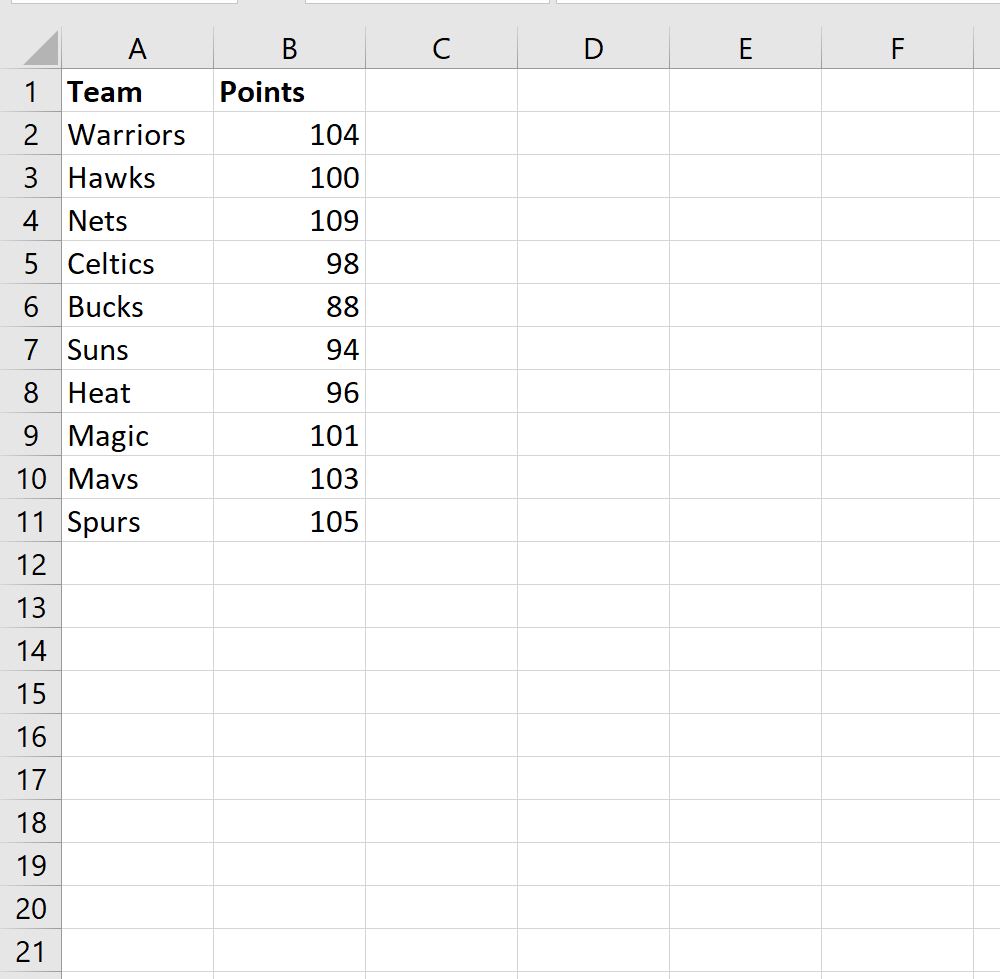

To fully grasp the practical benefits of nesting IF and VLOOKUP, let us apply this technique to a real-world scenario involving a dataset of basketball team scores. Imagine we have a table in Excel listing various teams and their corresponding points, as depicted in the image below. Our analytical goal is straightforward: to determine quickly whether a specific team, whose name is input into cell D2, managed to score more than 100 points in their game.

This objective requires a two-pronged calculation: first, we must locate the score associated with the team name using VLOOKUP, and second, we must apply the IF function to check that score against our threshold of 100. We will enter our nested formula into cell E2.

Assuming we start by analyzing the “Mavs,” we ensure that D2 contains this team name. The formula will search for “Mavs” within the first column of the data range (A1:B11) and retrieve the corresponding score from the second column (Points). The complete formula entered into E2 is:

=IF(VLOOKUP(D2,$A$1:$B$11,2,FALSE)>100,"Yes","No")

After inputting this formula and executing it by pressing Enter, Excel calculates the VLOOKUP result (the score) and immediately tests whether that score exceeds 100. The final result—either “Yes” or “No”—is then displayed instantly in cell E2, providing definitive feedback based on the conditional assessment.

Interpreting Results and Dynamic Updates

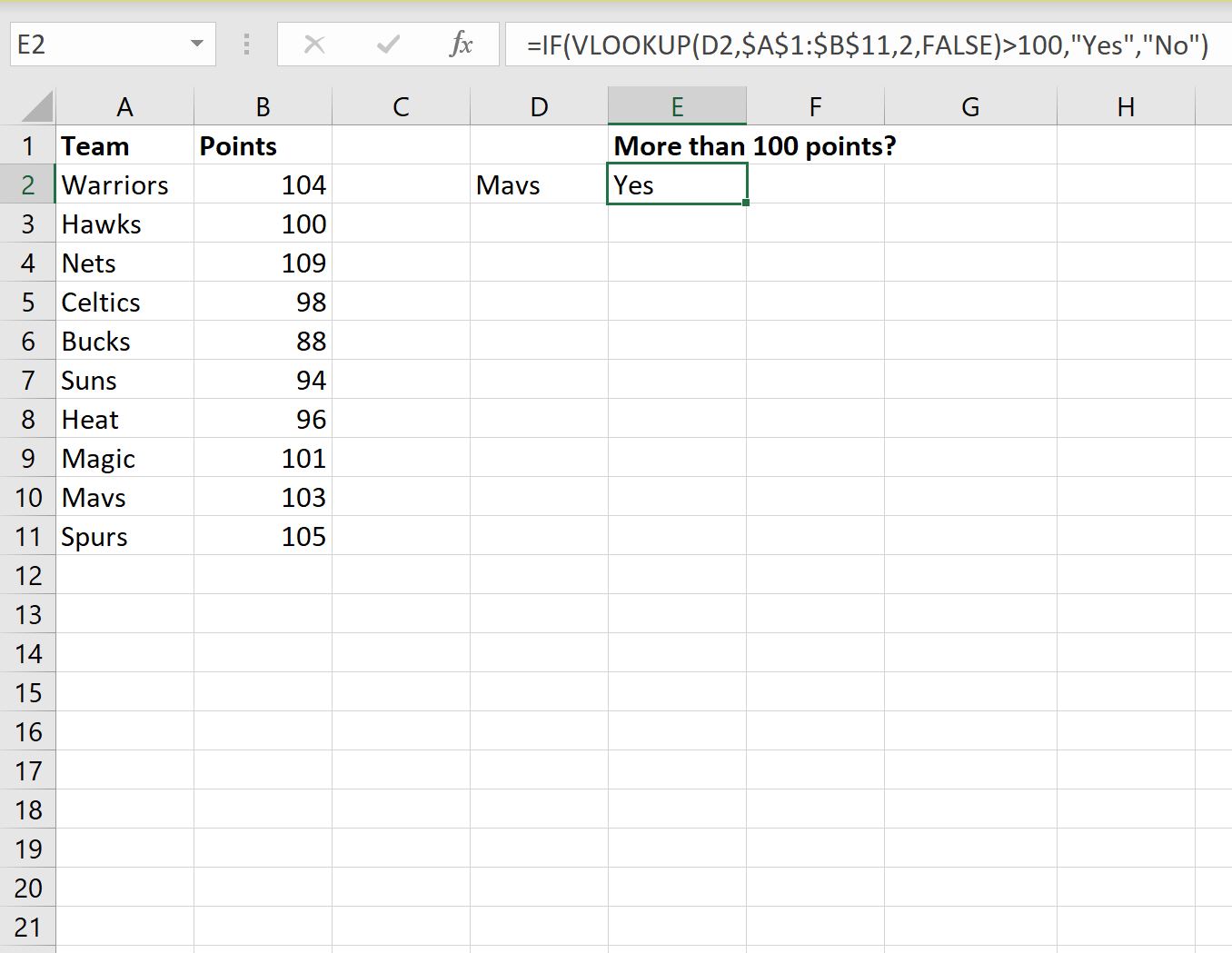

Once the formula is entered, cell E2 will populate with the output, which is a direct consequence of the conditional logic applied immediately after the VLOOKUP retrieval. For our initial scenario, where “Mavs” is the lookup value in D2, the results are presented as follows:

As the image confirms, the formula returns “Yes.” This is the logical outcome because the VLOOKUP successfully retrieved the Mavs’ score, and that score was found to be greater than the specified threshold of 100 points, thus satisfying the criterion defined in the outer IF function. The formula successfully transformed raw data retrieval into a meaningful, binary decision.

A major advantage of using structured Excel formulas, particularly those employing VLOOKUP with conditional logic, is their inherent dynamic nature. If the team name in cell D2 is altered, the formula in E2 will automatically recalculate instantly. This allows users to conduct rapid, ad-hoc analysis without manually adjusting the core formula, streamlining the process of evaluating different teams or data points against the same criteria.

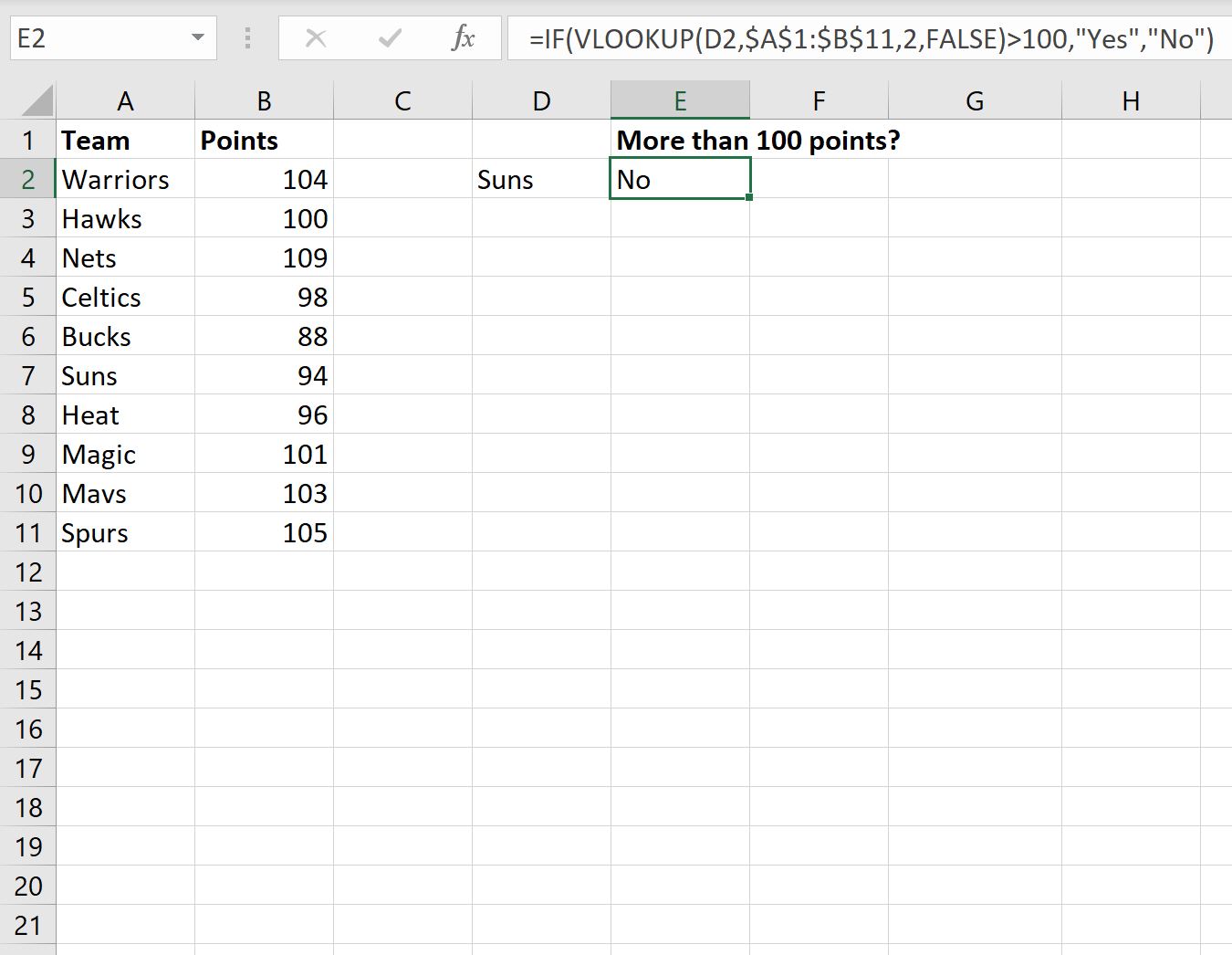

For instance, if we modify the input in cell D2 from “Mavs” to “Suns,” the nested formula immediately initiates a new lookup for the “Suns” score. It evaluates the new retrieved score against the >100 condition and updates the result accordingly. The updated outcome, reflecting whether the Suns met the scoring requirement, is displayed below:

Enhancing Robustness: Handling Errors

Although the nested IF and VLOOKUP function is highly effective, a crucial consideration for robust spreadsheet design is error handling. If the VLOOKUP function cannot locate an exact match for the lookup_value (e.g., if a misspelled team name is entered), it returns the standard Excel error: #N/A. When this error is passed to the outer IF function, the IF function often fails to interpret it correctly in the logical test, which can lead to misleading results, such as displaying “No” when the actual situation is “Data Not Found.”

To prevent these ambiguous outcomes and improve the user experience, we can further nest the entire IF/VLOOKUP structure within the IFERROR function. This function is designed to catch any error generated by the primary calculation (in this case, the nested IF/VLOOKUP) and substitute it with a designated value or text string.

The enhanced, error-proof formula structure is presented below:

=IFERROR(IF(VLOOKUP(D2,$A$1:$B$11,2,FALSE)>100,"Yes","No"),"Team Not Found")

By implementing this modification, if the team name specified in D2 is not present in the data range A1:B11, the IFERROR function intercepts the #N/A error and returns the clear, informative message: “Team Not Found.” This significantly increases the clarity and reliability of your spreadsheet analysis by explicitly addressing potential lookup failures.

Conclusion

Mastering the technique of nesting the IF function within VLOOKUP in Excel provides a remarkably robust and dynamic method for data evaluation. This combination moves beyond simple data retrieval, enabling your formulas to perform simultaneous lookups and apply sophisticated conditional logic, resulting in intelligent data analysis.

The ability to retrieve specific data points and immediately evaluate them against desired thresholds, returning tailored textual or numerical responses, is invaluable across numerous disciplines, including financial modeling, inventory management, and performance tracking. By understanding the flow of control—where VLOOKUP feeds the IF function’s logical test—Excel users can significantly enhance their data processing capabilities and create highly functional, automated workbooks.
