Learning to Use INDEX and MATCH Across Multiple Columns in Excel

Introduction to Advanced Lookups in Excel

When working with complex datasets in Excel, standard lookup functions like VLOOKUP often fall short, particularly when the criteria column is not the leftmost column, or when the lookup value might exist across several different columns. To overcome these limitations and achieve robust, flexible data retrieval, experienced analysts turn to a powerful combination of functions. This technique, which leverages the INDEX function combined with the MATCH function and sophisticated array formula logic, allows for lookups that span multiple, non-contiguous columns. Understanding this methodology is crucial for anyone seeking to master complex data manipulation within spreadsheets.

The formula presented below is specifically designed to perform a reverse lookup—finding a corresponding value based on a match located anywhere within a defined multi-column range. This method is far superior to nested IF statements or multiple VLOOKUPs, offering cleaner syntax and significantly improved performance, especially when dealing with large volumes of data. The complexity arises from the need to convert multiple columns of truth values (True/False or 1/0) into a single, usable array that the MATCH function can reliably process. This process requires the introduction of array-handling functions like MMULT and TRANSPOSE, transforming a seemingly simple lookup problem into an advanced demonstration of spreadsheet engineering.

We will demonstrate how to construct, implement, and interpret this robust formula. The following syntax provides the blueprint for using the INDEX and MATCH functions to successfully search across multiple columns in Excel, ensuring that you can locate any data point regardless of its position relative to the desired return column.

=INDEX($A$2:$A$5,MATCH(1,MMULT(--($B$2:$D$5=F2),TRANSPOSE(COLUMN($B$2:$D$5)^0)),0))

Mastering the Multi-Column Lookup Formula

To fully appreciate the power of this formula, we must break down its component parts. At its core, the structure adheres to the classic INDEX(Return_Array, Row_Number, [Column_Number]) pattern. In this case, the `Row_Number` is generated by the complex nested functions that follow the MATCH function. Specifically, the formula is designed to look up the specific value found in cell F2 within the sprawling search range defined by B2:D5. Once the match is successfully located across any of those three columns, the formula then returns the corresponding value located in the single column range A2:A5.

The true complexity lies within the array manipulation required to search multiple columns simultaneously. The expression `($B$2:$D$5=F2)` first generates a multi-column array of TRUE and FALSE values, indicating where the value from F2 is present. The double negative operator (`–`) converts these logical values into numerical values (1 for TRUE, 0 for FALSE). This results in a matrix where only the cells matching the lookup criteria contain a 1, and all others contain a 0. If the lookup value is found in multiple places across the row, that row will contain multiple 1s; however, since we only need the row index, we must consolidate this information.

This is where the matrix multiplication functions come into play. The MMULT function (Matrix Multiplication) requires two array arguments to multiply. The first argument is our generated 1/0 array. The second argument, `TRANSPOSE(COLUMN($B$2:$D$5)^0)`, is a clever trick used to create a column array of 1s whose height matches the number of columns in the search range (B2:D5). Multiplying the 1/0 matrix by this column of 1s effectively sums the values across each row. The resulting array is a single column where the value in each cell represents the total number of times the lookup value (F2) appears in that specific row of the B2:D5 range.

Finally, the MATCH function searches this resulting summed array for the value 1 (which signifies a row containing at least one match). When it finds the first instance of 1, it returns the row number of that match within the data range. This row number is then passed to the outer INDEX function, which retrieves the corresponding data from the return range $A$2:$A$5, thus completing the multi-column lookup operation. This intricate process transforms a multi-dimensional search into a single row index, enabling precise data extraction.

Setting Up the Data for a Practical Example

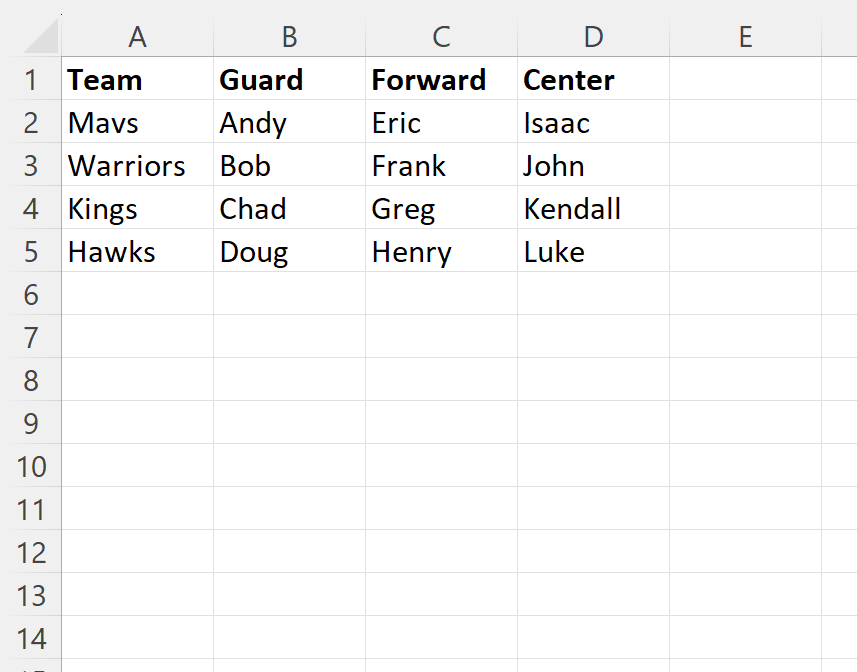

To illustrate this advanced lookup method, let us consider a practical scenario involving a dataset that requires searching for specific information across multiple category columns. Suppose we are managing data for several basketball teams. Our initial dataset, laid out in columns A through D, details the team name in Column A and then lists the names of players who play various positions (Guard, Forward, Center) in columns B, C, and D, respectively. Note that a player’s name might only appear in one of the positional columns, meaning a simple VLOOKUP targeting a single column would be insufficient to find the team name based on the player’s name alone.

This setup highlights the essential problem this formula solves: we need to search the entire player roster—encompassing columns B, C, and D—to identify which row contains the player’s name, and subsequently, which team name (in column A) corresponds to that row. The structure of this data is as follows:

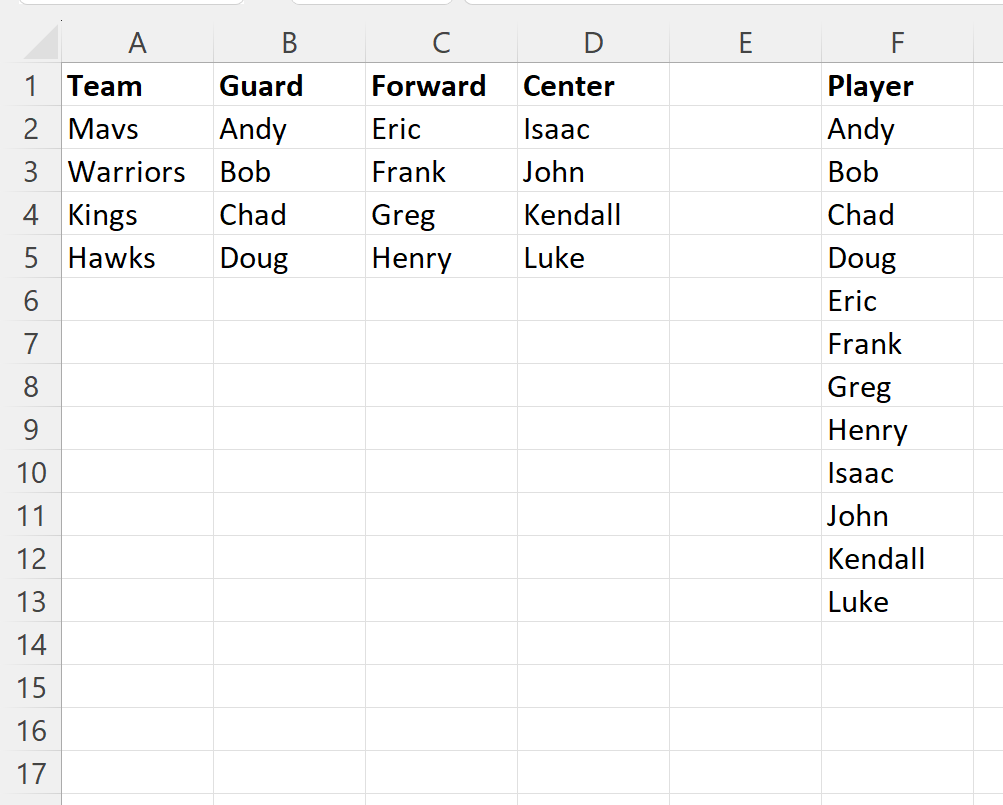

The next step involves creating a separate lookup table or column where we list the player names we wish to query. This column, labeled F, represents the data we are searching for, serving as the input for our formula. By isolating the list of players we need to find, we prepare the necessary criteria for the subsequent lookup operation. This separation of input criteria from the main dataset is a standard best practice in spreadsheet design, enhancing clarity and modularity.

Once we have populated column F with the names of the players we are interested in tracking, our goal shifts to populating column G with the corresponding team for each player listed in column F. This column G will be the location where we apply the powerful array formula. Our dataset now includes the required input column, ready for the sophisticated INDEX MATCH MMULT solution:

Implementing the INDEX MATCH MMULT Solution

With the data properly structured, we are now ready to implement the formula to achieve our goal: looking up the player’s name in columns B through D and returning the team name from column A. This is a direct application of the logic detailed previously. We must type the following formula precisely into cell G2. This specific implementation uses absolute references for the ranges (e.g., $A$2:$A$5 and $B$2:$D$5) to ensure that when the formula is copied down, the data ranges remain fixed, while the lookup value reference (F2) remains relative, allowing it to correctly search for the subsequent player names (F3, F4, etc.).

It is essential to understand that in older versions of Excel, formulas utilizing MMULT in this manner may need to be entered as an array formula by pressing Ctrl + Shift + Enter instead of just Enter. This action tells Excel to treat the formula as an array calculation, which is necessary for the matrix multiplication to execute correctly. Modern versions of Excel (like Microsoft 365) typically handle this automatically, but users on older versions must remember this critical step for the formula to function.

We input the formula into cell G2, linking the lookup criteria (F2) to the comprehensive search range (B2:D5), and instructing the formula to return the corresponding value from the team column (A2:A5). The inclusion of the MMULT function and the TRANSPOSE function is what enables the search to span the multiple columns seamlessly:

=INDEX($A$2:$A$5,MATCH(1,MMULT(--($B$2:$D$5=F2),TRANSPOSE(COLUMN($B$2:$D$5)^0)),0))

After successfully entering the formula into G2, the final operational step is to apply this logic to the remainder of the player list. We simply click and drag the formula handle down from cell G2 to the bottom of the list in column G. This action automatically adjusts the relative reference (F2) to F3, F4, and so on, performing a new multi-column lookup for every player listed in column F, efficiently completing the data retrieval task across the entire required range.

Interpreting the Results and Verifying Accuracy

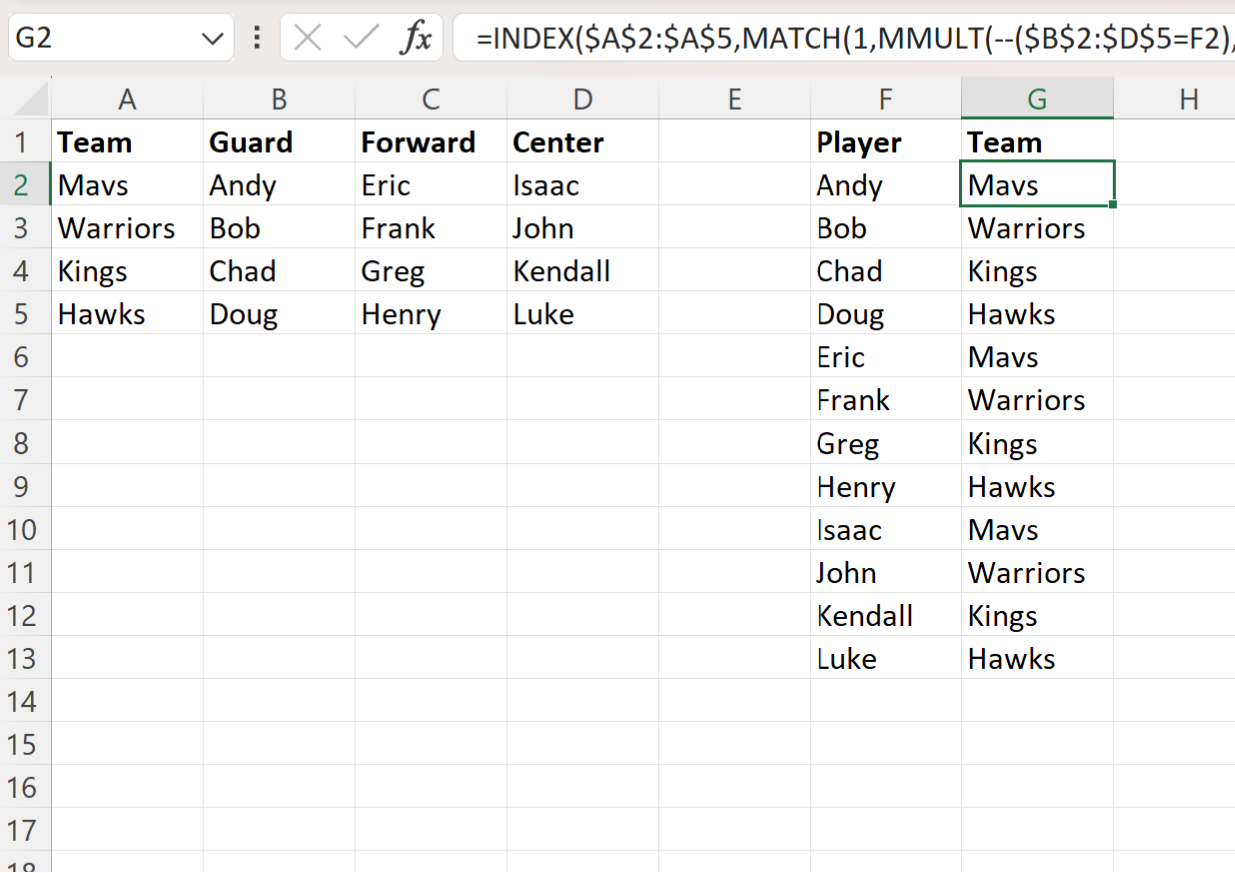

Upon dragging the formula down, column G immediately populates with the correct team name corresponding to each player listed in column F. This successful output confirms that the complex array formula correctly navigated the multi-column search matrix and identified the precise row index for each player name, regardless of whether that name was listed in the Guard, Forward, or Center column. The resulting worksheet clearly displays the connection between the lookup criteria (Player Name) and the desired return value (Team Name).

Column G, now fully populated, accurately returns the name of the team that corresponds to each player name found in column F. To ensure a clear understanding of the lookup process, let us examine a few specific outputs generated by the formula:

• The formula successfully looks up the player Andy in the range B2:D5. Andy is found in row 2, and the formula correctly returns the associated team, Mavs.
• For the player Bob, the formula searches B2:D5. Bob is located in row 4, leading the formula to return the corresponding team, Warriors.
• When looking up Chad, the search across B2:D5 identifies the name in row 3, resulting in the return value Kings.

This validation confirms the utility of the INDEX MATCH MMULT approach. It demonstrates how powerful array manipulation can substitute for multiple conditional lookups, achieving a seamless result in a single formula. This method is particularly valuable in environments where data structures are often inconsistent or require flexible search patterns that standard vertical lookups cannot handle. Mastering this technique unlocks a significant level of advanced capability within spreadsheet data management.

Expanding Beyond Basic Lookups

While the INDEX MATCH MMULT method provides a highly reliable solution for multi-column lookups, it is important to note its context within the broader landscape of Excel functionality. For users operating on modern versions of Excel (specifically Microsoft 365), the introduction of the XLOOKUP function offers a significantly simplified syntax to achieve multi-column searching without the need for complex array functions like MMULT and TRANSPOSE function. XLOOKUP inherently supports searching across multiple columns and returns the corresponding value, making it the preferred method for simplicity where available.

However, reliance on the classic INDEX MATCH MMULT structure remains essential for several reasons. Firstly, it ensures compatibility with legacy spreadsheet files and environments where newer functions like XLOOKUP may not be supported. Secondly, the logic behind this array formula is fundamental to understanding how Excel processes complex array comparisons and matrix operations. Knowledge of the MMULT function and the use of the double negative (`–`) is invaluable for developing custom, high-performance array solutions to unique data problems that even XLOOKUP might not solve directly.

Ultimately, the ability to construct this advanced INDEX function and MATCH function combination signifies a high level of mastery in Excel. It moves the user beyond basic function application into the realm of dynamic data manipulation, allowing for the creation of robust, scalable reporting and analysis tools that can handle real-world data complexities far exceeding the capabilities of basic lookup operations.
