Learn Excel: Using INDEX MATCH for Cross-Sheet Data Lookup

Achieving Dynamic Data Integration Across Multiple Sheets

The demand for efficient data retrieval within complex workbooks is a cornerstone of advanced spreadsheet management. While functions such as VLOOKUP are widely known for locating data, they often present significant limitations, particularly their strict requirement that the lookup value must reside in the leftmost column of the data array. This fundamental constraint can severely restrict flexibility when dealing with real-world datasets where column order is rarely static or ideal. Consequently, mastering a more robust alternative is essential for any serious data analyst working in Excel.

The powerful combination of the INDEX MATCH functions stands out as the superior solution, offering unparalleled precision and flexibility for complex data retrieval tasks. This pairing overcomes the directional limitations of traditional lookup methods, allowing users to search for a value in any column and return corresponding data from any other column, regardless of its position. This capability becomes particularly vital when integrating information scattered across separate worksheets within a single Excel file, demanding careful and explicit cross-sheet referencing.

Understanding the specific syntax required to structure this formula for dynamic cross-sheet referencing is the key to managing scalable and reliable spreadsheets. When executing a lookup operation that spans distinct tabs, the formula must clearly and explicitly point to the source sheet, ensuring the functions know precisely where to locate the necessary arrays and values. This meticulous approach to specifying the data source guarantees accuracy and maintains data integrity, preventing the common errors associated with ambiguous range definitions.

Defining the Syntax for Cross-Sheet Lookups

When pulling data from one worksheet (the source, e.g., Sheet2) into another (the destination, e.g., Sheet1), the syntax of the INDEX MATCH formula must incorporate explicit sheet references. This is achieved by prefixing all range arguments that refer to external data with the source sheet name followed by an exclamation mark (e.g., Sheet2!). This crucial prefix clearly dictates the scope of the data lookup, distinguishing the source data from the active sheet’s references.

The formula is designed to perform a search for a specific value—the lookup_value—in a designated column on the secondary sheet and subsequently return a corresponding value from a specified return column on that same sheet. The standard structure is deceptively simple but incredibly powerful, especially because it liberates the user from the restrictive left-to-right requirement imposed by functions like VLOOKUP.

The following syntax illustrates the application of INDEX MATCH when retrieving data from Sheet2 based on criteria found on the current sheet:

=INDEX(Sheet2!$B$2:$C$11,MATCH(A2,Sheet2!$A$2:$A$11,0),2)

In this precise example, the formula initiates a search using the value contained in cell A2 of the current sheet. The MATCH component then strictly searches for an exact counterpart within the range A2:A11 located on Sheet2. Upon successful identification of the row number, the parent INDEX function utilizes this positional data to retrieve the corresponding entry from the return range B2:C11 on Sheet2. Specifically, it pulls the data from the second column within that defined return range, thus completing a highly efficient and targeted cross-sheet data integration.

Dissecting the Core Components of INDEX MATCH

To utilize this technique effectively, especially when managing complex cross-sheet references, a thorough understanding of the purpose of each argument is mandatory. The architecture of the INDEX MATCH combination relies on a division of labor: the MATCH function calculates the exact position (the row number) of the lookup value, and the INDEX function then leverages that position to retrieve the corresponding data point. This architectural separation is the primary source of its superior flexibility compared to older, monolithic lookup functions.

The core structure of the INDEX function, =INDEX(array, row_num, [column_num]), demands careful definition of the array argument, which specifies the entire area from which the final result might be pulled. When referencing external sheets, this array must be fully qualified with the sheet name (e.g., Sheet2!$B$2:$C$11). Furthermore, employing absolute cell references, denoted by the dollar signs ($), is critical. These references prevent the ranges from inadvertently shifting when the formula is copied or dragged down a column, a vital practice for maintaining data integrity during bulk calculations.

The nested MATCH function, structured as MATCH(lookup_value, lookup_array, [match_type]), is solely responsible for identifying the correct row index. The lookup_value (e.g., A2 on the current sheet) is the data element being sought, and the lookup_array (e.g., Sheet2!$A$2:$A$11) is the column on the secondary sheet where the matching value is expected to be found. Crucially, the final argument, match_type, is set to 0. This setting enforces an exact match, which is necessary for unique identifiers and prevents errors that can arise from approximate or partial matches in unsorted or complex data sets. The output generated by the MATCH function feeds directly into the row_num argument of the containing INDEX function.

Finally, the optional, yet frequently used, column_num argument in the INDEX formula specifies exactly which column within the previously defined array holds the data to be retrieved. For instance, if the array covers columns B and C, a column_num of 2 instructs Excel to pull data from column C. By consistently using sheet references and absolute cell referencing, this robust construct ensures seamless and reliable data consolidation across multiple organizational tabs within a single workbook.

Establishing the Data Environment: A Basketball Statistics Example

To demonstrate the practical utility of this cross-sheet lookup technique, we will utilize a scenario involving two distinct sheets containing related basketball statistics. This methodology is applicable to any situation that requires merging datasets based on a common, unique identifier, such as product SKUs, client IDs, or, in this case, specific team names.

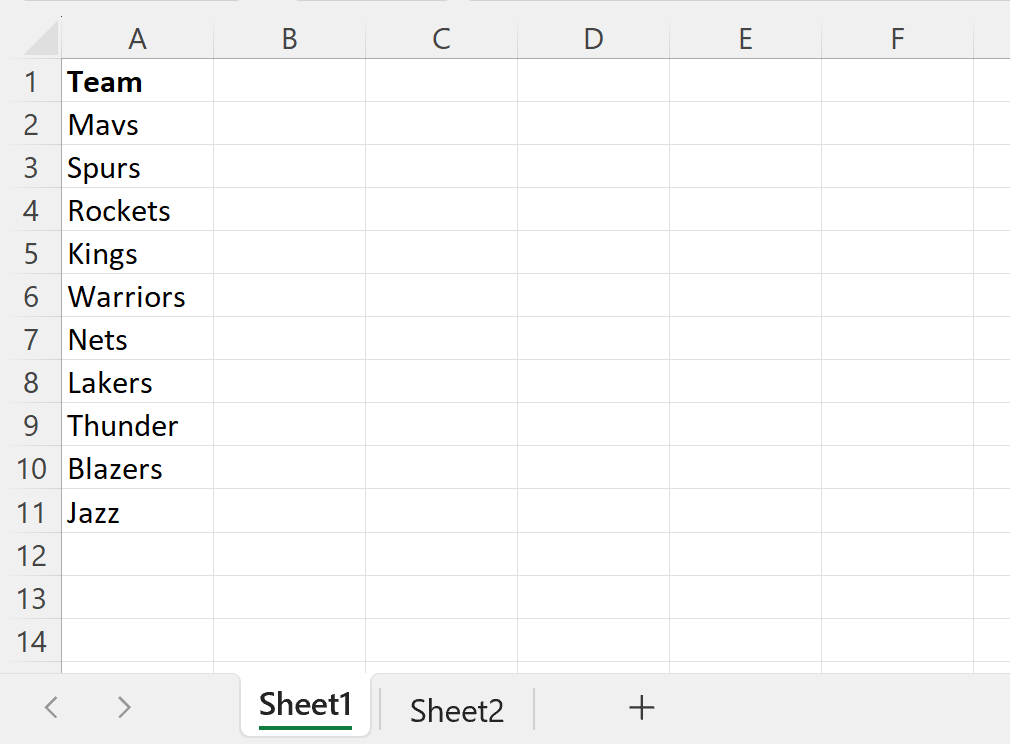

Our destination sheet is named Sheet1. This sheet currently lists various basketball teams in column A. Our objective is to populate the adjacent columns with statistical performance data (specifically Points and Assists) retrieved from the second, master sheet. At this stage, column B is empty, awaiting the calculated results generated by our cross-sheet lookup formula.

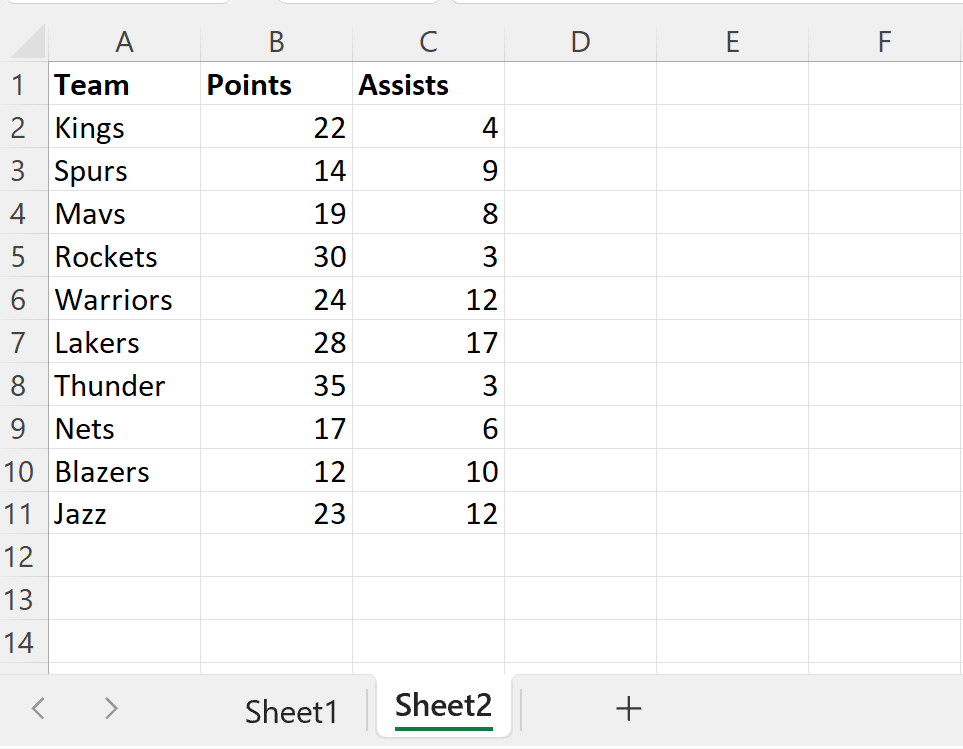

Conversely, our secondary sheet, designated as Sheet2, acts as the master data repository. This sheet contains the team names alongside their specific performance metrics: Points and Assists. The immediate goal is to accurately map the Assists data from Sheet2 back to the corresponding team names listed on Sheet1. It is important to note the layout: the Team Name column on Sheet2 is column A, while the metrics we intend to retrieve are located in columns B and C.

For our initial task, we aim to look up each team name listed in Sheet1 within the data set of Sheet2 and return the value found in the Assists column. This demonstration powerfully showcases the core benefit of INDEX MATCH: its inherent capability to return a value from a column that is situated to the right or even to the left of the lookup column, a feat fundamentally impossible with the basic implementation of VLOOKUP. This setup provides the necessary foundation for building dynamic data links within your workbook structure.

Implementing the Formula for ‘Assists’ Retrieval

The implementation process begins by constructing the full formula in the first empty cell of the destination column, which is cell B2 on Sheet1 in our example. Precision is paramount here; we must meticulously define all ranges residing on Sheet2 to ensure absolute accuracy. The formula needs to provide Excel with three distinct pieces of information: the range containing the potential return data (the INDEX array), the column to search for the team name (the MATCH lookup array), and finally, the specific column number within the return data set that holds the desired metric.

To successfully retrieve the Assists data for each team, we input the following formula into cell B2 of Sheet1:

=INDEX(Sheet2!$B$2:$C$11,MATCH(A2,Sheet2!$A$2:$A$11,0),2)

We can analyze the formula’s effectiveness against our defined data structure. The INDEX array, Sheet2!$B$2:$C$11, strategically encompasses both the Points and Assists columns—representing the full scope of data we might potentially wish to return. The MATCH lookup array, Sheet2!$A$2:$A$11, is strictly the column containing the common key identifier (the Team Name) on the source sheet. The lookup_value is simply A2 on the current sheet, which holds the first team name we need to search against the master list.

The concluding argument, the number 2, is a vital instruction that specifies which column number within the defined INDEX array (which is $B$2:$C$11) contains the data we want to output. Since column B is the first column in this defined range (Points) and column C is the second column (Assists), using the digit 2 guarantees that we extract the value from the Assists column. After successfully entering this formula into cell B2, we can efficiently propagate the calculation by dragging the formula down to the remaining cells in column B, completing the comprehensive lookup operation for all teams listed in Sheet1.

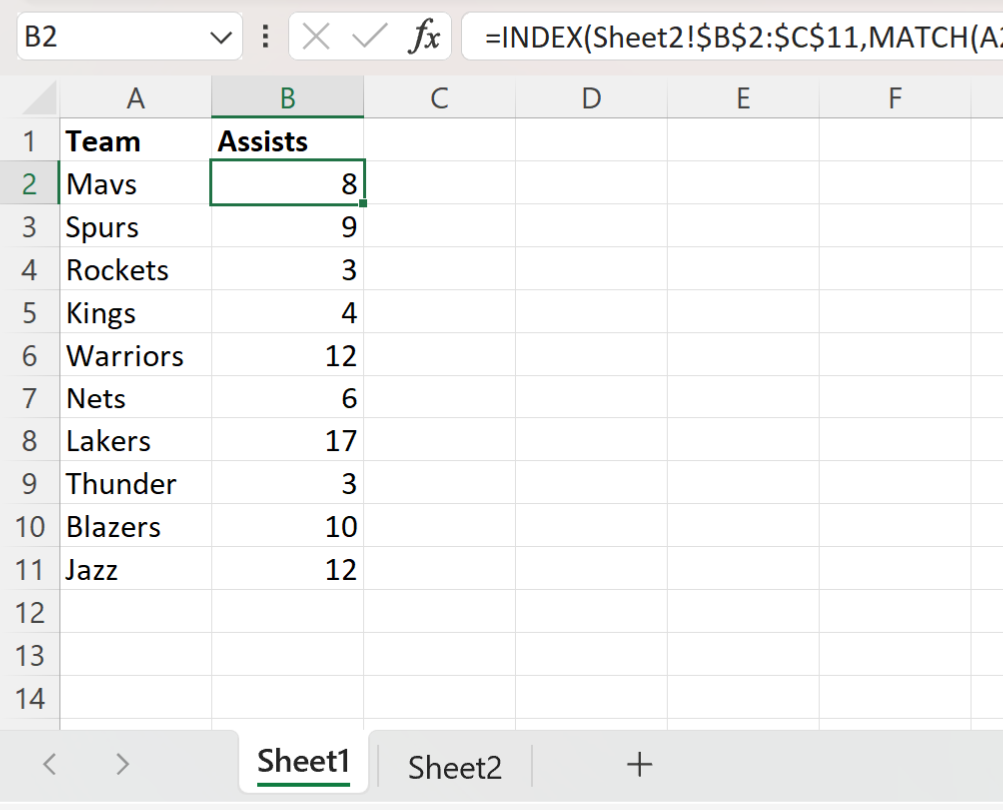

Following successful execution, Column B in Sheet1 is now accurately populated with the corresponding Assists values retrieved directly from Sheet2, precisely matched against each team name in column A. This outcome confirms the formula’s efficacy as a clean, efficient, and reliable method for conducting large-scale data imports and synchronization between structured worksheets, confirming the versatility and power of the combined INDEX MATCH function.

Utilizing Flexibility: Switching the Retrieved Metric

A significant advantage inherent in the INDEX MATCH configuration is the ease with which the returned column can be modified without needing to adjust the core lookup criteria. Since the MATCH component is dedicated solely to identifying the correct row based on the team name, changing the metric we retrieve requires only a simple modification to the final argument of the INDEX function. This flexibility is critical for analysts who frequently switch between different data points from the same source table.

Recall that we defined our INDEX array as Sheet2!$B$2:$C$11. This range strategically encompasses two columns: column B, which holds the Points data, and column C, which holds the Assists data. In the previous step, we utilized the value 2 to specify the second column within this range (Assists). If our requirement shifts, and we wish to retrieve the value from the Points column—which is the first column in the defined array B2:C11—we simply need to change the final argument in the formula to 1.

The revised formula tailored for retrieving the Points metric would therefore be structured as follows:

=INDEX(Sheet2!$B$2:$C$11,MATCH(A2,Sheet2!$A$2:$A$11,0),1)

This minor, yet powerful, adjustment instantly switches the intended output. The MATCH function continues its task of finding the correct row index based on the common team name identifier, but the INDEX function is now instructed to pull the value from the first column of the defined result array, effectively returning the Points data. This superior flexibility is precisely why INDEX MATCH is often the preferred choice over positional functions like VLOOKUP, especially when dealing with dynamic or expanding datasets where the column order might be subject to change over time.

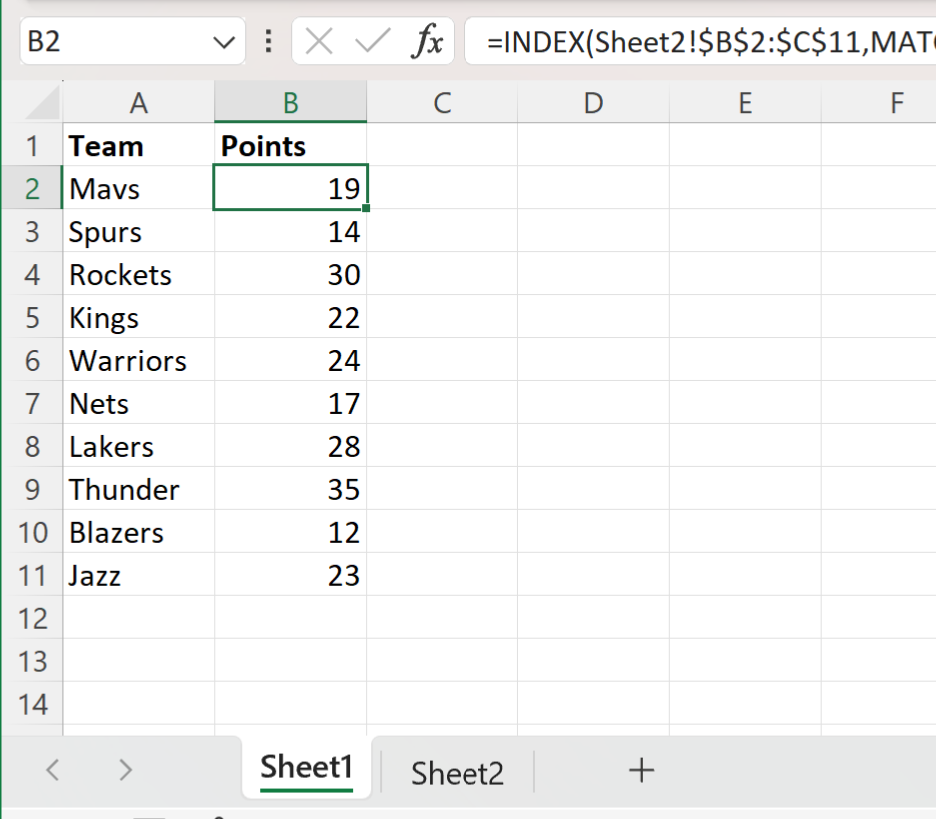

Executing this modified formula and propagating it down column B of Sheet1 yields the following result, demonstrating the successful mapping of the Points data back from Sheet2 onto the destination sheet:

Conclusion and Advanced Data Management Practices

The technique of skillfully combining the INDEX and MATCH functions to perform cross-sheet lookups is an indispensable tool in advanced data management within Excel. By diligently adhering to proper syntax—specifically, defining sheet names for external data and leveraging absolute references using the $ symbol—users can construct robust and highly flexible formulas. These formulas are capable of retrieving data from virtually any column based on a common identifier, ensuring that data synchronization remains structured, accurate, and easily scalable even as the complexity of the underlying workbook increases.

To ensure consistent success when implementing this cross-sheet method, keep the following best practices in mind:

• Always prefix external range references with the source sheet name followed immediately by an exclamation mark (e.g., Sheet2!).
• Utilize absolute referencing (the $ symbol) for all range arrays employed in both the INDEX and MATCH components. This prevents the ranges from corrupting or shifting when the formula is copied.
• The final argument of the INDEX function is your control switch; it dictates precisely which column of the defined return array will provide the final output data.
• Setting the MATCH type argument to 0 is mandatory for guaranteeing an exact match, which is crucial when dealing with unique key identifiers such as team names or product codes.

Building upon this foundational knowledge, you can explore further advanced data operations in Excel. Understanding the independent power of the MATCH function for positional identification and the INDEX function for data retrieval will empower you to tackle complex array formulas and advanced data analysis challenges with confidence.
