Learning to Find Maximum Values with INDEX and MATCH in Excel

Mastering Dynamic Lookups: The Power of INDEX, MATCH, and MAX

The core requirement of sophisticated Excel proficiency is the ability to perform efficient and flexible data retrieval. Standard functions like VLOOKUP, while useful for basic forward lookups, quickly reveal their limitations when dealing with complex or dynamic criteria. Specifically, VLOOKUP struggles with reverse lookups and cannot easily integrate aggregate functions to search for a calculated value, such as the absolute maximum within a range. To overcome these constraints, expert analysts utilize the highly versatile combination of the INDEX and MATCH functions.

This powerful pairing enables a sophisticated search process: locating the largest numerical value in one column and then accurately retrieving the corresponding non-numerical (or textual) data from a separate column, irrespective of its position. This technique is indispensable for critical data analysis tasks, such as identifying the specific entity (e.g., product, employee, or region) responsible for generating the top performance metric or highest revenue figure. The synergy between INDEX and MATCH allows for directional flexibility and precision unmatched by simpler lookup methods.

The secret to this advanced lookup lies in nesting the MAX function directly within the lookup mechanism. By doing so, we instruct Excel to execute three distinct steps sequentially: first, calculate the highest value in the search column; second, use that maximum value to determine its exact row position using the MATCH function; and third, utilize that precise positional number to extract the desired corresponding data point using the INDEX function. This approach guarantees that lookups are precise, dynamic, and impervious to the common structural issues that plague directional functions.

The Essential Syntax: Integrating MAX into the Lookup Structure

To successfully retrieve the value associated with the maximum entry in any given range, a specific, generalized formula syntax must be implemented in Excel. This formula is structured to maximize robustness and readability by ensuring that the calculated maximum value is seamlessly fed into the positional locator function. The inclusion of the MAX function makes the lookup criteria dynamic, always seeking the highest current value in the dataset.

The template below represents the standard implementation for this advanced technique, designed to handle both numerical and textual return values effectively. It clearly separates the range containing the data to be returned (the result) from the range containing the numerical values being searched (the lookup criteria).

=INDEX(B2:B11,MATCH(MAX(A2:A11),A2:A11,0))

This formula executes a critical, three-part sequence of operations. Starting from the inside, MAX(A2:A11) first determines the largest number within its specified range, A2:A11. This result is immediately passed as the lookup argument to the MATCH function. The MATCH function then locates this maximum value within the same range, A2:A11, returning its relative row position. This positional number is finally utilized by the outer INDEX function to extract the corresponding data from the designated return range, B2:B11. This seamless integration ensures accurate identification of the specific record associated with the highest numerical input.

Practical Application: Locating the Team of the Top Scorer

To demonstrate the practical utility of the INDEX MATCH MAX structure, let us consider a common business scenario: analyzing performance data. Suppose we are tracking points scored by various individuals, and our objective is to identify the team associated with the player who achieved the highest score. This requires a precise reverse lookup, searching based on the numerical score column and returning the corresponding textual data from the team column.

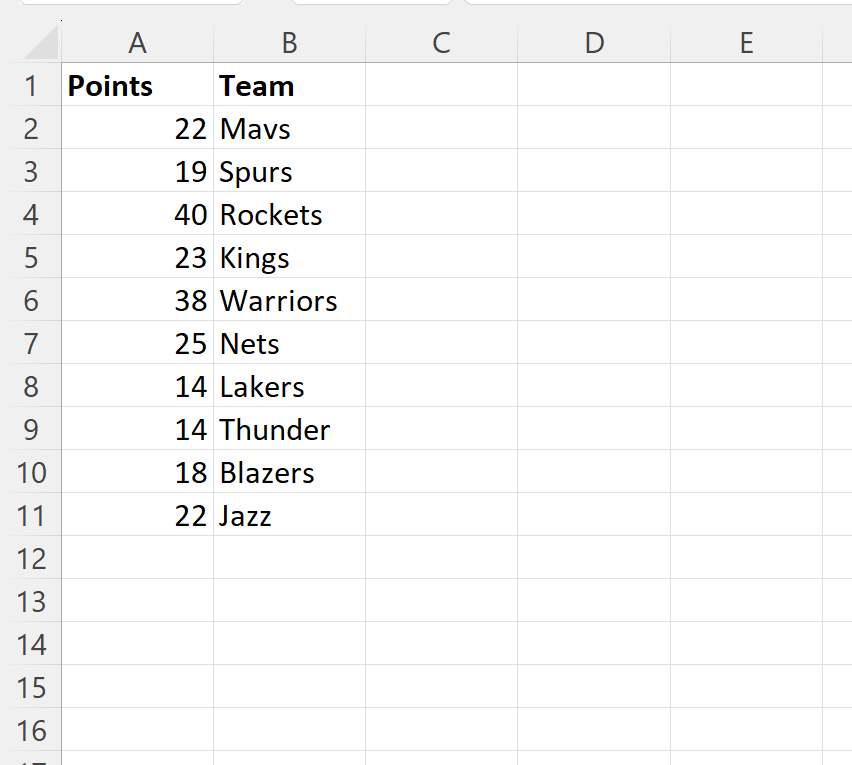

Our illustrative dataset, presented in the image below, comprises two main columns: Points (Column A) and Team (Column B), spanning rows 2 through 11.

In this context, we need Excel to find the highest value in the Points column (A2:A11) and, instead of displaying the score itself, return the associated team name from the Team column (B2:B11). This task highlights why INDEX MATCH MAX is superior to traditional lookups when dealing with data that is structured in a non-standard order relative to the desired output. To execute this operation, the formula will be placed in an empty cell, such as D2, where the result will be displayed.

The specific formula implementation, carefully tailored to these ranges, is shown below. Notice that B2:B11 is clearly defined as the final return array (the data we wish to retrieve), while A2:A11 serves as both the maximization range and the lookup array. The crucial inclusion of the numeral 0 in the MATCH function ensures that an exact match is enforced, preventing inaccurate lookups.

=INDEX(B2:B11,MATCH(MAX(A2:A11),A2:A11,0))

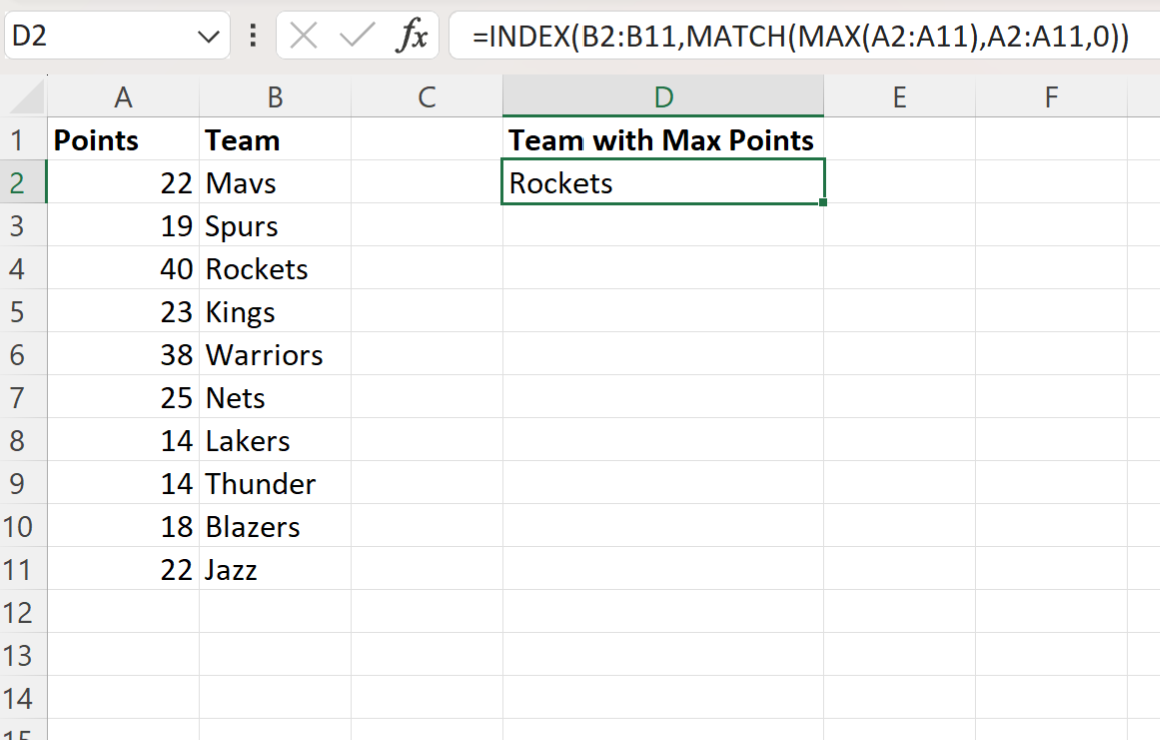

Once entered into cell D2, Excel successfully performs the required steps. First, the MAX function identifies the maximum score, which is 40. Second, the MATCH function determines that this value (40) is located in the 10th row relative to the starting range A2. Finally, the INDEX function retrieves the value from the 10th position within the return range B2:B11, successfully yielding the team name Rockets. The resulting spreadsheet clearly validates the accurate execution of the advanced lookup:

Deconstructing the Three-Part INDEX MATCH MAX Methodology

A thorough understanding of the nested function structure is paramount for mastering dynamic lookups. The immense power of the INDEX MATCH MAX combination stems from the clear separation of tasks, where each of the three components performs a specific, specialized function in a logical sequence. This ensures maximum calculation efficiency and reduces the possibility of errors.

Let’s analyze the formula =INDEX(B2:B11, MATCH(MAX(A2:A11), A2:A11, 0)) by breaking it down into its three constituent parts:

• Part 1: The Aggregate Core (MAX Function): MAX(A2:A11). This is the initiating step, calculating the absolute maximum value. The MAX function scans the entire numerical range (A2:A11) and returns a single numerical outcome. In our example, this result is 40. This calculated value then serves as the essential input, fulfilling the lookup_value argument required by the surrounding MATCH function.
• Part 2: The Positional Locator (MATCH Function): MATCH(40, A2:A11, 0). The MATCH function is solely responsible for determining the position of a value within a one-dimensional array. It takes the maximum value (40) and searches for it within the lookup array (A2:A11). The final parameter, 0, guarantees an exact match, which is critical for accurate data pairing. Importantly, MATCH returns the relative position within the defined array (starting at 1), not the row number of the spreadsheet. Since 40 is the tenth value in the range A2:A11, the function returns the integer 10. This positional index is then passed to the outer INDEX function.
• Part 3: The Data Retriever (INDEX Function): INDEX(B2:B11, 10). Acting as the final step, the INDEX function retrieves the final result. It requires the return array (B2:B11, the Team column) and the row number within that array (10, supplied by MATCH). INDEX then looks down the B2:B11 range and extracts the value found at the tenth position, which is Rockets.

This modular approach offers substantial benefits over older methodologies, such as complex array formulas (which require Ctrl+Shift+Enter validation in older versions of Excel) and entirely bypasses the directional constraints inherent to VLOOKUP.

Bonus Technique: Finding the Conditional Maximum using MAXIFS

While the INDEX MATCH MAX combination is perfect for finding the record associated with the overall highest value in a dataset, business analysis often requires finding the maximum value under specific, predefined conditions—a process known as calculating a conditional maximum. For modern versions of Excel, this complex filtering task has been streamlined through the introduction of the dedicated function: MAXIFS.

The MAXIFS function, available in Excel 2019 and subsequent versions, is engineered to calculate the highest numerical value within a range of cells that satisfies one or more criteria. Its syntax is highly intuitive, requiring the user to specify the range to maximize, the range(s) to check criteria against, and the criteria themselves.

Returning to our basketball data, suppose we only want to determine the maximum score achieved exclusively by players on the “Warriors” team, disregarding all other teams. This task necessitates checking the Team column against the criterion “Warriors” before calculating the MAX within the Points column.

To find the maximum score associated only with the “Warriors” team based on the structure of our previous data, the following formula is used:

=MAXIFS(B2:B9, A2:A9, "Warriors")

In this structure, B2:B9 is the max_range (the points range being maximized), A2:A9 is the criteria_range1 (the teams column being filtered), and "Warriors" is the specific text criteria. MAXIFS efficiently filters the data internally before executing the calculation.

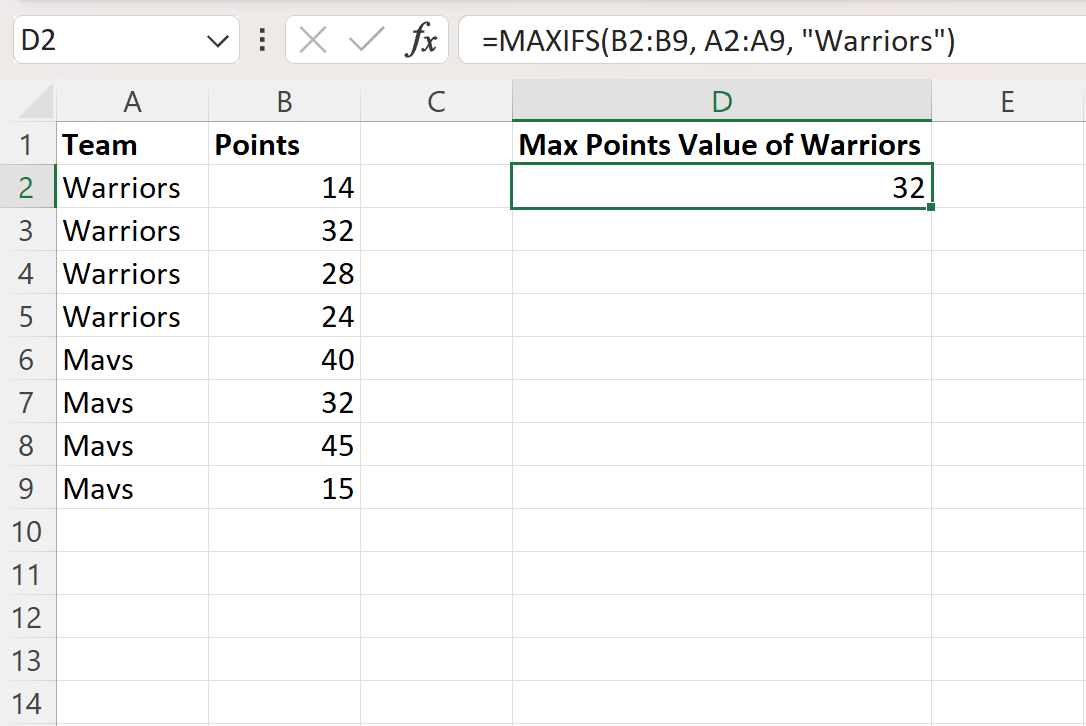

The subsequent screenshot illustrates the successful application of the MAXIFS formula in a worksheet environment.

As confirmed by the output, the function correctly evaluates the dataset and returns the value of 32. This represents the highest score achieved specifically by a player on the “Warriors” team, demonstrating the formula’s effectiveness for targeted maximum value extraction based on complex criteria. For scenarios demanding conditional calculation rather than corresponding data retrieval, MAXIFS is the appropriate modern Excel solution.

Summary and Essential Best Practices for Robust Lookups

The combined use of INDEX and MATCH, particularly when coupled with powerful aggregation functions like MAX, provides the foundation for dynamic, non-directional, and flexible data retrieval within Excel. This methodology effectively resolves the directional limitations and complexity issues inherent in older lookup tools. Whether the objective is identifying the highest absolute performance metric or simply implementing a robust, scalable alternative to VLOOKUP, INDEX MATCH MAX delivers the required flexibility and power.

To ensure the accuracy, maintainability, and reliability of these advanced formulas, adherence to the following best practices is strongly recommended:

• Align Ranges Precisely: It is crucial that the lookup array specified in the MATCH function (e.g., A2:A11) exactly matches the range used in the MAX function. Any misalignment between these two ranges will result in incorrect positional numbers and ultimately lead to erroneous final outputs.
• Implement Absolute References: When creating formulas intended to be copied or dragged down to multiple rows, always use absolute references (e.g., $A$2:$A$11). This prevents range shifting errors that can occur when relative references are used, ensuring that your lookup criteria remain fixed.
• Prioritize Exact Matching: Always set the match_type argument in the MATCH function to 0 (e.g., ...A2:A11,0). This enforces an exact match and is essential for retrieving the correct corresponding data, especially in unsorted datasets. Approximate matching (1 or -1) should only be used deliberately with pre-sorted numerical data.

By mastering the INDEX MATCH MAX structure, you not only improve your Excel efficiency but also elevate your capacity for sophisticated data analysis and high-level reporting.
