Understanding SUMPRODUCT with Multiple Columns in Excel: A Comprehensive Guide

The SUMPRODUCT function is recognized as one of the most powerful and flexible data aggregation tools available within Excel. Moving far beyond the capabilities of simple multiplication and summation, its primary purpose is to calculate the sum of the products derived from corresponding elements across a defined set of arrays. This intrinsic ability makes SUMPRODUCT indispensable for executing complex, multi-criteria calculations efficiently within a single formula structure.

Unlike functions that constrain users to a limited number of fixed criteria, SUMPRODUCT provides a robust method for evaluating numerous conditions simultaneously. It serves as a superior alternative to cumbersome traditional array formulas (often requiring Ctrl+Shift+Enter) or conditional functions like SUMIFS when detailed, logical filtering is necessary. This comprehensive guide will detail the two primary methodologies for leveraging SUMPRODUCT across multiple columns, specifically demonstrating how to integrate both AND and OR logical conditions to precisely filter and calculate your data aggregated from various sources.

Understanding SUMPRODUCT’s Conditional Logic Engine

To maximize the utility of SUMPRODUCT‘s advanced filtering capabilities, it is essential to first grasp its core two-step mechanism. When the function is provided with multiple data arrays, it first executes an element-by-element multiplication of all corresponding items across those arrays. Following this initial operation, it sums these resulting individual products to produce the final, single output value. For instance, if the function processes arrays {A1, A2, A3} and {B1, B2, B3}, the ultimate calculation performed is (A1*B1) + (A2*B2) + (A3*B3).

The true conditional power of this function stems from how Excel handles Boolean expressions within its structure. When a logical comparison is introduced (e.g., checking if values in a column meet a certain criterion), it generates a temporary array composed exclusively of TRUE or FALSE values. Because SUMPRODUCT is inherently designed for arithmetic processes, it automatically coerces these Boolean outcomes into numerical equivalents during computation: TRUE is converted to the number 1, and FALSE is converted to 0. This seamless, automatic numerical conversion is the fundamental principle that permits direct application of conditions as filters.

By strategically multiplying these arrays of 1s and 0s with your actual data arrays, you establish a highly effective, row-by-row filter. Only rows where the filter array yields a 1 (indicating the condition was successfully met) will contribute their corresponding data product to the final aggregated sum. Conversely, any row resulting in a 0 is nullified (multiplied by zero) and consequently excluded from the total calculation. This sophisticated yet remarkably elegant mechanism enables dynamic and granular calculations based on numerous criteria without necessitating external helper columns or the creation of verbose, nested IF statements.

Executing Logical AND Conditions with Multiplication

The implementation of an AND condition—the requirement that a row must satisfy two or more criteria simultaneously—within SUMPRODUCT is achieved by multiplying the logical test arrays together. In this specific formula structure, the multiplication operator (`*`) functions precisely as the logical AND condition gate. It is mandatory that each independent condition be enclosed within its own set of parentheses to ensure correct evaluation of the Boolean result before the array multiplication takes place.

=SUMPRODUCT((A2:A11="A")*(B2:B11="Apples"), C2:C11, D2:D11)

In the presented formula, the initial component, (A2:A11="A"), dynamically generates an array of 1s and 0s based on whether the value in that column range matches “A”. The subsequent expression, (B2:B11="Apples"), similarly produces a corresponding Boolean array for the “Apples” criterion. When these two numerical filter arrays are multiplied together, the outcome is a net filter value of 1 only for rows where BOTH conditions resolved to TRUE (calculated as 1 * 1).

If, however, either condition yields FALSE (resulting in filter calculations like 1 * 0 or 0 * 0), the net filter value for that row immediately becomes 0. This resulting array of 1s and 0s operates as the absolute filter, ensuring that only the data corresponding to the rows that strictly satisfy the combined AND condition are permitted to pass through. This filtered array is then multiplied element-wise with the actual data arrays, C2:C11 (Price) and D2:D11 (Units). Consequently, SUMPRODUCT precisely aggregates only the products of Price and Units for transactions meeting the criteria “Store A” AND “Item Apples.”

Employing Addition for Logical OR Conditions

To implement an inclusive OR condition—where a row is included in the summation if it satisfies at least one of the specified criteria—you must use the addition operator (`+`) between your logical test arrays within the SUMPRODUCT function. While this method is highly effective for filtering, it introduces a critical nuance related to arithmetic summation, especially concerning rows that happen to satisfy multiple OR condition simultaneously.

=SUMPRODUCT((A2:A11="A")+(B2:B11="Apples"), C2:C11, D2:D11)

In the structure of this formula, the conditions (A2:A11="A") and (B2:B11="Apples") continue to produce arrays of 1s and 0s. However, when these two arrays are combined using the addition operator, the resulting filter value for any given row can be one of three outcomes:

• 0: If both conditions evaluate to FALSE (0 + 0 = 0).
• 1: If exactly one condition evaluates to TRUE (1 + 0 = 1).
• 2: If both conditions evaluate to TRUE (1 + 1 = 2).

The resulting value of “2” is the key difference when using the addition method. If a single row satisfies both condition A and condition B, its associated product (Price multiplied by Units) will be effectively multiplied by 2 before it is incorporated into the grand total. This behavior results in that specific row’s data being counted twice. While typical logical OR condition operators ensure a result is counted only once, the inherent arithmetic nature of the `+` operator in Excel‘s array processing causes this potential overcounting. Analysts should remain aware of this feature; if unique row counting is paramount, a structural adjustment (such as wrapping the addition in the SIGN function) may be necessary, but for purposes of demonstrating the `+` operator as the logical OR condition, this formula is arithmetically sound.

Case Study: Calculating Totals Using Strict AND Logic

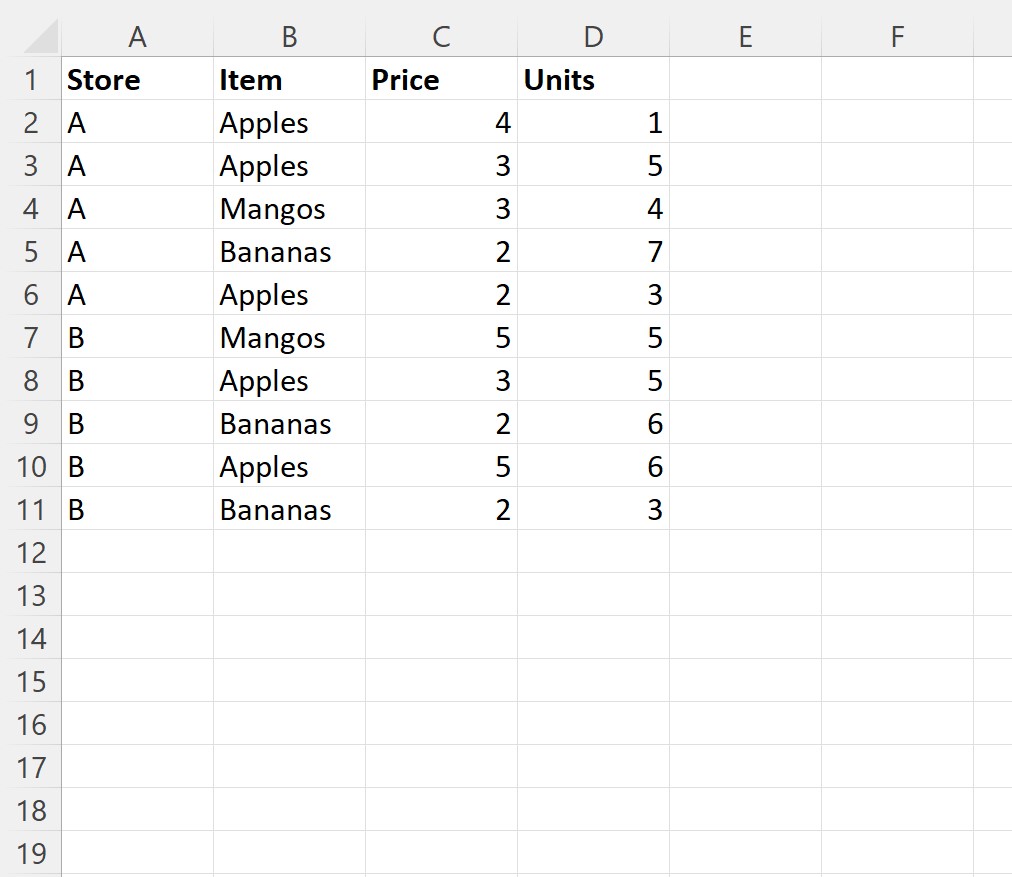

Let us now apply these powerful concepts to a concrete dataset. Consider a typical sales log in Excel that tracks transactions, including the store location, the item sold, its price, and the number of units sold for each entry.

Our specific goal is to calculate the total revenue—defined as the sum of the products between the “Price” and “Units” columns—but only for those transactions that strictly meet two conditions: they must have occurred at “Store A” AND they must involve the “Item Apples.” This specific filtering requirement mandates the use of the strict AND condition structure.

We achieve this by utilizing the SUMPRODUCT formula, multiplying the two criteria arrays together to accurately enforce the AND condition:

=SUMPRODUCT((A2:A11="A")*(B2:B11="Apples"), C2:C11, D2:D11)

To illustrate the row-by-row filtering process, consider how this powerful formula evaluates specific entries within the dataset:

• Row 2 (Store A, Item Apples): Condition 1 (Store A) evaluates to TRUE (1). Condition 2 (Item Apples) evaluates to TRUE (1). The filter calculation is 1 * 1 = 1. This row’s product is fully included in the sum.
• Row 3 (Store A, Item Bananas): Condition 1 (Store A) is TRUE (1). Condition 2 (Item Apples) is FALSE (0). The filter calculation is 1 * 0 = 0. This row’s product is completely excluded.
• Row 5 (Store B, Item Apples): Condition 1 (Store A) is FALSE (0). Condition 2 (Item Apples) is TRUE (1). The filter calculation is 0 * 1 = 0. This row’s product is also excluded.

After successfully inputting this formula into a designated target cell (e.g., F2) and executing it, Excel delivers the precisely calculated conditional sum:

The resulting output of the formula is 25. Manual confirmation verifies that only Row 2 (Price 5 multiplied by Units 5 equals 25) satisfies both the “Store A” AND the “Item Apples” criteria, perfectly demonstrating the precise filtering capability inherent in the multiplicative SUMPRODUCT structure.

Case Study: Calculating Totals Using Inclusive OR Logic

Our second scenario requires the deployment of an inclusive OR condition. Utilizing the identical sales dataset, we aim to calculate the cumulative sum of the “Price” and “Units” products for any row where the “Store” is “A” OR the “Item” is “Apples.”

To successfully achieve this inclusive calculation, we must replace the multiplication operator with the addition operator (`+`) between the criteria arrays, which functionally reflects the logical OR condition within the arithmetic context of the function:

=SUMPRODUCT((A2:A11="A")+(B2:B11="Apples"), C2:C11, D2:D11)

We must carefully analyze the filter evaluation for several rows to fully comprehend the summing effect introduced by the addition operator:

• Row 2 (Store A, Item Apples): Condition 1 is TRUE (1). Condition 2 is TRUE (1). Filter calculation: 1 + 1 = 2. This row’s product is counted twice due to meeting both criteria.
• Row 3 (Store A, Item Bananas): Condition 1 is TRUE (1). Condition 2 is FALSE (0). Filter calculation: 1 + 0 = 1. This row’s product is included once.
• Row 5 (Store B, Item Apples): Condition 1 is FALSE (0). Condition 2 is TRUE (1). Filter calculation: 0 + 1 = 1. This row’s product is included once.
• Row 4 (Store B, Item Oranges): Condition 1 is FALSE (0). Condition 2 is FALSE (0). Filter calculation: 0 + 0 = 0. This row’s product is entirely excluded.

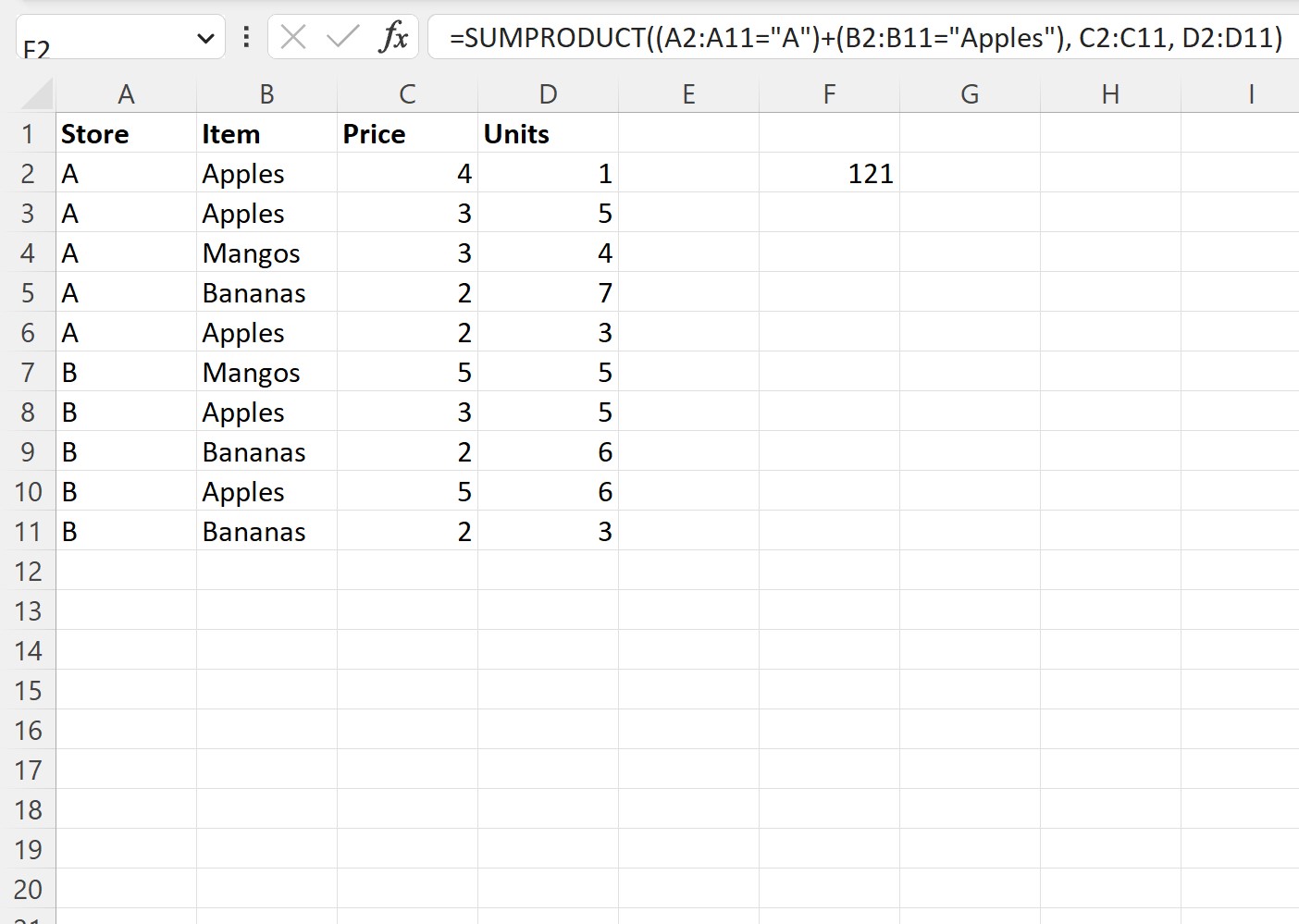

After entering this modified formula into cell F2:

The formula yields a final value of 121. This total accurately represents the sum of products for every row satisfying at least one of the conditions. It is crucial to re-emphasize that rows meeting both criteria (Store “A” AND Item “Apples”) contributed their calculated product value twice, which is the necessary result mandated by the arithmetic behavior of the `+` operator acting as the logical OR condition in this specific formula construction.

Conclusion and Advanced Formula Techniques

The SUMPRODUCT function remains an exceptionally powerful and flexible instrument within Excel, specifically engineered for conducting sophisticated conditional analysis across multiple data arrays. By internalizing the distinct functional roles of the multiplication operator (`*`) for enforcing strict AND conditions and the addition operator (`+`) for inclusive OR conditions, users gain the ability to construct highly granular, efficient, and dynamic data aggregation formulas.

Mastering these advanced techniques significantly streamlines routine data analysis workflows by eliminating the need for auxiliary helper columns, which often clutter spreadsheets, or the sometimes complex entry method required for traditional array formulas (CSE). When utilizing the `+` operator for OR conditions, it is always critical to confirm that the possibility of double-counting rows that happen to satisfy multiple criteria aligns precisely with the intended calculation logic, thereby ensuring the utmost accuracy and validity of your final results.

To further enhance your expertise in dynamic spreadsheet calculations, we strongly recommend consulting the official documentation for the SUMPRODUCT function and continuing to explore other related array computation methods available within Excel.
