Learning Text Splitting in Excel: A Tutorial on Using the TEXTSPLIT Function

The Crucial Role of Text Transformation in Data Analysis

The core requirement for effective data manipulation within spreadsheet environments is the ability to intelligently manage and restructure text strings. Raw data often arrives in formats unsuitable for direct analysis, necessitating either the consolidation of discrete information segments or, conversely, the careful separation of lengthy strings into their constituent, meaningful components. These two inverse operations—joining and splitting—are fundamental pillars of text processing capabilities within applications like Microsoft Excel.

For many years, analysts were forced to rely on laborious manual methods or highly complex, nested formulas to achieve these necessary transformations. Fortunately, Excel has undergone significant evolution, introducing highly sophisticated functions designed to streamline the conversion of unstructured, raw inputs into structured, actionable information. A deep understanding of both sides of this equation—the process of joining data (concatenation) and its inverse, text splitting—is absolutely vital for any professional engaged in serious data management.

In essence, concatenation serves to integrate several separate pieces of data into a single, cohesive unit. Conversely, splitting takes a single, unified string and systematically breaks it down into multiple parts based on predefined markers. Mastering both techniques ensures comprehensive control over data preparation, regardless of the complexity or source format of the original dataset.

The Art of Joining Data: Mastering CONCATENATION

The traditional and foundational method for combining text from multiple distinct cells into a singular output cell involves utilizing the CONCATENATE function. While the modern alternatives include its successor, the CONCAT function, or the efficient ampersand operator (&), CONCATENATE remains a key concept. This function is specifically engineered to link various text strings or cell references in a precise, user-defined sequence. For instance, if a dataset contains a first name in one column and a last name in another, the CONCATENATE function provides a reliable mechanism to merge them seamlessly into a complete, combined name field.

A critical consideration when employing CONCATENATE is the explicit definition of any necessary separators. The user must manually input characters such as spaces, commas, or hyphens to delineate the joined elements. If these separators are omitted, the function will simply abut the text strings directly, often resulting in an illegible merged word. This necessity underscores the structured, logical approach required for successful data joining operations.

Consider a practical scenario involving sports team data. If the objective is to create a unique identifier by combining the city name and the team name, concatenation is the appropriate tool. Assuming the City is located in cell A2 and the Team Name is in cell B2, we would apply the following function, ensuring a space acts as the separating delimiter:

=CONCATENATE(A2," ",B2)

This formula clearly illustrates the foundational principle of concatenation: joining the contents of multiple cells while strategically inserting a necessary character (the space) between them to maintain critical clarity and structure in the resulting consolidated string.

Introducing TEXTSPLIT: Revolutionizing Text Parsing

While joining data is a frequent necessity, the inverse operation—deconstructing a unified string back into its original constituent parts—is often far more complex and crucial for maintaining data integrity and hygiene. Historically, splitting text required utilizing the multi-step “Text to Columns” wizard or crafting incredibly intricate, nested formulas involving functions like FIND, MID, and LEN. The introduction of the modern TEXTSPLIT function, a member of Excel’s powerful dynamic array family, has completely transformed and simplified this parsing process.

The TEXTSPLIT function is explicitly designed to perform the exact opposite operation of concatenation. It accepts text contained within a single cell and automatically distributes the resulting components across multiple adjacent cells, leveraging Excel’s automatic spill functionality. This innovation completely bypasses the need for manual, cell-by-cell extraction, offering a clean, single-formula solution capable of handling complex parsing requirements.

The operational core of TEXTSPLIT relies entirely on the precise identification of a delimiter. The delimiter is defined as the character, or string of characters, that distinctly marks the boundaries between the various data elements intended for separation. Whether the delimiter is a simple space, a comma, a semicolon, or a custom combination of characters, TEXTSPLIT utilizes this anchor point to execute the separation and spill the results into the spreadsheet.

Step-by-Step Guide: Implementing TEXTSPLIT with Practical Data

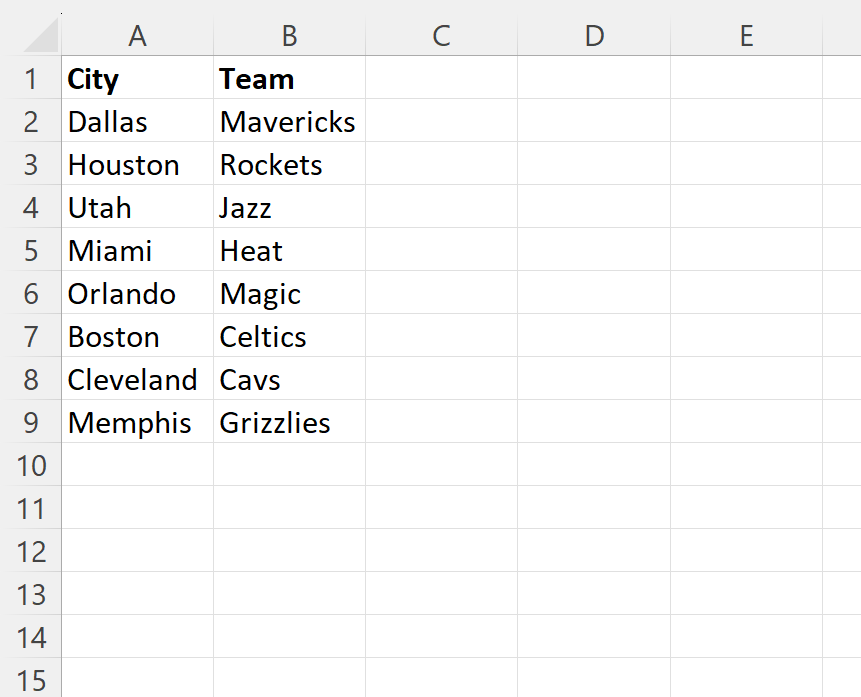

To illustrate the power of text splitting, let us revisit our sports team example. Initially, we have separate columns for the City and the Team Name, representing the pre-concatenation state of the data.

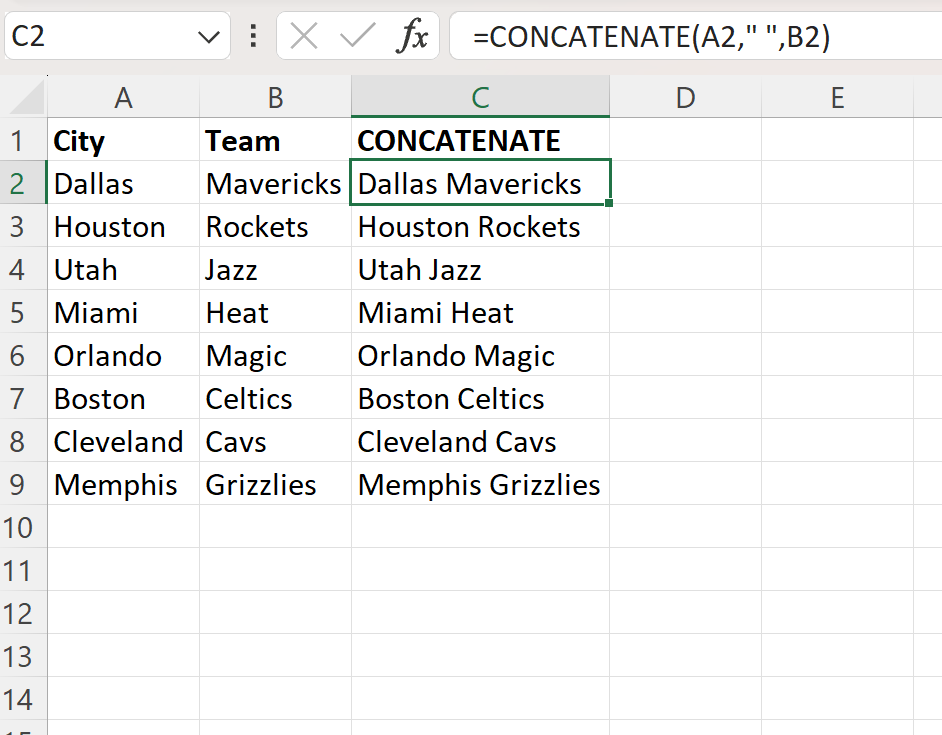

Using the CONCATENATE formula previously introduced, which joins the data elements in columns A and B with a space delimiter, we populate column C with the combined text strings:

=CONCATENATE(A2," ",B2)

By dragging this formula down, we successfully generate a single column containing the unified team data:

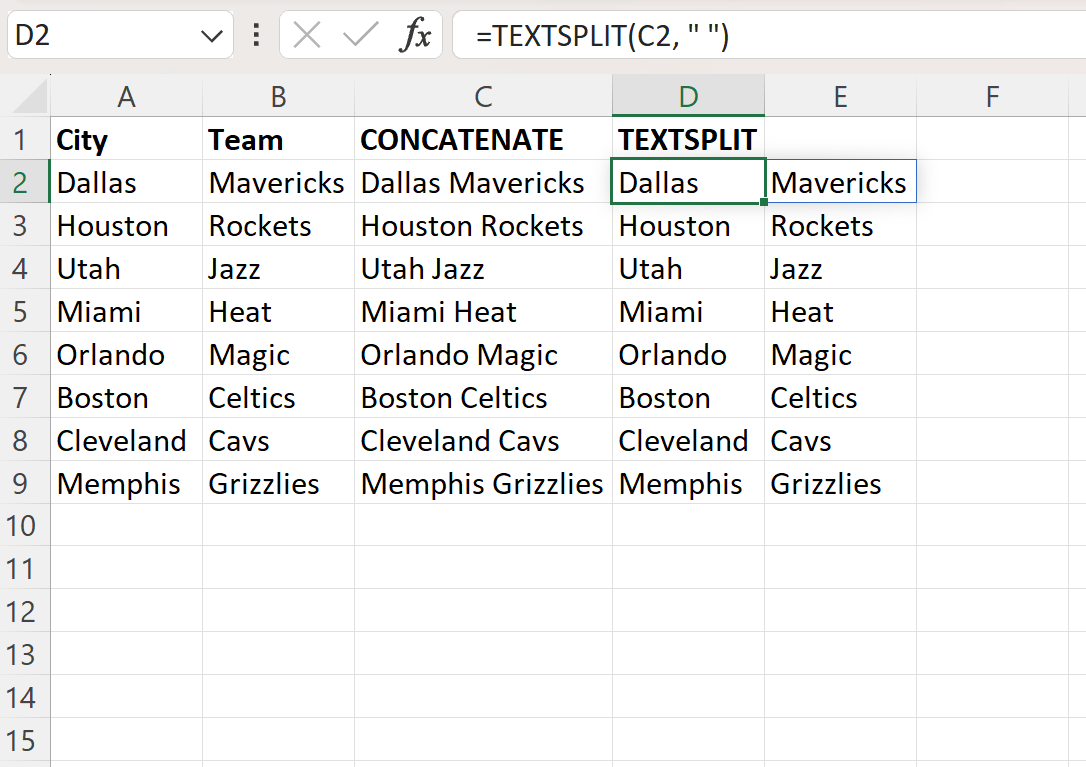

Now, let us assume Column C represents data imported from an external system, and the requirement is to perform the exact opposite operation—splitting the combined text back into its original City and Team Name components. This task necessitates applying the TEXTSPLIT function to cell C2, explicitly defining the space character (” “) as the column delimiter:

=TEXTSPLIT(C2, " ")

Upon entering this concise formula into cell D2, the TEXTSPLIT function immediately analyzes the text in C2, recognizes the space as the splitting point, and “spills” the resulting components into D2 (City) and E2 (Team Name). This single formula can then be replicated down column D to process the entire dataset efficiently:

This demonstrates how the TEXTSPLIT function effortlessly splits the text of each cell in column C into multiple cells based on the occurrence of the space, achieving the perfect reversal of the concatenation process in one efficient step.

Advanced Flexibility: Exploring TEXTSPLIT’s Optional Arguments

While the fundamental application of TEXTSPLIT using only the text source and the column delimiter is highly effective, the function provides several robust optional parameters that significantly enhance its flexibility, particularly when dealing with complex or inconsistently structured data. The complete syntax of the TEXTSPLIT function allows for the specification of row delimiters, control over empty cell handling, and management of case sensitivity in delimiter matching.

One particularly vital optional argument is ignore_empty. Data imports frequently contain instances of multiple consecutive spaces or other delimiters. If the formula does not correctly account for these extra delimiters, it may inadvertently insert unwanted blank columns between the legitimate data fields in the output. By setting the ignore_empty argument to TRUE (represented by the number 1), the function intelligently skips over successive delimiters, ensuring the resulting output is consistently clean and compact, irrespective of inconsistent original spacing. This feature is indispensable for complex data manipulation tasks.

Furthermore, the utility of TEXTSPLIT extends beyond merely splitting text across columns; it also supports a distinct row delimiter argument. This capability proves extremely valuable when parsing a single cell that holds multiple data records separated by a character, such as a newline or a semicolon. By specifying the row delimiter, the user can split the data vertically (across rows) instead of solely horizontally (across columns). This powerful dual functionality cements TEXTSPLIT as an indispensable tool for advanced text management in Microsoft Excel.

Essential Troubleshooting and Key Use Cases

The ability to reverse concatenation, primarily facilitated by the TEXTSPLIT function, is extensively utilized across numerous data analysis disciplines. A common application involves separating full names (e.g., “Jane Doe”) into distinct First Name and Last Name fields, a frequent requirement for database imports, list segmentation, or mail merge operations. Another widespread scenario is the extraction of specific elements from complex coded strings, such as product identification numbers or lengthy URLs, often employing an underscore or a hyphen as the delimiter.

Troubleshooting issues with TEXTSPLIT almost always revolves around the accurate identification and specification of the delimiter. Users must meticulously verify that the character or string supplied in the formula precisely matches the actual separator present in the text strings. For example, if the source data uses a comma followed by a space (“, “) but the formula only specifies a comma (“,”) as the delimiter, the resulting output will contain undesirable leading spaces in the subsequent data columns. This attention to minute detail is paramount for achieving perfectly parsed data.

Finally, it is crucial to recall that since TEXTSPLIT is a dynamic array function, it requires an adequate amount of empty space immediately adjacent to the formula cell for the results to “spill.” If any existing data occupies the potential spill range, Excel will promptly return the restrictive #SPILL! error. Understanding this behavior, which fundamentally distinguishes it from older splitting methods, is key, and it necessitates ensuring that all target columns are completely empty prior to function execution.

Additional Resources for Mastering Excel Functions

Grasping the relationship and duality between combining text via CONCATENATE and splitting text via TEXTSPLIT function provides users with foundational and powerful skills necessary for efficient spreadsheet management. These high-utility functions drastically simplify processes that were previously time-consuming and error-prone, leading to substantial enhancements in overall productivity within Microsoft Excel.

For users dedicated to achieving greater mastery, comprehensive official documentation detailing every argument, edge case, and scenario for the TEXTSPLIT function is readily accessible. Leveraging these high-quality resources ensures that even the most complicated data parsing challenges can be met and solved with absolute confidence.

The following points summarize key considerations when implementing text splitting:

• Note #1: Although the primary example shown used only a single space in each cell in column C, the TEXTSPLIT function is robust enough to handle any number of spaces or delimiters in a given cell, especially when the crucial ignore_empty argument is utilized.
• Note #2: The complete and official documentation for the TEXTSPLIT function in Excel, including all syntax variations and examples, is maintained and available via the official Microsoft Support website.
