Excel VLOOKUP: Finding Maximum Values and Retrieving Associated Data – A Step-by-Step Guide

Microsoft Excel remains the indispensable tool for intricate data manipulation, rigorous numerical analysis, and effective record keeping across nearly all professional domains. While simple arithmetic is straightforward, users often face a more advanced challenge: identifying an extreme numerical value—such as the maximum sales figure or the highest test score—and subsequently retrieving a related, non-numerical piece of information tied to that specific record. For example, you might need to pinpoint the employee responsible for the peak quarterly revenue or determine the vendor linked to the largest recorded order quantity. Successfully addressing this requirement demands the seamless combination of two of Excel’s most powerful and foundational calculation tools: the MAX function and the VLOOKUP function.

This comprehensive guide is tailored for the intermediate to advanced Excel professional, offering a precise breakdown of the logical flow and syntax required to integrate these components. By effectively nesting the MAX function within VLOOKUP, we transform a static search operation into a dynamic mechanism capable of first locating the maximum value within a specified numerical range and then accurately extracting the associated data from a parallel column. Mastering this methodology is crucial for tackling common data challenges and reinforces the principle of functional nesting in modern spreadsheet engineering, leading to more robust and scalable analyses. The fundamental structure of this highly efficient nested formula, which we will analyze in exhaustive detail, is presented below:

=VLOOKUP(MAX(A2:A11), A2:B11, 2, FALSE)

Understanding the Core Components: MAX and VLOOKUP

Before integrating these functions into a nested structure, achieving a crystal-clear understanding of their individual roles and operational parameters is essential. The MAX function is computationally simple but critically important; its singular purpose is to scan a defined set of numerical values or a cell range and return the single largest numerical result. For instance, executing the formula =MAX(D1:D100) instructs Excel to ignore non-numeric entries within that range and output only the highest positive or least negative number identified, providing the lookup value we need.

In sharp contrast, the VLOOKUP function (Vertical Lookup) serves a purely retrieval purpose, operating as a dedicated search engine within your dataset. Its core mechanism involves searching vertically for a specific data point, known as the lookup_value, exclusively within the first column of a designated table array. Once this value is located, VLOOKUP moves horizontally across that row to retrieve information from a specified column index.

This reliance on the first column is a crucial constraint of VLOOKUP: the criteria column (the column containing the maximum value we are searching for) must always be the leftmost column of the table_array, positioned to the left of the data we wish to retrieve (the corresponding text or label). The full syntax of VLOOKUP is VLOOKUP(lookup_value, table_array, col_index_num, [range_lookup]). For precise data retrieval based on a calculated maximum, setting the optional final argument, [range_lookup], to FALSE (demanding an exact match) is nearly always mandatory.

The Principle of Functional Nesting and Execution Flow

The true elegance and efficiency of this technique are realized when we combine these functions into a nested structure. This configuration allows the precise numerical output of the inner function to become the necessary search input for the outer function. When we construct the formula =VLOOKUP(MAX(A2:A11), A2:B11, 2, FALSE), Excel strictly adheres to the mathematical order of operations, dictating that calculations proceed from the innermost parentheses outward.

Consequently, the MAX(A2:A11) component is executed first. This operation functions independently, scanning the numerical range A2 through A11 to identify the single largest number. Once the MAX function has successfully computed and returned this maximum numerical value (e.g., 40), that result immediately takes the place of the lookup_value argument within the encompassing VLOOKUP function.

VLOOKUP then initiates its search using this newly calculated maximum number as its target. It meticulously scans the first column of the designated table_array (A2:B11) until it locates the exact row containing the maximum value. The remaining arguments, 2 (column index number) and FALSE (exact match requirement), guide VLOOKUP to move across to the second column of the array and extract the corresponding non-numerical data with absolute precision. This seamless architecture transitions from a purely numerical computation to a targeted data retrieval.

Practical Application: Retrieving Data for the Top Performer

To demonstrate the practical utility and operational efficiency of this combined approach, let us examine a typical business or sports analysis scenario. Imagine you are managing a spreadsheet that tracks the performance metrics of several basketball players. Your dataset includes two critical pieces of information organized adjacently: the total points scored by each player (numerical data) and the team to which they belong (textual identifier). Your primary objective is not merely to determine the highest score, but rather to identify the specific team associated with that maximum score.

For successful VLOOKUP implementation, the structure of your data is paramount. The data must be arranged vertically, ensuring the numerical data (Points) resides in the first column (e.g., Column A) and the corresponding descriptive data (Team Name) is in the second column (e.g., Column B). This structure is a non-negotiable prerequisite for VLOOKUP, as the value being searched for (the MAX points) must always be found in the leftmost column of the lookup range. This setup guarantees that once the MAX value is calculated, VLOOKUP can reliably use it as the search criterion in the correct location.

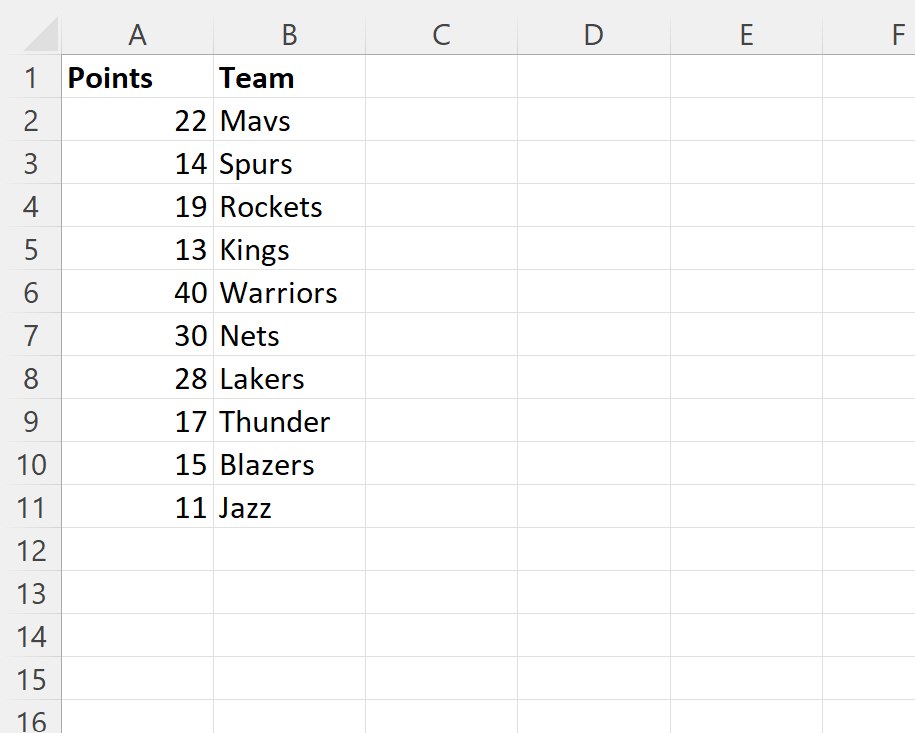

As illustrated in the image below, we have a clear layout where Column A holds the numerical value we intend to maximize, and Column B holds the textual identifier we wish to retrieve. We need a single, dynamic formula to link these two pieces of information, automatically identifying the best performance and tying it directly to its source team.

Implementing the Nested Formula Step-by-Step

Our objective is to execute a dynamic search that first computes the maximum score within the ‘Points’ column (A2:A11) and subsequently returns the corresponding team name from the ‘Team’ column (B2:B11). We will designate a specific output cell, such as D2, to host the final result—the name of the team associated with the highest points total. This single cell will contain the entire nested formula, automating the complete data retrieval process immediately upon entry.

The precise formula to be entered into cell D2 is:

=VLOOKUP(MAX(A2:A11), A2:B11, 2, FALSE)

For optimal clarity, let us meticulously break down the function of each argument within the context of our player performance data:

• MAX(A2:A11): This innermost component initiates the calculation by scanning the data in the range A2 through A11. Its output is the maximum numerical value found in that column, which, based on the sample data, is 40. This result, 40, immediately becomes the essential lookup_value for the outer VLOOKUP function.
• A2:B11: This defines the table_array, which represents the complete search area for VLOOKUP. It is critical to remember that the search (for the lookup value, 40) will only occur in the first column of this array (Column A). However, the entire array must be specified so VLOOKUP knows the boundaries for retrieving the corresponding data.
• 2: This col_index_num argument directs VLOOKUP to retrieve the data from the second column relative to the beginning of the table_array (A2:B11). Since Column B contains the “Team” names, specifying ‘2’ ensures the correct textual value is returned.
• FALSE: This final argument dictates that VLOOKUP must find an exact match for the lookup value (40). Using FALSE is crucial to prevent incorrect data association that could occur if an approximate match were permitted, thereby guaranteeing the returned team truly corresponds to the highest recorded score.

Visualizing and Confirming the Successful Outcome

Upon entering the fully combined formula into cell D2 and pressing Enter, Excel instantaneously executes the calculation chain. The immediate result displayed will be the textual data corresponding to the row where the maximum numerical value was located. This outcome confirms a successful data mapping process driven entirely by the dynamic output generated by the nested MAX function.

The screenshot below visually validates the precise execution of this formula. The inner MAX function correctly calculates the highest score as 40. The outer VLOOKUP function searches for the value 40 in Column A and, upon finding the corresponding row, retrieves the value from Column B (the second column in the array), resulting in the final output Warriors. This efficient, automated method eliminates the requirement for manual sorting or filtering, enabling instantaneous, accurate data retrieval regardless of the scale or complexity of the underlying dataset.

Advanced Analysis: Leveraging MAXIFS for Conditional Maximums

While the VLOOKUP(MAX()) combination is an indispensable technique for identifying data associated with the overall absolute maximum in a column, its functionality is limited to finding the highest value across the entire specified range. In practical data analysis, requirements are often more complex, demanding the identification of a maximum value that satisfies specific criteria or conditions. For scenarios requiring a conditional maximum—such as finding the highest score achieved only by players on the “Lakers” team, or the top sales revenue recorded solely in the “North” region—the dedicated MAXIFS function provides a superior and highly targeted solution.

The MAXIFS function, introduced in modern versions of Excel (2019 and later), is explicitly designed to return the largest numerical value within a range of cells, provided that those cells satisfy one or multiple criteria. Its structural framework differs significantly from the simple MAX function, as it requires input ranges for both the values being maximized and the criteria being tested. The standard syntax is MAXIFS(max_range, criteria_range1, criteria1, [criteria_range2, criteria2], ...). This structure allows for highly flexible filtering; the max_range defines the cells from which the maximum value is calculated, criteria_range1 specifies the cells to be evaluated against the first condition, and criteria1 defines the condition itself (e.g., a specific team name or a categorical label).

To apply this to our player performance scenario and determine the highest score achieved exclusively by the “Warriors” team, we would structure the formula to filter the points column based on the corresponding values found in the team column. This method effectively isolates the relevant data points before applying the maximization calculation, achieving a targeted result that the VLOOKUP/MAX combination alone cannot dynamically provide.

=MAXIFS(B2:B9, A2:A9, "Warriors")

Interpreting the Conditional Output of MAXIFS

When the MAXIFS function is implemented correctly, the result offers immediate and actionable insight into conditional performance. Instead of searching for data related to the overall highest score across the entire dataset, we are now retrieving the maximum score achieved only among those rows where the team name matches our specified criterion. This capability is invaluable for performing deep-dive analyses into specific subgroups within a much larger data set.

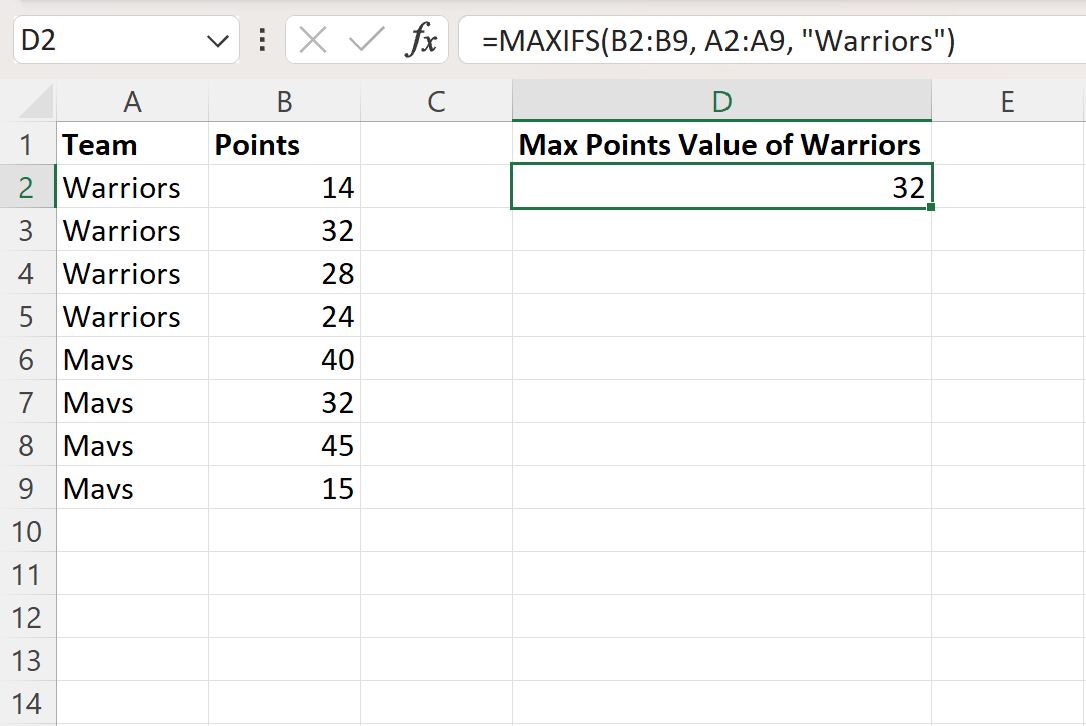

As the visualization below confirms, by designating B2:B9 as the range to maximize and filtering the corresponding range A2:A9 for the literal text "Warriors", Excel successfully evaluates only the points scored by that specific team. The resulting output is the value 32, which accurately represents the highest individual score recorded by a player on the Warriors team within the analyzed data. This clearly illustrates the fundamental functional distinction between calculating an overall maximum (solved by VLOOKUP/MAX) and calculating a conditional maximum (solved by MAXIFS).

Conclusion: Mastering Advanced Retrieval Techniques

The capability to effectively nest functions such as MAX and VLOOKUP, or to utilize modern, specialized conditional functions like MAXIFS, significantly enhances your overall proficiency in data retrieval and analysis within Excel. By mastering these foundational techniques, you acquire the capability to automate complex searches, seamlessly transitioning from tedious manual data inspection to dynamic, formula-driven reporting. These methods are essential tools in the modern analyst’s toolkit for swiftly extracting meaningful and precise insights from extensive data volumes.

To continue expanding upon this expertise and preparing for increasingly sophisticated data challenges, we encourage you to explore other advanced lookup and retrieval methodologies. Expanding your knowledge base to include techniques for handling multiple return values, managing non-contiguous data ranges, or utilizing alternatives like INDEX/MATCH will further solidify your role as an expert Excel analyst. The following resources offer guidance on related advanced VLOOKUP applications:
