Understanding Composite Key Lookups in Excel: Combining VLOOKUP and CONCATENATE

The Power of Composite Lookups in Data Analysis

The ability to quickly and accurately extract specific data from massive spreadsheets is arguably the most fundamental skill required for effective data analysis in Microsoft Excel. At the heart of this process lies the VLOOKUP function. While profoundly useful, the standard VLOOKUP is fundamentally restricted: it can only search based on a single criterion found in the leftmost column of a designated table array. This limitation quickly becomes problematic when dealing with real-world information, where precise data retrieval often depends on matching a combination of criteria, such as verifying both a unique product ID and its corresponding warehouse location, or matching an employee’s first name alongside their last name. When faced with these multi-criteria search requirements, the traditional VLOOKUP method fails because it cannot simultaneously evaluate multiple separate columns for a conclusive match.

To effectively circumvent this single-criterion constraint, advanced Excel practitioners rely on a technique known as a composite lookup. This powerful methodology involves generating a singular, unique search string by combining two or more individual data points (search keys). This synthesized string can then be successfully utilized by the standard VLOOKUP function, transforming multiple criteria into a single, unambiguous input. The most accessible and widely utilized method for achieving this criteria combination, or concatenation, is by leveraging the CONCATENATE function, or, more concisely, the ampersand operator (&). This approach permits the creation of a synthetic primary key, guaranteeing uniqueness and providing the necessary structure for the lookup operation to execute with precision.

This step-by-step guide is designed to provide the precise instruction necessary for implementing this powerful combined formula. We will demonstrate exactly how to deploy the VLOOKUP function in conjunction with the CONCATENATE function to look up multiple values within a defined range and return the corresponding data from an adjacent column. Through a practical example involving employee sales data, where matching both the first and last name is essential for ensuring data integrity, we will clearly illustrate why this composite approach is an indispensable tool when working with non-unique identifiers spread across multiple columns.

The Crucial Role of Unique Identifiers and Primary Keys

The foundational principle driving any accurate data retrieval operation is the absolute necessity of a unique identifier. In the context of database management and relational theory, this identifier is commonly referred to as a primary key. When organizing and searching data within a spreadsheet environment, attempting to search for an individual using a non-unique field—such as a first name—introduces significant risk. If we instruct VLOOKUP to search for “John,” the function is programmed to halt at the very first instance of “John” it encounters in the search column, potentially retrieving the sales figures for the wrong employee if two individuals share that name. This scenario vividly highlights the inherent vulnerability of relying solely on fields that are not guaranteed to be unique for lookup operations.

Consider a typical employee dataset which includes distinct columns for First Name, Last Name, and Total Sales. If the objective is to locate the total sales for the specific employee named Alice Johnson, merely searching for “Alice” is statistically insufficient. If “Alice Smith” happens to be listed earlier in the table, the lookup will incorrectly return her data instead. The most efficient and reliable solution does not require restructuring the original source data; instead, it involves constructing a single, composite lookup value—such as “AliceJohnson”—and ensuring that the source data table possesses a corresponding column containing these identical combined values. This guarantees that the search target is perfectly unique.

It is precisely at this juncture that the marriage of VLOOKUP and the CONCATENATE technique establishes itself as the standard professional methodology. By utilizing concatenation, we transcend the inherent limitations of single-criterion lookups, achieving the high level of precision required for accurate data extraction. We effectively force Excel to treat the combination of two or more distinct fields as a single, unique search key. This technique is particularly vital in environments where the underlying source data cannot be structurally modified to include a pre-existing, dedicated unique ID column.

Practical Implementation: Creating the Helper Column

To clearly illustrate the mechanics of this essential composite lookup technique, we will utilize a sample dataset that details employee sales performance. The raw data structure contains names and sales figures, as shown below. Observe that the names “Bob” and “Alice” are not unique on their own, reinforcing the critical need for a composite key to prevent lookup errors.

Our primary objective is to specifically find the total sales achieved by the employee named Bob Miller. As previously discussed, a simple lookup on “Bob” would likely yield the incorrect result by retrieving the data associated with the first “Bob” in the list (Bob Smith). Because we have multiple employees sharing the same first name, the solution mandates the creation of a specialized column that concatenates the first and last name for every employee record, thereby generating a guaranteed unique identifier for each row. This column is universally recognized as a helper column.

The creation and placement of the helper column represents the most crucial preliminary step. Since VLOOKUP demands that the lookup value be located in the first column of the specified range, we must insert a new column immediately to the left of our existing data. Assuming the original data (First Name, Last Name, Sales) starts in columns B, C, and D, we will insert the helper column into column A. To rapidly populate this new column with the combined names, enter the following formula into cell A2, combining the contents of B2 (First Name) and C2 (Last Name) using the ampersand (&) operator, which is functionally equivalent to the CONCATENATE function:

=B2&C2

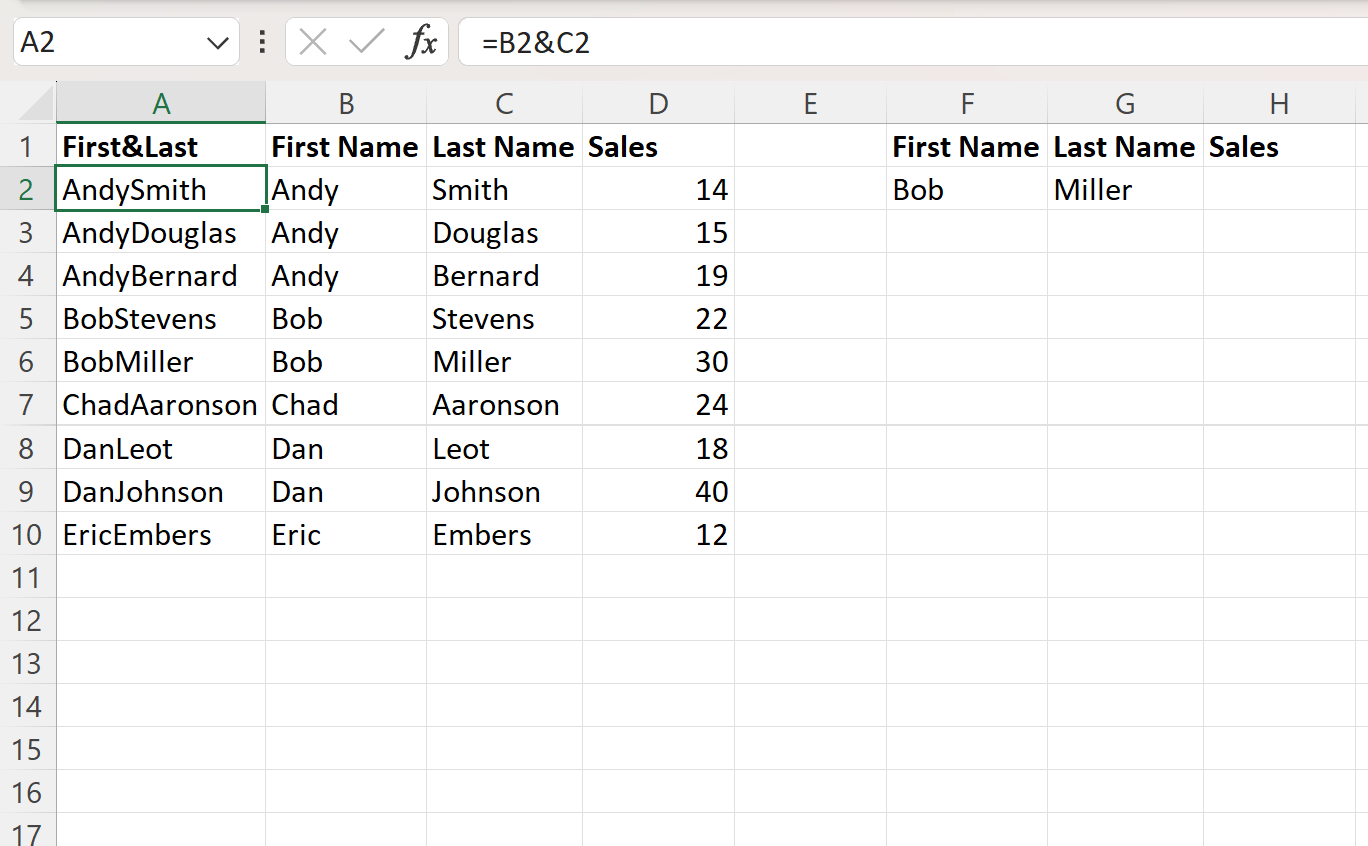

Once the formula is correctly entered in A2, it is essential to utilize the fill handle to drag this formula down across all remaining cells in column A. This action ensures that every single employee record in the table now possesses a unique, combined identifier. This preparation step renders the data structure fully ready for the subsequent lookup operation, as demonstrated in the resulting table structure below. Note that we have simply combined the names without an intervening space (e.g., “BobMiller”). This format is entirely acceptable, provided we maintain the exact same concatenation format when constructing the search key during the final lookup phase.

Executing the Combined VLOOKUP Formula

With the helper column correctly established and positioned as the absolute leftmost column of our designated search range, we can proceed to finalize the construction of the VLOOKUP formula. The core concept here is that the function’s first argument—the lookup_value—must be formulated to match the precise format of the unique identifier created in the helper column. Since our goal is to locate the record for “Bob Miller,” we must dynamically construct the search key by concatenating those two specific text strings together.

The established syntax for the VLOOKUP function is defined as: VLOOKUP(lookup_value, table_array, col_index_num, [range_lookup]). In this specific composite scenario, the lookup_value is not a simple static cell reference; rather, it is a dynamically generated string: “Bob” combined with “Miller.” We achieve this crucial concatenation directly within the VLOOKUP function itself using the ampersand operator, replicating the method used for the helper column generation. Assuming we place our final lookup formula in an empty cell outside the main table, such as cell G2, the formula designed to look up Bob Miller and return his corresponding sales figure would be structured precisely as follows:

=VLOOKUP("Bob"&"Miller", A2:D11, 4, FALSE)

A systematic breakdown of this critical formula reveals its power. First, the term “Bob”&”Miller” dynamically generates the exact search string (“BobMiller”) required to match the unique identifiers in column A. Second, the range A2:D11 defines the entire table array, which, as required by VLOOKUP, must begin with the column containing the concatenated lookup values (column A). Third, the number 4 specifies the column index number from which the resulting data should be returned; since column A is 1, B is 2, C is 3, and Sales (D) is 4, we specify 4. Finally, setting the range_lookup argument to FALSE forces the function to search for an exact match, which is absolutely essential when relying on specific identifiers like names.

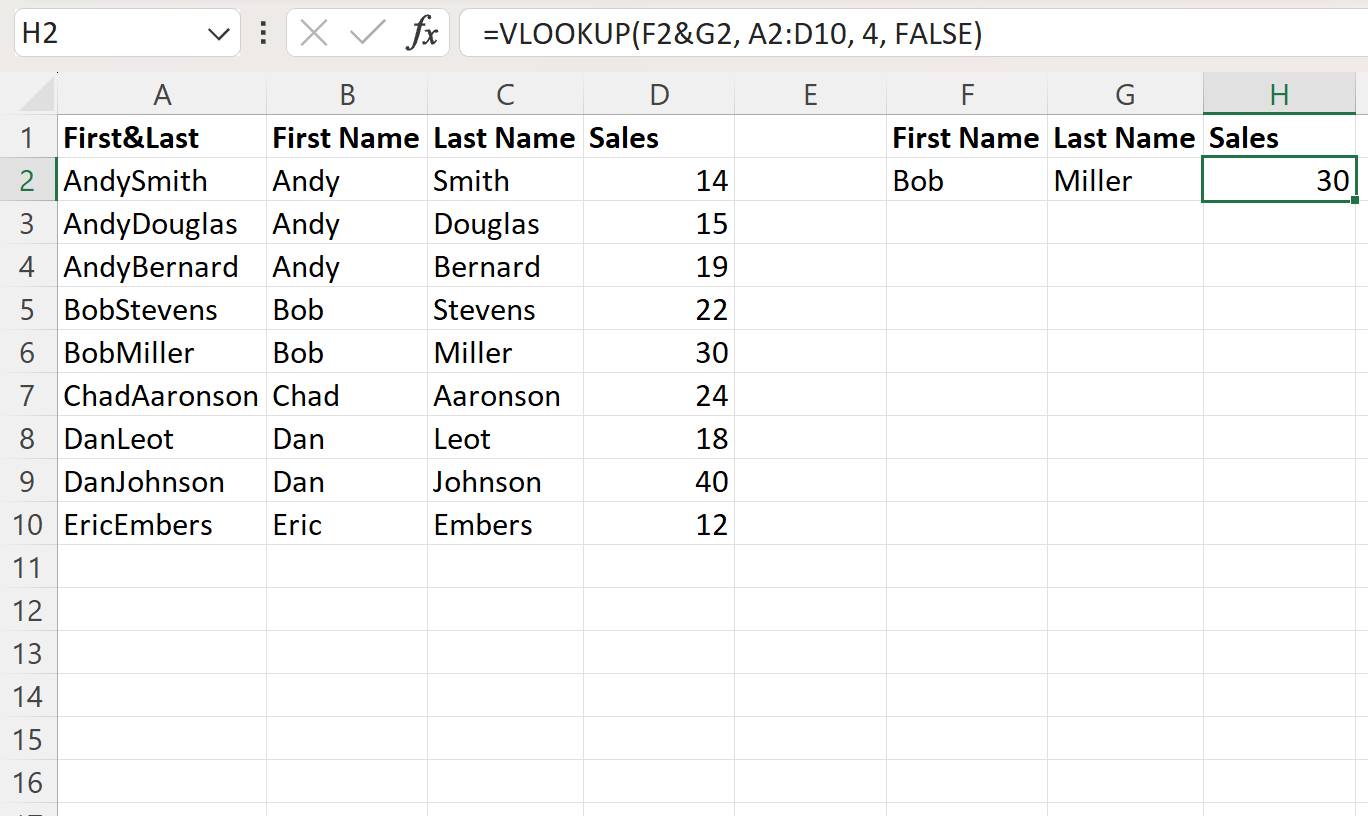

The following screenshot visually confirms the practical application of this formula within the Excel environment, demonstrating its successful retrieval of the precise sales figure for the specified employee. This visual evidence underscores how the composite key method resolves the ambiguity that arises from duplicate entries in single data fields.

Upon successful execution, the formula returns the value 30. This figure is the accurate sales total corresponding specifically to Bob Miller, effectively distinguishing him from Bob Smith (whose sales total is 50). This result confirms that the combined lookup value precisely targeted the required row within the table array, unequivocally proving the effectiveness of using VLOOKUP in conjunction with dynamic concatenation to solve complex lookup challenges involving multiple distinct criteria.

Advanced Considerations and Modern Alternatives

Although the combination of CONCATENATE and VLOOKUP is a highly robust technique, there are several advanced best practices and alternative methods that proficient users should consider, particularly when managing large or frequently updated datasets.

A primary consideration involves the use of separators. In our preceding example, we simply merged “Bob” and “Miller” to generate “BobMiller.” While this technique functions perfectly as long as the exact same concatenation format is applied consistently to both the helper column and the final lookup value, potential matching failures can occur if the original data fields contain overlapping substrings. For instance, concatenating “JohnA” and “B” results in “JohnAB,” which could mistakenly match “John” and “AB.” To achieve maximum safety and robustness, a safer practice involves inserting a unique, non-alphanumeric separator that is guaranteed not to exist within the source data, such as a pipe symbol (|) or a tilde (~). Using this separator, the helper column formula would be written as =B2&”|”&C2, resulting in a unique key like “Bob|Miller.” Consequently, the lookup value would also need to be constructed as “Bob”&”|”&”Miller”, providing robust protection against potential false matches based on character overlaps.

Furthermore, users operating with contemporary versions of Microsoft Excel (specifically Excel 365 or Excel 2021) should be aware of the XLOOKUP function. XLOOKUP is widely considered the superior successor to VLOOKUP, as it is inherently capable of handling multi-criteria lookups with greater elegance and flexibility, often eliminating the requirement for a dedicated helper column entirely by combining criteria directly within an array expression. However, because VLOOKUP remains standard across all older versions of Excel and is globally ubiquitous in corporate reporting environments, mastering the VLOOKUP and helper column methodology is still recognized as an essential skill for any data professional. The chief advantage of utilizing the helper column approach is the guaranteed increase in compatibility and transparency across diverse Excel installations.

Conclusion: Mastering Multi-Criteria Lookups

The successful integration of the VLOOKUP and CONCATENATE functions provides an elegant solution to a fundamental challenge in spreadsheet management: executing precise lookups based on a combination of multiple fields. By systematically creating a unique, composite key, we effectively bypass the inherent single-column limitation of VLOOKUP, transforming potentially ambiguous or non-unique records into records that are distinctively identifiable. This technique proves invaluable when working with complex data structures such as employee registers, inventory lists categorized by multiple attributes (e.g., model number and size), or any other scenario where uniqueness is derived from the necessary combination of several different attributes.

Mastering this composite lookup method ensures both high accuracy and absolute data integrity in reports and analyses, establishing it as a cornerstone of efficient data handling in Excel. While newer, advanced functions like XLOOKUP offer viable alternatives, the robust nature, proven reliability, and widespread compatibility of the VLOOKUP and helper column strategy solidify its continued relevance and importance within the professional data analysis toolkit.
