Learning to Conditionally Sum Values with XLOOKUP in Excel

A fundamental requirement in modern Excel analysis is the ability to perform complex conditional summation—the process of looking up specific textual or numerical criteria across a data range and accurately aggregating all corresponding numerical values. Many users instinctively reach for the powerful XLOOKUP function, expecting it to handle scenarios involving multiple matches and aggregation simultaneously. However, while XLOOKUP is unparalleled for retrieving a single, precise value, it is architecturally limited and fundamentally unsuitable when the goal is to calculate the sum of all matches within a dataset.

This detailed guide aims to clarify the inherent limitations of the standard lookup approach and, critically, introduce the highly effective, modern solution: the specialized combination of the SUM function coupled with the FILTER function. This pairing leverages Excel‘s dynamic array capabilities to provide a clean, robust, and efficient method for summing data based on any number of conditional criteria.

By adopting this dynamic array approach, we move beyond traditional, restrictive lookup methods. This technique allows us to handle complex conditional calculations with significantly greater ease and precision. The core principle involves leveraging array manipulation to isolate all required numerical values that meet the criteria before the final mathematical aggregation operation is applied, ensuring comprehensive and accurate results every time.

The Inherent Limitation of XLOOKUP in Aggregation Tasks

The primary design purpose of the XLOOKUP function is focused on retrieval, not aggregation. Its function is to search a defined range for a specific lookup value and return only a single corresponding result from a designated return array. This behavior is by design, as XLOOKUP was created to be a superior, versatile replacement for older functions like VLOOKUP and HLOOKUP, which are inherently single-result functions.

When the lookup value appears multiple times within the source column, XLOOKUP is constrained. It is only capable of returning the value associated with either the first match it encounters (which is the default behavior) or, if specified, the last match when the search mode is reversed. It simply cannot generate the comprehensive list or array of ten corresponding values needed for summation if, for example, you are tracking the points scored by a team that appears ten different times in your spreadsheet.

Attempting to use XLOOKUP alone for complex conditional aggregation tasks will inevitably yield an inaccurate partial sum, or perhaps just the value of the first instance found, leading to critical data integrity errors. To successfully handle conditional summation where every instance of a criterion must be included, analysts must pivot to functions explicitly engineered to filter, manipulate, and return entire data ranges based on logical conditions, thereby creating a temporary dynamic array that can then be reliably processed by an aggregation function.

The Power of Dynamic Arrays for Conditional Summation

The most modern and robust methodology for achieving conditional summation that meticulously includes all matches hinges upon the dynamic array capabilities introduced in recent versions of Excel. The key component here is the FILTER function, which works in tandem with the traditional SUM function.

The FILTER function is categorized as a dynamic array function because its output is a range of values—an array—which, unlike single-cell formulas, can “spill” into adjacent cells. More importantly for aggregation, it can feed this array directly as an argument into another function, such as SUM, without requiring complex CSE (Ctrl+Shift+Enter) array formulas.

The primary operational role of FILTER is to narrow down a specific data set (the column containing values to be summed) based on criteria defined in a separate column. It systematically processes the entire lookup range, identifies every row that satisfies the specified condition, and then compiles the corresponding results into a single, temporary, cohesive array. This ability to produce a list of multiple results based on a condition is the essential factor that differentiates this approach from the single-result limitation of XLOOKUP.

Implementing the Robust Solution: SUM and FILTER

To execute a perfect conditional summation, the strategy involves a two-stage calculation process encapsulated within one formula. First, the FILTER function performs the conditional lookup and extraction, and second, the SUM function performs the final mathematical operation on the filtered results.

The formula works from the inside out. The internal FILTER function requires two crucial arguments: the range containing the values you wish to return (the array to be summed) and the conditional logic (the criteria defining which rows to include). This logic checks every cell in the criteria column against the desired lookup value, generating a TRUE/FALSE map of the data.

Where the condition evaluates to TRUE, the corresponding value from the return array is extracted. Crucially, the FILTER function bundles all these extracted values into a single, ready-to-use list. This list, or dynamic array, is then passed seamlessly to the external SUM function.

By clearly separating the data isolation step (filtering) from the aggregation step (summing), this combined approach ensures that every single data point that satisfies the lookup criterion is included in the final calculation. This robust methodology eliminates the inherent risk of partial calculations associated with single-value lookup functions.

Deconstructing the SUM(FILTER) Formula Syntax

Understanding the generalized structure for combining SUM and FILTER is paramount for accurate conditional aggregation. The syntax is highly logical, directly translating the required operation into a formula: “Filter the numerical values based on this specific condition, and then sum the resulting array.”

The specific formula structure used to execute this powerful conditional sum typically looks like this:

=SUM(FILTER(C2:C11, E2=A2:A11))

We can meticulously break down the components of the internal FILTER function based on this example. The first argument, represented by C2:C11 (highlighted in blue), is designated as the return array. This range contains the numerical data (e.g., sales figures, quantities, or points) that we intend to extract and ultimately sum.

The second argument, E2=A2:A11 (highlighted in red and purple), constitutes the logical include statement. This is the condition that drives the filtering process. It instructs Excel to check every cell in the criteria range A2:A11 (the lookup column) and confirm if it matches the lookup criterion contained within cell E2. Only rows where this comparison returns TRUE are included in the resulting array.

In essence, this formula directs Excel to scan the entire range A2:A11 for the specific value found in E2. For every successful match, the corresponding numerical value from the return range C2:C11 is extracted. Finally, the external SUM function then takes this complete, filtered array as its input and calculates the grand total of all extracted numerical values. This efficient, two-part operation successfully combines the lookup and the aggregation into a seamless process, providing a single, accurate result that accounts for all matching criteria.

Practical Application: Summing Conditional Data in Excel

To clearly illustrate the effectiveness and simplicity of the SUM(FILTER) methodology, let us analyze a common real-world data scenario. Imagine working with a spreadsheet in Excel that logs performance data, specifically points scored by various athletes across different sports teams. Our objective is to calculate the precise total points scored exclusively by one designated team.

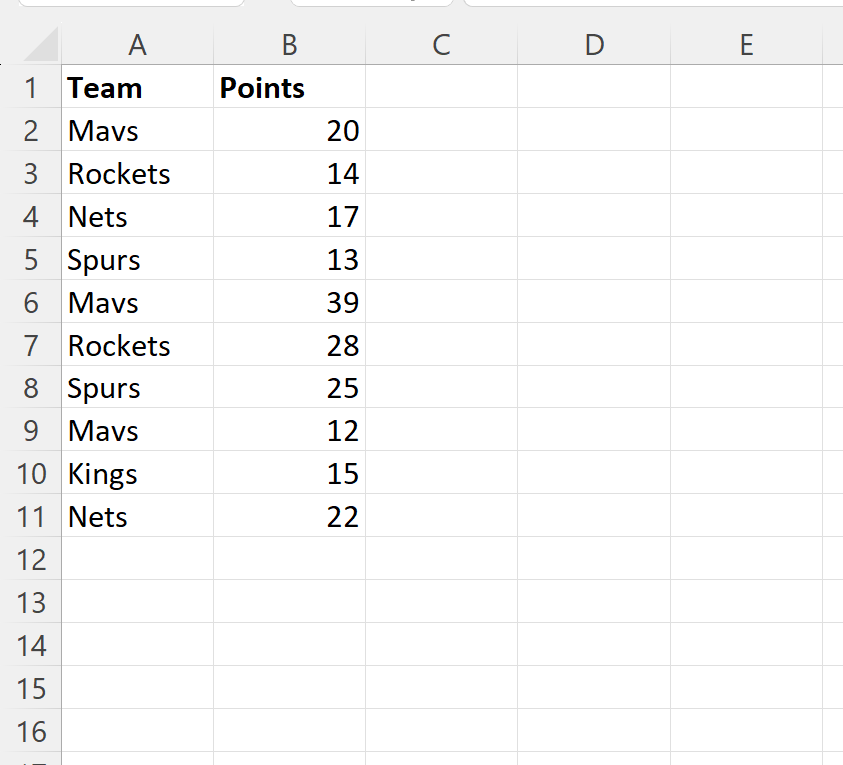

The following image provides a visual representation of our source data. This dataset contains two primary columns of interest: the Team affiliation and the Points scored in sequential games. Notice that the team “Mavs” appears multiple times throughout the list, which confirms that we require a full aggregation solution, not a simple single-value lookup.

Our specific goal is to look up the criterion “Mavs” within the Team column (A2:A11) and sum the corresponding values found in the Points column (C2:C11), ensuring that all matches are included. For organizational efficiency and future flexibility, we designate a cell, such as E2, to hold our lookup criterion (“Mavs”).

Step-by-Step Execution and Verification

To successfully calculate the desired conditional sum, we input the formula directly into the cell designated for the output. Assuming our data structure remains consistent with the provided visual example—Team names in Column A and Points in Column C—the syntax is exactly as previously detailed:

=SUM(FILTER(C2:C11, E2=A2:A11))

Executing this formula instructs Excel to extract the point values (C2:C11) only for those records where the team name (A2:A11) is an exact match for the value contained in E2 (“Mavs”). The resulting temporary array generated by the FILTER function in this instance would be {20; 39; 12}. The external SUM function subsequently aggregates these three distinct values.

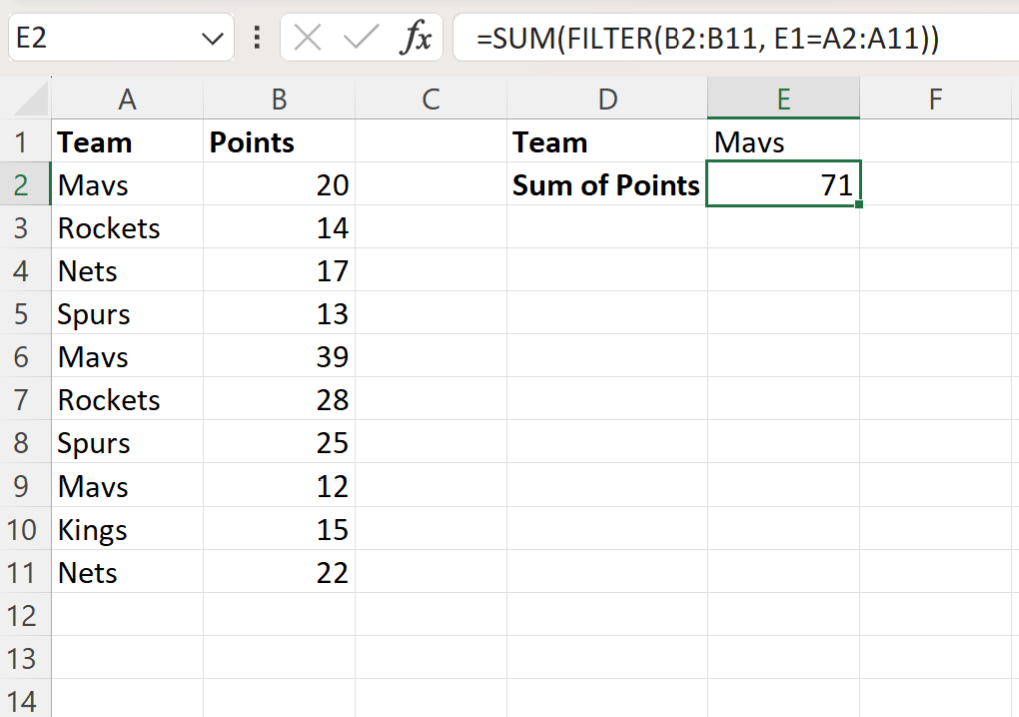

The following screenshot confirms the successful application of the formula within the spreadsheet, showcasing the final calculated total:

As clearly demonstrated by the output, the formula accurately returns the total sum of 71. This calculated figure represents the aggregation of all values in the Points column that correspond to every single occurrence of the criterion “Mavs” in the Team column. We can easily verify this result manually: 20 + 39 + 12 equals 71. This validation confirms that the SUM(FILTER) method has successfully captured and aggregated every matching record, definitively overcoming the inherent limitation of a standard single-return function like XLOOKUP.

Conclusion and Further Resources

In summary, while the XLOOKUP function remains an indispensable tool for highly efficient, single-value lookups, it is fundamentally unsuitable for complex conditional aggregation tasks. For scenarios that demand the summation of all matches based on specific criteria, the combined power of the SUM and FILTER dynamic array functions provides the definitive, modern, and most accurate solution available in Excel. Mastering this superior technique is essential for analysts who need to perform accurate, criteria-based calculations across large datasets efficiently.

To further enhance your proficiency in advanced conditional calculations in Excel, consider exploring these related tutorials that build upon the foundational knowledge of conditional logic and array handling:

• How to use dynamic array functions for multi-criteria filtering.
• Advanced techniques using the SUMIFS function for aggregation.
• Understanding the spill range and dynamic array behavior in spreadsheets.
