Learning to Use Excel’s SUMPRODUCT Function with Conditional Logic

Harnessing the Power of Conditional SUMPRODUCT in Excel

The SUMPRODUCT function within Excel is far more than a simple arithmetic tool; it is a highly adaptable powerhouse used primarily to calculate the sum of corresponding products across specified ranges or arrays. While its base functionality handles straightforward multiplication and aggregation, its true analytical value is unlocked when integrated with advanced conditional logic. This integration allows users to execute sophisticated calculations that efficiently filter data, thereby eliminating the necessity for tedious helper columns or cumbersome, traditional array formulas.

In modern data analysis, it is frequently necessary to restrict calculations only to specific subsets of data. For instance, a financial analyst might need to calculate total weighted volume, but only for transactions where the quantity sold is positive. Our objective in this guide is to demonstrate how to effectively deploy the SUMPRODUCT function to achieve this precise selective calculation. We will focus specifically on filtering data points to ensure that only those values that satisfy the criterion of being greater than zero are included in the final aggregated product sum.

By embedding conditional expressions directly into the core structure of SUMPRODUCT, you can dramatically optimize the performance and readability of your spreadsheets. This methodology not only minimizes potential sources of error but also provides clearer, more accurate insights derived from meticulously filtered data. We will thoroughly examine the essential formula structure and the underlying technical mechanisms that enable this elegant, on-the-fly data filtering.

Foundational Mechanics of the SUMPRODUCT Function

Before utilizing SUMPRODUCT for complex conditional tasks, it is crucial to solidify your understanding of its fundamental operation. At its core, the function systematically executes two primary steps: first, it multiplies corresponding elements across all specified numerical arrays, and second, it sums the resulting products. To illustrate, if you input two arrays, such as {X1, X2, X3} and {Y1, Y2, Y3}, the SUMPRODUCT result is calculated as the total of (X1*Y1) + (X2*Y2) + (X3*Y3).

The standard syntax for the function is concise: =SUMPRODUCT(array1, [array2], ...). Excel permits the inclusion of up to 255 arrays, although typical analytical applications usually involve only two or three. A non-negotiable requirement for successful execution is that all supplied arrays must possess identical dimensions. Failure to adhere to this dimensional consistency will invariably lead to a #VALUE! error, indicating a mismatch in the data structure. This function proves invaluable across diverse fields, including calculating complex weighted averages, determining total revenue from quantity and price data, and executing various other statistical analyses.

A significant advantage of SUMPRODUCT is its native ability to handle array operations without the need for traditional array entry (Ctrl+Shift+Enter). This distinct feature substantially enhances its user-friendliness when dealing with intricate calculations, positioning it as a powerful and often preferred alternative to more challenging legacy array formulas. Its robust design ensures that complex data manipulations can be performed with straightforward syntax.

Integrating Boolean Logic for Advanced Filtering

While SUMPRODUCT is inherently powerful, its analytical capability reaches its peak when augmented by Boolean logic to introduce criteria. In real-world data science and business intelligence, analysts must frequently perform calculations that are contingent upon data meeting specific standards. This might involve calculating the sum of products only for positive values, or aggregating data solely for items associated with a particular geographic region or product category.

The conventional method for achieving such conditional sums of products often involves the creation of intermediate helper columns. In these columns, the condition is first applied, followed by the required multiplication, and finally, the results are summed. While this step-by-step approach is functionally sound, it tends to clutter the worksheet, making it difficult to audit and manage, especially as the number of conditions increases. Our goal is to achieve efficiency by embedding this entire conditional structure directly within a single, streamlined SUMPRODUCT formula.

By integrating conditions directly, we craft dynamic Excel formulas that automatically adapt their calculations based on the underlying data state. This sophisticated approach results in cleaner, more flexible, and highly scalable spreadsheets. The specific technique we will detail involves a critical step: converting the TRUE/FALSE results generated by the condition into numerical values (1s and 0s) that SUMPRODUCT can utilize for multiplication, thereby effectively filtering the data set in place.

Constructing the Conditional Formula: Greater Than Zero

To execute the SUMPRODUCT function exclusively with values that surpass zero in a designated range, we employ a precise and robust formula structure. This technique efficiently combines the function’s multiplicative capability with filtering logic based on Boolean logic and a specialized Excel operator.

The specific formula designed to sum products only when values in the primary array (A1:A9) are greater than zero is presented below:

=SUMPRODUCT(--(A1:A9>0),A1:A9,B1:B9)

We must analyze each component of this powerful expression to fully appreciate its mechanics:

• (A1:A9>0): This initial segment establishes the condition. It processes every element in the range A1:A9, generating a Boolean array of TRUE or FALSE values. A cell containing a value greater than zero yields TRUE, while zero or negative values yield FALSE.
• --: This is the essential double unary operator (double negation). Its critical role is to coerce the TRUE/FALSE values from the Boolean array into numerical equivalents: TRUE transforms into 1, and FALSE transforms into 0. This numerical conversion is mandatory, as SUMPRODUCT requires numerical arrays for its multiplication phase.
• A1:A9: This represents the first set of values to be multiplied (e.g., Quantity).
• B1:B9: This represents the corresponding second set of values for multiplication (e.g., Price).

During evaluation, SUMPRODUCT multiplies three corresponding elements for each row: the calculated numerical condition (1 or 0), the value from column A, and the value from column B. If the condition is FALSE, the -- operator converts it to 0, effectively nullifying the product for that row (0 * A * B = 0). This exclusion ensures the row does not contribute to the final sum. Conversely, if the condition evaluates to TRUE, it becomes 1, and the full product (1 * A * B) is included.

A Detailed Practical Application Example

To clearly demonstrate the efficacy of this conditional SUMPRODUCT approach, let us examine a concrete data set in Excel. Imagine a scenario where columns A and B contain pairs of numerical data, such as production output (A) and associated cost factors (B), where we must calculate the total weighted cost, excluding any production runs that were zero or negative.

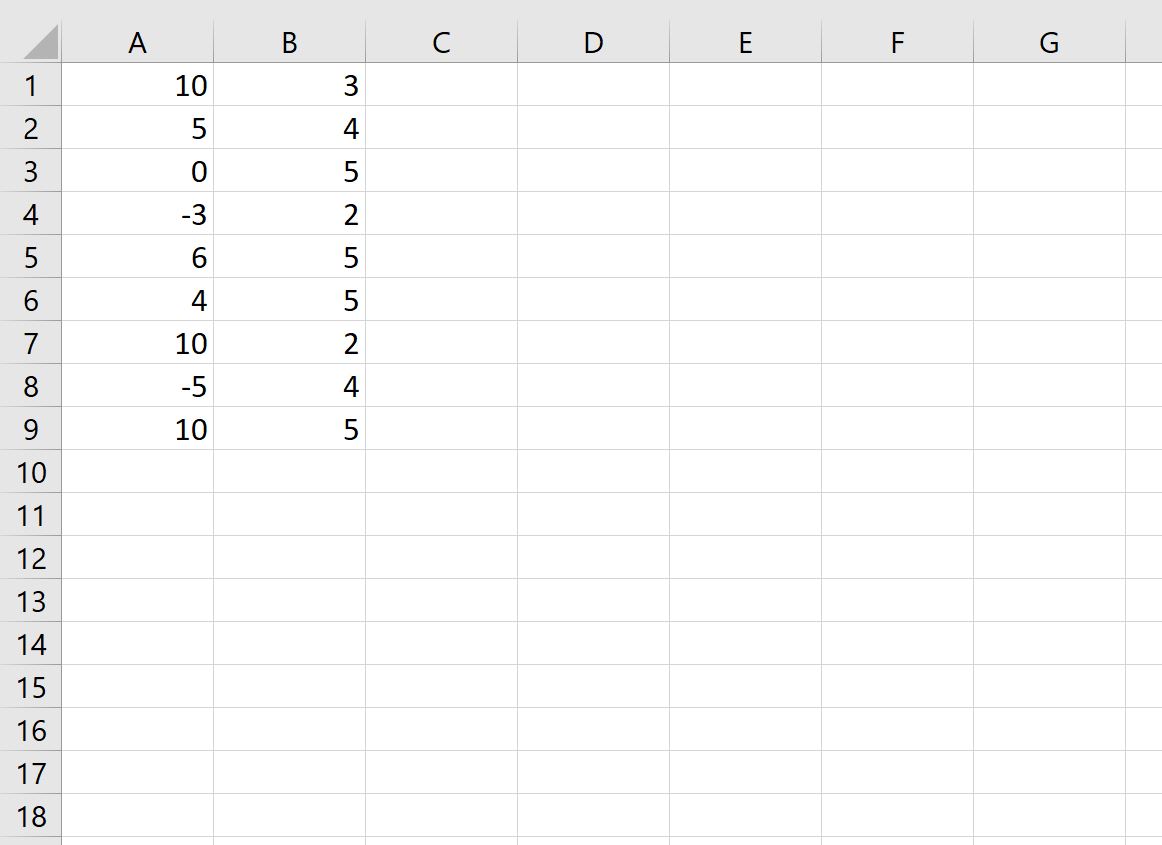

Consider the following arrangement of data in columns A and B:

First, we establish a benchmark by calculating the standard, unconditional SUMPRODUCT. The regular formula used to sum the products across all values in the ranges A1:A9 and B1:B9 is: =SUMPRODUCT(A1:A9, B1:B9).

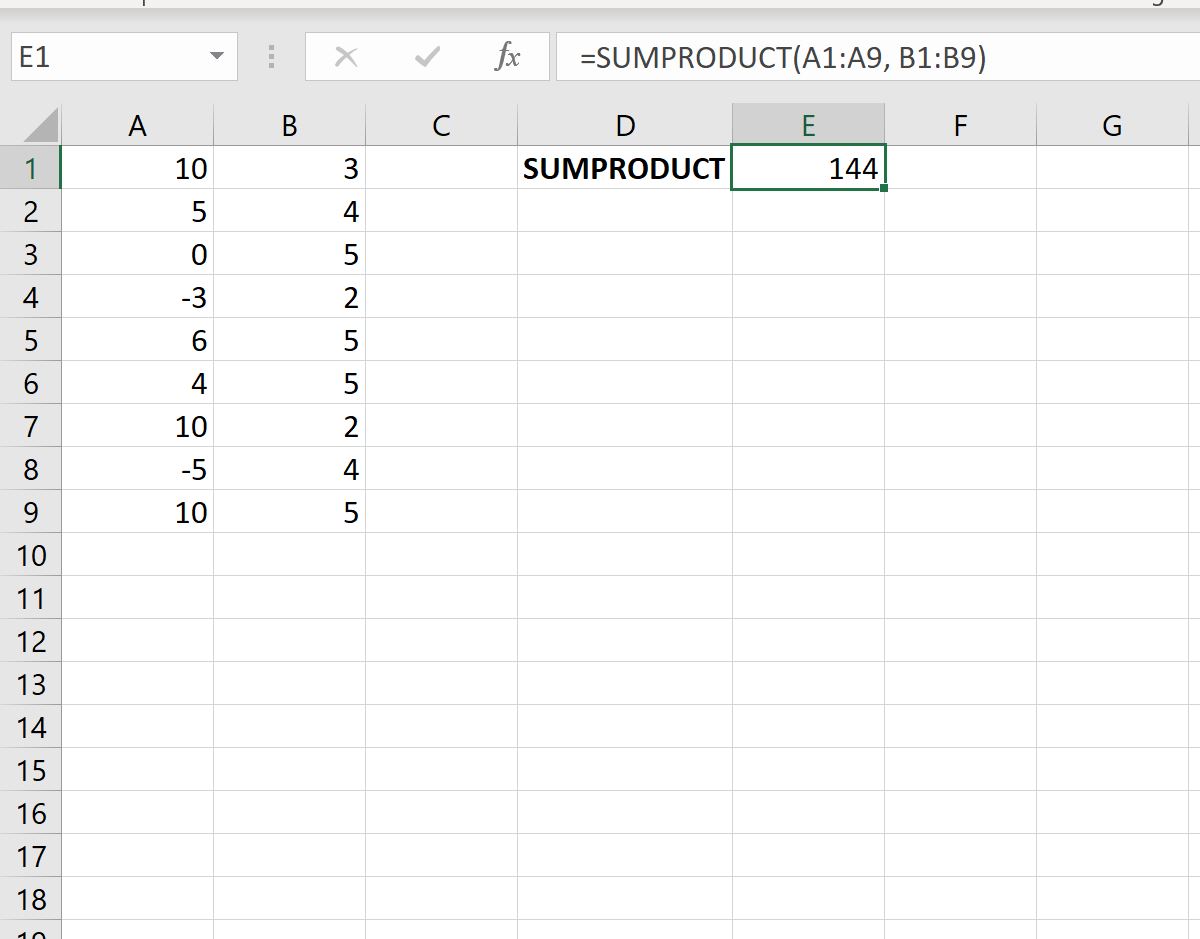

The result derived from this standard calculation is illustrated below:

Using the standard formula, the sum of products for all nine rows is calculated as 144. This can be manually verified by calculating each product and summing them, including contributions from zero and negative values: (30 + 20 + 0 – 6 + 30 + 20 + 20 – 20 + 50) = 144.

Now, we impose our required condition: we only wish to include products where the value in column A is strictly greater than zero. Implementing the conditional SUMPRODUCT formula yields the following entry:

=SUMPRODUCT(--(A1:A9>0),A1:A9,B1:B9)

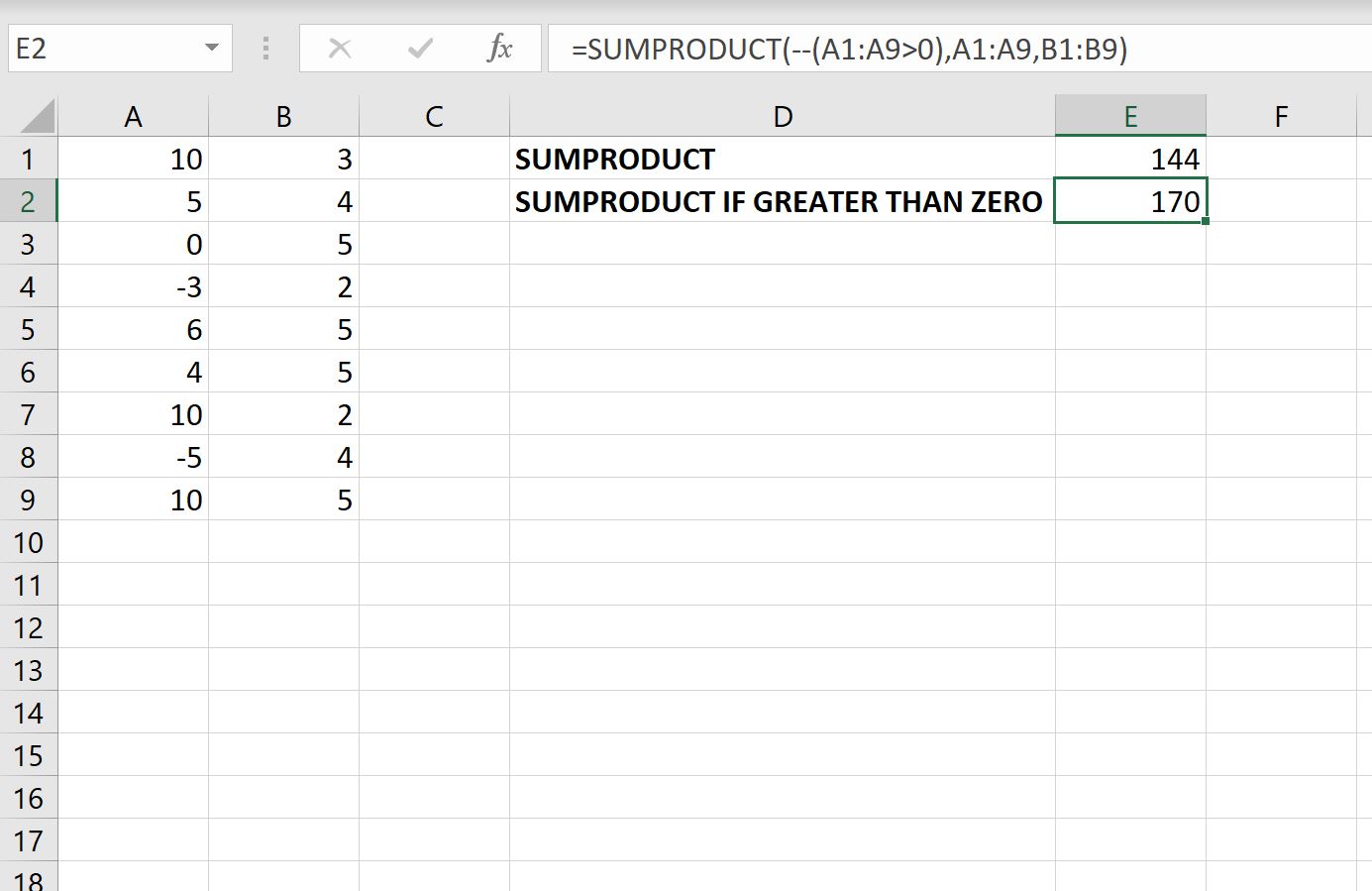

The application of this conditional formula and the resulting output in Excel is shown in this screenshot:

With the conditional filter applied, the resulting sum of products is now significantly different, totaling 170. We can manually confirm this result by ensuring that only rows where A is positive contribute to the total:

• Row 1: A=10 (>0), B=3 → 30 (Included)
• Row 2: A=5 (>0), B=4 → 20 (Included)
• Row 3: A=0 (Not >0) → Excluded (0)
• Row 4: A=-3 (Not >0) → Excluded (0)
• Row 5: A=6 (>0), B=5 → 30 (Included)
• Row 6: A=4 (>0), B=5 → 20 (Included)
• Row 7: A=10 (>0), B=2 → 20 (Included)
• Row 8: A=-5 (Not >0) → Excluded (0)
• Row 9: A=10 (>0), B=5 → 50 (Included)

The sum of the included products is 30 + 20 + 30 + 20 + 20 + 50 = 170. This verification confirms that the conditional SUMPRODUCT formula successfully isolated and excluded the products associated with zero or negative values in column A, providing a calculation that strictly adheres to the filtering criterion.

The Double Unary Operator: The Key to Numerical Conversion

The seamless integration of conditional filtering into the SUMPRODUCT function relies heavily on the function of the double unary operator (--). Understanding this mechanism is fundamental for mastering complex array-based Excel formulas, especially those rooted in Boolean logic.

When a logical expression, such as (A1:A9>0), is evaluated by Excel, the result is a Boolean array composed of TRUE or FALSE values, indicating whether the condition was met for each respective cell. Because SUMPRODUCT requires numerical inputs for its multiplication step, direct multiplication of these Boolean terms can sometimes lead to functional errors or unexpected behavior. Therefore, a numerical transformation is required before the arrays can be processed correctly.

The double unary operator executes this conversion reliably:

• A TRUE value is converted to the integer 1.
• A FALSE value is converted to the integer 0.

This conversion process works by applying two negation steps. The first negation (unary minus) forces Excel to treat the Boolean value numerically: TRUE becomes 1 (negated to -1), and FALSE becomes 0 (negated to 0). The second negation then returns the values to their positive counterparts: -1 becomes 1, and 0 remains 0. This results in a clean array of only 1s and 0s, which acts as a perfect numerical mask for the multiplication within SUMPRODUCT. While alternative conversion methods exist (like adding zero or multiplying by one), the double unary operator remains the most efficient and widely accepted idiom in advanced Excel analysis.

Conclusion: Expanding Conditional SUMPRODUCT Applications

Mastering the conditional application of the SUMPRODUCT function, particularly with sophisticated filters like “greater than zero,” represents a significant step forward in your data analysis proficiency within Excel. This technique provides the means to perform highly precise calculations by dynamically filtering data based on strict criteria, eliminating the need for auxiliary helper columns. The synthesis of Boolean logic and the double unary operator forms a powerful, elegant system for transforming conditional results into numerical factors that dictate whether a product is included or excluded from the final aggregate sum.

While this guide centered on the “greater than zero” criterion, the underlying methodology is incredibly versatile and can be readily adapted to an extensive array of other analytical scenarios. You can easily modify the conditional expression to filter for values less than a threshold, match specific text strings, operate within defined date ranges, or even handle complex filtering involving multiple criteria. For multiple criteria, you would link the conditions using the multiplication operator * (representing logical AND) or the addition operator + (representing logical OR) directly within the SUMPRODUCT structure. This inherent flexibility makes conditional SUMPRODUCT an indispensable asset for anyone tasked with complex data aggregation, manipulation, and analysis.

By integrating these advanced formula techniques into your workflow, you can convert raw data into highly refined and meaningful insights, ensuring that your Excel models are both dynamic and robust enough to handle varying analytical requirements with ease. Continued exploration of Excel’s comprehensive function library will undoubtedly unlock even greater possibilities for optimizing your data management strategies.
