Learn Exponential Regression Analysis in Excel: A Step-by-Step Tutorial

The capacity to accurately model non-linear phenomena is a fundamental requirement across diverse analytical fields, ranging from financial forecasting to complex biological studies. When standard linear models fail to capture the relationship between variables, the exponential regression analysis offers a robust alternative. This powerful regression model is specifically engineered for situations where the core relationship between the variables is multiplicative, leading to rates of change that are proportional to the current value, rather than being merely additive.

This sophisticated statistical technique is indispensable when analyzing patterns that display rapid, sustained changes over time. We typically encounter two primary scenarios where the exponential model provides the most appropriate and insightful fit, guiding our predictions and interpretations effectively:

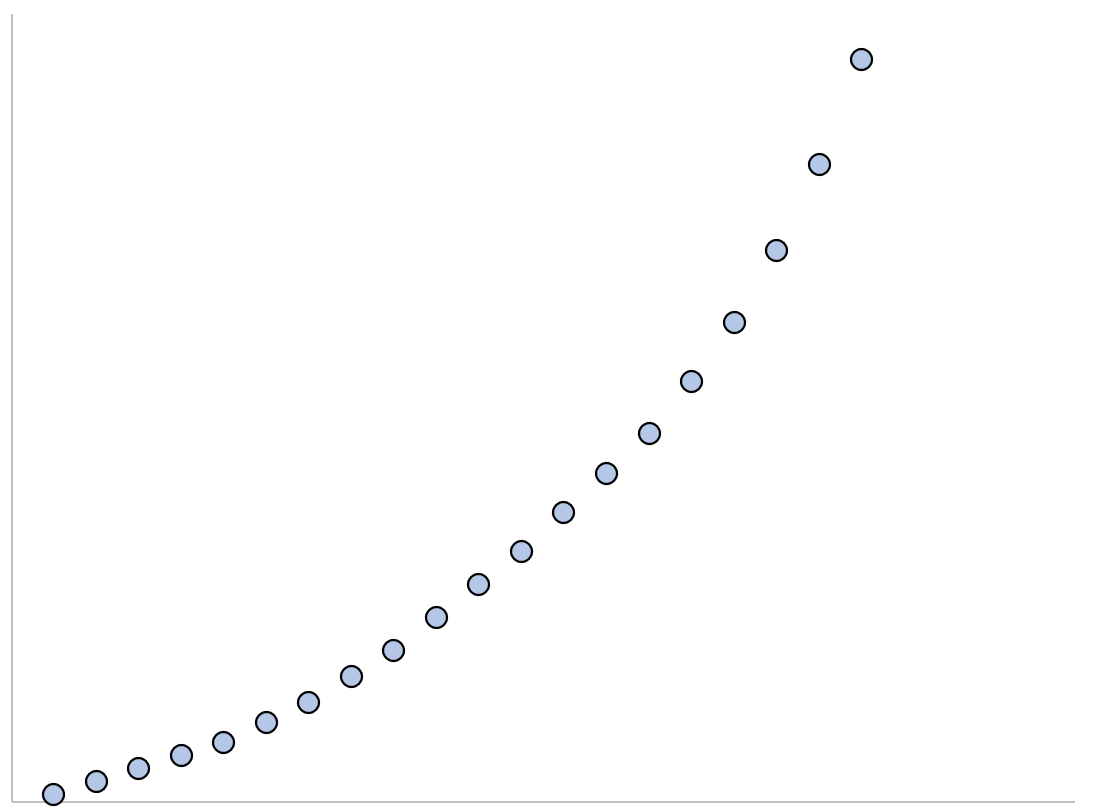

• Exponential Growth: This distinct pattern is characterized by a rate of increase that accelerates dramatically over time. Growth begins slowly but then compounds quickly, theoretically accelerating without bound. This behavior is routinely observed in fields such as population biology, where resources are ample, or in the calculation of uncontrolled compounding financial instruments.

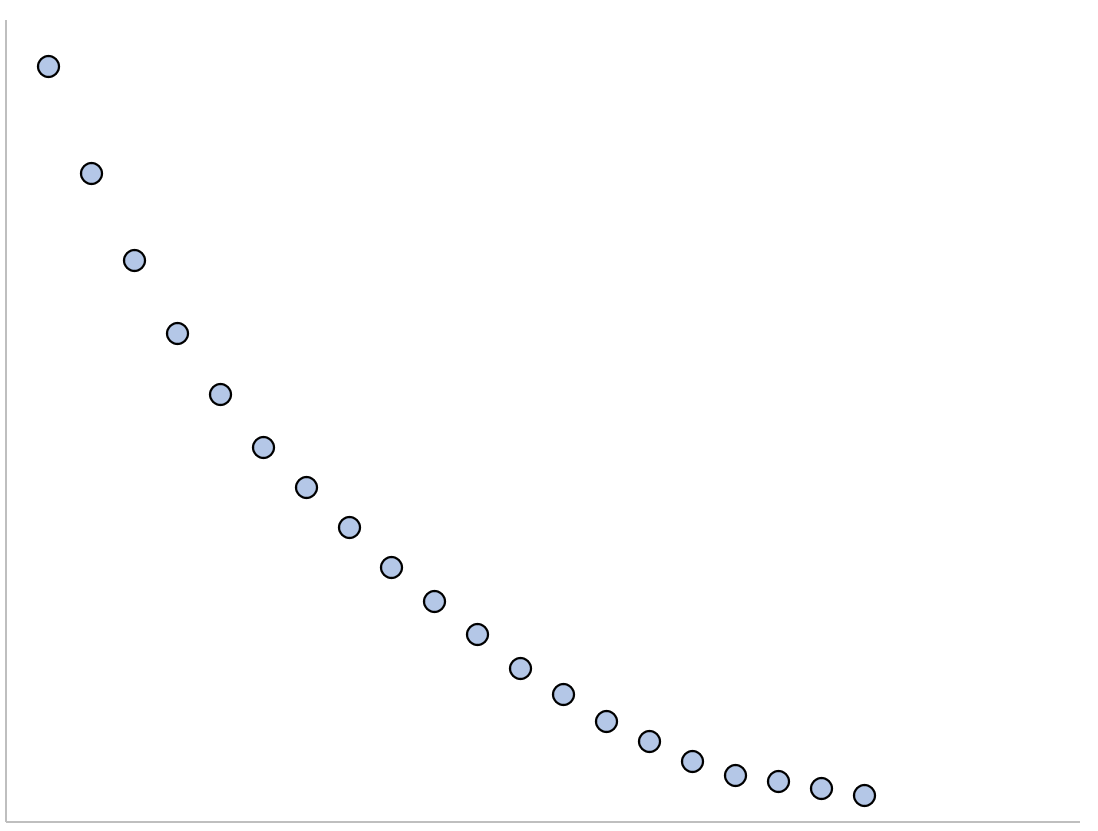

• Exponential Decay: Conversely, decay exhibits a rapid initial drop-off, where the rate of decrease slows significantly as the variable asymptotically approaches a minimum value, which is often zero. Classic physical examples that necessitate this modeling approach include radioactive decay, the dissipation of heat from an object cooling in a controlled environment, or the depreciation of certain assets.

Understanding the Exponential Equation Structure

The foundation of any exponential analysis lies in its mathematical structure. A deep understanding of the fundamental equation defining the exponential regression model is crucial for accurate calculation and interpretation:

y = ab^x

Interpreting the role of each variable and coefficient is key to proper application and interpretation of the model’s results. This equation establishes the non-linear relationship we seek to quantify:

• y: Represents the response variable (also known as the dependent variable), which is the outcome we aim to predict, explain, or model based on changes in the predictor.
• x: Represents the predictor variable (or independent variable), which is the factor hypothesized to influence the response variable.
• a, b: These are the regression coefficients that the statistical analysis determines from the observed data. The coefficient ‘a’ serves as the initial value (the y-intercept when x=0), while ‘b’ represents the growth or decay factor, quantifying the multiplicative change in y for every unit change in x.

Since standard regression tools, including those built into Microsoft Excel, are optimized for fitting strictly linear models, we must employ a necessary mathematical transformation to successfully estimate the coefficients of the inherently non-linear exponential model. The following five-step procedure provides a clear, detailed guide on how to perform this essential exponential regression using Excel’s built-in functionalities.

Step 1: Preparing and Reviewing the Dataset

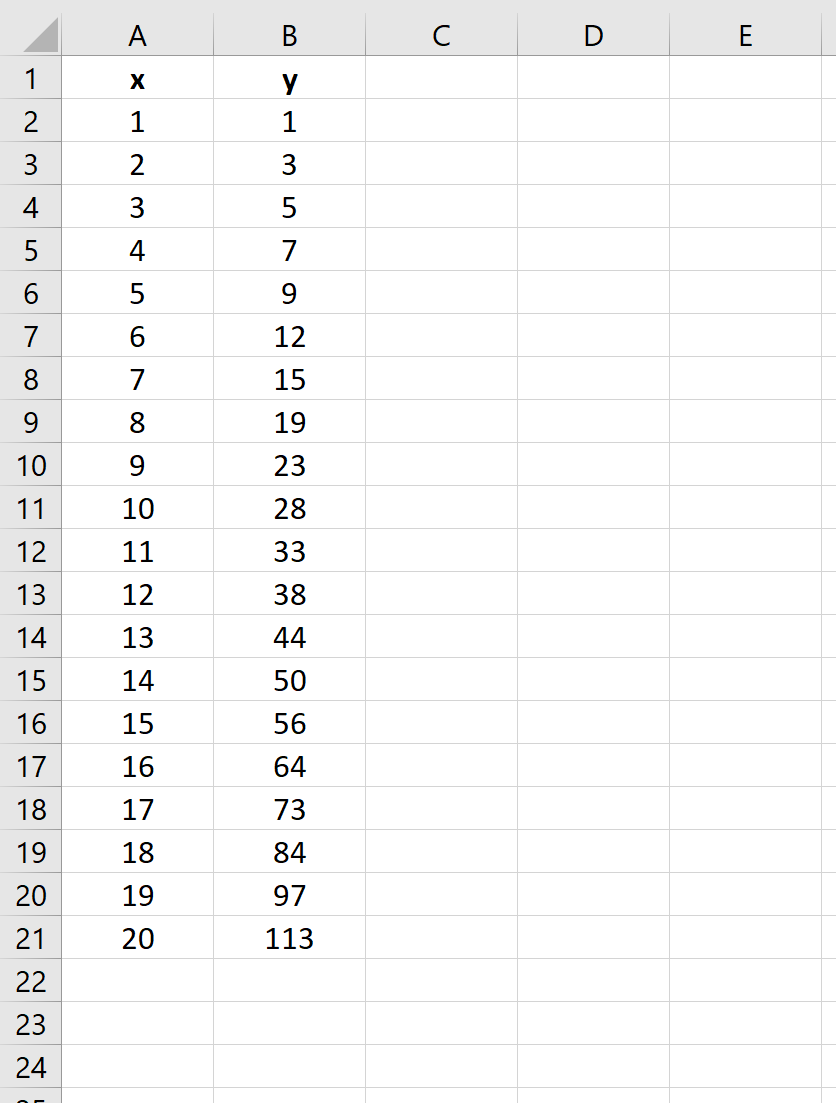

The initial phase of any regression analysis involves meticulous data preparation. To begin this specific exponential analysis, we require a dataset consisting of paired observations that are theoretically suited for exponential modeling. For this demonstration, we will use a simulated dataset comprising 20 paired observations, where the predictor variable (x) and the response variable (y) are organized in adjacent columns.

It is absolutely essential that your raw data is cleanly organized into two adjacent columns within your Excel worksheet, ensuring no missing values or non-numeric entries interfere with the process. The structural integrity and quality of the input data are paramount for obtaining meaningful and reliable results from the subsequent regression model calculation.

Before proceeding with the formal statistical analysis, a crucial preliminary step is performing a visual inspection of the data. By creating a scatter plot of the response variable (y) against the predictor variable (x), we can visually confirm the expected upward-curving (growth) or downward-curving (decay) trend. This vital visual validation step confirms the initial choice of an exponential model, verifying its superiority over simpler linear or polynomial alternatives.

Step 2: Performing the Natural Log Transformation of the Response Variable

The core challenge in fitting an exponential relationship (y = ab^x) in Excel is the program’s reliance on the least squares method, which is inherently designed for linear models. To overcome this limitation and enable the use of standard linear regression tools, we must algebraically transform the exponential equation into a linear form. This is successfully achieved by applying the natural log (ln), which uses the base e, to both sides of the original equation.

The application of the natural logarithm converts the multiplicative exponential model into an additive linear model, making it solvable using Excel’s tools:

ln(y) = ln(a) + x * ln(b)

In your Excel worksheet, create a new column, typically titled “ln(y)”. Use the Excel function `LN()` to calculate the natural logarithm for every single observation in the original response column (y). This newly created column, containing the transformed values ln(y), will now function as the dependent variable in our linear regression calculation, effectively replacing the original y values.

This mathematical linearization step is fundamental to the entire process; it allows us to fit a straight line to the transformed data. The coefficients derived from this straight-line fit can then be used in the final step to reconstruct the original, non-linear exponential regression model, enabling predictions in the original scale.

Step 3: Fitting the Linearized Exponential Regression Model

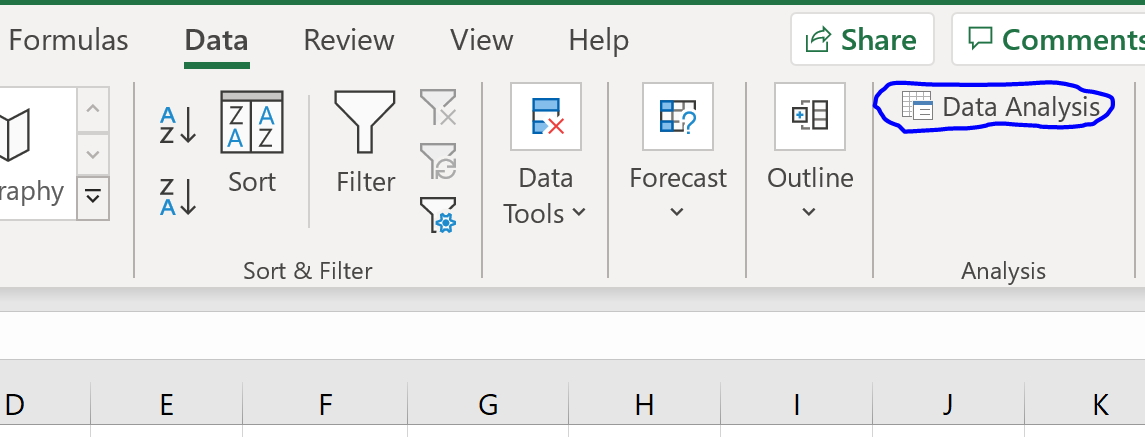

With the required logarithmic transformation complete, the next step involves utilizing Excel’s powerful Data Analysis add-in to fit the linearized model. Begin by navigating to the Data tab located in the main ribbon and clicking on the Data Analysis option, which is usually situated on the far right side of the toolbar.

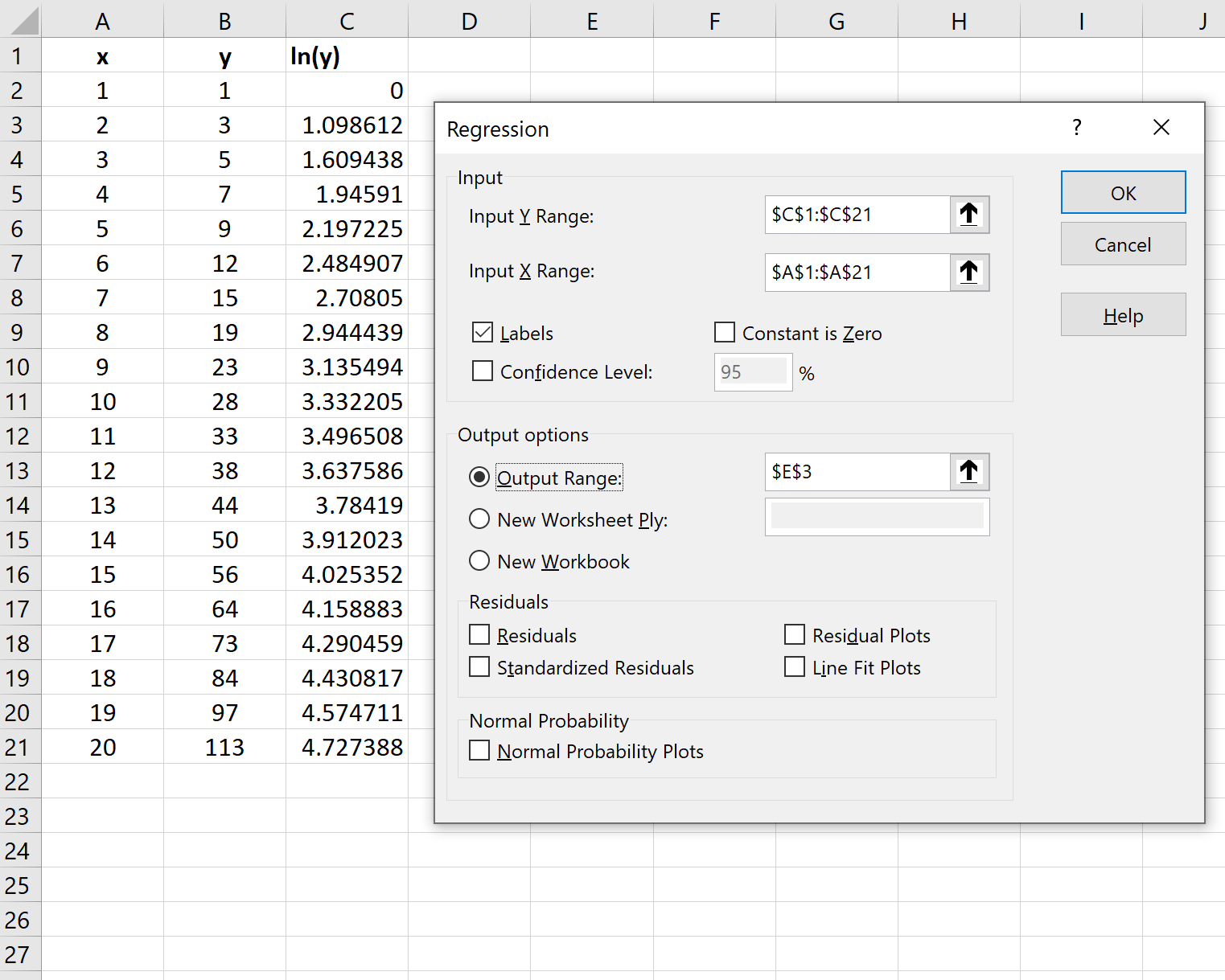

If the Data Analysis option is not visible, you must first install and activate the Analysis ToolPak add-in via the Excel Options menu before proceeding. Once the Data Analysis dialog box opens, select the Regression tool and click OK. In the ensuing Regression input window, it is critical to configure the input ranges correctly, remembering to use the transformed variable for the Y input range:

• Input Y Range: Carefully select the column containing the natural log of y (ln(y)). This is now our dependent variable.
• Input X Range: Select the column containing the original predictor variable x. This remains our independent variable.
• Ensure the Labels checkbox is selected if you included header cells in your range selections.
• Choose a suitable Output Range or select a New Worksheet Ply for the detailed statistical results to appear.

Upon clicking OK, Excel will automatically generate a new output sheet containing the comprehensive statistical results and metrics for the linearized regression model, which we will analyze in the next step.

Step 4: Analyzing the Regression Output and Deriving the Equation

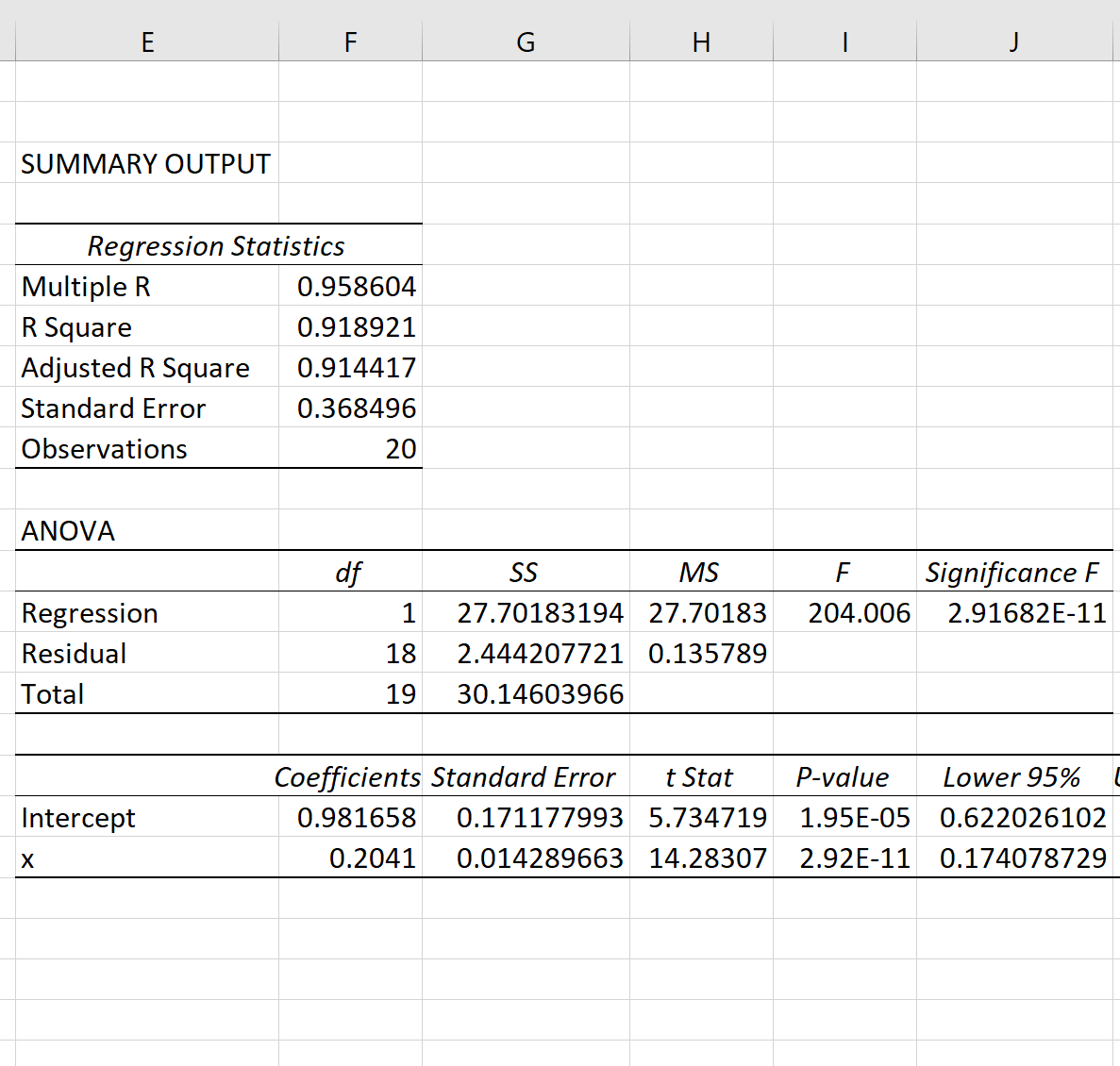

The comprehensive output table provided by Excel contains several important statistical metrics necessary for assessing the quality and significance of the linearized model. Our initial task involves assessing the overall fit and statistical significance before extracting and interpreting the specific coefficients.

The ANOVA table provides information regarding the model’s overall significance. In this example, the calculated F-statistic of 204.006, paired with an extremely small corresponding p-value (approaching 0), strongly suggests that the predictor variable (x) is highly useful and statistically significant in explaining the variance observed in the transformed response variable (ln(y)). Furthermore, the adjusted R-squared value, which accounts for the degrees of freedom, indicates the proportion of variance in the logarithmically transformed response variable explained by the predictor variable. A high R-squared value confirms a strong fit between the linearized data and the fitted straight line.

Using the specific coefficients found in the lower section of the output table—specifically the Intercept and the X Variable 1 coefficient—we can immediately write down the estimated linearized exponential regression equation:

ln(y) = 0.9817 + 0.2041(x)

Step 5: Transforming the Equation Back to the Original Exponential Form

The final and most crucial step for practical application is to transform the linearized equation back into the original, usable exponential form (y = ab^x). This back-transformation is necessary because the predictions must be presented in the original units of the response variable, y. We accomplish this by applying the inverse function of the natural log, which is the exponential function (e^x), to both sides of the equation derived in Step 4.

The coefficients of the final exponential equation are derived as follows:

1. The coefficient ‘a’ (the starting value) is found by calculating e raised to the power of the Intercept coefficient: e^0.9817 ≈ 2.6689.
2. The coefficient ‘b’ (the growth or decay factor) is found by calculating e raised to the power of the X Variable coefficient: e^0.2041 ≈ 1.2264.

By substituting these calculated values, the resulting, fully usable exponential regression equation is:

y = 2.6689 * 1.2264^x

We can now efficiently use this final equation to predict the response variable, y, based on any given value of the predictor variable, x. For instance, if we wish to predict the response when the predictor variable x is 14, the calculation proceeds as follows:

y = 2.6689 * 1.2264¹⁴ = 46.47

Our finalized regression model therefore predicts that the response variable y would be approximately 46.47 when the independent variable x equals 14.

Bonus: For verification purposes or rapid calculation of multiple equations, various online tools can simplify this process. Users may find this online exponential regression calculator useful for automatically computing the exponential regression equation for a given set of predictor and response variables.

Additional Resources and Next Steps

While the steps outlined above provide a complete methodology for performing exponential regression in Excel, advanced model refinement often requires further statistical exploration. Continued learning in areas such as evaluating residual plots, conducting rigorous assumptions testing (especially concerning the normality of residuals in the transformed model), and exploring other non-linear forms is highly recommended for those seeking to build and validate advanced statistical models.
