Exponential Regression in Python (Step-by-Step)

Exponential regression is a sophisticated and highly valuable technique within statistical regression analysis. Unlike standard linear models, this method is specifically designed to accurately model relationships where the rate of change in the dependent variable is directly proportional to its current value. This characteristic makes exponential models indispensable for analyzing real-world phenomena exhibiting rapid, non-constant growth or decay, such as population dynamics, compound interest in finance, or the spread of infectious diseases in epidemiology. Understanding the fundamental nature of exponential relationships is the crucial first step toward selecting the correct analytical tool for your dataset.

This specialized modeling approach is deployed when data patterns display two distinct types of curvilinear trends that simple linear equations cannot adequately describe. Recognizing these signature patterns within your exploratory data analysis is essential before initiating the fitting process using powerful tools like Python. These two primary scenarios dictate the overall shape and trajectory of the resulting fitted curve, offering profound insights into the underlying process driving the data.

Identifying Exponential Patterns: Growth and Decay

The situations ideally modeled by exponential regression fall into two primary categories, distinguished by whether the function’s output accelerates upward or asymptotically approaches a minimum value. Visual confirmation of these patterns is highly recommended before proceeding with numerical analysis.

1. Exponential Growth: This scenario describes a rapid, accelerating increase where the initial growth is slow but momentum builds quickly, leading to steep upward curvature. Theoretically, the variable continues to increase without a defined upper bound within the scope of the fitted model. Classic examples include modeling uncontrolled biological replication or calculating the long-term impact of exponential functions in computing performance.

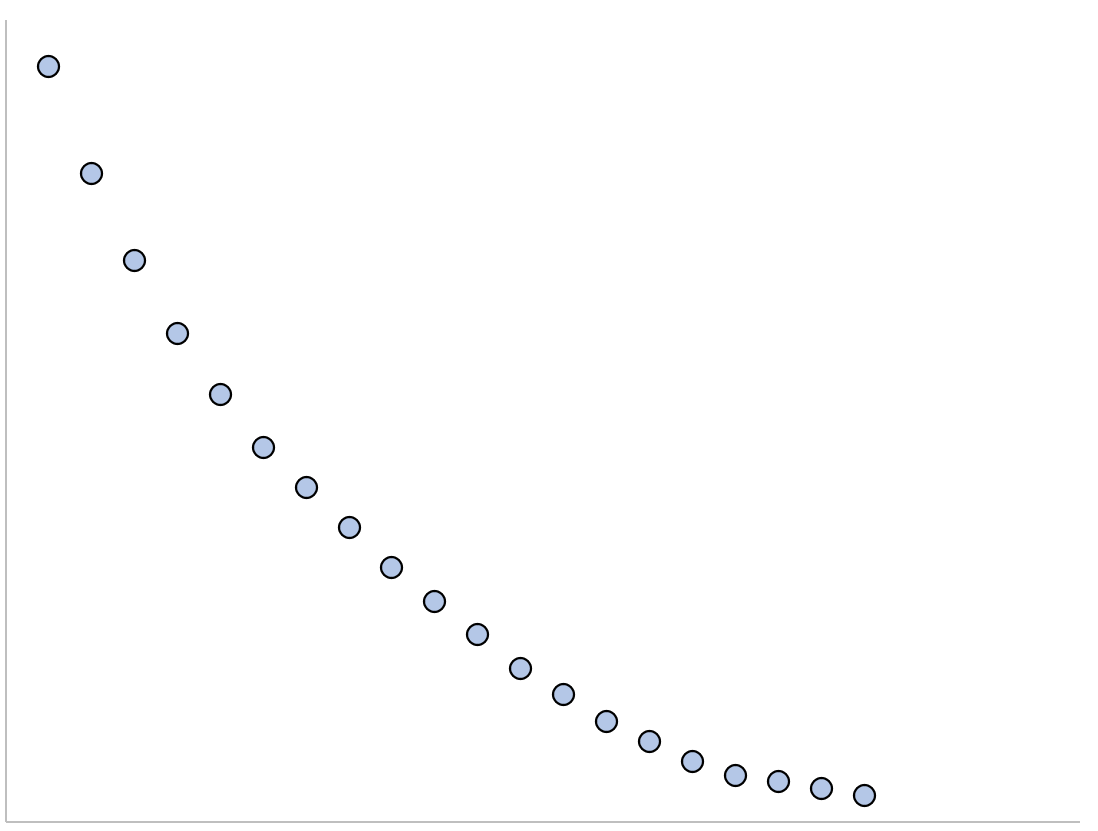

2. Exponential Decay: Conversely, this pattern depicts a rapid initial decline followed by a progressively slowing rate of change. The variable decreases quickly at first, but its rate of change lessens as it approaches zero, which is often its asymptotic limit. Textbook examples of decay include the half-life calculation in radioactive decay or analyzing the thermal cooling of materials over extended periods.

Understanding the Mathematical Foundation and Transformation

The core of the exponential regression model is mathematically defined by an equation that relates the predictor variable (input, x) to the response variable (output, y) through exponents, giving the model its distinctive curved form. Interpreting the coefficients generated by statistical software requires a solid grasp of this underlying formula.

The standard, non-linear equation for an exponential model takes the following general form:

y = ab^x

To effectively perform this regression using standard linear methods—specifically, Ordinary Least Squares (OLS)—the original equation must be transformed into a linear relationship. This crucial step is typically achieved by taking the natural logarithm (ln) of both sides. This transformation results in an equation that is linear with respect to the new variables, allowing for straightforward coefficient estimation on the modified data.

The variables and parameters within the exponential model are meticulously defined as follows:

• y: The response variable (or dependent variable) that we are attempting to model and predict.
• x: The predictor variable (or independent variable) used as the input for making predictions.
• a, b: These are the regression coefficients estimated during the fitting process. Parameter ‘a’ represents the initial value (the intercept when x=0), and parameter ‘b’ represents the growth or decay factor (the base). Together, these parameters quantify the specific relationship between x and y.

The step-by-step implementation detailed below illustrates precisely how to execute this logarithmic transformation and fit the resulting linear model using the robust numerical capabilities provided by the NumPy library in Python.

Step 1: Setting Up the Environment and Generating Data

The foundational requirement for any modeling effort is preparing the computational environment and ensuring all necessary libraries are imported. For this practical demonstration, we rely heavily on the NumPy library, which is the cornerstone package for numerical computing in Python, providing essential support for multi-dimensional arrays and high-level mathematical functions required for statistical analysis.

To accurately test the regression method, we will begin by generating a synthetic dataset comprising two variables, x and y. This dataset is intentionally constructed to display the characteristic accelerating pattern associated with exponential growth. Variable x serves as the independent predictor, increasing linearly, while y is the dependent response variable, exhibiting clear exponential behavior.

The following code snippet efficiently demonstrates the creation of these numerical arrays using core NumPy functions:

import numpy as np

x = np.arange(1, 21, 1)
y = np.array([1, 3, 5, 7, 9, 12, 15, 19, 23, 28,
              33, 38, 44, 50, 56, 64, 73, 84, 97, 113])

By successfully generating 20 data points where the response variable y increases at a continuously accelerating rate relative to x, we have established the essential groundwork for our quantitative analysis. This synthetic data mimics complex real-world dynamics where growth starts slowly but quickly gains overwhelming momentum, thereby confirming the appropriateness of selecting an exponential regression model for accurate fitting.

Step 2: Exploratory Data Analysis and Visualization

Visualization is a mandatory and critical step in robust statistical analysis. Plotting the raw data points allows analysts to visually confirm the functional relationship between variables—specifically, whether the curve suggests a non-linear model, such as exponential regression, is required, or if a simpler linear fit would suffice. We utilize the Matplotlib library, recognized as the industry standard tool for data visualization within the Python ecosystem, for this purpose.

We will construct a straightforward scatterplot: the predictor variable x is mapped to the horizontal axis, and the response variable y is mapped to the vertical axis. Observing the resulting plot provides immediate, intuitive insight into the underlying functional form of the relationship, guiding subsequent modeling decisions.

Execute the following concise code block to generate the initial visualization:

import matplotlib.pyplot as plt

plt.scatter(x, y)
plt.show()

The scatterplot distinctly reveals that the data points follow a clear upward curvature, thereby confirming the initial hypothesis of a non-linear relationship. This visual evidence strongly suggests that fitting an exponential regression equation is the most appropriate choice for describing the relationship between these variables accurately, rather than attempting to force a misleading simple linear regression model onto fundamentally curved data.

Step 3: Fitting the Linearized Model and Interpreting Coefficients

To successfully fit the exponential model (y = ab^x), the equation must first be linearized using the principles discussed earlier. Applying the natural logarithm (ln) transformation to both sides yields the linear form: ln(y) = ln(a) + x * ln(b). This transformed equation is perfectly linear with respect to the new dependent variable ln(y) and the independent variable x.

Within Python‘s NumPy library, we can utilize the highly versatile polyfit() function. Although primarily designed for polynomial fitting, by supplying x and the logarithmically transformed y (i.e., np.log(y)), and setting the degree parameter to 1, polyfit() efficiently computes the slope (which corresponds to ln(b)) and the intercept (which corresponds to ln(a)) of the linearized model.

The concise code below executes both the necessary data transformation and the model fitting process:

#fit the linearized model: ln(y) vs. x
fit = np.polyfit(x, np.log(y), 1)

#view the output of the model
print(fit)

[0.2041002  0.98165772]

The resulting output array, [0.2041002 0.98165772], provides the estimated regression coefficients for the linearized logarithmic model. Specifically, the first value (0.2041) represents the slope, which is equivalent to ln(b), and the second value (0.9817) is the y-intercept, which corresponds to ln(a). Based on these calculated figures, the fitted equation for the transformed data is clearly defined as:

ln(y) = 0.9817 + 0.2041(x)

Step 4: Reverting the Model and Making Practical Predictions

While the linearized equation is essential for the fitting process using OLS, the original exponential form (y = ab^x) is required for direct predictive applications and for an intuitive interpretation of the initial value and the growth factor. To transition back to the original non-linear form, we must perform the inverse of the logarithm operation, which involves exponentiating both sides (i.e., raising the mathematical constant e to the power of each side).

The parameter a, representing the initial value, is derived by calculating e raised to the power of the intercept (e^0.9817 ≈ 2.6689). Similarly, the parameter b, the growth factor, is found by calculating e raised to the power of the slope (e^0.2041 ≈ 1.2264).

Applying this reverse exponentiation yields the finalized, practical exponential model:

y = 2.6689 * 1.2264^x

This finalized, robust equation can now be used to accurately predict the response variable, y, for any given input value of the predictor variable, x. For example, if we aim to predict the value of y when x equals 12, we simply substitute this value into the derived exponential equation.

Substituting x = 12 into the model provides the following precise predicted value calculation:

y = 2.6689 * 1.2264¹² ≈ 30.897

Consequently, based on the parameters derived from our fitted model, we conclude that when x is equal to 12, the response variable y is predicted to be approximately 30.897. This result powerfully illustrates the practical utility of exponential regression in forecasting based on observed historical growth patterns.

Further Exploration and Advanced Resources

Achieving mastery in exponential regression necessitates consistent practice and a thorough understanding of data transformation techniques. While the OLS method applied to logged data is effective, specialized online calculators can serve as invaluable tools for rapidly verifying results or handling quick, preliminary analyses without extensive coding.

For data scientists interested in pushing beyond simple transformations, exploring alternative methods in non-linear regression is highly recommended. Resources covering iterative fitting algorithms—such as the Levenberg-Marquardt algorithm frequently employed by libraries like SciPy’s curve_fit—offer alternative, often more flexible and powerful methods that bypass the initial requirement for logarithmic data transformation entirely. These techniques are essential when the error structure of the data violates the assumptions inherent in the linearized model.
