A Comprehensive Guide to Understanding and Calculating Residuals in R Linear Models

The Conceptual Foundation: Understanding Residuals in Linear Regression

In the vast landscape of statistical modeling, particularly when dealing with linear regression, residuals stand out as the fundamental metric for gauging model accuracy and fitness. A residual is precisely defined as the quantitative vertical distance between an observed value in the dataset and the corresponding value predicted by the regression equation, known as the predicted value. Essentially, it quantifies the prediction error—the degree to which the model fails to perfectly capture the actual outcome for a specific data point. Understanding these errors is the first critical step toward robust model validation.

Each data point used in the analysis yields a unique residual, and the sign of this error carries crucial diagnostic information. A positive residual signifies that the model systematically underestimated the value of the dependent variable for that observation. Conversely, a negative residual indicates that the model overestimated the actual outcome. The absolute size, or magnitude, of the residual provides an immediate measure of the prediction error, allowing analysts to instantly assess the model’s accuracy at the individual data point level.

The rigorous analysis of residuals moves beyond simple error counting; it is integral to confirming the theoretical adequacy of a linear regression model. these errors offer profound insights into whether key underlying assumptions are being satisfied, such as the linearity of the underlying relationship, the independence of observations, and critically, the assumption of homoscedasticity (constant variance of errors). By meticulously examining the distribution and pattern of these errors, analysts can quickly detect systemic issues like influential outliers, uncaptured non-linear trends, or serious assumption violations, which are necessary signals for refining the model structure or transitioning to an alternative approach.

Core Methodology: Retrieving Residuals with the lm() function in R

For statistical computing practitioners utilizing R, the fundamental tool for fitting linear models is the highly versatile lm() function. When this function executes successfully, it generates a specialized structure known as a model object. This object is comprehensive, acting as a structured list that meticulously stores all the results and diagnostic data essential for interpretation, including the calculated coefficients, the raw residuals, and the fitted values.

To specifically isolate and retrieve the raw vector of residuals from this rich model object (which is commonly referenced using variable names like fit or model), R employs the powerful dollar sign operator ($). This operator facilitates direct access to specific, named components within the list structure. To extract the error terms, we reference the built-in residuals component, which the lm() function automatically populates during the model fitting process. This extraction technique is both standard and extremely efficient, requiring only the following syntax:

fit$residuals

Execution of this simple command returns a numeric vector. This resulting vector contains the raw, unscaled error terms corresponding precisely to every single observation used to train the model. This collection of error terms is the essential foundation required for performing subsequent diagnostic analyses, generating insightful visual checks, or integrating these errors into more sophisticated statistical procedures.

Practical Application: A Step-by-Step R Example

To solidify the understanding of this extraction process, we will now walk through a practical, worked example using a simulated dataset within the R environment. We begin by constructing a sample data frame tailored to analyze performance metrics, simulating key statistics for a small roster of hypothetical basketball players. This dataset includes measurements for total minutes played, the number of fouls committed, and the overall points scored by each player.

The structured data frame below serves as the necessary input for fitting a multiple linear regression model. Our goal is to simultaneously evaluate how both minutes played and fouls committed influence a player’s scoring output, thereby modeling the dependency of the response variable (points) on two distinct predictors (minutes and fouls).

# Create data frame for basketball player statistics
df <- data.frame(minutes=c(5, 10, 13, 14, 20, 22, 26, 34, 38, 40),
                 fouls=c(5, 5, 3, 4, 2, 1, 3, 2, 1, 1),
                 points=c(6, 8, 8, 7, 14, 10, 22, 24, 28, 30))

# View the created data frame
df

   minutes fouls points
1        5     5      6
2       10     5      8
3       13     3      8
4       14     4      7
5       20     2     14
6       22     1     10
7       26     3     22
8       34     2     24
9       38     1     28
10      40     1     30

We define our objective as modeling the dependent variable, points, as a linear combination of the independent variables, minutes and fouls. The underlying mathematical structure of this multiple linear regression relationship is formally expressed as: points = β₀ + β₁(minutes) + β₂(fouls) + ε. We execute this analysis using the standard lm() function in R, ensuring the entire resultant model object is conveniently stored in a variable named fit.

# Fit the multiple linear regression model
fit <- lm(points ~ minutes + fouls, data=df)

Once the model has been successfully fitted, the procedure for extracting the raw residuals is exceptionally direct. We simply utilize the dollar sign operator ($) to access the residuals component residing within our fit object. This simple operation retrieves a vector containing the quantitative differences between the actual observed points and the points estimated by our specific linear model for every player in the dataset.

# Extract residuals from the model object
fit$residuals

         1          2          3          4          5          6          7
 2.0888729 -0.7982137  0.6371041 -3.5240982  1.9789676 -1.7920822  1.9306786
         8          9         10
-1.7048752  0.5692404  0.6144057

Because our initial data frame contained ten distinct observations, the output vector correctly presents ten corresponding residual values. Each numerical value represents the precise prediction error associated with that specific player. The interpretation is critical:

• The first observation has a residual of 2.089, indicating a positive error, meaning the model underestimated the player’s true score by approximately 2.09 points.
• The fourth observation yields a residual of -3.524. This negative value signifies model overestimation, suggesting the model predicted 3.524 points more than the player actually scored, representing the largest prediction error magnitude in this sample.
• The tenth observation, with a residual of 0.614, shows a minimal positive error, suggesting a very small underestimation and indicating an exceptionally accurate prediction for this specific player.

Essential Diagnostic Tool: Visualizing Residuals vs. Fitted Values

While examining the numerical vector of residuals is informative, a rigorous statistical analysis demands visual validation. Visualizing residuals through diagnostic plots offers an immediate and powerful mechanism for assessing a model’s validity and identifying systemic flaws that raw numbers might obscure. The single most crucial diagnostic visualization is the Residuals vs. Fitted plot, which graphically exposes patterns hidden within the error terms.

This plot meticulously maps the raw residuals (on the y-axis) against the corresponding fitted values (the model’s predictions on the x-axis). It serves as the primary visual test for confirming several core assumptions of linear regression, most notably verifying the requirement for homoscedasticity and confirming that the functional relationship between the predictors and the response is adequately linear.

To generate this visualization in R, we first store the extracted residuals in a variable (e.g., res). We then utilize R’s base plot() function, defining the x-axis using the fitted values (easily accessed via fitted(fit)) and the y-axis using our stored residual variable. A crucial final step involves adding a horizontal reference line exactly at zero using abline(0,0), which is essential for correctly interpreting the scatter of the errors.

# Store residuals in a variable for plotting
res <- fit$residuals

# Produce the residual vs. fitted plot
plot(fitted(fit), res)

# Add a horizontal line at y=0 for reference
abline(0,0)

Interpreting Residual Plots for Model Diagnostics

The Residuals vs. Fitted plot is an indispensable diagnostic tool, particularly specialized for the assessment of homoscedasticity. This core assumption dictates that the variance of the error terms (represented by the vertical spread of the points) must remain constant across the entire range of independent variables, and consequently, across all possible fitted values. If this assumption is violated, the reliability of the model’s standard errors and significance tests is compromised.

For the model to satisfy the assumption of homoscedasticity, the residuals must display a fundamentally random scatter, forming a relatively symmetrical and consistent band both above and below the zero reference line. The detection of any systematic structure within this scatter is a serious warning sign. For example, a conspicuous “fanning-out” or funnel shape—where the error variance noticeably increases as the fitted values become larger—is the classic indicator of heteroscedasticity, a severe violation. Similarly, the appearance of a distinct curvilinear structure, such as a U-shape or an inverse U-shape, suggests that the linear model is failing to account for a significant non-linear relationship present in the data.

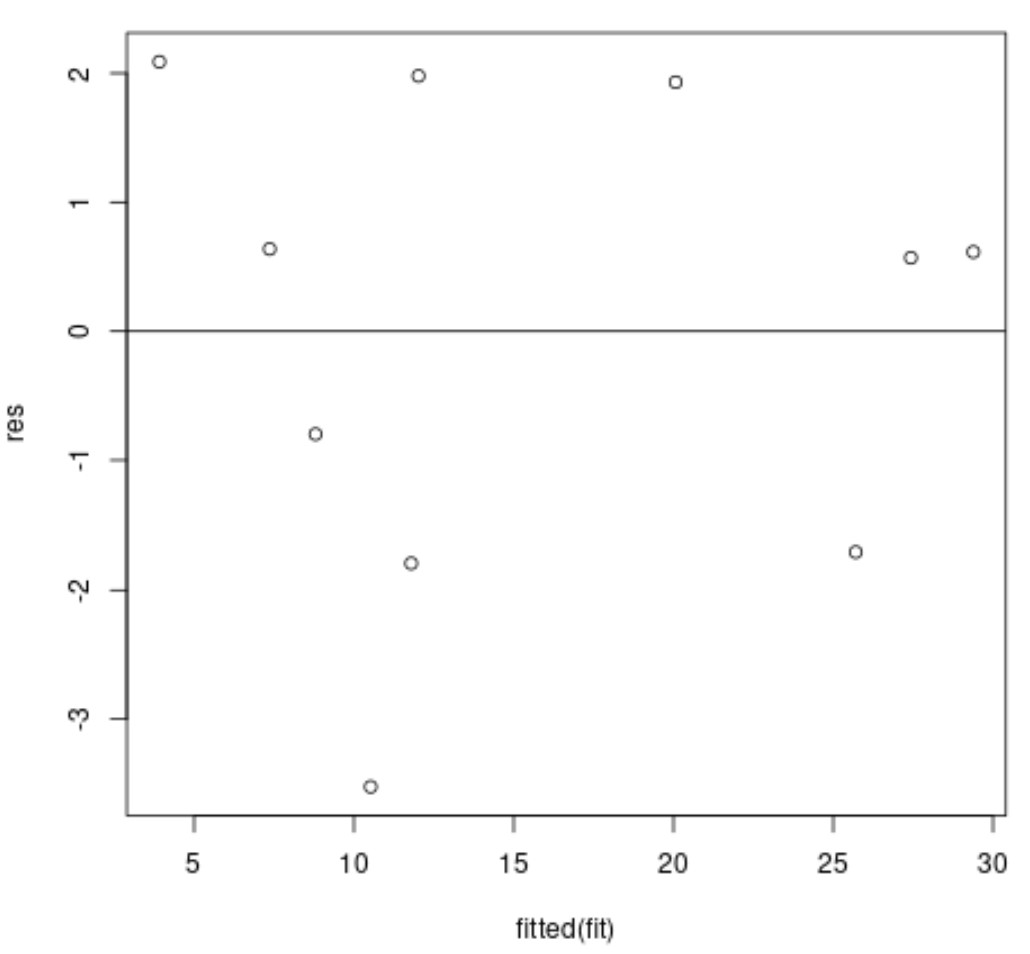

When analyzing the residual plot generated from our basketball player example, the ten data points appear randomly distributed without any clear structure around the horizontal zero line. Crucially, there is no discernible pattern of increasing or decreasing vertical spread as the fitted values increase, nor is there any evidence of a curvilinear trend. This compelling visual confirmation strongly indicates that our model successfully adheres to the requirement of constant variance, thereby confirming that our linear regression provides a reliable fit with respect to this essential diagnostic criterion.

Advanced Applications: Beyond Basic Residual Analysis

The diagnostic power of residuals extends well beyond the fundamental checks for linearity and constant variance. These computed error terms form the analytical basis for a comprehensive suite of model diagnostics readily accessible in R. For instance, residuals are necessary inputs for constructing the Normal Q-Q plot, an indispensable tool for assessing the critical assumption that the error terms follow a normal distribution. They are also integral to the Scale-Location plot, which offers a standardized, alternative visualization designed to confirm the consistency of error variance throughout the model.

Furthermore, careful identification of extreme values within the residual vector can immediately pinpoint potential outliers or observations that exert disproportionately high influence on the model. These highly deviant points, which deviate significantly from the model’s predictions, possess the capacity to drastically skew the estimated coefficients and potentially lead to inaccurate statistical inferences. Therefore, mastering the ability to accurately extract, systematically analyze, and correctly interpret residuals is a cornerstone analytical skill for any data practitioner engaged in robust statistical modeling and thorough model validation.

By effectively mastering the extraction of residuals using R’s lm() function and proficiently leveraging the platform’s extensive set of diagnostic plots, analysts can confidently ensure that their linear regression models are not merely statistically significant, but are also structurally sound, reliable, and appropriate for drawing meaningful inferences.
