Learning to Filter Charts in Excel: A Step-by-Step Guide with Examples

The Necessity of Dynamic Chart Filtering in Excel

In modern business and academic environments, the ability to effectively analyze and communicate complex information is paramount. Working with extensive datasets in Excel often presents a challenge: how do you transform rows and columns of raw numbers into clear, actionable insights? Displaying an entire chart based on a massive dataset, without any refinement, frequently results in visual clutter, obscuring the specific patterns or trends you intend to highlight. This overwhelming presentation dilutes the narrative, making it difficult for the audience to grasp the central message.

Fortunately, Microsoft Excel provides a robust and indispensable feature designed precisely to solve this problem: the Chart Filters function. This powerful tool empowers users to dynamically control the visibility of specific data points, data series, or categories within a chart. By applying precise filters, you are essentially refining the signal and eliminating the noise, transforming complex visual representations into concise, targeted presentations. This capability moves data visualization from static representation to dynamic data storytelling.

Mastering chart filtering is a fundamental skill for advanced data analysis. It allows analysts and presenters to adapt their visuals on the fly, answering specific questions from stakeholders without needing to reconstruct the underlying source data. This guide will walk you through a practical, step-by-step example, illustrating exactly how to leverage Excel’s intuitive Chart Filters to refine your charts, demonstrating techniques for applying single filters and combining multiple criteria to achieve highly focused data views.

Preparing the Environment: Sample Data and Initial Chart Construction

To demonstrate the filtering process effectively, we will utilize a common business scenario involving sales performance tracking. Our hypothetical dataset tracks the annual sales figures for three distinct products—Product A, Product B, and Product C—over a seven-year period. This longitudinal, time-series data is an ideal subject for detailed data analysis and visualization, as it allows us to observe performance trends over time.

The structure of our sample dataset is organized with years serving as the primary category and products serving as the individual data series, as represented below:

Our immediate objective is to create an initial visual representation of this entire sales history. For comparing quantitative values across several categories over time, a bar chart (specifically, a clustered column chart) is the most appropriate choice. Follow these critical steps to generate the default chart that will serve as our starting point:

• Begin by carefully highlighting the entire range of cells that contain your data, including both the headers (years and product names) and the numerical values. In this specific example, the necessary range is B1:D8.
• Next, locate and click on the Insert Tab found on the Excel Ribbon at the top of the application window. This tab houses all the components required for incorporating visual elements into your worksheet.
• Within the dedicated Charts group, select the option labeled Insert Column or Bar Chart. Choosing the first 2-D Clustered Column option will generate the initial bar chart based on the entire selected data range.

Upon successful completion of these steps, Excel automatically renders the comprehensive chart. This visualization displays the sales performance for all three products across all seven years included in the underlying data.

As seen in this initial visualization, every individual column represents the sales value of one product in a specific year. While comprehensive, the presence of three distinct data series often complicates direct comparison, making a targeted analysis difficult until we introduce dynamic filtering.

Implementing Series Filtering: Isolating Specific Data Streams

A common analytical requirement is the need to focus on a comparison between only two of the products, temporarily setting aside the third product’s performance. For instance, if management requests a direct comparison between Product A and Product B, we must temporarily exclude Product C from the visualization. This is the simplest and most common application of Excel’s Chart Filters.

The Chart Filters interface is seamlessly integrated into the graphical user interface, making it easily accessible immediately after a chart has been created. To achieve this targeted view, follow these precise instructions to filter by data series:

• The first step is to activate the chart by clicking anywhere within its border. This action will cause several tools and icons to appear around the chart perimeter.

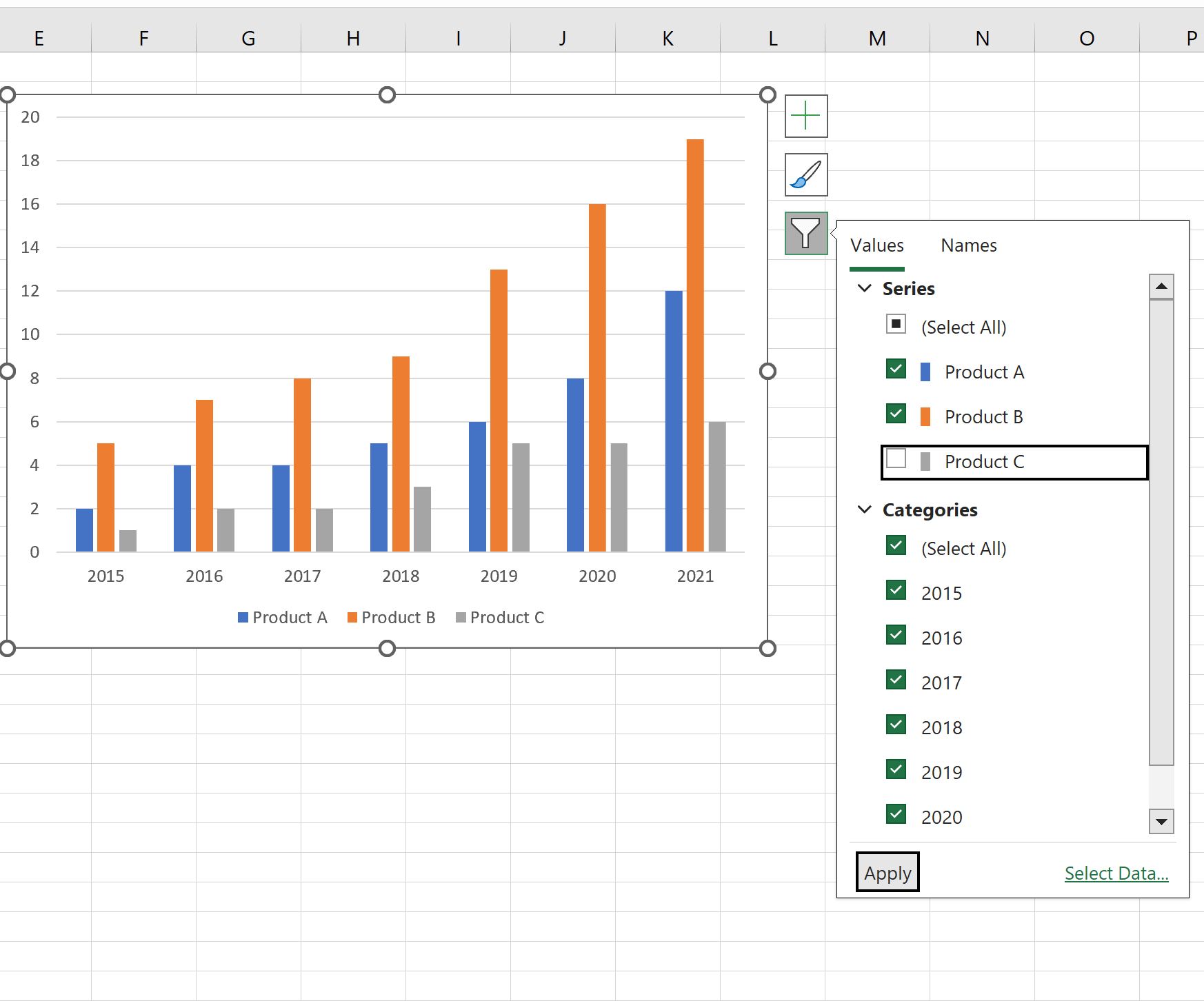

• Look for the distinctive filter icon (it resembles a funnel) which appears in the top-right corner of the selected chart area. Clicking this icon opens the dedicated Chart Filters pane.
• The filter pane is logically divided into two primary sections: Series (which corresponds to your products) and Categories (which corresponds to your years). Navigate to the Series section.
• Locate the entry for Product C within the list. The goal is temporary exclusion, so you must Uncheck the box next to the Product C label. This action prepares Excel to hide that specific data series.
• Crucially, finalize your selection by clicking the Apply button situated at the bottom of the filter pane. Until this step is executed, the filter changes remain pending and will not update the visualization.

Once the filter is applied, the chart instantly refreshes. It now exclusively displays the sales figures for Product A and Product B across the entire seven-year span. This streamlined data visualization significantly enhances the clarity of the comparison between these two specific product lines.

Combining Criteria: Refining the View by Category (Time)

The true power of Excel’s Chart Filters lies in its ability to handle multiple criteria simultaneously. You are not limited to filtering only by data series; you can also apply filters based on categories, which, in our case, represent the years of the recorded sales. This capability allows for highly granular data analysis, enabling users to drill down into specific timeframes or segments of the dataset.

Continuing with our example, let’s assume we want to maintain the focus on Products A and B but further restrict the view to analyze only the sales data from 2018 onwards. This involves adding a category filter on top of the existing series filter. To accomplish this, you must return to the Chart Filters pane and modify the Category selections:

• Ensure the chart remains selected, then click the filter icon once more to display the Chart Filters pane. Note that the previous filter for Product C remains active.
• This time, scroll down to the Categories section. This area lists every year present on the X-axis of your chart.
• To focus solely on the most recent period, you need to Uncheck the boxes corresponding to the initial years: 2015, 2016, and 2017. This instruction tells Excel to exclude these early data points from the current visualization.
• As always, finalize all your combined selections by clicking the Apply button. This action is essential for implementing the new categorical restrictions alongside the existing series restrictions.

With both the Series filter (excluding Product C) and the Category filter (excluding 2015-2017) now active, the chart immediately updates. It presents a highly targeted and focused view, showing only the performance of Products A and B, specifically confined to the years 2018 through 2021. This demonstrates the immense flexibility and analytical power gained by combining filtering criteria.

Maximizing Analytical Insights Through Iterative Filtering

The capability to dynamically filter charts in Excel is more than just a presentation trick; it is a core feature of effective data exploration and data analysis. By employing these techniques, analysts can move beyond static reports and engage in iterative analysis—a process where hypotheses are tested and refined by constantly adjusting the visual scope. This process is crucial for uncovering hidden trends, identifying subtle outliers, and providing robust evidence to support business decisions.

The interactive nature of chart filtering means you can easily toggle series and categories on and off. For instance, you could quickly switch Product C back on to see if its exclusion changed the perceived trend of A and B, or you could extend the timeframe back to 2015 to examine long-term growth trajectories. This flexibility ensures that you can always tailor your data visualization to the specific analytical question at hand or adapt your presentation to meet the needs of different stakeholders.

We strongly encourage users to embrace this dynamic approach. Feel confident in applying and removing filters as often as required. This interactive engagement with your chart will ultimately lead to more profound insights and ensure that your visual communications are consistently clear, relevant, and impactful.

Conclusion

Mastering the effective filtering of charts in Excel significantly enhances your capacity to present and interpret complex information with precision. The methodology outlined here—from preparing the initial data and chart, to applying single series filters, and finally combining those with category filters—demonstrates Excel’s intuitive power. By isolating specific data series and time periods, you gain unparalleled control over your data narrative, allowing you to create compelling and highly focused visualizations. Consistent practice with these techniques, using your own datasets, is the key to unlocking the full analytical potential of this essential software feature.
