When managing large datasets in Microsoft Excel, analysts frequently encounter the need to isolate specific records based on complex string patterns. This is particularly common when dealing with lists of email addresses where you might only want to display entries that belong to certain domains or contain particular usernames. While standard AutoFilter is useful for simple equality tests, filtering for partial text containment requires the more robust functionality provided by the Advanced Filter feature in Excel.
The **Advanced Filter** allows users to define sophisticated filtering rules using a separate area on the spreadsheet, known as the Criteria Range. This method is exceptionally powerful because it supports wildcards—special characters that stand in for unknown characters—making partial string matching simple and effective. The following detailed example walks through the precise steps required to utilize this function to filter an email list based on specific domain names.
The Need for Advanced Email Filtering in Microsoft Excel
Standard filtering methods in Microsoft Excel often fall short when the filtering requirement goes beyond simple selection or exact matching. Imagine you have thousands of entries and need to pull out all emails associated with “greatemail.com” OR “specificdomain.net,” simultaneously. Attempting this with the AutoFilter typically involves multiple, tedious steps of selecting text filters that “contain” the required text, often resulting in complex manual processes that are difficult to reproduce or audit.
The primary advantages of the Advanced Filter lie in its ability to handle complex logical operations (such as multiple OR criteria) and its powerful integration with wildcards. Furthermore, it offers the essential capability to copy the filtered results to a completely new location on the worksheet, leaving the original data intact. This non-destructive filtering approach is crucial for reporting and analysis, ensuring data integrity while providing a clean output set for further processing.
When working with email addresses, the structure of the data—which includes a username, the ‘@’ symbol, and a domain name—demands flexibility. We rarely want to filter for an entire, exact email address. Instead, we typically want to find all rows where the domain name contains a specific string. This requirement mandates the use of the **Advanced Filter** and its powerful implementation of **wildcard characters**, which we will detail in the setup process.
Setting Up the Data and Defining the Criteria Range
Before executing the filter, we must prepare our data and define the filtering rules. Consider the following list of email addresses, which we will use as our sample dataset. This data resides in column A, starting with the header “Email” in cell A1.
Suppose our objective is to isolate all rows where the email address contains either “samplemail” or “greatemail.com” anywhere within the string. To achieve this, the first critical step is establishing the Criteria Range. This range serves as the instruction set for the filter, telling Excel exactly what to look for.
The Criteria Range must adhere to a strict format: the top row must contain a column header that matches the header of the data you are filtering (in this case, “Email”). The subsequent rows contain the specific conditions. When defining OR conditions, as we are doing here (either domain A or domain B), the criteria must be placed on separate rows beneath the header.

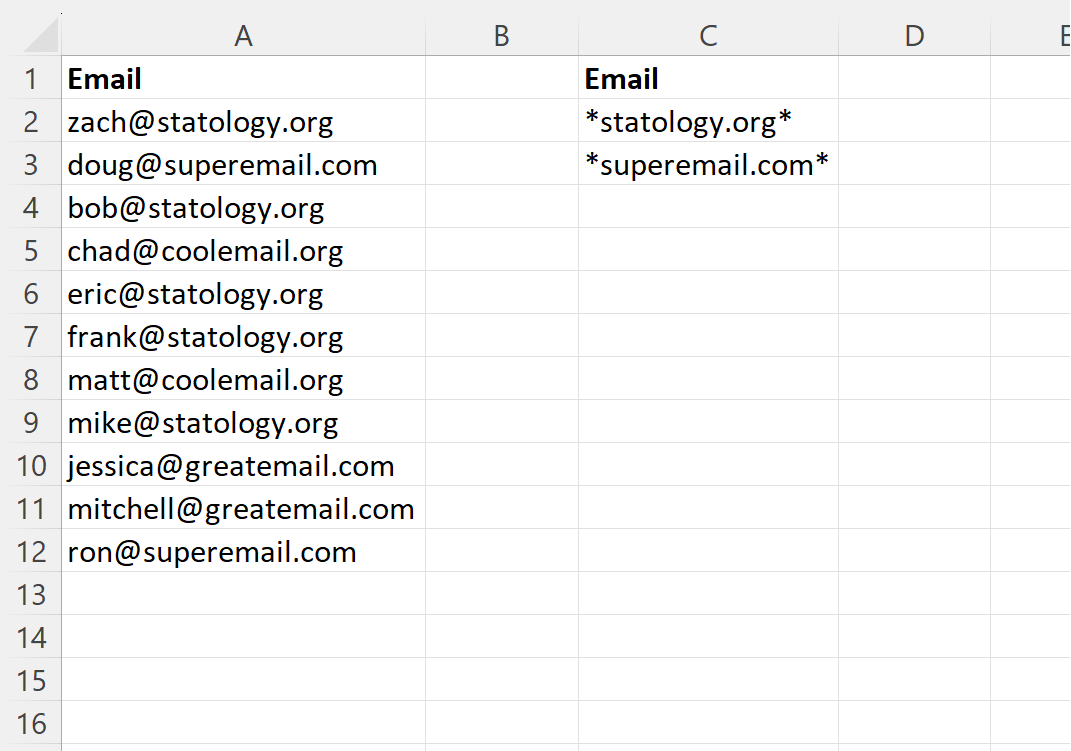

For partial string matching, we use the asterisk (*) as a wildcard. The asterisk represents any sequence of characters (including no characters). By surrounding the desired text with asterisks (e.g., *samplemail*), we instruct Excel to find any cell that contains that text, regardless of what comes before or after it. This setup is shown below, defined in cells C1 through C3:
Notice how the header in C1 is an exact match for the header in A1 (“Email”). The criteria *samplemail* (C2) and *greatemail.com* (C3) are placed on separate rows, signifying an OR condition: “Filter rows where the Email column matches criterion 1 OR criterion 2.” This robust setup is essential for managing complex filtering logic that standard filters cannot handle efficiently.
Step-by-Step Guide to Applying the Advanced Filter
Once the data and the Criteria Range are correctly established, executing the **Advanced Filter** is straightforward. We begin by navigating to the filtering tool, which is located under Excel’s primary data manipulation ribbon.
First, click the Data tab located in the main Excel menu bar. This tab contains all tools related to data management, sorting, filtering, and external connections.
Next, locate the **Sort & Filter** group within the Data tab and click the **Advanced Filter** button. This action opens the primary dialog box for the Advanced Filter feature.

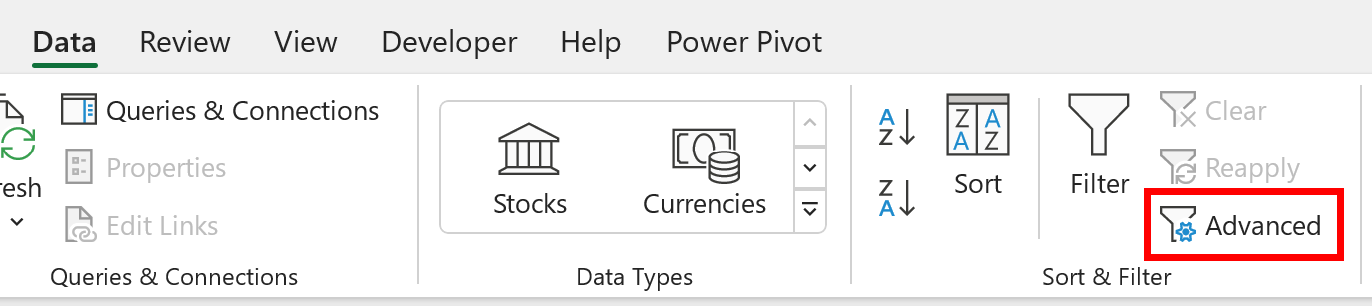

The location of the button is clearly indicated below:
The **Advanced Filter** dialog box requires three main inputs: the List Range, the Criteria Range, and the desired action (Filter in place or Copy to another location). In our scenario, we will choose to copy the results to a new location to maintain the original data structure.
In the dialog box, select the action **Copy to another location**.
Define the List range. This is the entire block of data you wish to filter, including the header row. In our example, this corresponds to the range A1:A12.
Define the Criteria range. This is the specific area containing your filtering rules, including the matching header row. We select the range C1:C3.
Define the Copy to location. This specifies the starting cell where the filtered results should be displayed. We will choose cell E1.
The final configuration of the **Advanced Filter** dialog box should look like the image below, confirming the ranges and the output location:
After confirming these settings and clicking OK, Excel processes the request, applying the dual OR criteria defined in the Criteria Range.
Interpreting the Results and Understanding Wildcard Usage
Upon successful execution of the Advanced Filter, the dataset will be filtered, and the results will be copied to the designated output location (starting at E1). The resulting filtered list will only contain rows where the email address meets either of the specified criteria (containing “samplemail” or containing “greatemail.com”).
The key to this operation is the powerful use of wildcards, specifically the asterisk (*). In this context, the asterisk acts as a placeholder for any preceding or subsequent characters. If we had simply entered “greatemail.com” in the criteria cell without surrounding asterisks, the filter would have searched for emails that exactly matched “greatemail.com,” which is not a valid email address and would yield no results.
By contrast, *greatemail.com* instructs Excel to find strings that:
- Start with zero or more characters (* before the text).
- Are followed by the literal string “greatemail.com”.
- Are followed by zero or more characters (* after the text).
This technique is crucial for substring matching, allowing us to accurately filter by domain, local part, or any specific segment of the email address without needing to know the complete structure of the string. Understanding the difference between exact matching and containment filtering, facilitated by wildcards, is fundamental to mastering the **Advanced Filter**.
Key Considerations for Successful Advanced Filtering
While the **Advanced Filter** is a robust tool, its successful application depends on adhering to several best practices, particularly concerning the setup of the Criteria Range. Failure to follow these rules often leads to unexpected results or error messages.
First and foremost, the column header used in the Criteria Range must be an **exact, case-sensitive match** to the header in the source data. Any discrepancy—even an extra space or a capitalization difference—will cause the filter to fail, as Excel will not be able to correctly map the criteria to the source column. For example, if the data header is “Email Address,” using only “Email” in the criteria header will prevent the filter from working.
Secondly, the layout of the criteria dictates the logical operation. Placing criteria on the **same row** under different column headers creates an **AND** condition (e.g., must match criterion A AND criterion B). Placing criteria on **separate rows** under the same or different column headers creates an **OR** condition (e.g., must match criterion A OR criterion B). In our email filtering example, placing *samplemail* and *greatemail.com* on separate rows was essential to implement the desired OR logic.
Finally, always ensure that the List Range selection is accurate and includes the header row. When copying results to a new location, the output location (Copy To) must be a range that is not overlapping with the List Range or the Criteria Range. Typically, selecting only the top-left cell (like E1) is sufficient, as Excel dynamically expands the output area to accommodate the filtered results. Careful adherence to these structuring rules ensures reliable and accurate filtering of complex datasets in **Microsoft Excel**.
