Learning VBA: Automating Pivot Table Filtering in Excel

Automating Data Analysis: Leveraging VBA to Filter Pivot Tables

Pivot Tables (PT) are fundamental components within Excel (XL), serving as essential tools for aggregating, summarizing, and transforming large datasets into actionable analytical reports. While the standard interactive interface provides adequate means for manual data manipulation, achieving optimal efficiency and ensuring reporting consistency—especially for recurring or complex filtering requirements—demands a programmatic approach. This capability is unlocked through the power of Visual Basic for Applications (VBA) (VBA).

VBA allows developers and advanced users to bypass laborious manual steps, granting the ability to dynamically control and filter Pivot Tables based on external inputs or sophisticated criteria. Implementing automation not only dramatically enhances speed but also significantly reduces the margin for human error, ensuring reliable data outputs every time.

This comprehensive guide will systematically dissect the three primary methods available within VBA for precise control over Pivot Table filtering operations. We will explore isolating data based on a single condition, applying inclusion filters using multiple criteria, and finally, programmatically clearing all active filters to restore the initial data state. Each technique is presented with detailed code snippets and clear explanations, facilitating immediate application within your data management and reporting projects.

Method 1: Dynamic Filtering Based on a Single Criterion

The simplest and most common filtering requirement is the isolation of records that match a solitary, predetermined value. This operation might involve displaying data exclusively for a specific region, focusing on a particular product category, or analyzing information for a single date. Automating this single-value filter is crucial for generating reports consistently and instantly, often referencing external inputs, such as a value entered into a worksheet cell, to define the filtering condition dynamically.

To achieve this automation, we utilize a straightforward VBA macro that targets a designated field within the Pivot Table and applies an exact match filter derived from a specified worksheet location. This approach ensures that the filter criterion is external to the code itself, maximizing the solution’s flexibility and reusability across different reporting cycles.

Sub FilterPivotTable()
   Dim pf As PivotField
   Dim myFilter As String
   Set pf = ActiveSheet.PivotTables("PivotTable1").PivotFields("Position")
   myFilter = ActiveWorkbook.Sheets("Sheet1").Range("J2").Value
   pf.PivotFilters.Add2 xlCaptionEquals, , myFilter
End Sub

This macro is designed to operate on a Pivot Table named “PivotTable1“. The logic begins by setting the target field, “Position“, as a PivotField (`pf`) object. The critical step involves retrieving the filter criterion (`myFilter`) dynamically from cell “J2” on “Sheet1” of the active workbook. The actual filtering command then uses the PivotFilters collection’s `Add2` method, utilizing the `xlCaptionEquals` operator. This operator dictates a precise match between the field values and the content of the `myFilter` String. By executing this command, the Pivot Table immediately updates to display only the data satisfying this exact condition, using a value retrieved from a specified Range (R).

Method 2: Implementing Multi-Criteria Filtering with VBA

Frequently, analytical demands extend beyond singular criteria, requiring data to be filtered based on inclusion within a list of several acceptable values—an “OR” condition. Manually managing this multi-criteria filtering is often cumbersome, particularly when the list of required criteria is subject to frequent changes. The following VBA macro provides a powerful, iterative solution capable of handling complex visibility requirements by comparing every item in the target PivotField (PF) against a dynamically specified list of values.

Unlike the single-criteria method which relies on the built-in `Add2` method, multi-criteria filtering often necessitates adjusting the `Visible` property of individual PivotItem objects. This approach grants granular control over which items remain visible. The key to successful implementation is preparatory cleanup: ensuring that all previous filters are cleared before applying the new complex visibility logic, guaranteeing that the operation starts from an unfiltered base.

Sub FilterPivotTableMultiple()
  Dim v As Variant
  Dim i As Integer, j As Integer
  Dim pf As PivotField
  Set pf = ActiveSheet.PivotTables("PivotTable1").PivotFields("Position")

  'specify range with values to filter on
  v = Range("J2:J3")

  'clear existing filters
  pf.ClearAllFilters

  'apply filter to pivot table
  With pf
    For i = 1 To pf.PivotItems.Count
      j = 1
       Do While j <= UBound(v, 1) - LBound(v, 1) + 1
         If pf.PivotItems(i).Name = v(j, 1) Then
           pf.PivotItems(pf.PivotItems(i).Name).Visible = True
           Exit Do
        Else
          pf.PivotItems(pf.PivotItems(i).Name).Visible = False
        End If
        j = j + 1
      Loop
    Next i
  End With
End Sub

This advanced macro handles the complex visibility settings for the “Position” PivotField. The filtering values are sourced dynamically from a defined Range (e.g., “J2:J3“) and stored in the `v` array. The core functionality relies on a nested loop structure: the outer loop iterates through every PivotItem (PI) in the field, while the inner loop checks if the item name matches any of the criteria listed in the array `v`. If a match is found, the item’s `Visible` property is set to `True`, and the inner loop is exited immediately. If no match is found after checking all criteria, the item is hidden by setting `Visible = False`. This detailed control ensures the data accurately reflects the required “OR” condition.

Method 3: Programmatically Clearing All Pivot Table Filters

During iterative data analysis or when preparing a report for a completely new filtering sequence, it is often essential to revert the PivotTable (PTO) to its original, unfiltered state. Manually navigating through multiple fields to clear individual filters is both time-consuming and risks overlooking a filter, leading to potentially inaccurate reports. Fortunately, Excel VBA macros offer a single, efficient command to instantly reset the entire table.

Sub ClearPivotTableFilter()
   Dim pt As PivotTable
   Set pt = ActiveSheet.PivotTables("PivotTable1")
   pt.ClearAllFilters
End Sub

This concise macro first identifies the target PivotTable, “PivotTable1“, on the active sheet by setting the object reference (`pt`). The subsequent and final line executes the built-in `ClearAllFilters` method. This simple, yet highly effective, action removes every single filter applied across all PivotField objects within that table. The result is an immediate restoration of the full, complete data view, ensuring that subsequent analyses begin from a clean, unbiased data state.

Practical Application: Real-World Filtering Examples

To solidify the understanding of these programmatic methods, we will now examine practical scenarios that demonstrate how the VBA code functions in a tangible, real-world context. These illustrations use a hypothetical dataset of basketball player statistics to showcase the immediate visual changes resulting from executing each automation macro.

Example 1: Isolating Data Based on a Single Position

Imagine an initial, unfiltered PivotTable (PTO) that aggregates player data across all available positions (Guard, Center, Forward). Our initial goal is to generate a report focusing exclusively on players designated as “Guard”. The visual representation of the unfiltered table is displayed below:

To automate the process of filtering for “Guard”, we first place this specific criterion into cell “J2” on “Sheet1“. This use of an external cell reference allows the single-criteria macro to adapt instantly if the required position changes without needing any code alteration. We then apply Method 1, which employs the `xlCaptionEquals` operator to find an exact match based on the value retrieved from the specified Range.

Sub FilterPivotTable()
   Dim pf As PivotField
   Dim myFilter As String
   Set pf = ActiveSheet.PivotTables("PivotTable1").PivotFields("Position")
   myFilter = ActiveWorkbook.Sheets("Sheet1").Range("J2").Value
   pf.PivotFilters.Add2 xlCaptionEquals, , myFilter
End Sub

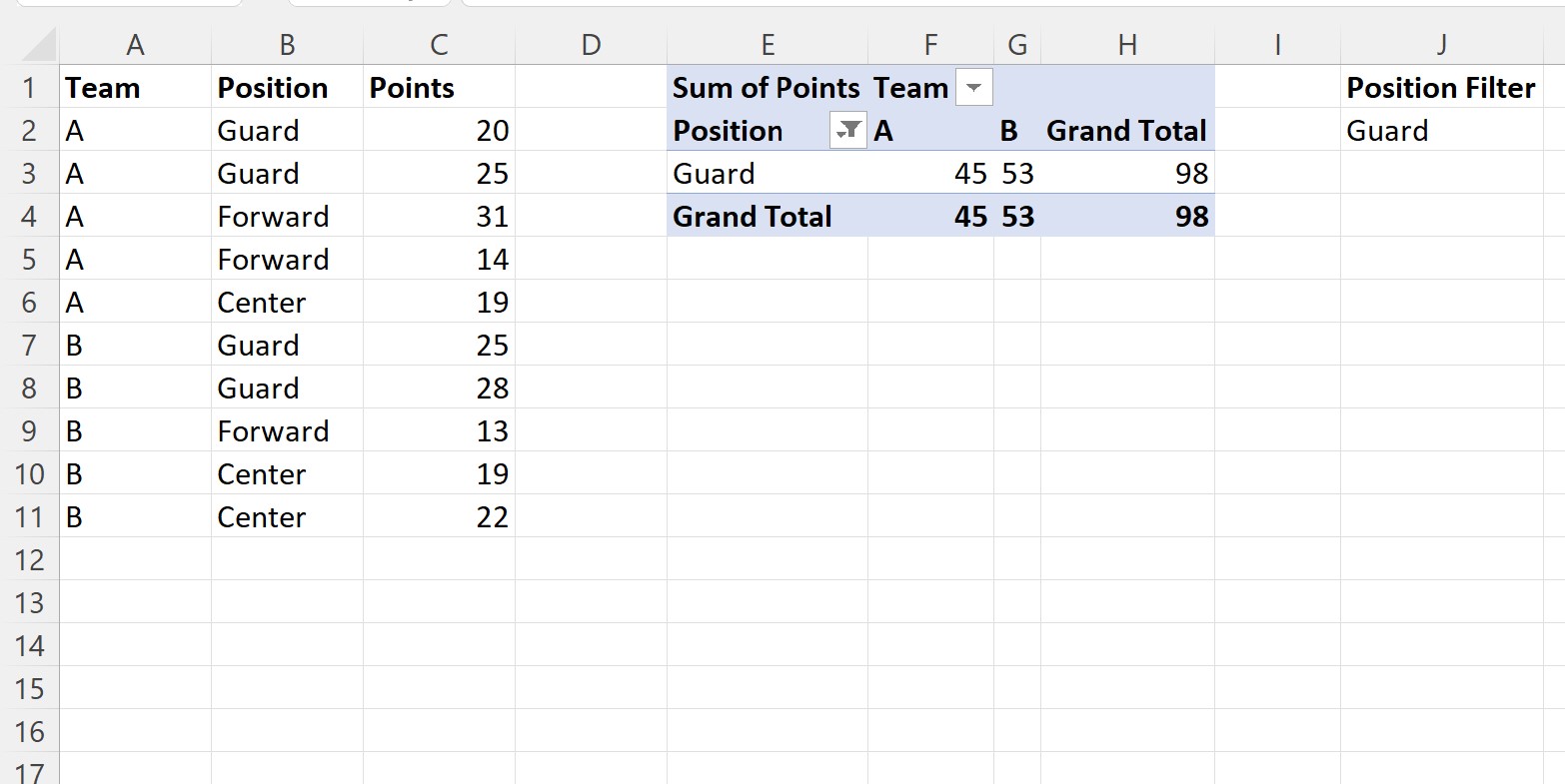

Executing the code above results in the immediate transformation of the report. The PivotTable is refreshed, displaying only those entries where the “Position” field caption is precisely “Guard”. This fundamental capability forms the basis for creating highly automated and specific analytical reports.

As confirmed by the updated view, the filter successfully isolated the data for the “Guard” position, demonstrating the efficiency of programmatic single-criteria filtering.

Example 2: Filtering Data Based on Multiple Positions

Now, suppose the analytical requirement shifts to viewing combined statistics for two distinct positions: “Guard” and “Center”. This multi-criteria requirement necessitates the use of Method 2’s iterative visibility technique, which allows for complex “OR” filtering.

To prepare the dynamic input list, we update “Sheet1” by listing “Guard” in cell “J2” and “Center” in cell “J3“. The VBA logic will read this range of values, clear any previously applied filters, and then systematically iterate through and adjust the visibility of each PivotItem (PI) to ensure only the specified positions remain visible.

Sub FilterPivotTableMultiple()
  Dim v As Variant
  Dim i As Integer, j As Integer
  Dim pf As PivotField
  Set pf = ActiveSheet.PivotTables("PivotTable1").PivotFields("Position")

  'specify range with values to filter on
  v = Range("J2:J3")

  'clear existing filters
  pf.ClearAllFilters

  'apply filter to pivot table
  With pf
    For i = 1 To pf.PivotItems.Count
      j = 1
       Do While j <= UBound(v, 1) - LBound(v, 1) + 1
         If pf.PivotItems(i).Name = v(j, 1) Then
           pf.PivotItems(pf.PivotItems(i).Name).Visible = True
           Exit Do
        Else
          pf.PivotItems(pf.PivotItems(i).Name).Visible = False
        End If
        j = j + 1
      Loop
    Next i
  End With
End Sub

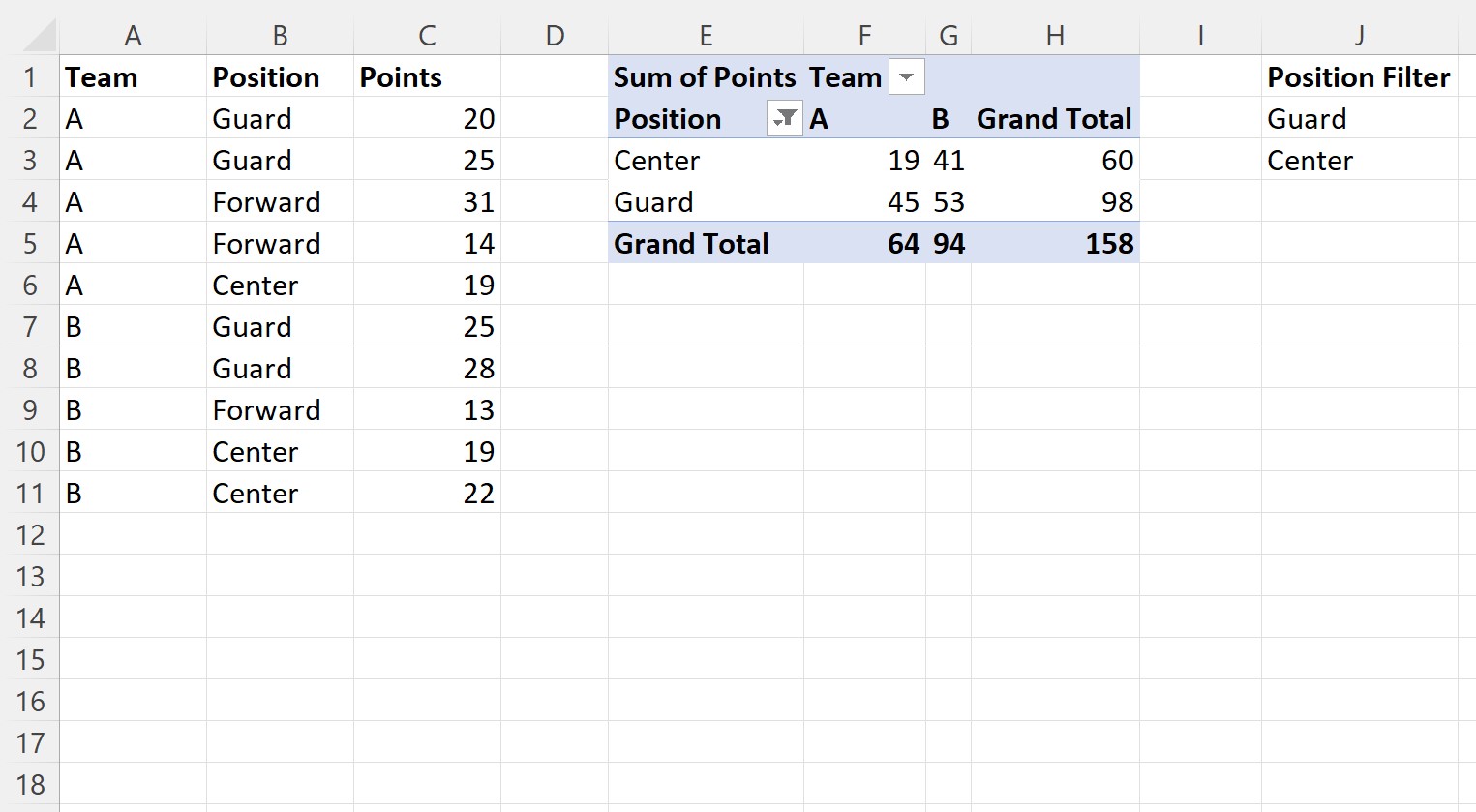

Upon executing this code, the Excel table immediately reflects the updated criteria. Only rows corresponding to “Guard” and “Center” are displayed, providing a combined, targeted view essential for comparative analysis and advanced reporting needs.

The visual output above confirms the successful application of the multi-criteria filter, powerfully demonstrating the ability of VBA to handle complex, dynamic data segmentation requirements effectively.

Conclusion

Gaining the ability to programmatically control Pivot Table filtering represents a significant leap toward achieving true workflow automation within Excel. Whether the task involves isolating data based on a single dynamic variable, applying complex inclusion filters across multiple criteria, or resetting the data view entirely, the techniques outlined in this guide provide efficient, scalable, and reliable solutions for data management.

By embedding these programmatic solutions into your daily routines, you can drastically reduce manual preparation time, ensure reporting consistency across all stakeholders, and dedicate more valuable time to interpreting analytical results rather than focusing on repetitive data setup. Mastery of the Pivot Table object model, combined with these VBA techniques, grants unparalleled flexibility for creating advanced reporting systems within the Microsoft Office environment.
