Learning to Create a Line of Best Fit (Trendline) in Google Sheets

Understanding the Line of Best Fit

A line of best fit, frequently identified as a trendline, is a cornerstone of quantitative statistical analysis. This straight line mathematically encapsulates the most probable linear relationship between two variables contained within a specific dataset. The derivation of this line relies on a critical objective: minimizing the aggregate sum of the squared differences, known statistically as residuals, between the calculated line and every observed data point.

This powerful visualization technique serves dual purposes. First, it provides a crucial assessment of whether a genuine linear relationship exists between the independent (predictor) variable and the dependent (response) variable. Second, and perhaps most importantly, establishing this line permits analysts to extrapolate trends and construct reliable predictions concerning future or unobserved outcomes.

This comprehensive, step-by-step tutorial details the precise procedure for generating, customizing, and rigorously analyzing a line of best fit using the robust and freely available functionalities provided by Google Sheets.

Step 1: Preparing Your Dataset for Analysis

Before any successful graphical or statistical investigation can commence, it is mandatory that the underlying data be properly structured. For the purpose of simple linear regression, the dataset must contain at least two columns of numerical observations: one dedicated to the predictor variable (conventionally denoted as X) and the other dedicated to the response variable (Y). These variables represent the cause and effect relationship we seek to model.

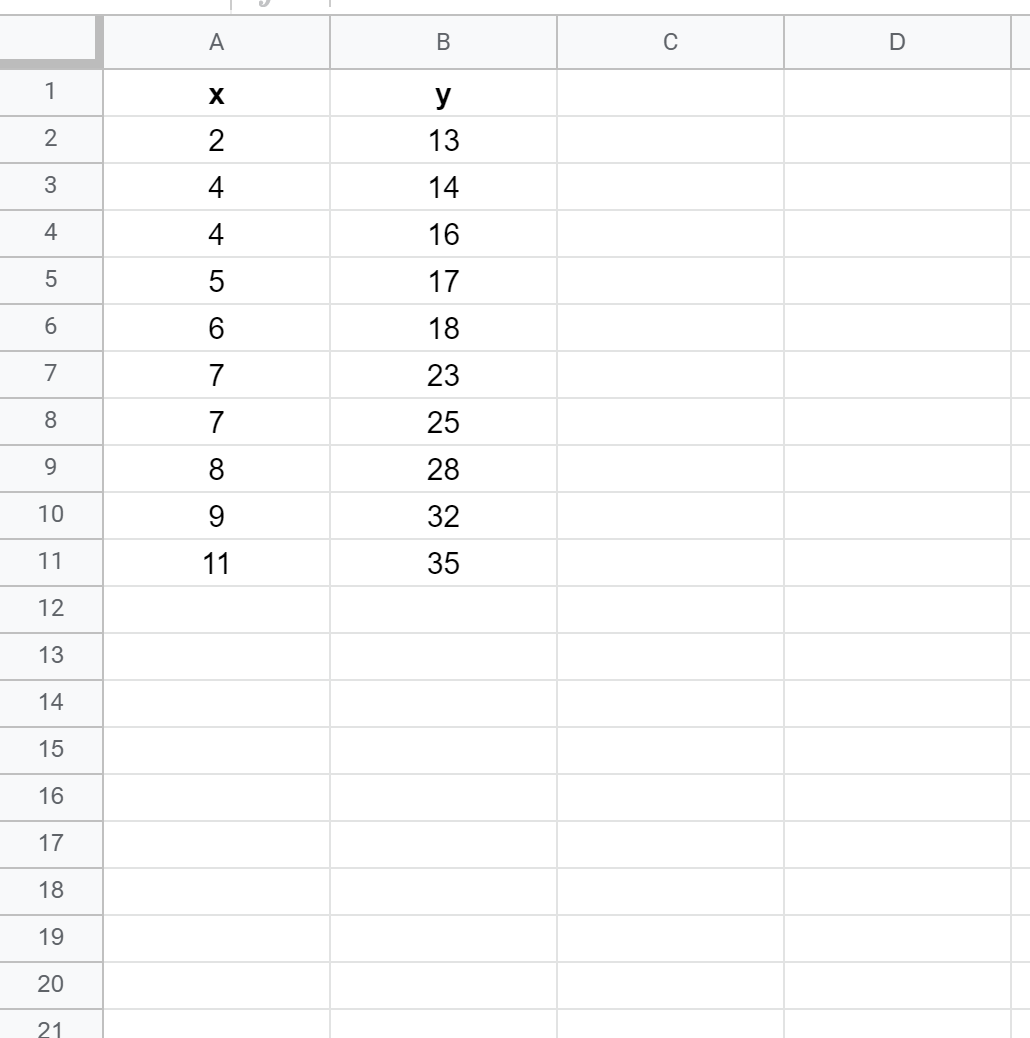

For instructional clarity throughout this demonstration, we will utilize a synthetic dataset comprising ten paired observations:

It is essential to ensure that your data is neatly organized, typically with descriptive headers placed in the first row. In our specific example, the X (predictor) variable resides in Column A, and the Y (response) variable is located in Column B. This meticulous preparation is critical, as it allows Google Sheets to accurately interpret and map the data ranges during the subsequent charting phase.

Step 2: Visualizing Data through a Scatterplot

The initial visualization step in determining the line of best fit is the creation of a scatterplot. A scatterplot graphically maps the values of the two variables, providing immediate visual insight into the potential correlation and allowing analysts to preliminarily judge the linearity and strength of the relationship.

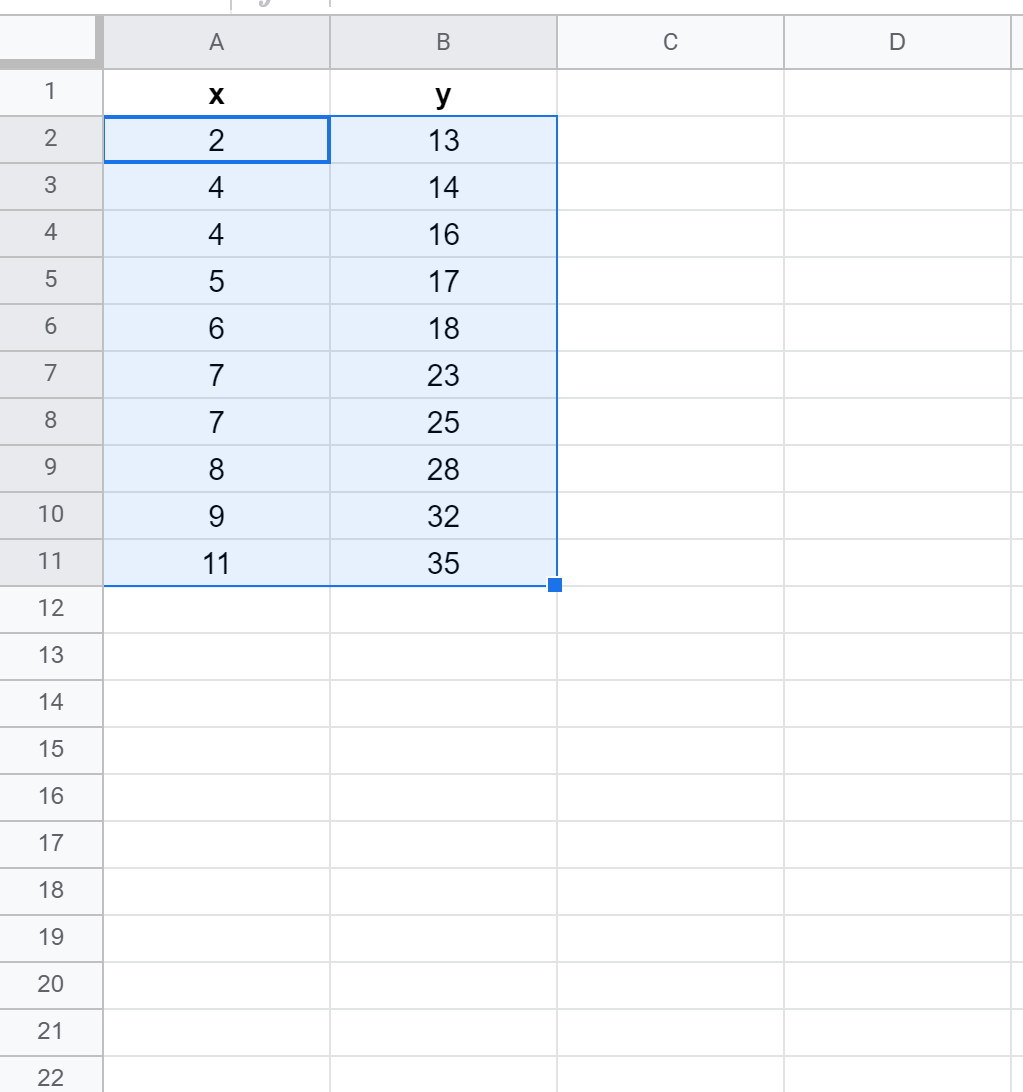

To initiate the process, highlight the continuous range of cells that contain your numerical data, specifically the range A2:B11, which encompasses both the X and Y values:

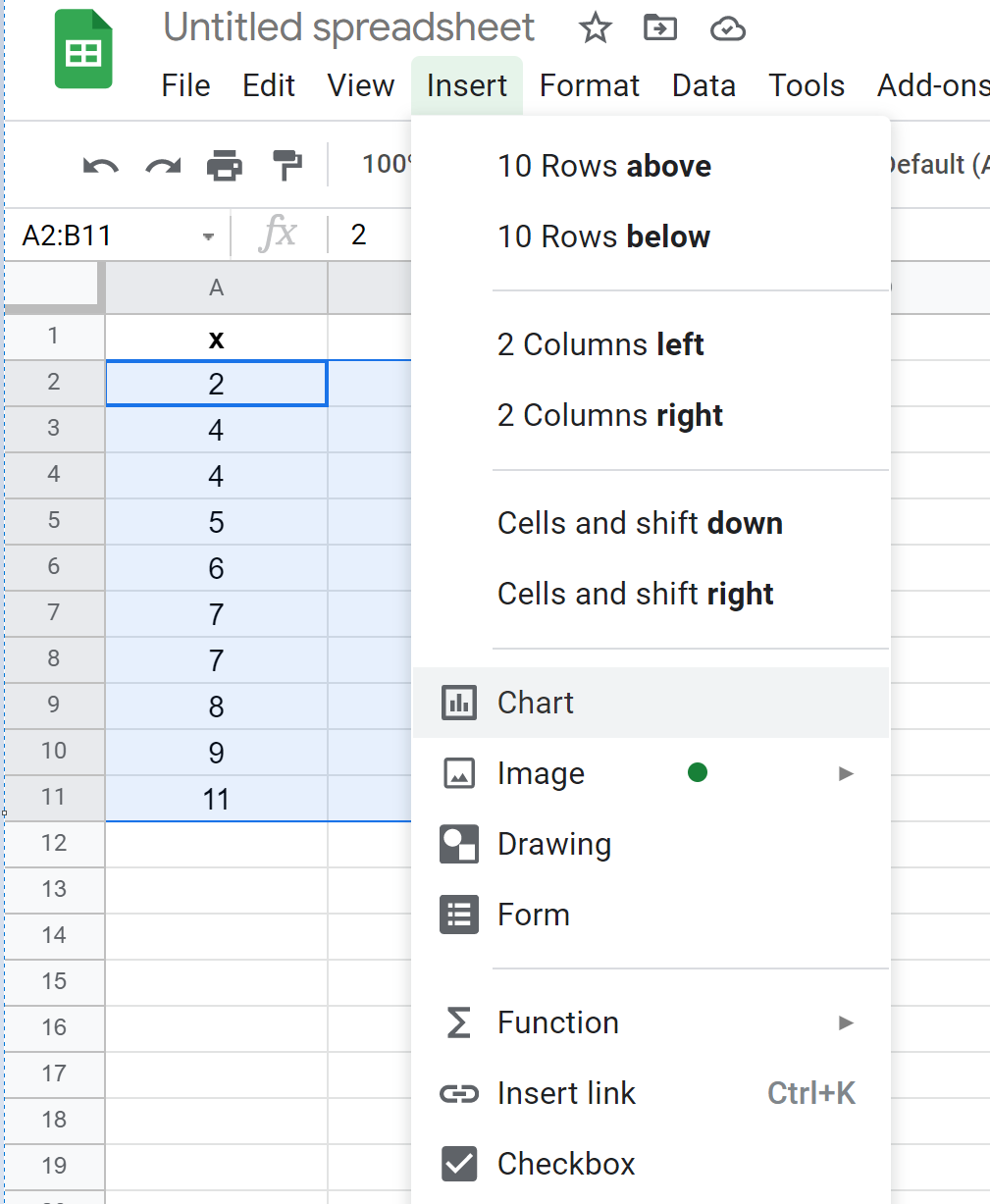

Once the range is highlighted, proceed to the main menu bar. Click the Insert tab, and then select the Chart option from the resulting dropdown menu:

Google Sheets usually possesses sufficient intelligence to recognize the numerical structure of the selected data and will often default to inserting a scatterplot automatically. However, if the sheet selects an alternative chart type (such as a line or bar chart), you must manually open the Chart Editor panel and navigate to the Setup tab to explicitly select “Scatter chart” as the desired visualization type.

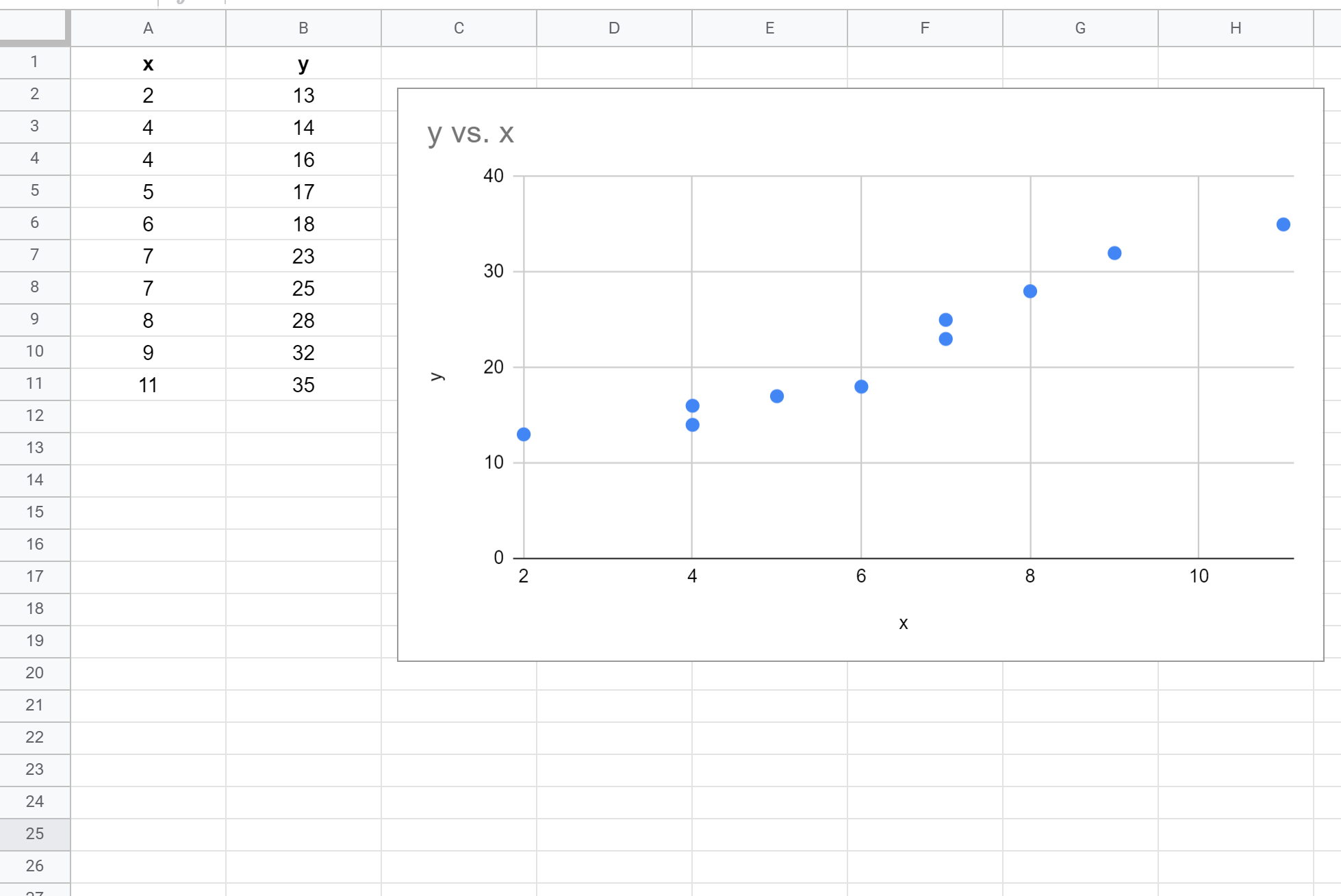

The resulting visualization should display a distribution of points similar to the image below, offering the first visual evidence of the linear association:

Step 3: Implementing and Configuring the Trendline

With the scatterplot successfully generated, the next essential step is to overlay the line of best fit—the trendline. This line is calculated using the rigorous method of least squares, which ensures it provides the single most accurate linear representation of the current data distribution.

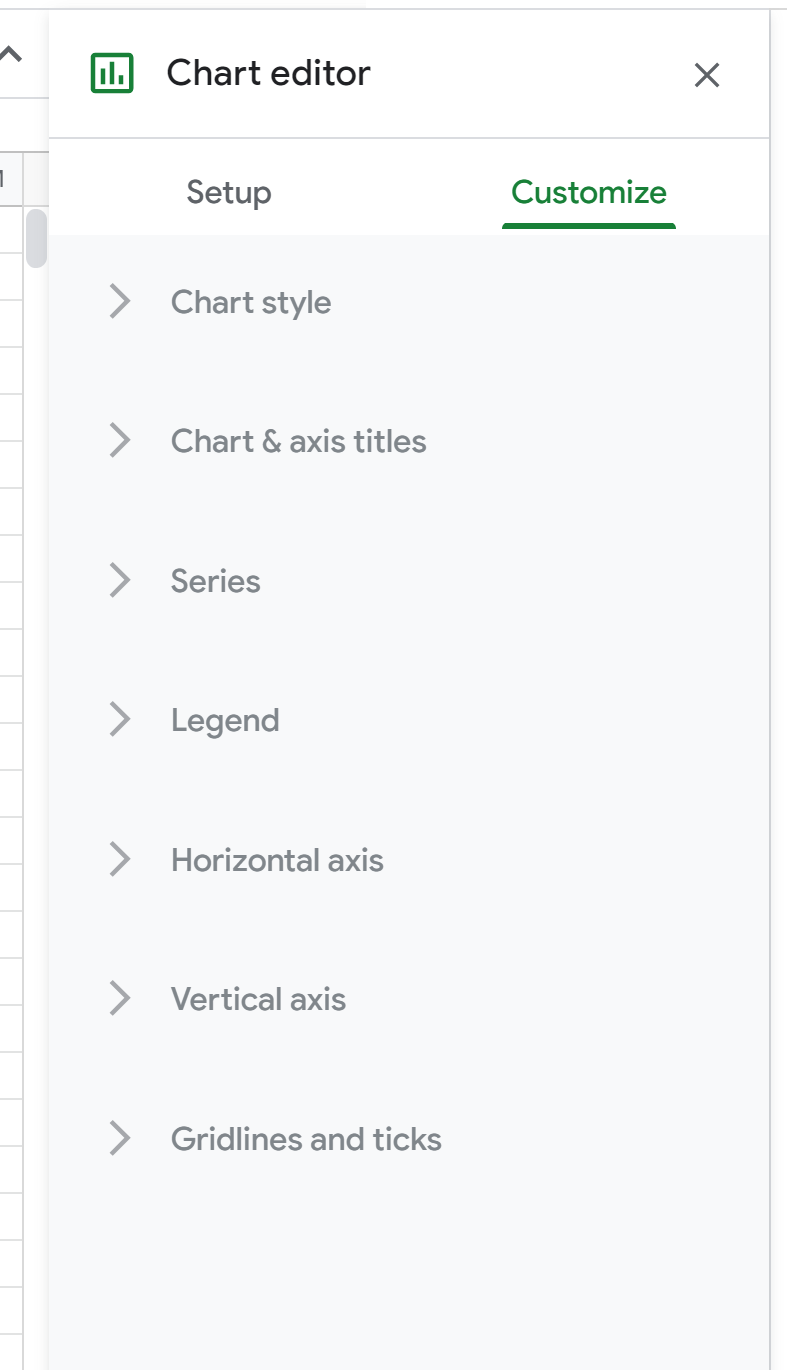

To access the specific customization controls, simply double-click anywhere within the boundary of the scatterplot. This action will immediately open the Chart Editor panel on the right-hand side of your spreadsheet interface:

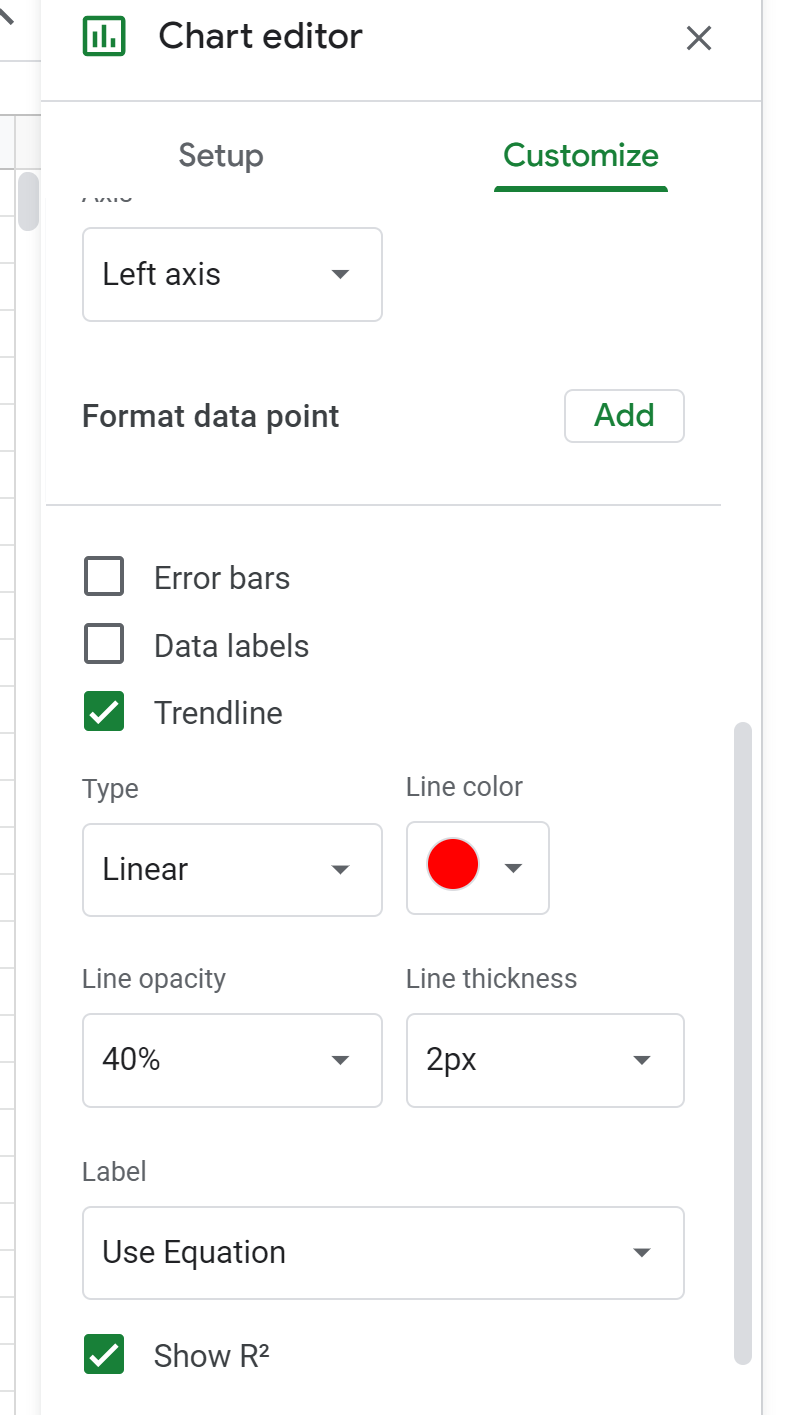

Within the Chart Editor, switch your focus to the Customize tab. Scroll down this tab until you locate the Series section. Expand this section to reveal the configuration options, and then find and check the box explicitly labeled Trendline.

By default, Google Sheets will correctly set the Type of the trendline to “Linear.” This setting is precisely what is required for calculating a straight line based on simple linear regression principles. For enhanced clarity, you have the option here to adjust the line’s color or thickness, although the default visual settings are typically adequate for immediate interpretation.

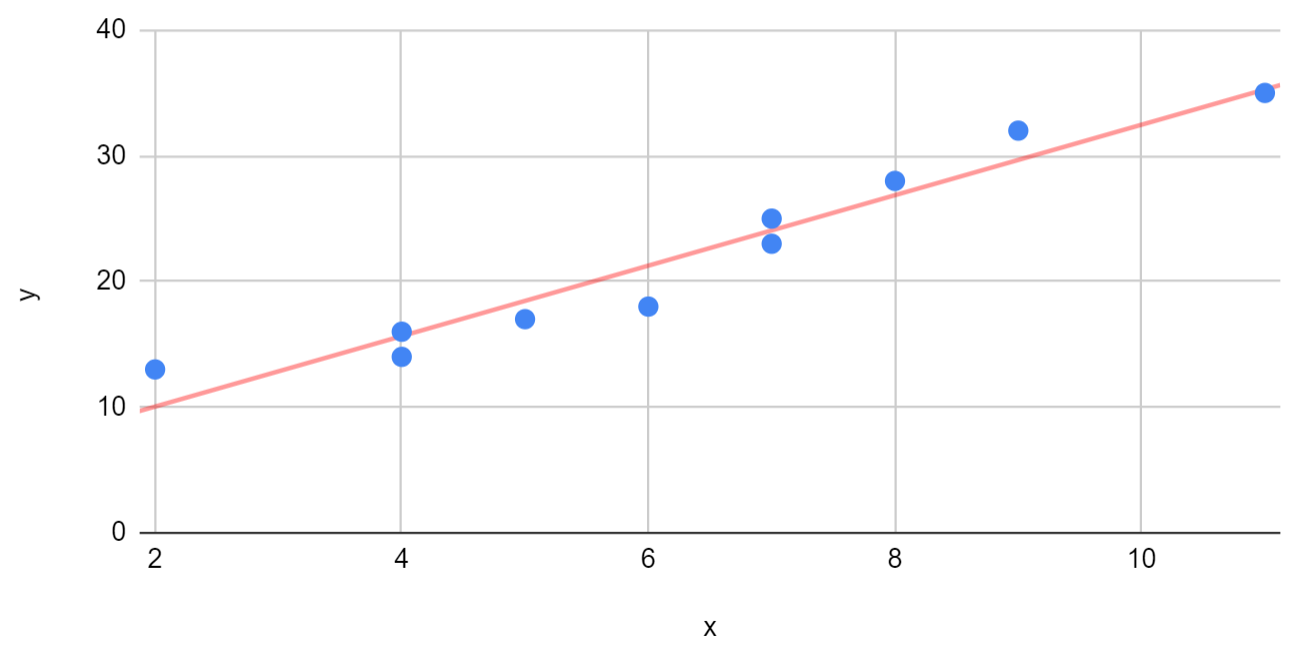

The moment you activate the Trendline option, the calculated line of best fit is instantaneously superimposed onto your chart, providing the model visualization:

Step 4: Interpreting the Regression Output (Equation and R-squared)

The mere presence of a line is only the start; a complete statistical analysis demands the extraction of the underlying metrics. The Chart Editor offers two indispensable pieces of information that quantitatively define the relationship between X and Y: the specific regression equation and the coefficient of determination (R-squared).

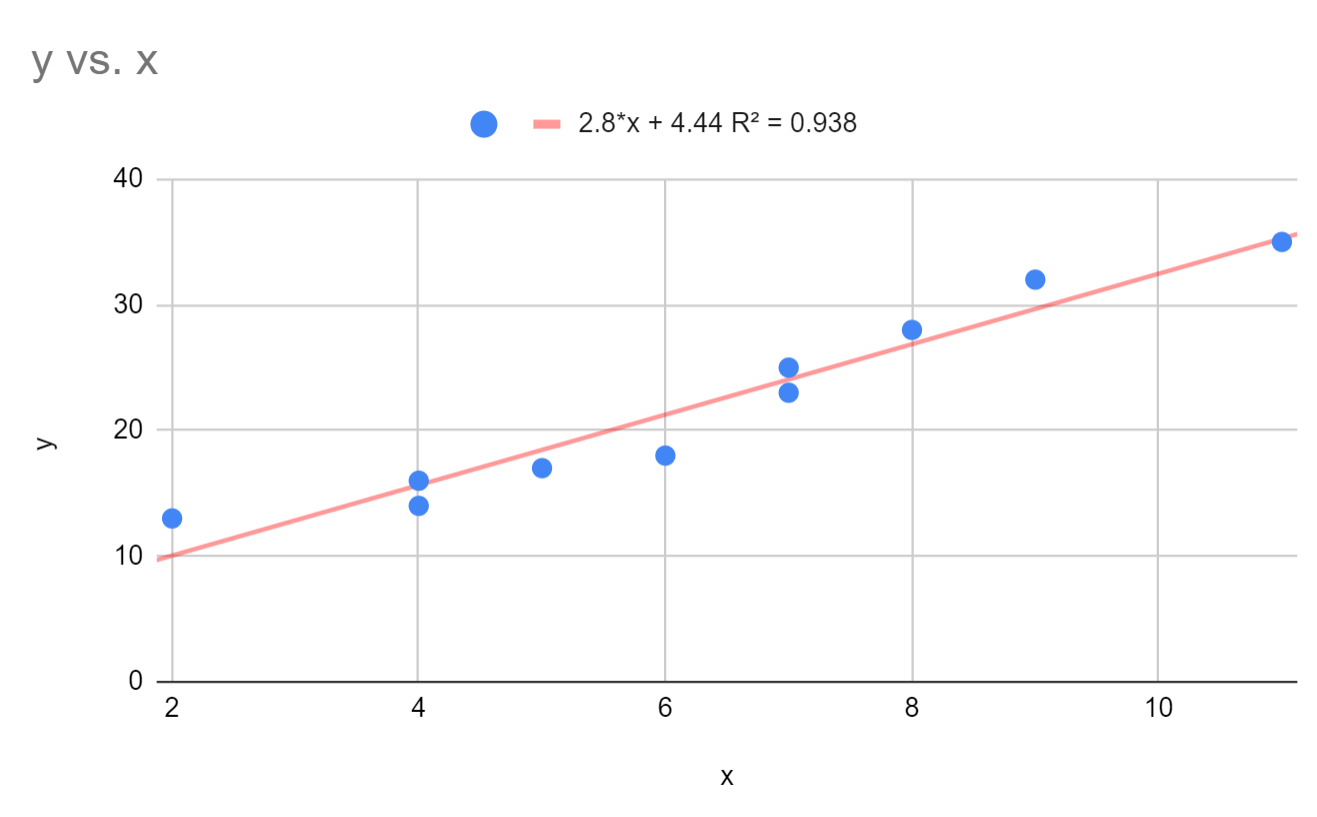

To display these essential metrics, navigate back to the Series configuration section within the Chart Editor. Under the Label dropdown menu, select the option Use Equation. This action will render the linear equation directly on the chart, expressed in the familiar algebraic format y = mx + b, where ‘m’ represents the slope (rate of change) and ‘b’ represents the y-intercept.

For the specific data used in our demonstration, the derived equation for the line of best fit is:

y = 2.8*x + 4.44

This equation carries significant meaning: it indicates that for every single unit increase in the predictor variable, x, the response variable, y, is expected to increase by 2.8 units. The y-intercept value of 4.44 estimates the value of y precisely when the predictor variable x is equal to zero.

Next, check the box labeled Show R-squared. The R-squared value, or the coefficient of determination, is a standardized statistical metric. It quantifies the proportion of the total variance observed in the dependent variable that is successfully accounted for or explained by the independent variable via the linear model.

In our current example, the R-squared value is determined to be .938. This exceptionally strong value signifies that 93.8% of the variability seen in the response variable, y, can be robustly explained by its linear relationship with the predictor variable, x. A value close to 1 (or 100%) confirms an extremely strong fit, demonstrating that the line of best fit is an excellent representation of the data’s underlying trend.

Step 5: Practical Application and Prediction

The core value proposition of developing a line of best fit lies in its capacity to enable informed prediction. Once the regression equation has been accurately established, it becomes a functional tool for estimating the value of the response variable (Y) for any new, given value of the predictor variable (X). This process, especially when the X value falls within the range of the original observed data, is known as interpolation.

Utilizing the precise equation derived in the preceding step (y = 2.8x + 4.44), we can easily perform predictive calculations. For instance, consider a scenario where we need to estimate the likely value of y when the predictor variable x is exactly equal to 3.

The calculation requires a simple substitution of the value 3 for x in the equation:

y = 2.8 * (3) + 4.44

y = 8.4 + 4.44

y = 12.84

This straightforward calculation reveals that if x = 3, the estimated value of y is 12.84, based on the statistical linear model we have established. This powerful predictive capability is invaluable across diverse professional fields, ranging from financial forecasting and economics to engineering design, wherever projecting future outcomes based on established historical trends is a necessity.

Step 6: Summary and Further Exploration

Generating a line of best fit within Google Sheets effectively transforms raw, numerical observations into a functional, predictive statistical model. This entire process is structured around three fundamental stages: meticulously structuring the source data, graphically visualizing the relationship using a scatterplot, and precisely configuring the trendline settings, including the display of critical metrics.

A thorough understanding of the resulting regression equation and the R-squared coefficient is non-negotiable for accurately interpreting the model’s quality and practical effectiveness. While this guide focused strictly on simple linear regression, it is important to remember that Google Sheets is versatile and supports various other trendline types (e.g., polynomial or exponential). These alternative options become necessary when your initial scatterplot visualization suggests a significant curvature or a non-linear relationship within the data.

Additional Resources for Statistical Analysis

For users interested in significantly deepening their practical knowledge of statistical modeling and sophisticated data visualization within the Google Sheets environment, the following resources provide expert guidance and detailed instruction:

• Detailed documentation on the full array of chart types available and their optimal use cases in Google Sheets.
• Tutorials that explain how to calculate various correlation coefficients manually using built-in statistical functions like

  CORREL

  .

• Guides explaining the essential statistical assumptions required for conducting valid linear regression analysis and interpreting results accurately.
