Find Area to the Left of Z-Score (With Examples)

In the field of statistics, the Z-score (or standard score) serves as a foundational metric. It provides a precise quantification of how many standard deviations a particular raw data point deviates from the population mean. This powerful standardization technique allows practitioners to effectively compare outcomes and data points derived from entirely different normal distributions, bringing diverse datasets onto a single, universal scale.

The core objective of this process is to calculate and accurately interpret the area situated to the left of a specific Z-score. This area is intrinsically linked to the properties of the normal distribution, commonly visualized as the bell curve. Crucially, this calculated area represents the cumulative probability or, equivalently, the percentile rank associated with that data point within the population.

A deep understanding of this calculation is not merely academic; it is absolutely essential for rigorous statistical inference, the construction of confidence intervals, and the execution of hypothesis testing. This comprehensive guide is designed to thoroughly explain the underlying theory, present the standard formula, and offer detailed, practical examples utilizing both traditional Z-tables and modern statistical software.

Defining the Z-Score: Formula and Core Components

The process of calculating a Z-score is the mechanism by which we transform any raw data value (denoted as x) into a standardized unit. This standardization step is paramount for determining the relative position of a score within a dataset, regardless of the original units or scale of measurement. To achieve this universal measure, statisticians rely on the following, universally accepted mathematical formula:

z = (x – μ) / σ

This simple yet potent formula requires the input of three distinct, crucial parameters that collectively describe the individual data point and the characteristics of its parent population distribution. These parameters are fundamental to converting a raw score into a meaningful standard deviation unit:

• x: Represents the individual raw data value under investigation or the specific score being analyzed.
• μ: Denotes the mean of the population, which is the arithmetic average of the complete dataset.
• σ: Stands for the standard deviation of the population, a measure of typical dispersion indicating how widely data points are spread around the mean.

The sign of the resulting Z-score immediately reveals the data point’s position relative to the center: a positive Z-score signifies the data point is located above the mean, while a negative Z-score confirms it is positioned below the mean. Calculating this standardized value is invariably the required initial step before attempting to determine the associated area under the curve.

The Standard Normal Distribution and Cumulative Probability

The entire methodology for determining the area to the left of a Z-score is fundamentally built upon the mathematical properties of the Standard Normal Distribution. This is a highly specialized case of the normal distribution characterized by a mean (μ) precisely equal to 0 and a standard deviation (σ) exactly equal to 1. This standardization provides a common reference frame for all normally distributed data.

When any raw score is converted into its Z-score, we are essentially translating that score into units of standard deviation, effectively mapping its location onto this universal, zero-centered curve. This critical conversion enables statistical analysis to rely upon a singular set of probability tables or algorithms, thereby allowing us to accurately determine probabilities for any dataset, regardless of its original mean or variance.

Within this standardized context, the area residing under the curve directly corresponds to probability. Therefore, when we calculate the “area to the left of a Z-score,” we are quantifying the cumulative probability—that is, the probability or likelihood that a randomly selected observation will be equal to or less than the specific value represented by that Z-score. To ascertain this crucial cumulative probability, practitioners typically employ one of two robust primary methods:

1. Consulting and reading the values from the Z-table (also known as the Standard Normal Table).
2. Utilizing sophisticated statistical software or an online Z-score calculator for automated precision.

The subsequent sections will provide a detailed, step-by-step guide on how to effectively use both of these methods in practical scenarios, complete with illustrative examples covering both positive and negative Z-scores.

Method 1: Utilizing the Z-Table for Precise Area Calculation

The Z-table remains an indispensable tool in statistics, functioning as a comprehensive ledger that lists the cumulative area (or probability) corresponding to thousands of minute variations in Z-scores. The design of the table is specific: it displays the area spanning from the extreme left tail of the distribution up to the exact point defined by the specific Z-score value.

To ensure accuracy during manual calculation, a systematic lookup procedure is required. First, the user locates the Z-score’s whole number and the first decimal place along the leftmost column. Subsequently, the second decimal place of the Z-score is located along the top row of the table. The cumulative area to the left is found precisely at the intersection point of the selected row and column.

It is vital to recall the property of symmetry inherent in the normal distribution. Since the total area under the entire curve must sum to 1.0, the area situated to the left of the mean (where Z equals 0) is exactly 0.5000. Consequently, any calculated positive Z-score will necessarily yield a cumulative area greater than 0.5000, signifying that the value is above average, while any negative Z-score will result in an area less than 0.5000.

Method 2: Leveraging Modern Statistical Calculators and Software

While the Z-table is foundational for conceptual comprehension and necessary for manual computations, specialized statistical calculators and advanced software have rapidly become the industry benchmark for achieving both efficiency and unparalleled precision. These digital tools instantaneously compute the area to the left of any given Z-score, thereby eliminating the potential for manual table lookup errors and significantly speeding up complex analyses.

Statistical calculators prove especially valuable when dealing with scenarios demanding high accuracy, such as the analysis of extremely large datasets or situations where precision extending beyond the common two decimal places is mandatory. Furthermore, many contemporary online calculators offer the capability to input the raw data parameters (x, μ, and σ) directly, automating both the initial Z-score calculation and the subsequent area determination in a single, streamlined process.

Regardless of the method chosen—be it a traditional table or a high-tech calculator—the fundamental statistical interpretation remains universally consistent: the resulting area represents the probability that a random observation drawn from the underlying population will fall at or below the numerical value corresponding to the calculated Z-score.

Example 1: Determining Area for a Negative Z-Score (Below the Mean)

This practical example illustrates the procedure for analyzing a data point that is situated below the population mean, which consequently results in a negative Z-score. We will demonstrate how to find the corresponding cumulative probability (or percentile rank) for this below-average observation.

Scenario: Consider a population of a specific species of turtles. Their weights are known to be normally distributed with a defined mean (μ) of 300 pounds and a standard deviation (σ) of 15 pounds. The question is: What percentage of these turtles weigh less than 284 pounds?

The necessary first step involves calculating the Z-score for the raw weight x = 284 pounds:

z = (x – μ) / σ = (284 – 300) / 15 = -16 / 15 = -1.07

Our objective is now to locate the cumulative area associated with a Z-score of z = -1.07.

Method 1: Utilizing the Z-table Lookup

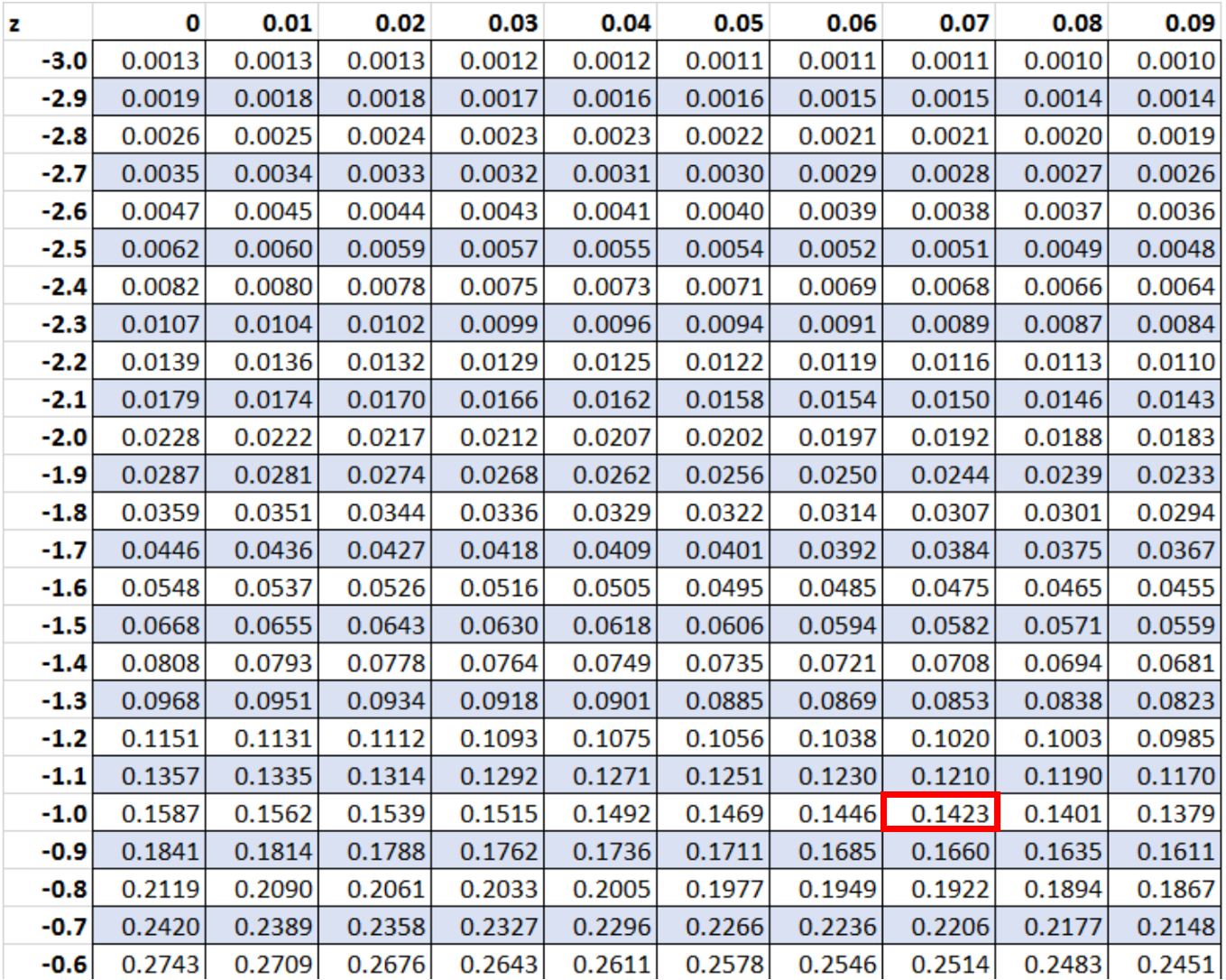

To identify the area situated to the left of this negative Z-score, we systematically search for the value -1.07 within the cumulative probability Z-table. This requires locating the row designated for -1.0 and then finding the column that corresponds to the second decimal place, 0.07:

The data extracted from the table lookup unequivocally confirms that the area to the left of z = -1.07 is 0.1423. Statistically, this result signifies that approximately 14.23% of this turtle population weighs less than the observed 284 pounds.

Method 2: Employing an Online Z-Score Calculator

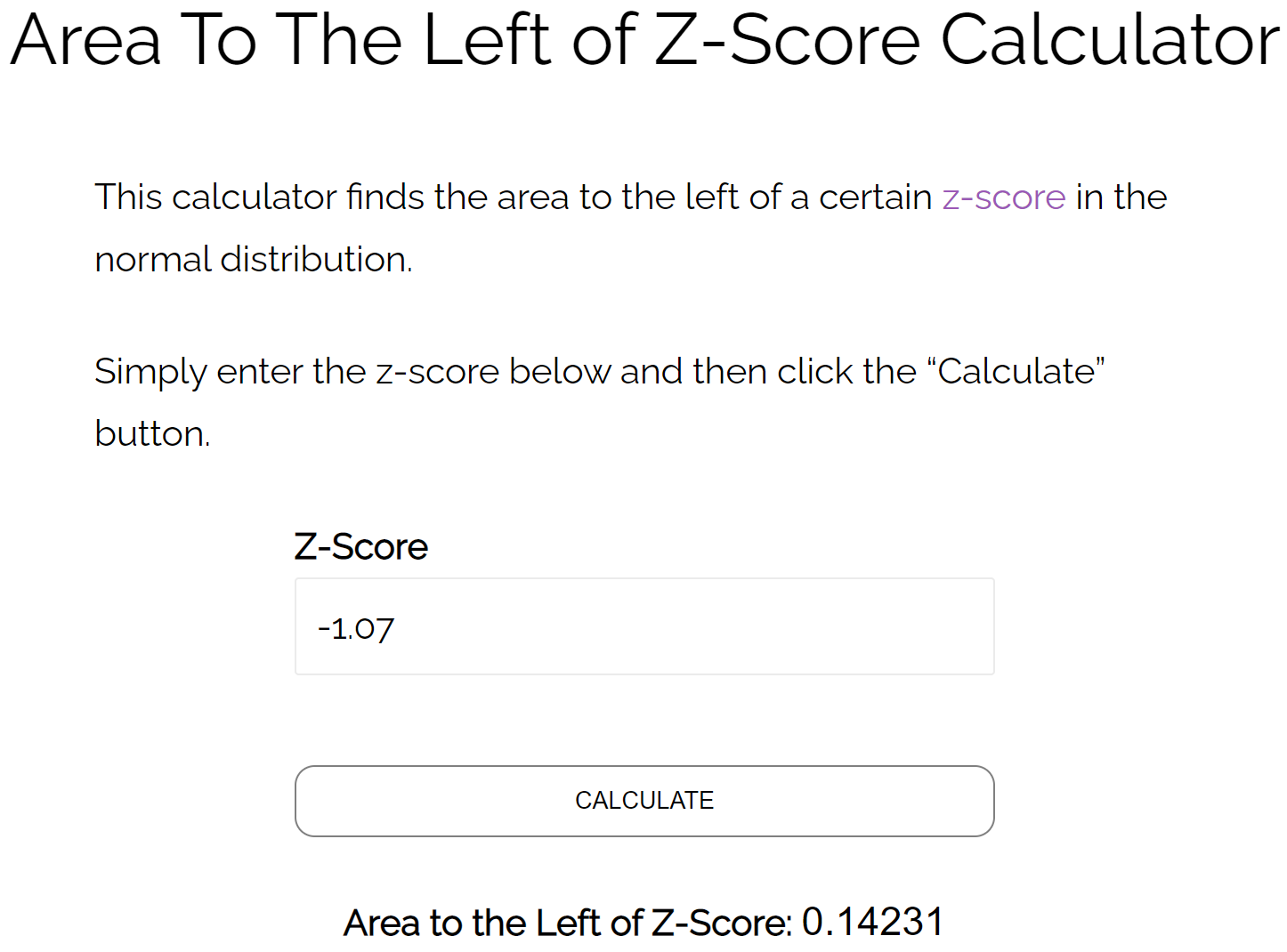

As an alternative approach, a specialized online tool can be used to rapidly confirm the calculation. Inputting the Z-score z = -1.07 instantly yields the required cumulative probability, validating our manual result:

The calculator verification confirms the area to the left is 0.1423. Both methodologies robustly demonstrate that the specified weight falls within the lower 15th percentile of the overall population distribution.

Example 2: Determining Area for a Positive Z-Score (Above the Mean)

This final example examines a situation where the raw data point is numerically greater than the population mean, which subsequently generates a positive Z-score and an associated cumulative area that must be greater than 0.5000.

Scenario: Scores obtained on a specific standardized examination are presumed to be normally distributed. The exam has a mean (μ) of 85 and a standard deviation (σ) of 8. The task is to calculate the percentage of students who scored less than 87 on this examination.

We begin by calculating the Z-score corresponding to the raw exam score x = 87:

z = (x – μ) / σ = (87 – 85) / 8 = 2 / 8 = 0.25

We must now determine the cumulative area located to the left of z = 0.25.

Method 1: Utilizing the Z-table Lookup

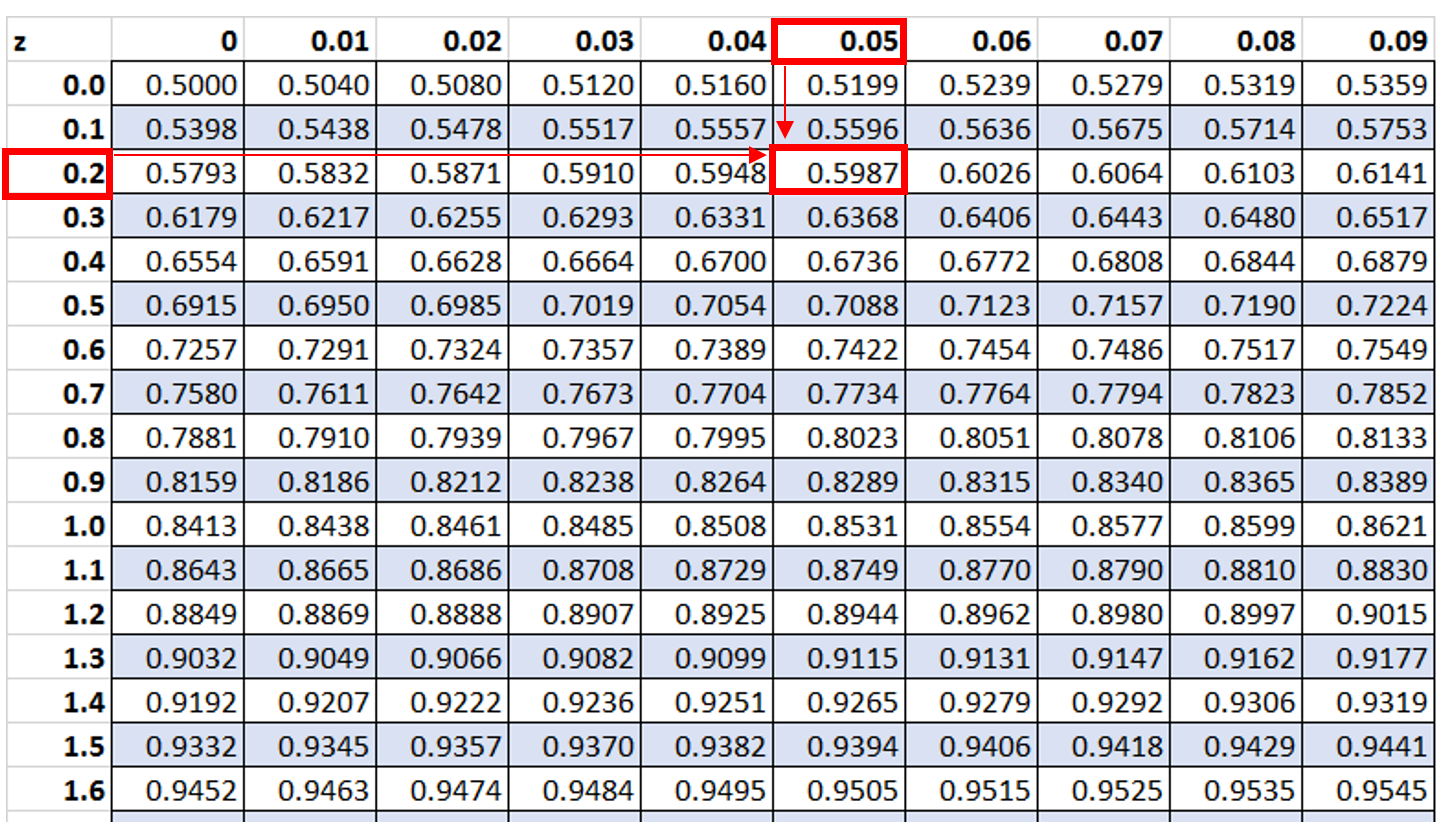

We locate the cumulative area corresponding to the positive Z-score, 0.25, in the Z-table. This involves intersecting the row for 0.2 with the column for 0.05:

The table lookup determines the cumulative area to the left of z = 0.25 to be precisely 0.5987. Interpreting this result means that approximately 59.87% of all students achieved a score less than 87 on this standardized exam.

Method 2: Employing an Online Z-Score Calculator

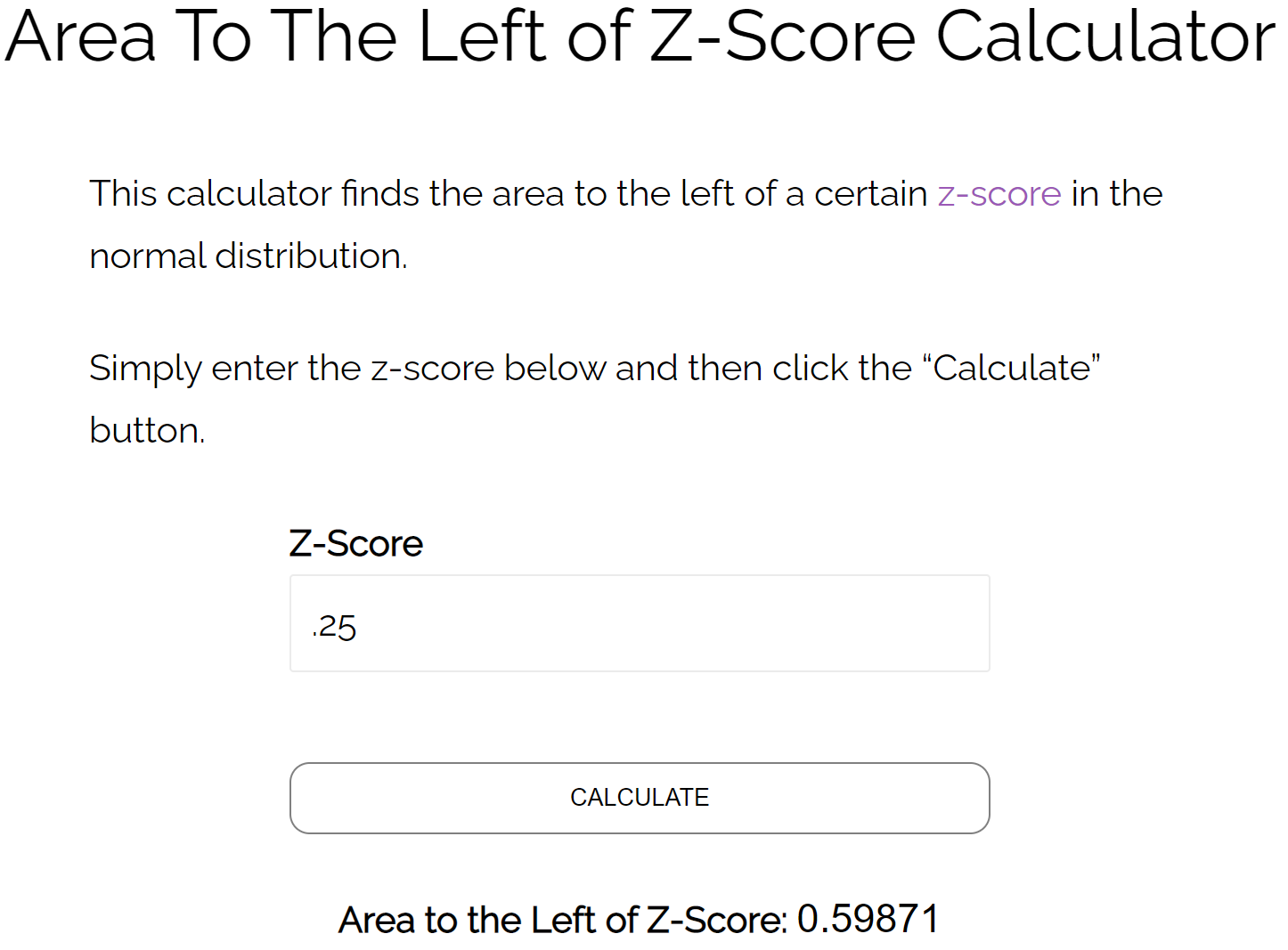

Using a statistical calculator offers immediate verification of the manual result. Inputting the positive Z-score z = 0.25 yields the exact cumulative area:

The dedicated calculator confirms that the area to the left of z = 0.25 is 0.5987. This outcome, being slightly above 0.5000, is entirely consistent with the fact that the score of 87 is marginally higher than the population mean of 85.

Advancing Your Statistical Proficiency with Z-Scores

The skill of accurately finding the area to the left of a Z-score forms the critical analytical foundation required for solving far more intricate probability and inference problems in statistical analysis. To fully capitalize on this essential skill, students and professionals are encouraged to explore related distribution concepts.

Building fluency with Z-scores involves understanding how to manipulate the calculated area to answer different types of probability questions. Key related tutorials and concepts include:

• Methods detailing how to calculate the area to the right of a Z-score (utilizing the principle of complement: Area Right = 1 – Area Left).
• The techniques necessary for determining the probability area situated between two distinct Z-scores (calculated as: Area Between = Area Left of Z2 – Area Left of Z1).
• In-depth tutorials focusing on the advanced application of Z-tables in practical settings, specifically for rigorous hypothesis testing and the precise construction of confidence intervals.

Mastering the calculation of the Z-score and the interpretation of its associated cumulative area allows for the execution of robust statistical inference across a wide array of scientific and business disciplines, ensuring that data is interpreted accurately relative to the population’s central tendency and natural spread.
