Find Class Boundaries (With Examples)

Understanding Class Boundaries in Statistical Data

When dealing with large volumes of raw data in statistics, organizing observations into manageable groups is essential for analysis. This process involves creating a frequency distribution, which effectively summarizes the dataset. Within this structure, class boundaries serve a crucial mathematical function: they define the precise points that separate adjacent classes, ensuring that the entire dataset is treated as continuous and that no potential measurement falls into an ambiguous gap between intervals.

The concept of a true class boundary becomes particularly vital when analyzing continuous variables—data points that can take on any value within a given range (e.g., height, temperature, time). While a typical class interval might be superficially stated as 31–35, this notation implies a discrete break. The true boundary eliminates this conceptual gap, ensuring that a measurement like 30.8 or 35.5 is assigned accurately. A clear understanding of these boundaries is necessary for transitioning smoothly between the upper class limit of one interval and the lower class limit of the succeeding interval.

Ultimately, calculating these boundaries is a methodological requirement for accurate statistical representation. If the gaps between classes are not resolved, the subsequent calculations of measures of central tendency or the graphical representation of the data will be flawed. This article provides a comprehensive, step-by-step guide to calculating these essential boundaries, transforming discrete groupings into mathematically continuous intervals.

The Necessity of Calculating True Class Limits

In standard statistical practice, the stated class limits provided in a basic frequency distribution table often contain minor, non-mathematical discontinuities. For instance, if one class interval concludes at 30 and the next begins at 31, there is a gap of one unit between the two classes. If the underlying data is derived from a continuous measurement scale, these gaps must be systematically eliminated. Failure to do so leads to an inaccurate depiction of the data distribution, which is especially problematic when constructing visual tools like a histogram, where the bars must touch to signify continuity.

The calculation of the true class boundaries is achieved by applying a small, calculated adjustment, known as the correction factor, to the stated limits. This precise methodological adjustment effectively bridges the discontinuity. This procedure transforms what appears to be discrete, grouped data into a flawless series of continuous intervals. This continuity is a prerequisite not only for generating accurate graphical interpretations but also for performing more advanced statistical analysis that relies on the assumption of a continuous variable distribution.

This calculation is not arbitrary; it adheres to a standard convention to ensure data integrity. By formalizing the transition point between classes, we guarantee that every possible observation within the full range of the data set is contained within one, and only one, interval. The following section details the robust, three-step approach used universally to achieve this necessary transformation.

Standard Procedure for Finding Class Boundaries

To determine the precise class boundaries for any given frequency distribution table, we employ a systematic, three-step procedure. This methodology ensures consistency and accuracy, regardless of whether the original data measurements are presented using whole integers or high-precision decimals. The goal is to calculate the necessary adjustment factor—the key to closing the gaps—and then apply it uniformly to all class limits.

The following steps guide the calculation and application of the adjustment factor:

1. Calculate the Gap: Identify the difference between the classes. Specifically, subtract the upper class limit (UCL) of the first class interval from the lower class limit (LCL) of the second class interval. This resulting difference quantifies the gap that must be closed.
2. Determine the Correction Factor: Divide the gap calculated in Step 1 by two. This result represents the correction factor required to shift the stated limits inward, thereby eliminating the discontinuity and establishing the true boundary midpoint.
3. Apply the Factor: Systematically adjust all stated limits. Subtract the calculated correction factor from every lower class limit across the distribution, and corresponding add the correction factor to every upper class limit. This yields the true, continuous class boundaries.

Mastering this three-step process is fundamental to statistical preparation. The next sections provide detailed examples illustrating how to apply this procedure in two common scenarios, starting with integer-based data and then moving to decimal-based data.

Example 1: Calculating Boundaries for Discrete Integer Data

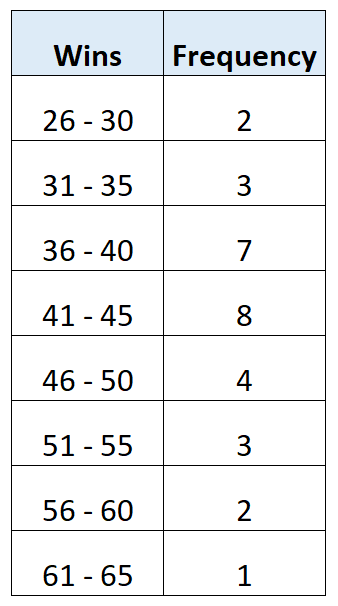

Consider a scenario where we have a frequency distribution representing the number of wins achieved by various professional basketball teams. The initial table shows the stated class limits:

We will now rigorously apply the established three-step method to convert these discrete stated limits into mathematically continuous class boundaries, suitable for graphical representation and further analysis.

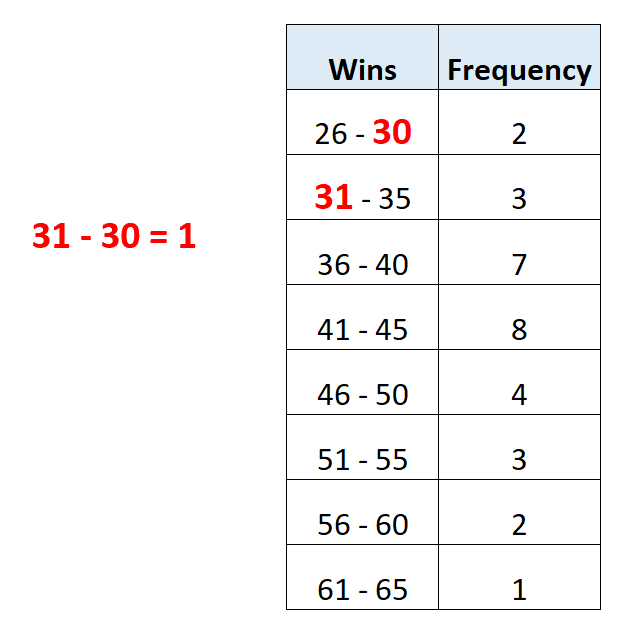

Step 1: Calculate the Gap

We find the difference between the upper limit of the first class (30) and the lower limit of the second class (31).

Difference (Gap) = Lower limit of Class 2 – Upper limit of Class 1

31 – 30 = 1 unit.

Step 2: Determine the Correction Factor

Next, we divide the resulting gap (1) by two to obtain the correction factor, which is the precise value needed to shift the limits to meet at the midpoint.

Correction Factor = 1 / 2 = 0.5.

Step 3: Apply the Factor

Finally, we apply the 0.5 correction factor uniformly to all class limits: subtracting 0.5 from each lower limit and adding 0.5 to each upper limit. This yields the final continuous class boundaries:

The interpretation of these new boundaries demonstrates true continuity. Note that the upper boundary of the first class (30.5) is now perfectly congruent with the lower boundary of the second class (30.5), eliminating the gap:

• The first class now spans the interval from 25.5 (lower boundary) to 30.5 (upper boundary).
• The second class spans the interval from 30.5 to 35.5.
• The third class spans the interval from 35.5 to 40.5.

This continuous pattern is sustained for all subsequent classes in the distribution, ensuring the data is ready for accurate statistical modeling.

Example 2: Calculating Boundaries with Decimal Precision

The same methodology applies even when the stated class limits are expressed using decimals, demonstrating the robustness of the procedure. Suppose we are given the following frequency distribution, where measurements are recorded to the tenths place:

We proceed with the exact same three steps to calculate the precise class boundaries, ensuring the level of precision in the calculation matches the precision of the gap found.

Step 1: Calculate the Gap

We subtract the upper class limit of the first class (60.9) from the lower class limit of the second class (61.0).

Difference (Gap) = 61.0 – 60.9 = 0.1.

Step 2: Determine the Correction Factor

We divide the resulting gap (0.1) by two. This requires extending our precision to the hundredths place.

Correction Factor = 0.1 / 2 = 0.05.

Step 3: Apply the Factor

Finally, we subtract 0.05 from all lower limits and add 0.05 to all upper limits to establish the continuous class boundaries:

Interpreting these results confirms the removal of the gap between the classes, even at this level of precision:

• The first class now ranges from 55.95 to 60.95.
• The second class now ranges from 60.95 to 65.95.
• The third class now ranges from 65.95 to 70.95.

In this example, the common boundary point (e.g., 60.95) acts as the unambiguous separator, ensuring that every data point, even those measured to the hundredths place, is assigned definitively to one specific class interval.

Summary and Importance for Statistical Visualization

The calculation of class boundaries is an essential preprocessing step when preparing grouped data for rigorous and accurate analysis. The core principle involves identifying the discontinuity—the gap—between the stated class limits and calculating the precise midpoint of that gap, which serves as the correction factor. Applying this factor systematically ensures that the resulting frequency distribution is mathematically continuous.

Understanding the fundamental difference between the raw, stated limits and the true, adjusted boundaries is critically important for creating reliable statistical visualizations. For example, in constructing a histogram, the bars must touch seamlessly to visually represent the continuous nature of the data. This visual continuity is only mathematically justifiable if the true class boundaries have been calculated and applied correctly.

This three-step process—calculating the gap, determining the correction factor, and applying the factor—is a robust technique that applies universally to all forms of grouped data, irrespective of the scale, precision, or underlying measurement type. By adhering to this standardized procedure, analysts can transition data from discrete groupings to a continuous framework, unlocking its full potential for advanced statistical interpretation.

Additional Resources

For those interested in exploring the theoretical basis and advanced applications of grouped data and frequency distributions, several authoritative resources are available. These materials provide deeper insights into topics such as cumulative frequency, measures of dispersion within grouped data, and the role of continuity in probability theory.

[Placeholder for future links/text]

The principles discussed here are foundational to descriptive statistics and must be mastered before moving on to inferential methods.
