Find Class Limits (With Examples)

When constructing a statistical analysis, particularly a frequency distribution, raw data values must be organized into coherent, manageable groups. These defined ranges are universally known as classes, and their endpoints are referred to as class limits. These limits serve a critical function: they precisely delineate the smallest and largest observations permissible within any given interval. By establishing clear class limits, statisticians ensure that every single observation is accounted for and categorized without ambiguity, forming the structural basis for meaningful analysis.

The ability to accurately define and identify class limits is paramount in statistical practice. The interpretation and graphical representation of any dataset—whether it involves countable, discrete data (e.g., population counts) or measurable, continuous data (e.g., physical measurements like height or temperature)—depends fundamentally on correctly assigned limits. If limits are poorly defined, the resulting distribution table can mislead interpreters and skew subsequent calculations.

This comprehensive guide is designed to provide an expert understanding of class limits. We will break down their essential components, differentiate them from related concepts like class boundaries, and provide detailed, practical examples based on established statistical methodology to illustrate their identification in various types of frequency distributions.

The Foundation of Grouped Data: Understanding Class Limits

A primary goal of using a frequency distribution is to take vast amounts of disorganized data and present it in a clear, structured format, showing how often specific values or ranges of values occur. To achieve this necessary organization, the entire span of observed data must be segmented into intervals that are consecutive and, most importantly, non-overlapping. These precise intervals are defined entirely by their class limits.

The core purpose of setting these limits is to eliminate overlap and maintain absolute clarity. Ideally, every single data point must belong exclusively to one and only one class. When dealing with discrete data, the limits must be constructed carefully to prevent numerical gaps between the classes. For example, if one class captures values up to 49, the subsequent class must begin at 50, ensuring that no integer observation (like 49.5, if the data were continuous) causes uncertainty about its placement.

It is vital to distinguish between class limits and class boundaries. Class limits are the actual values observed in the data that define the range (e.g., 50–59). In contrast, class boundaries are the precise numerical points used to mathematically separate classes without any perceived gap, often calculated by finding the midpoint between the upper limit of one class and the lower limit of the next (e.g., 49.5 and 59.5). A thorough grasp of both concepts is essential for accurate calculations, such as determining the class midpoint, and for creating accurate graphical representations like histograms.

Components of Class Limits: Lower and Upper Definitions

In any functional frequency distribution, each class interval is formally established by two specific limits that define the full range of acceptable data values for that class. These two components are uniformly known across statistics as the lower class limit (LCL) and the upper class limit (UCL).

The two types of class limits can be formally defined as follows:

• Lower Class Limit (LCL): This represents the smallest valid observation or data point that can possibly be included within a particular class interval. It functions as the definitive starting point or minimum threshold for that specific group of data.
• Upper Class Limit (UCL): This represents the largest valid observation or data point that can be included within a particular class interval. It serves as the definitive endpoint or maximum threshold for that group.

These limits must be rigorously established before the data tabulation process begins. Standard statistical procedure dictates that class limits are derived based on two factors: the overall range of the dataset and a predetermined class width. For instance, if a class covers the range 20–24, then 20 is the lower class limit and 24 is the upper class limit. Any observed value falling between 20 and 24, inclusive, is correctly assigned to this class.

Essential Precursors: Class Width and Class Boundaries

Although the focus of this guide is the identification of the limits themselves, it is statistically impractical to define a robust set of class limits without first determining the class width and understanding the role of class boundaries, particularly when analyzing continuous measurements. These precursors ensure the distribution is both accurate and statistically appropriate.

The class width (or class interval) is the uniform difference between the lower limit of any one class and the lower limit of the immediately subsequent class. Alternatively, it can be calculated as the difference between consecutive upper limits. For example, given the classes 10–19, 20–29, and 30–39, the class width is 20 – 10 = 10. Selecting an appropriate width is critical as it dictates how many classes are formed and ensures the distribution covers the entire data range logically and efficiently, summarizing the data without over-simplification.

Class boundaries are distinct from class limits because they serve to eliminate the numerical gap between classes, providing continuity, especially important for graphical representations. For discrete data, the boundary is mathematically derived by averaging the upper limit of the preceding class and the lower limit of the current class. Considering the classes 10–19 and 20–29, the boundary separating them is (19 + 20) / 2 = 19.5. However, when the data is continuous, class limits often correspond closely to boundaries, sometimes using interval notation (e.g., [10, 20)) to signify that 10 is included while 20 is excluded, ensuring no overlap or ambiguity.

In the practical examples that follow, we will focus on reading and identifying these limits as they appear in a pre-constructed frequency table. The process of “finding” the limits simply involves explicitly stating the smallest and largest values listed within the class column for each respective row.

Case Study 1: Identifying Limits in Discrete Data Distribution

We begin by examining a scenario involving discrete data—data that can only take on specific, countable values, usually integers, such as the number of successful free throws or annual sales figures. Since the observations are restricted to whole numbers, the class limits must also be integers, ensuring the characteristic gap of one unit exists between the end of one class and the start of the next.

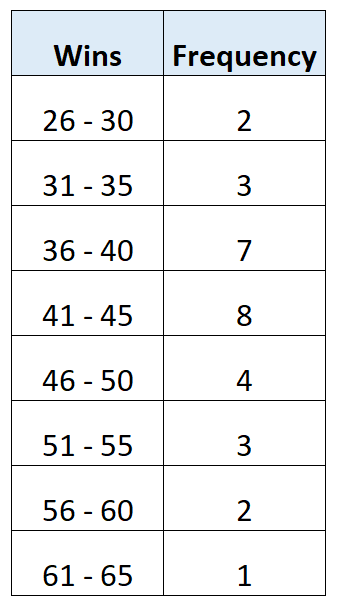

Consider the following frequency distribution table summarizing the number of wins achieved by teams in a sports league:

To correctly identify the lower class limit (LCL) for each class, we must look at the minimum value explicitly listed in the “Wins” column for that corresponding row. The LCL fundamentally defines the absolute lowest threshold that an observation must meet to be included in that specific class interval.

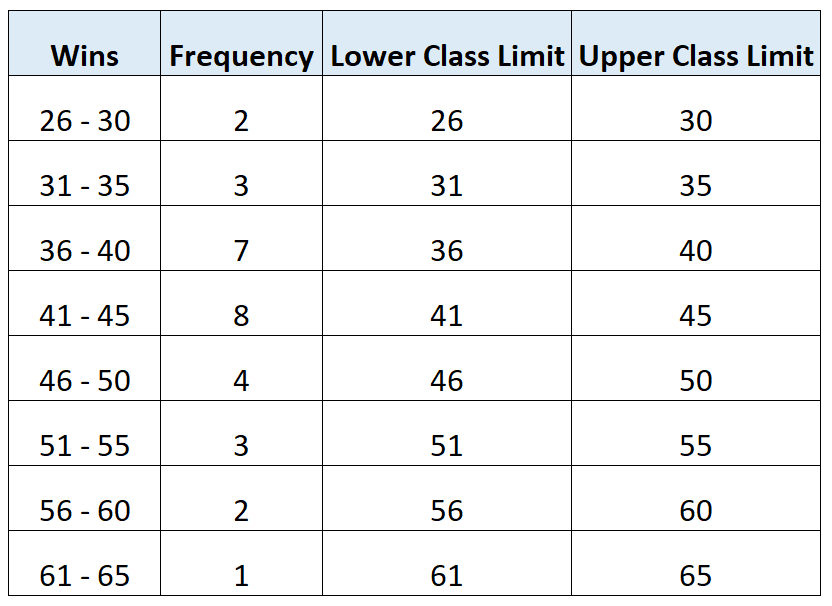

The LCLs for this discrete data table are unambiguously identified as follows:

Conversely, the upper class limit (UCL) is the largest possible integer value that a discrete data point can possess while remaining a member of that specific class. This marks the maximum threshold for the interval, beyond which the observation belongs to the subsequent class.

The UCLs for the table are identified by selecting the highest listed value in each range:

A key characteristic here is the relationship between consecutive classes: the upper limit of one class (e.g., 29) is precisely one unit less than the lower limit of the subsequent class (30). This intentional one-unit difference (29 vs. 30) is the defining feature of a distribution based on discrete data, ensuring that only whole numbers are captured and that the classes are mutually exclusive.

Case Study 2: Identifying Limits in Continuous Data Distribution

Next, let us consider a frequency distribution that is likely built upon continuous data. This type of data, such as measurements of weight, time, or temperature, can theoretically take on any value within a given interval, including infinite fractional or decimal precision. Although the table below uses integer values for simplicity, the underlying data is continuous, meaning the true class boundaries will be slightly different from the stated limits.

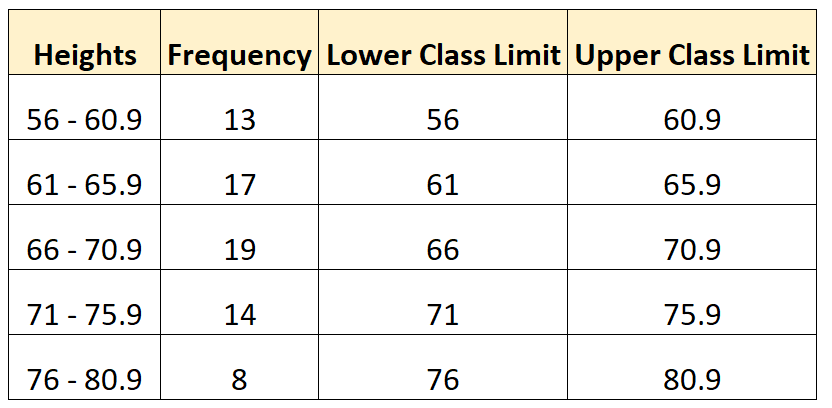

Suppose we have the following frequency distribution table, representing continuous measurements:

In adherence to the principles established previously, identifying the lower class limit involves selecting the smallest numerical value explicitly presented in the class range for each row. This value dictates the minimum measurable boundary for data inclusion within that group.

The LCL is the smallest possible value in each class:

Similarly, the upper class limit is identified as the largest value specified within the class range. In the context of a pre-constructed table, the UCL indicates the final measurable value that is officially counted within that interval, even if the true statistical boundary extends slightly beyond it.

And the UCL is the largest possible value in each class:

It is important to reiterate that in continuous distributions, while the stated class limits (e.g., 1 and 13) are used for simple categorization, statistical rigor often requires the use of class boundaries. For instance, the first class (1–13) mathematically includes all values from 0.5 up to, but not including, 13.5. However, for the purpose of reading a standard frequency table, the limits are always the values explicitly listed.

Statistical Implications and Key Summary Points

The precise definition and correct application of class limits constitute the essential groundwork for all subsequent descriptive statistics. By establishing these clear boundaries, analysts can effectively condense vast, complex datasets into succinct summaries, thereby revealing underlying patterns, central tendencies, and the overall shape of the distribution. The choice between discrete and continuous data classification fundamentally dictates the necessary relationship between the upper limit of one class and the lower limit of the next.

To ensure lasting clarity, always recall this critical distinction regarding class separation:

• Discrete Data: A mandatory gap of one unit must exist between the upper limit of the preceding class and the lower limit of the current class (e.g., 50–59 followed by 60–69). This ensures countable, integer values are captured without overlap.
• Continuous Data: The numerical limits often appear consecutive (e.g., 50–60 followed by 60–70), but the true separation is handled by the class boundaries, which manage the infinite precision of measurements and ensure that the value 60 is strictly assigned to only one class.

Mastering the identification of both the lower class limit and the upper class limit is not merely an organizational step; it is the fundamental prerequisite for accurately calculating crucial statistical measures—such as the mean, median, and mode—when working with grouped data extracted from a frequency distribution.
