Learning to Calculate Margin of Error with a TI-84 Calculator

In the field of statistics, one of the most powerful tools available for making inferences about large groups is the confidence interval. This technique allows us to estimate the true value of an unknown population parameter with a predefined level of assurance or confidence. This process is central to inferential statistics, enabling researchers to extrapolate findings from limited sample data to draw broad conclusions about the entire population being studied.

A confidence interval is essentially a calculated range of plausible values for the parameter we are estimating. It is always presented as a defined structure:

Confidence Interval = [Lower Bound, Upper Bound]

The margin of error (MOE) is the fundamental component that quantifies the precision of this estimate. It represents the maximum likely difference between the observed sample statistic (like the sample mean or proportion) and the actual, unknown population parameter. Crucially, the margin of error is mathematically defined as precisely half the total width of the calculated confidence interval.

To illustrate, consider a scenario where we calculate a 95% confidence interval for a population proportion:

95% confidence interval = [0.34, 0.46]

To determine the MOE manually, we first calculate the total width of the interval: 0.46 – 0.34 = 0.12. The margin of error is then calculated by dividing this width by two, yielding 0.12 / 2 = 0.06. This result means that our sample proportion (the midpoint, 0.40) is expected to be within 0.06 units of the true population proportion value 95% of the time.

Deconstructing the Confidence Interval and Margin of Error

Before utilizing the calculator’s built-in statistical functions, it is vital to have a clear conceptual grasp of the margin of error. The MOE is derived from a formula that incorporates two main elements: the critical value (which depends entirely on the chosen confidence level, such as 90%, 95%, or 99%) and the standard error of the sampling distribution. A larger margin of error suggests less precision in our estimation, while a smaller margin indicates a tighter, more precise estimate of the population parameter.

There is an inherent trade-off in statistical estimation. For example, selecting a higher confidence level (e.g., 99%) necessarily increases the critical value, which forces the confidence interval to be wider, resulting in a larger margin of error. Conversely, if the goal is to reduce the margin of error without sacrificing the confidence level, the only viable option is typically to increase the sample size (n). Understanding this delicate balance between confidence, precision, and cost is crucial for sound statistical practice and experimental design.

Although the TI-84 calculator is powerful, it does not explicitly output the margin of error (MOE) value directly after computing an interval. However, it provides the two essential pieces of information required: the upper and lower bounds of the interval. By performing a simple subtraction and division on these outputs, we can quickly and accurately determine the MOE.

The Universal Formula: Manual MOE Calculation

The algebraic definition of the margin of error offers a universally applicable approach for finding this value, irrespective of whether the statistical test is estimating a mean, a proportion, or any other parameter. The entire process relies exclusively on the interval boundaries that are generated by the TI-84’s statistical computation functions.

The steps required for this straightforward manual calculation are as follows:

1. Identify the Upper Bound (UB) displayed by the TI-84 result.
2. Identify the Lower Bound (LB) displayed by the TI-84 result.
3. Calculate the total width (W) of the interval by subtracting the bounds: W = UB – LB.
4. Calculate the Margin of Error (MOE) by halving the width: MOE = W / 2.

This simple algebraic manipulation allows users to easily extract the margin of error immediately after the TI-84 has successfully executed the necessary complex computations, which involve calculating critical t-scores or z-scores and determining the appropriate standard error for the estimate.

Case Study 1: Determining Margin of Error for a Population Mean (T-Interval)

In our first detailed example, we aim to calculate the margin of error for a 95% confidence interval that is designed to estimate a population mean (μ). We will assume, as is common in real-world applications, that the population standard deviation (σ) is unknown. This condition mandates the use of the T-Interval procedure on the TI-84 calculator.

The following sample statistics have been collected:

• x (Sample Mean): 30.4
• s (Sample Standard Deviation): 4.5
• n (Sample Size): 50

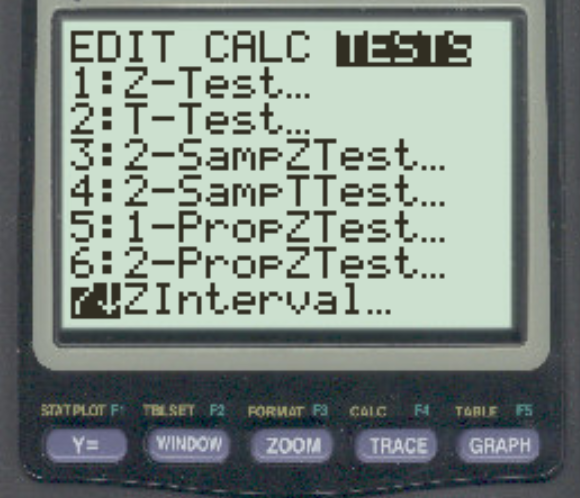

To begin the confidence interval calculation using the TI-84, press the STAT button. Then, use the right arrow key to navigate across the top menu until you reach the TESTS menu. Since the population standard deviation is unknown, we must select the T-Interval option, which typically corresponds to option 8 (or occasionally 7, depending on the calculator’s operating system version):

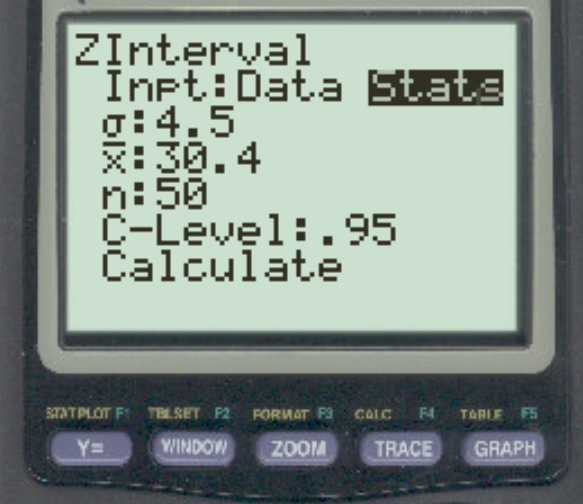

When the T-Interval input screen appears, ensure that the “Stats” option is highlighted for the input method, as we are entering summary statistics rather than raw data. Next, meticulously enter the given sample statistics into the corresponding fields. Ensure that the C-Level (Confidence Level) is correctly set to 0.95 (representing 95% confidence). After verifying all entries, press CALCULATE:

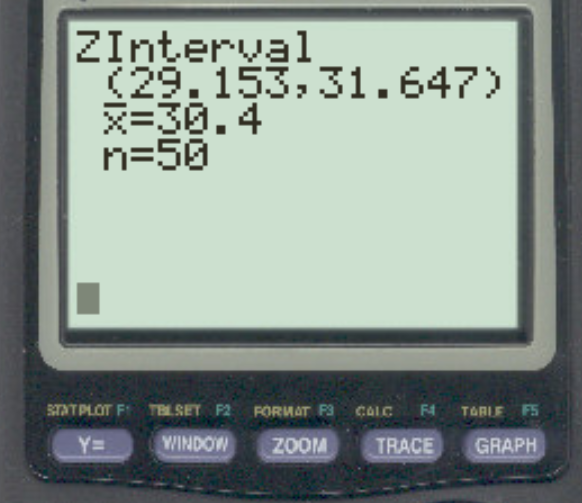

The TI-84 will promptly execute the T-Interval computation and display the resulting confidence range. Based on this specific data set, the calculated confidence interval is: (29.153, 31.647).

To conclude the analysis, we apply the MOE formula to these two boundary values:

Margin of error: (Upper Bound – Lower Bound) / 2 = (31.647 – 29.153) / 2 = 2.494 / 2 = 1.247.

Consequently, the margin of error associated with this 95% confidence interval for the population mean is 1.247. This result signifies that our sample mean (30.4) is expected to be within 1.247 units of the true population mean, given the 95% assurance level.

Case Study 2: Determining Margin of Error for a Population Proportion (Z-Interval)

In this second scenario, we shift our focus to estimating a population proportion (p). Proportions are utilized when estimating success rates, frequencies of occurrence, or binary outcomes. Standard statistical practice requires the use of a Z-Interval approach for proportions, provided the sample size is large enough. We will calculate a 95% confidence interval using the following observational data:

• x (Number of successes observed): 42
• n (Total sample size): 90

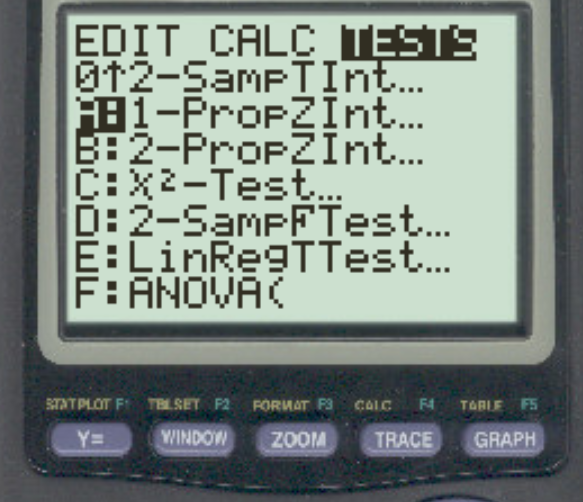

To calculate the confidence interval for the population parameter (proportion), we initiate the process again by pressing the STAT button and navigating to the TESTS menu. For proportion estimates, the required function is the 1-PropZInt (One Proportion Z-Interval). You will likely need to scroll down the list of tests until this specific option is located and then press ENTER to select it.

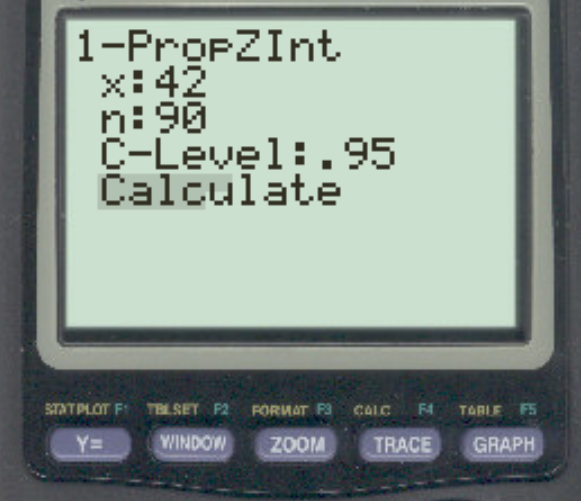

The calculator will then prompt the user for the three necessary inputs: x (the count of successes), n (the total sample size), and the C-Level (confidence level). Input the provided values (x=42, n=90) and confirm that the C-Level is set to 0.95. Press CALCULATE to execute the test:

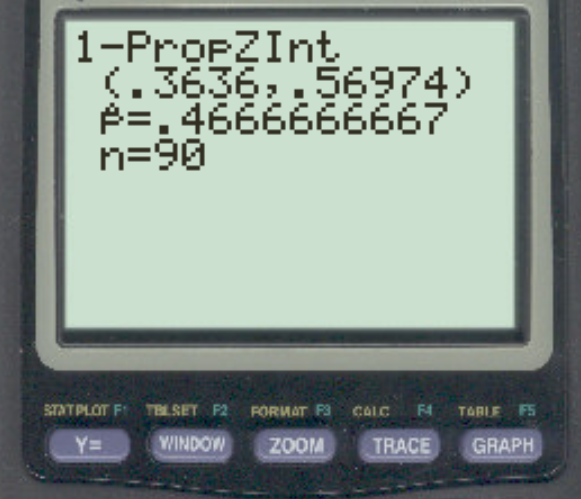

The resulting confidence interval, computed accurately by the TI-84 calculator, displays the lower and upper bounds for the true population proportion: (.3636, .56974).

Applying the established formula for the margin of error, we determine it is equal to half the width of this interval:

Width Calculation: 0.56974 – 0.3636 = 0.20614.

Margin of error: 0.20614 / 2 = 0.10307.

This resulting margin of error (0.10307) implies that our sample proportion (p-hat ≈ 0.467) is within approximately 10.3 percentage points of the true population proportion, providing a 95% level of confidence in the estimate.

Interpreting Results and Controlling the Margin of Error

The margin of error serves as the essential metric for quantifying the precision of any statistical estimate. When reporting findings derived from surveys or experimental studies, the conventional format is to present the sample statistic followed by “plus or minus” the MOE. For instance, the proportion derived in Case Study 2 would be formally reported as 0.467 ± 0.10307. This presentation immediately communicates both the central estimate and the inherent variability and uncertainty involved.

It is paramount to recognize that the MOE is fundamentally influenced by three core statistical elements: the overall sample size (n), the variability or standard deviation present in the population (σ), and the required confidence level (C-Level). To effectively reduce the MOE—thereby achieving a more precise estimate—statisticians often need to significantly increase the sample size. This is because the reduction in the margin of error is inversely proportional to the square root of n, demanding substantial effort to achieve meaningful gains in precision.

By consistently employing the TI-84’s dedicated statistical tests to quickly generate the confidence interval bounds, and subsequently applying the simple, reliable manual calculation (MOE = (UB – LB) / 2), both students and professionals can accurately and efficiently determine the margin of error for a comprehensive array of population parameter estimates.

Further Study and Statistical Resources

For those seeking deeper mastery of inferential statistics, including confidence intervals, the calculation of critical values, and the underlying distributions (such as the T-distribution and Z-distribution), it is highly recommended to consult specialized textbooks or reliable online statistical documentation. A thorough understanding of these concepts is indispensable for the accurate execution and interpretation of statistical studies and large-scale surveys.
