Learn How to Calculate Percentiles from Z-Scores Using a TI-84 Calculator

Mastering the Conversion of Z-Scores to Percentiles

In the rigorous discipline of statistics, understanding the position of a single data point relative to the entire distribution is paramount. This objective is precisely achieved by converting a standardized score, known as a Z-score, into its corresponding percentile rank. A Z-score serves as a powerful quantitative metric, revealing the exact number of standard deviations an observed value deviates from the population mean. This standardization process allows for meaningful comparisons across otherwise disparate datasets.

The resulting percentile offers an immediately intuitive interpretation of this position. It effectively communicates the percentage of scores within the distribution that fall below that specific Z-score. This critical conversion relies fundamentally on the fixed mathematical properties of the normal distribution, frequently referred to as the bell curve. Under this curve, the total area enclosed represents the entire probability mass, summing precisely to 1, or 100%.

Traditionally, this conversion required tedious manual lookups using printed statistical tables. However, modern computational tools, specifically the TI-84 calculator, streamline this process dramatically. By leveraging the calculator’s built-in functions, students and statistical professionals can rapidly and accurately calculate the cumulative area under the standard normal curve, thereby translating the abstract standardized score into a highly practical percentile value.

The normalcdf Function: Syntax and Standard Parameters

The primary tool employed on the TI-84 series calculator for transitioning from a Z-score to a percentile is the normalcdf function, which stands for Normal Cumulative Distribution Function. This sophisticated function is engineered to compute the cumulative probability—that is, the total area under the probability density curve—spanning from a designated lower boundary up to a specified upper boundary.

When the specific goal is to determine the percentile associated with a given Z-score, we must calculate the total area located to the left of that score. This area represents the cumulative probability. The rigorous syntax required for inputting this calculation into the TI-84 command line is structured as follows:

normalcdf(Lower Bound, Upper Bound (Z-score), $mu$, $sigma$)

Since the Z-score inherently defines the observation within the context of the Standard Normal Distribution, the parameters utilized for standard Z-score conversions are fixed and non-negotiable. By definition, the Standard Normal Distribution always possesses a mean ($mu$) of 0 and a standard deviation ($sigma$) of 1. Consequently, the input parameters must be strictly defined:

• $mu$ = population mean (Must be set to 0 for Standard Normal calculations)
• $sigma$ = population standard deviation (Must be set to 1 for Standard Normal calculations)

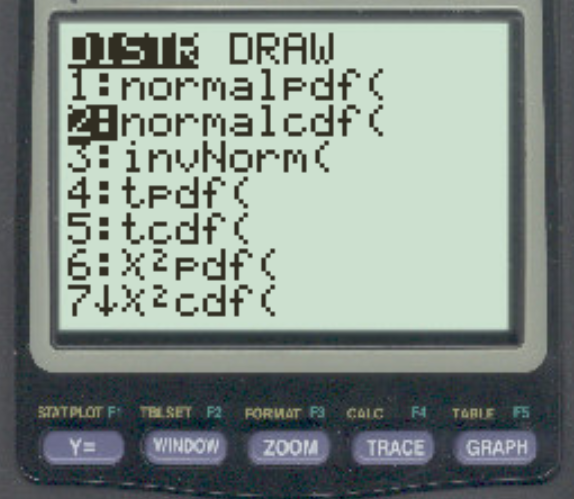

Accessing this essential function requires a straightforward sequence of key presses on your TI-84 calculator. Initiate the process by pressing the 2nd button, followed immediately by the VARS button. This action opens the DISTR menu, which houses all the statistical distribution functions. You must then scroll down the list of available distributions until the option normalcdf( is highlighted, and conclude by pressing ENTER to select the function. The calculator will then prompt you to input the necessary parameters.

The practical examples that follow provide a precise, step-by-step illustration of how to deploy this powerful function, covering scenarios for Z-scores that fall both below and above the mean.

Example 1: Calculating the Percentile for a Negative Z-Score

A negative Z-score signifies that the observed data point is positioned below the mean of the distribution. It is critical to note that whenever a Z-score is negative, the resulting percentile rank must necessarily be less than 50%. Let us consider a scenario where we are tasked with determining the percentile that corresponds to a specific Z-score of -1.44.

To calculate the cumulative area extending to the left of this score, we must first establish the lower boundary of our integration interval. Since the standard normal distribution is a continuous theoretical model that extends infinitely toward negative values, we must input a sufficiently large negative number to simulate this theoretical negative infinity. For dependable and efficient use on the TI-84 calculator, the conventional value used is -99 (or, for extreme precision, -1E99, although -99 is statistically robust for most applications).

We input the required parameters into the normalcdf function, utilizing the negative Z-score (-1.44) as our upper boundary, and maintaining the standard distribution settings ($mu=0$ for the mean and $sigma=1$ for the standard deviation):

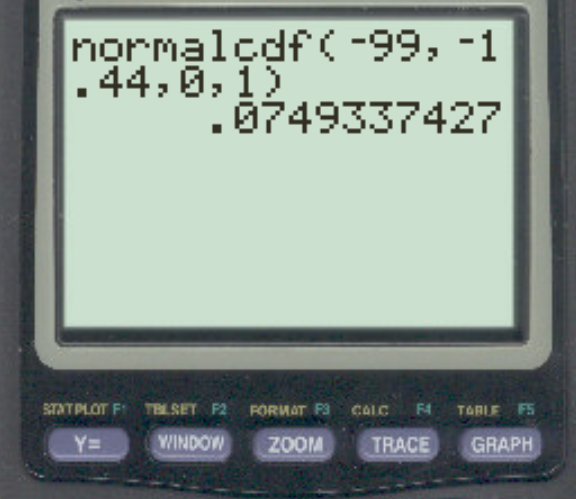

normalcdf(-99, -1.44, 0, 1)

It is paramount to understand the role of the value -99 here; it functions explicitly as the “lower bound” to effectively simulate negative infinity. This guarantees that the calculator rigorously accounts for every increment of area accumulated from the far left tail of the normal distribution up to the specified Z-score boundary, ensuring a correct cumulative probability calculation.

The resulting output generated by the calculator will be 0.0749. When interpreting this numerical result, we convert the decimal probability into a percentage format. This calculation reveals that the Z-score of -1.44 corresponds precisely to the 7.49th percentile. This confirms that a modest 7.49% of the scores in the entire distribution fall below this particularly low standardized score, placing it significantly in the lower tail.

Example 2: Calculating the Percentile for a Positive Z-Score

Conversely, when we encounter a positive Z-score, this indicates that the data point is situated above the distribution mean. Consequently, the resulting percentile rank must always exceed 50%. For this example, let us determine the percentile that corresponds to a positive Z-score of 0.56.

Similar to the procedure used for negative Z-scores, our task is to calculate the cumulative area, starting from the furthest point in the left tail and extending up to our specific positive Z-score. We must utilize the identical standard distribution parameters ($mu=0$ and $sigma=1$) and reuse the proxy value for negative infinity as the lower bound to capture the entire area.

The precise input sequence entered into the TI-84 calculator is executed as follows:

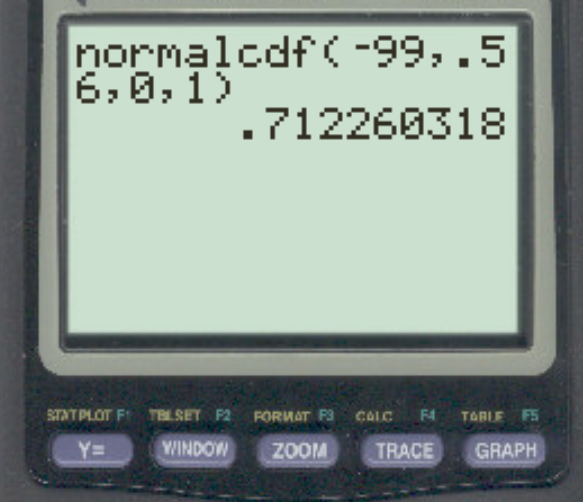

normalcdf(-99, 0.56, 0, 1)

Once again, maintaining the lower bound setting at -99 is absolutely necessary. This guarantees that the calculator accurately accumulates the entire probability mass, or area, from the lowest theoretical point up to the specified Z-score of 0.56. This cumulative probability is the defining characteristic of the percentile.

The resulting decimal value yielded by this calculation is 0.7123. Interpreting this result confirms that a Z-score of 0.56 is associated with the 71.23rd percentile. This outcome signifies that 71.23% of all observed values within the distribution fall below this specific score, logically placing it firmly within the upper half of the dataset.

Interpreting the Symmetry and Boundaries of the Distribution

The inherent, non-linear relationship linking Z-scores and percentiles is rigidly governed by the intrinsic properties of the standard normal curve. While Z-scores are mathematical measures of distance that theoretically possess an infinite range (extending from $-infty$ to $+infty$), percentiles are measures of relative rank or position, and are therefore strictly bounded between 0% and 100%.

This fundamental boundary condition implies that regardless of how exceptionally high a positive Z-score you calculate (for instance, Z = 4.0), the resulting corresponding percentile will be asymptotically close to 100%. Conversely, an extremely low negative Z-score (such as Z = -4.0) will produce a percentile value that approaches 0%. In practical scenarios, the vast majority of statistical observations are contained within three standard deviations of the mean, reinforcing the understanding of why these theoretical boundaries are seldom significantly breached in real-world data analysis.

A crucial reference point is the point of symmetry within the standard normal curve, which occurs precisely where the Z-score is exactly 0. This central Z-score corresponds exactly to the 50th percentile (0.50). Consequently, any calculated positive Z-score must invariably yield a percentile greater than 0.50, and, conversely, any negative Z-score must yield a percentile less than 0.50. This straightforward rule acts as an immediate and highly effective self-check mechanism for verifying the accuracy and logical consistency of any percentile calculation performed on the calculator.

Advanced Applications: Handling Non-Standard Distributions

While the primary focus of the previous sections centered on converting existing Z-scores to percentiles (which mandates the use of $mu=0$ and $sigma=1$), it is important to recognize the versatility of the normalcdf function. The TI-84 calculator is powerful enough to perform calculations for non-standard normal distributions directly. This capability effectively merges the two steps—Z-score calculation and percentile lookup—into a single, highly efficient operation.

If you are initially provided with a raw score ($X$) along with the population parameters ($mu$ and $sigma$), you can determine the corresponding percentile without needing to manually calculate the Z-score first. For illustrative purposes, consider a scenario where a test score $X=85$ originates from a distribution defined by a mean $mu=70$ and a standard deviation $sigma=10$. In this case, you would calculate the percentile using the following syntax, inputting the raw score as the upper bound:

normalcdf(-99, 85, 70, 10)

This streamlined capability underscores the efficiency inherent in the graphing calculator. However, when the problem explicitly furnishes a Z-score, it remains the correct statistical procedure to maintain the standard parameters ($mu=0, sigma=1$) within the normalcdf function. This practice confirms that the input value is already standardized and correctly aligns with the mathematical definition of the Standard Normal distribution.

Additional Resources and Next Steps in Statistical Analysis

Achieving proficiency in the use of the normalcdf function is a foundational requirement for anyone engaging in inferential statistics. It provides the necessary means to quantify the cumulative probability associated with any standardized score, making it indispensable for probability assessments and data ranking. For those aspiring to advance their statistical expertise, the logical progression involves exploring the inverse process: determining the Z-score (or the corresponding raw score) that is associated with a known percentile.

This crucial inverse calculation is executed using the invNorm (Inverse Normal) function on the TI-84. Unlike normalcdf, which takes boundaries and returns an area, invNorm accepts the area (the percentile expressed as a decimal probability) as its input and returns the corresponding Z-score or raw score. Comprehensive mastery of both the normalcdf and invNorm functions ensures a complete and robust capability in handling all standard problems related to probability, position, and distribution within the normal model.
