Calculating Sample Variance with a TI-84 Calculator: A Step-by-Step Guide

Understanding the dispersion of data points is fundamentally important in modern statistical analysis. Central to this understanding is the concept of variance, which serves as a powerful metric for quantifying the spread or scatter of values within a given dataset. Specifically, the sample variance (often denoted as s²) is a critical measure used when analyzing subsets of a larger population. It is designed to be an unbiased estimator of the true population variance, making it a cornerstone calculation in advanced inferential statistics where we draw conclusions about large populations based on smaller samples.

While the theoretical understanding of variance is crucial, calculating it manually, especially for datasets involving dozens or even hundreds of observations, can be exceptionally time-consuming and prone to human error. Fortunately, advanced graphing calculators, such as the widely used TI-84 calculator series, are equipped with sophisticated built-in statistical functions. These functions allow students, researchers, and professionals to determine this metric quickly, efficiently, and with high precision, saving valuable time during complex calculations.

The mathematical definition of the sample variance is defined by a specific formula that accounts for the relationship between each data point and the sample mean. This formula is distinct from the population variance formula primarily due to its use of the degrees of freedom in the denominator, which ensures the resulting estimate is unbiased. The formula is written as follows:

s² = Σ (x_i – x)² / (n-1)

To fully grasp the calculation process, it is essential to understand the specific statistical meaning of each component within the defining formula:

• x: Represents the sample mean, which is the arithmetic average calculated from all the individual data points included in the sample. It is the central reference point for measuring spread.
• x_i: Denotes the i^th individual value, representing a single observation or data point within the collected sample.
• n: Signifies the sample size, which is the total count of observations in the dataset. The denominator uses (n-1), known as the degrees of freedom, a necessary adjustment when estimating population parameters from a sample.

The rest of this guide will walk through the exact keystrokes and procedures required to successfully compute the sample variance using the TI-84 calculator. We will utilize a specific, illustrative dataset to provide a clear, step-by-step example that confirms the accuracy of the calculator method.

Example Sample Data: 2, 4, 4, 7, 8, 12, 14, 15, 19, 22

Step 1: Preparing and Entering the Raw Data into a List

The initial and most critical phase of any statistical calculation on the TI-84 is the accurate input of the raw numerical data. The calculator relies on its designated list functions (L1, L2, L3, etc.) to store and manage the data points that will be subjected to analysis. Proper data entry ensures that the calculator has access to the precise values needed for computation, minimizing the possibility of calculation errors downstream.

To initiate the data entry process, locate and press the dedicated Stat button on the calculator’s keypad. This action immediately brings up the main statistics menu, offering options for editing lists, performing calculations, and running tests. From this menu, you must select the EDIT option, which is typically presented as option 1. Selecting EDIT opens the comprehensive list editor screen, displaying several columns designated for data input, most commonly starting with L1.

Once the list editor is visible, carefully input each numerical value from the example dataset (2, 4, 4, 7, 8, 12, 14, 15, 19, 22) into column L1. After entering each number, press ENTER to move to the next row. It is paramount that you double-check and verify that every data point has been entered correctly and that the count of entries (in this case, ten) exactly matches the known sample size (n). A single transposition error or a missing data point can entirely invalidate the subsequent calculations, leading to an inaccurate variance result.

Step 2: Calculating the 1-Variable Statistics Summary

With the dataset securely housed in list L1, the next procedural step involves instructing the TI-84 to execute the core descriptive statistical analysis. We utilize the powerful 1-Var Stats function for this purpose, as it is designed to efficiently compute and output numerous critical metrics derived from a single-variable dataset, including the required sample standard deviation (S_x). Although the TI-84 does not directly display the sample variance (s²), it provides the standard deviation, which is the necessary prerequisite for determining the variance.

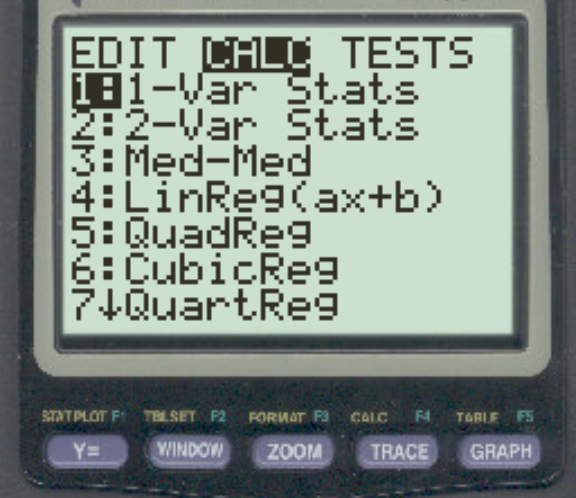

To access this analytical tool, press the Stat button once more, returning to the main statistics menu. This time, instead of selecting EDIT, use the right arrow key to scroll horizontally until the CALC menu tab is highlighted. The CALC menu houses all the primary statistical computation tools available on the calculator.

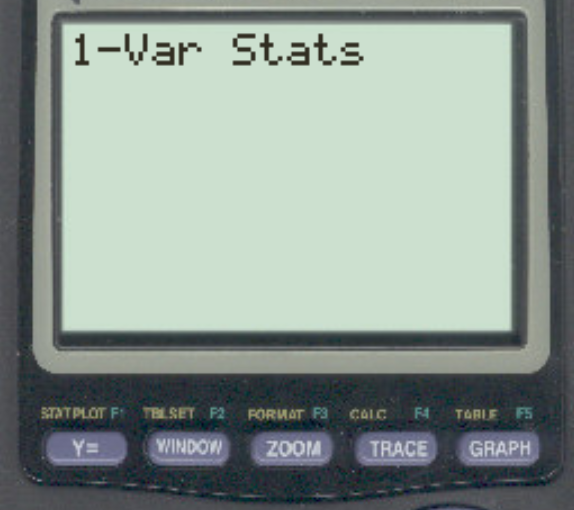

Once in the CALC menu, select the option labeled 1-Var Stats, which is typically option 1. This selection signals to the TI-84 that the impending analysis involves a single variable dataset contained within one list. For newer TI-84 models (such as the CE series), the calculator will prompt you to confirm the List (L1) and ensure the FreqList is blank (or set to L2 if weighted data is used, but for this example, leave it blank). After confirming the settings, select the Calculate option at the bottom of the screen.

Step 3: Retrieving the Sample Standard Deviation (Sₓ)

Upon execution of the 1-Var Stats command, the calculator will generate a new screen filled with various descriptive statistics based on the input data in L1. This output provides a comprehensive summary of the dataset, including measures of central tendency (like the sample mean, x) and measures of dispersion. It is crucial to scan this screen to locate the specific value needed for our variance calculation.

While the direct value for the sample variance (s²) is noticeably absent from this summary display, the sample standard deviation (S_x) is prominently featured. The standard deviation, by definition, is the square root of the variance. Therefore, retrieving this value is the critical intermediate step in determining the variance. It is essential to differentiate S_x (sample standard deviation) from σ_x (population standard deviation), as using the wrong one will lead to an incorrect sample variance.

For our specific example data set (2, 4, 4, 7, 8, 12, 14, 15, 19, 22), careful examination of the 1-Var Stats output reveals that the sample standard deviation is S_x = 6.783149056. This exact, high-precision value must now be utilized and squared to accurately obtain the final sample variance (s²). The subsequent step will focus on retrieving this value from the calculator’s memory and performing the final operation.

Step 4: Squaring the Standard Deviation to Determine Variance (s²)

The final step in calculating the sample variance (s²) involves squaring the S_x value retrieved in the previous step. To maintain maximum precision and prevent rounding errors, it is highly recommended to use the TI-84’s variable retrieval system rather than manually typing in the truncated decimal value. This ensures the calculator uses the full, internally stored precision of S_x for the squaring operation.

First, exit the statistical output screen and return to the main calculation screen (if you are not already there). To access the statistical variables stored in memory from the previous calculation, press the VARS button. This button provides access to numerous system variables, including those generated by the statistical functions. Navigate across the top menu options to select the STATISTICS menu, which is typically option 5, where all the calculated results are stored.

Within the STATISTICS submenu, you will see a list of results such as n, x, σ_x, and S_x. Press the corresponding number (usually 3) to select the sample standard deviation, labeled S_x. Pressing this selection automatically pastes the complete, high-precision numerical value (6.783149056…) onto the main calculator display, ready for the final operation.

To complete the calculation, press the dedicated squaring key, conveniently labeled x², which immediately follows the retrieved S_x value on the display. Finally, press ENTER to execute the squaring operation. This final keystroke yields the precise numerical value of s², the sample variance.

The resulting calculation provides the final sample variance (s²) for our dataset. For this specific example, the computation yields 46.0111 (when correctly rounded to four decimal places). This figure precisely quantifies the average squared difference between each observed data point and the central measure of the sample mean, successfully concluding the TI-84 calculation process.

Understanding and Utilizing Sample Variance in Context

Although the sample standard deviation (S_x) is often the preferred measure for descriptive statistics—because it is expressed in the original units of measurement and is thus more intuitive—the sample variance (s²) remains a profoundly crucial parameter in advanced statistical inference. Variance is preferred in many theoretical models because its mathematical properties simplify complex calculations, particularly when variances are combined or partitioned.

For example, variance is the foundation for the F-test utilized in Analysis of Variance (ANOVA). In ANOVA, researchers compare the variances between different experimental groups to determine if the observed differences in means are statistically significant or merely due to random chance. Furthermore, variance plays an indispensable role in regression analysis, where it is used to assess the error term and evaluate the overall goodness-of-fit of a statistical model. Understanding how to correctly calculate and interpret variance is therefore non-negotiable for serious statistical work.

The magnitude of the sample variance provides immediate insight into the homogeneity or heterogeneity of the dataset. A high sample variance, such as the 46.0111 found in our example, indicates that the individual data points are widely scattered and spread far apart from the sample mean, suggesting a high degree of variability within the sample. Conversely, if a calculation resulted in a low variance value, it would imply that the data points are tightly clustered around the mean, demonstrating a high level of consistency or low inherent variability. Interpreting this value allows statisticians to draw meaningful conclusions about the characteristics of the sampled population.

Additional Resources and Advanced Techniques

To further solidify your understanding of these core statistical concepts and expand your proficiency with the TI-84 calculator, we recommend exploring the following supplementary resources and advanced techniques:

• Exploring the official Texas Instruments documentation for the TI-84 to master other complex statistical functions, such as computing confidence intervals, conducting various hypothesis tests, and setting up distributions.
• Studying the rigorous mathematical derivation that justifies the use of the degrees of freedom (n-1) in the denominator of the sample variance formula, which is critical for ensuring the resulting s² is an unbiased estimator.
• Practicing the 1-Var Stats calculation using datasets that incorporate grouped frequency distributions, which necessitates correctly utilizing the FreqList setting (e.g., L2) in the 1-Var Stats menu to accurately account for weighted data.
