Learning to Find the Range of a Box Plot: A Step-by-Step Guide with Examples

Mastering Box Plots: A Foundation for Data Spread Analysis

In the vast and complex realm of statistics, the ability to effectively communicate and analyze numerical information is paramount. The box plot, commonly referred to as a box-and-whisker plot, stands out as an exceptionally powerful graphical instrument. It provides a highly condensed and insightful summary of a dataset’s underlying data distribution. This visualization method is particularly valuable when researchers need to rapidly compare distributions across multiple groups or quickly assess the central tendency, overall spread, and potential extreme values (outliers) within a single dataset.

Unlike more detailed graphical forms such as histograms or density plots, which prioritize showing the exact shape of the distribution, the box plot focuses its energy on communicating key statistical milestones. By highlighting these critical measures, the box plot becomes an indispensable tool for conveying the “five-number summary.” This statistical summary is the core structural element of the plot, offering a robust, non-parametric overview of the data’s characteristics without requiring the viewer to sift through hundreds of individual data points.

The true elegance of the box plot lies in its efficiency—it successfully translates a large volume of numerical data into a straightforward, easily digestible visual format. This enables analysts and data scientists to instantaneously grasp the symmetry and extent of data variability, pinpointing where the central mass of the data resides and observing how widely the extreme values are spread. This rapid comprehension is essential for preliminary exploratory data analysis.

Dissecting the Anatomy: The Five-Number Summary Explained

The construction of every box plot is meticulously based on five specific numerical values, collectively known as the five-number summary. When the dataset is arranged in ascending order, these five points segment the data into four distinct sections, ensuring that each section contains precisely 25% of all observations. A comprehensive understanding of each component is vital for accurate interpretation of the plot’s meaning:

• The minimum value: This point represents the smallest observation recorded in the dataset, visualized by the end point of the lower whisker.
• The first quartile (Q1): Also known as the 25th percentile, this value marks the boundary below which 25% of the data falls. It defines the lower boundary of the central rectangular box.
• The median value (Q2): Functioning as the 50th percentile, the median is the absolute center of the ordered dataset, dividing it into two equal halves. It is clearly denoted by a central line drawn inside the box.
• The third quartile (Q3): This value corresponds to the 75th percentile, meaning 75% of the data lies below this point. It establishes the upper boundary of the central box.
• The maximum value: This is the largest observation in the dataset, typically represented by the farthest extent of the upper whisker.

To create the visual representation, a rectangular box is drawn spanning the distance from Q1 to Q3. This box fundamentally encapsulates the middle 50% of the data, a highly stable measure of spread known as the interquartile range (IQR). A prominent vertical line is then positioned within this box at the median (Q2), visually indicating the central tendency of the data. Finally, “whiskers” extend outwards from the edges of the box toward the minimum and maximum values of the dataset, illustrating the total breadth of the data’s spread.

This carefully structured visualization yields immediate and profound insights. For instance, the physical length of the box itself directly relates to the spread of the central 50% of observations. Furthermore, the placement of the median line relative to the box edges can immediately suggest the skewness or symmetry of the underlying distribution. Longer whiskers, in turn, signal a wider dispersal of data points at the extreme ends.

The visual power provided by these five numbers offers a comprehensive snapshot of the dataset’s characteristics, cementing box plots as an essential technique in exploratory data visualization. Their compact and standardized nature makes them exceptionally effective when the primary goal is comparing the distributions of several distinct datasets simultaneously.

Defining the Statistical Range Using Box Plot Extremes

One of the quickest and most intuitive indicators of data dispersion, or spread, is the range. When applied to a box plot, the range provides an unambiguous measure of the overall variability present within a dataset. It precisely quantifies the total distance separating the lowest observation from the highest, thereby giving a rapid assessment of how widely the data is distributed across the scale.

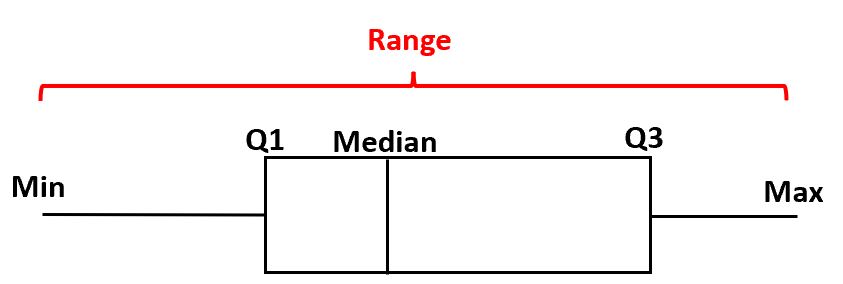

The mathematical calculation of the range is remarkably simple, relying exclusively on two specific values derived from the five-number summary prominently displayed in the box plot. By definition, the range is calculated as the absolute difference between the maximum value and the minimum value recorded in the dataset. This intrinsic simplicity ensures that the range is an easily interpretable metric, particularly useful during the initial stages of data exploration.

• Range = Maximum Value – Minimum Value

To efficiently determine the range directly from a visual box plot, one simply needs to identify the points where the whiskers terminate along the measurement axis. The upper whisker consistently extends to the maximum value, while the lower whisker reliably reaches the minimum value. By subtracting the numerical value at the tip of the lower whisker from the value at the tip of the upper whisker, the range is immediately obtained. This visual extraction method significantly streamlines the calculation, eliminating any necessity to refer back to the original, raw dataset.

It is essential to recognize that while the range offers a quick measure of total spread, it carries a significant drawback: it is highly susceptible to influence by extreme values or outliers. In contrast to the interquartile range (IQR), which deliberately focuses on the resilient middle 50% of the data, the range incorporates every single data point. This sensitivity to even one unusually high or low observation means the range can sometimes misrepresent the typical variability. Nevertheless, it remains a vital and easily calculated first step in assessing any dataset’s overall variability.

Practical Application: Step-by-Step Range Calculation Examples

To firmly cement the understanding of how to determine the range from a box plot, we will now explore a series of straightforward, practical examples. These case studies are designed to demonstrate the fluid application of the range formula by systematically extracting the necessary maximum and minimum values directly from the provided visual representations.

Example 1: Analyzing Exam Scores

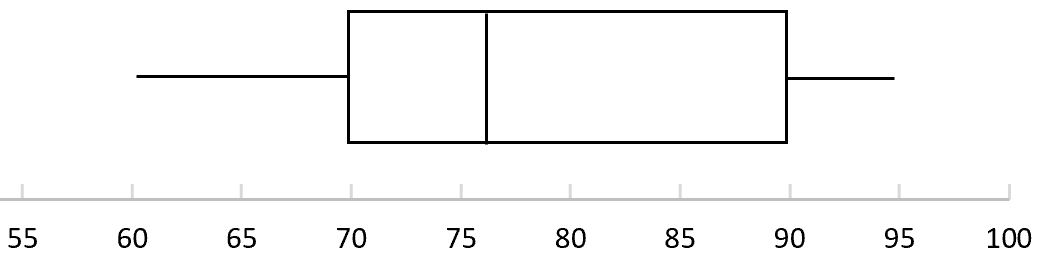

Let us examine a scenario involving academic performance. A college professor has presented the distribution of scores from a recent examination using the box plot illustrated below. Our primary objective is to accurately determine the range of these exam scores, which will provide crucial insight into the total spread of student performance, from the lowest scorer to the highest.

To successfully find the range, we must first locate the absolute highest and lowest scores indicated by the plot’s whiskers. By carefully observing the horizontal axis and the full extent of the box plot:

• The maximum score, clearly defined by the terminus of the rightmost whisker, is 95.
• The minimum score, indicated by the terminus of the leftmost whisker, is 60.

We now proceed to apply the range formula using these extracted values:

• Range = Maximum – Minimum
• Range = 95 – 60
• Range = 35

Consequently, the range of the exam scores is calculated as 35. This result signifies that the total difference between the highest score achieved and the lowest score recorded among the students who took this exam was 35 points.

Example 2: Examining Basketball Player Points

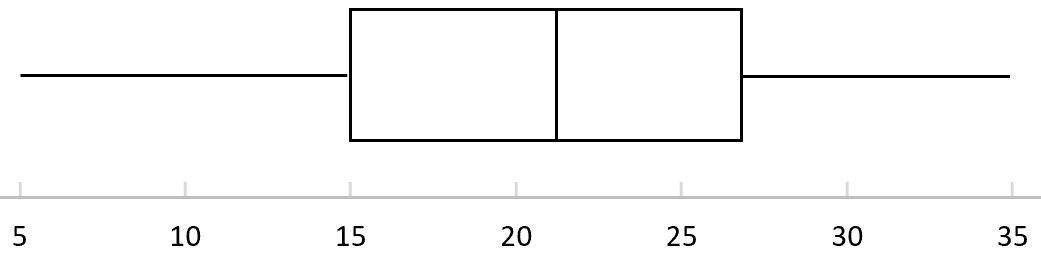

Consider a professional basketball league where the total points scored by players during a recent high-stakes game are summarized in the box plot provided below. We are specifically interested in calculating the range of these points scored to gain an understanding of the total variability in individual player scoring performance for that particular game.

To accurately ascertain the range, our task is to locate the extreme numerical values from the visual box plot. By inspecting the horizontal scale and the terminal points of the whiskers:

• The maximum points scored, clearly shown by the tip of the right whisker, is 35.
• The minimum points scored, represented by the tip of the left whisker, is 5.

We now execute the range calculation using these values:

• Range = Maximum – Minimum
• Range = 35 – 5
• Range = 30

Therefore, the range of points scored by basketball players in this distribution is 30. This finding indicates a total 30-point difference spanning from the lowest individual scoring performance to the highest individual scoring performance during the game.

Example 3: Comparing Plant Heights Across Species

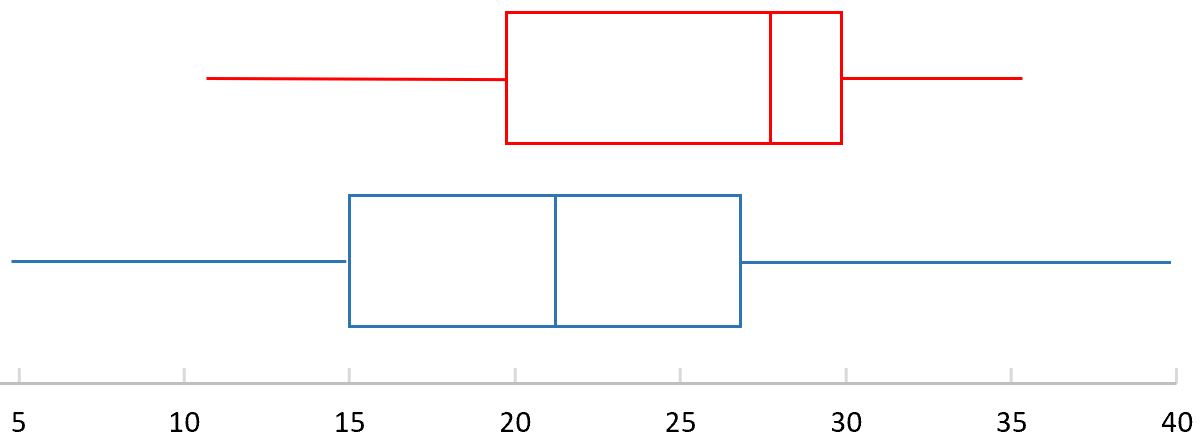

In a detailed botanical research study, scientists measured the heights of specimens belonging to two distinct plant species, labeled Red and Blue. They presented the distribution of heights using a set of side-by-side box plots. The challenge here is to determine which plant species demonstrates a larger range in height, which will effectively reveal the species that exhibits greater overall variability in its physical growth characteristics.

To achieve this comparative analysis, we must calculate the range for each plant species independently.

First, we determine the range for the Red species:

• From the Red box plot, the maximum height is identified as 35 units.
• The minimum height for the Red species is identified as 10 units.

Calculating the range for Red:

• Range = Maximum – Minimum
• Range = 35 – 10
• Range = 25

Next, we calculate the range for the Blue species:

• For the Blue box plot, the maximum height is clearly 40 units.
• The minimum height for the Blue species is 5 units.

Calculating the range for Blue:

• Range = Maximum – Minimum
• Range = 40 – 5
• Range = 35

Upon comparing the two calculated ranges, we find that the Red species has a range of 25 units, while the Blue species has a larger range of 35 units. Therefore, the range for the Blue species is significantly greater, definitively indicating a higher degree of variability in height among the plants of the Blue species compared to those of the Red species.

Conclusion: Leveraging the Range for Rapid Data Insight

The range, which can be extracted with impressive ease from a box plot, stands as a fundamental and highly intuitive metric for gauging the total spread of a dataset. By simply locating the maximum and minimum values—points that are clearly and intentionally demarcated by the plot’s whiskers—an analyst can immediately ascertain the full extent of variability present within the data. This direct visual access makes the range an exceptionally accessible and quick measure for initial data assessment and critical comparison between groups.

While the box plot offers a far more nuanced understanding of data distribution through its complete five-number summary (including the robust IQR), the range serves a crucial purpose by providing the essential first impression of how dispersed the data points truly are. Its unparalleled ease of calculation and interpretation guarantees its continued utility across diverse professional disciplines, from rigorous academic research to actionable business analytics, whenever a swift overview of total data variability is required. Mastering the straightforward ability to extract and accurately interpret the range from a box plot ultimately empowers individuals to derive rapid and meaningful insights from complex data sets.
