Calculating Z Critical Values with a TI-84 Calculator: A Step-by-Step Guide

In the expansive domain of statistical inference, executing a hypothesis test stands as a foundational method for evaluating empirical data. This rigorous process determines whether observational results provide sufficient evidence to reject the standing null hypothesis (H₀). The culmination of this testing procedure involves the computation of a single, powerful metric: the test statistic. This value summarizes how far your sample findings deviate from what the null hypothesis predicts.

To successfully conclude a test and assess the statistical significance of the results, the calculated test statistic must be benchmarked against a specific, predetermined boundary known as the Z critical value. This boundary is derived directly from the theoretical standard normal distribution and acts as the decisive threshold.

The Z critical value precisely defines the limits of the acceptance and rejection regions. If the absolute magnitude of your computed test statistic surpasses this critical threshold, the observed data is considered sufficiently rare—or extreme—to challenge the premise of the null hypothesis. Consequently, the results are declared statistically significant, leading to the rejection of H₀. Proficiency in determining this crucial cutoff point, particularly using an efficient tool like the TI-84 graphing calculator, is indispensable for performing accurate and reliable statistical analysis.

Understanding the Role of the Z Critical Value

The core function of the Z critical value is to delineate the rejection region(s) during a hypothesis test concerning population means. This specific method is applicable when two conditions are met: either the Population Standard Deviation (σ) is known, or the sample size (n) is large enough (typically n > 30) to justify the approximation of the sampling distribution using the standard normal distribution.

This value is fundamentally tied to the chosen Significance Level, symbolized by α (alpha). The significance level represents the predetermined risk or maximum probability of committing a Type I error—the severe mistake of incorrectly rejecting a null hypothesis that is, in fact, true. For instance, selecting an α of 0.01 implies the researcher is willing to accept only a 1% chance of making this critical error.

The Z critical value translates the abstract probability of α into concrete Z-scores on the standard normal curve. These Z-scores effectively “cut off” the area corresponding to α in the tail(s) of the distribution, thereby establishing the exact boundaries for the decision rule. The methodology required to calculate the Z critical value is entirely dependent on the nature of the test being performed—specifically, whether the hypothesis test is classified as one-tailed (left or right) or two-tailed.

Utilizing the TI-84 Function: invNorm(probability, μ, σ)

To calculate the required Z critical value rapidly and precisely using a TI-84 graphing calculator, statisticians rely on the inverse normal distribution function, denoted as invNorm(). This function is technically the inverse cumulative distribution function (or quantile function). Its core purpose is to determine the specific Z-score that corresponds to a given cumulative area (probability) under the curve, requiring input for the mean (μ) and standard deviation (σ) of the distribution. When calculating standard Z critical values, we always operate under the assumption of the standard normal distribution.

The required syntax for entering this command into the TI-84 calculator follows a structured format:

invNorm(probability, μ, σ)

The arguments passed to the function must be carefully defined:

• probability: This crucial argument represents the cumulative area located strictly to the left of the Z-score you are attempting to find. Its value is derived directly from the chosen Significance Level (α).
• μ (Mean): For all standard Z critical value calculations, the population mean is fixed at 0, aligning with the properties of the standard normal distribution.
• σ (Standard Deviation): Similarly, the population standard deviation is always set to 1 for standard Z critical value computations.

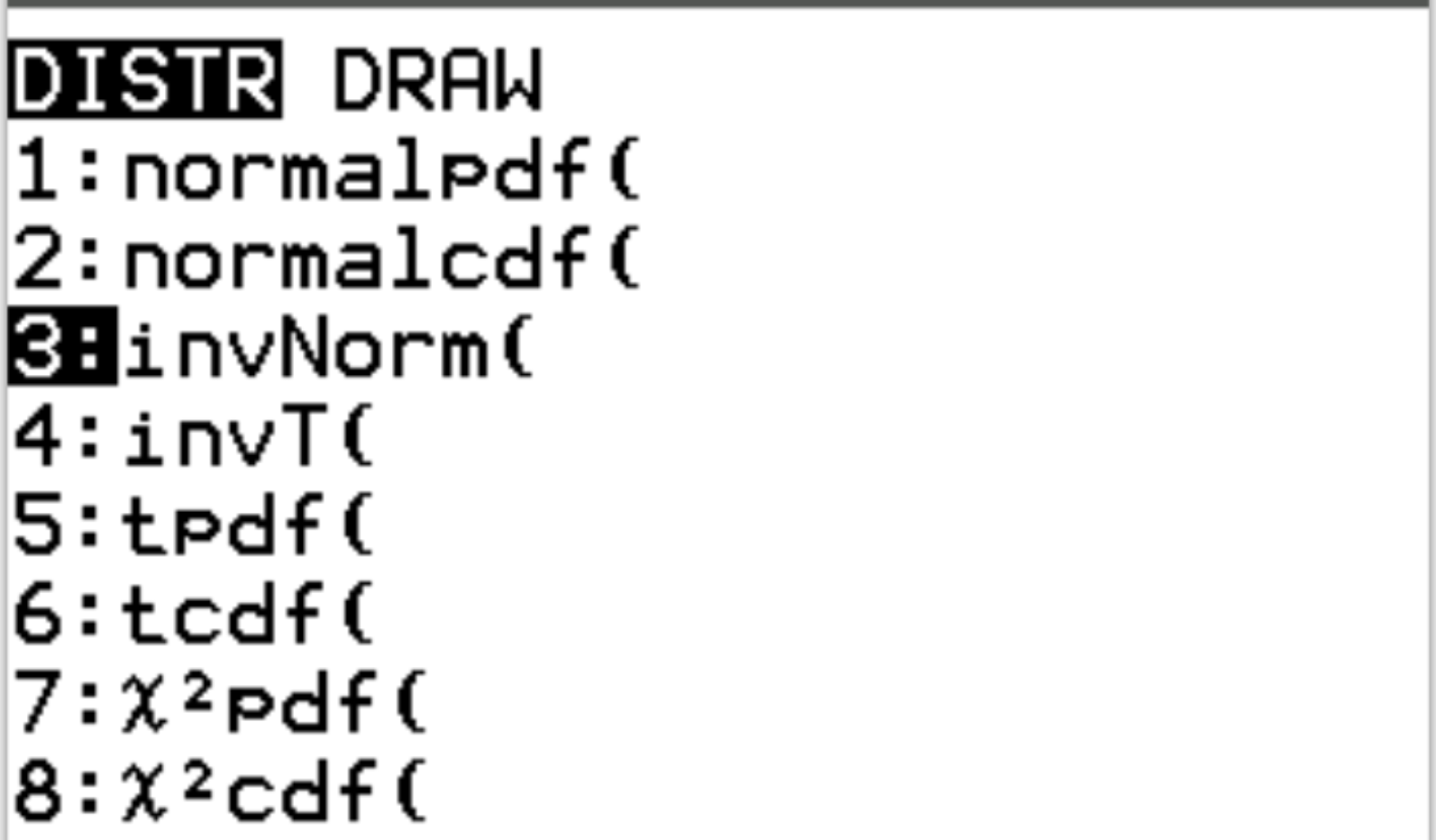

Accessing the invNorm() function is straightforward on the TI-84. Begin by pressing the 2nd key, immediately followed by the vars key. This sequence opens the DISTR (Distributions) menu, where invNorm() is listed alongside other essential statistical functions.

The subsequent examples provide detailed demonstrations of how to correctly adapt the probability input to calculate the required Z critical value for the three primary configurations of hypothesis tests: left-tailed, right-tailed, and two-tailed.

Example 1: Calculating the Z Critical Value for a Left-Tailed Test

In a left-tailed hypothesis test, the entire rejection region is situated exclusively in the negative, left tail of the standard normal distribution curve. This testing scenario is employed when the alternative hypothesis (H₁) posits that the true population parameter is significantly less than the value proposed by the null hypothesis. Since the invNorm() function inherently calculates the Z-score corresponding to the cumulative area to its left, determining the critical value for a left-tailed test represents the most direct application of the function.

Consider the following typical statistical problem:

Question: Determine the Z critical value for a left-tailed test where the Significance Level (α) is set at 0.05.

Procedure: Because α = 0.05 precisely defines the area of the rejection region located in the far left tail, we use this value directly as the probability input for the function. The standard normal parameters (μ=0, σ=1) remain constant.

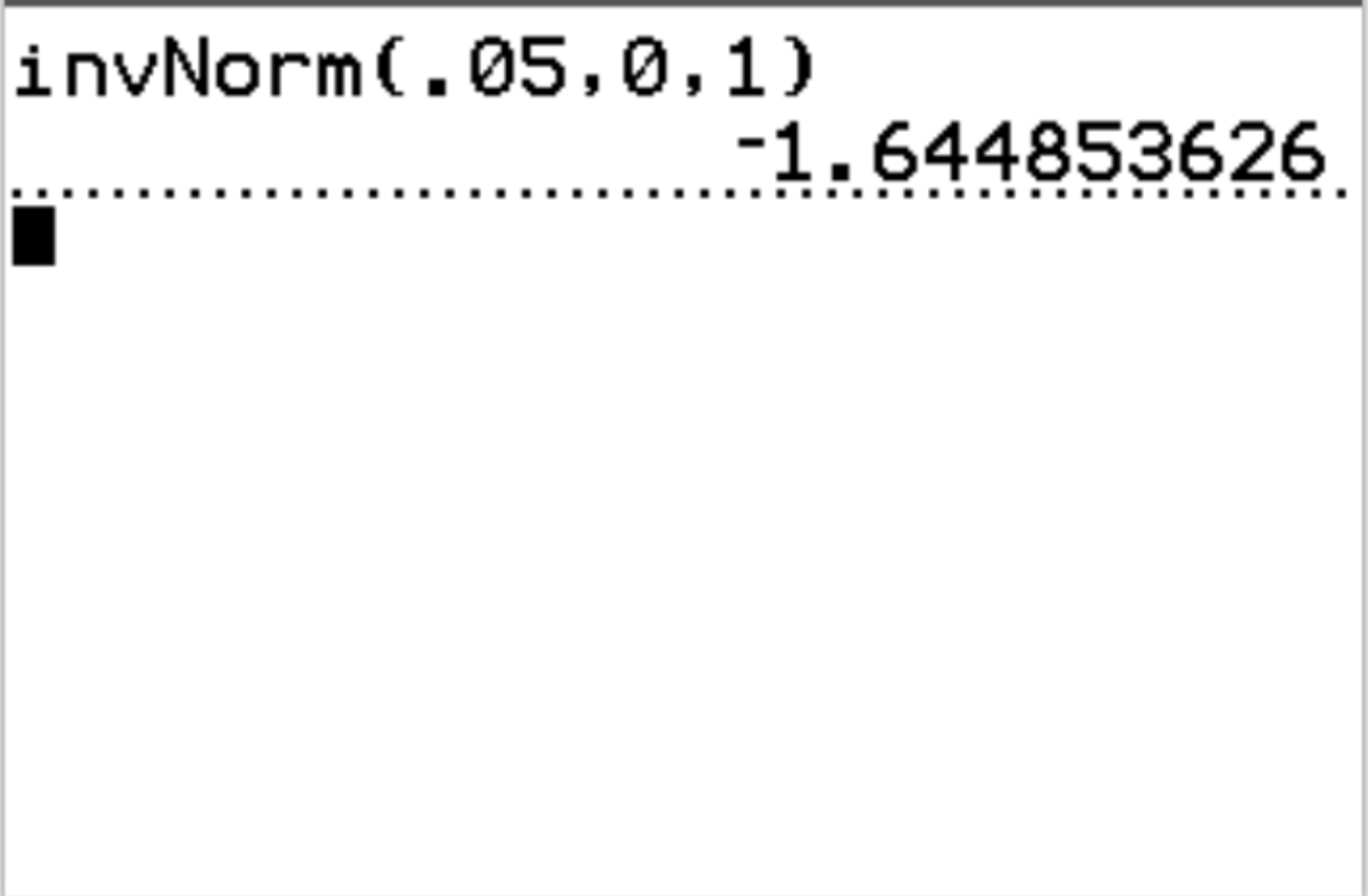

TI-84 Input:

invNorm(.05, 0, 1)

Answer: The calculated Z critical value is -1.6449.

Interpretation: The critical boundary is established at Z = -1.6449. If the computed test statistic derived from your sample data falls below -1.6449 (i.e., if it is more negative), the result has entered the rejection region. This indicates that the finding is statistically significant at the α = 0.05 level, requiring the null hypothesis to be rejected.

Example 2: Calculating the Z Critical Value for a Right-Tailed Test

When executing a right-tailed hypothesis test, the rejection region is confined solely to the positive, right tail of the distribution. This approach is appropriate when the alternative hypothesis suggests that the population parameter is significantly larger than the hypothesized null value. Since the foundational principle of the invNorm() function is to calculate the cumulative area to the left of the desired Z-score, a necessary adjustment must be applied to the input probability.

If the Significance Level (α) specifies the area in the right tail, we must determine the cumulative area to the left of that boundary. This area is calculated as (1 – α). By inputting (1 – α), we ensure that the function accurately returns the positive Z-score that successfully separates the central acceptance area (1 – α) from the small rejection area (α) in the far right tail.

Question: Find the Z critical value for a right-tailed test using a Significance Level (α) of 0.10.

Procedure: We must first calculate the cumulative area to the left of the critical value: 1 – 0.10 = 0.90. This value (0.90) is then used as the probability argument in the invNorm() function.

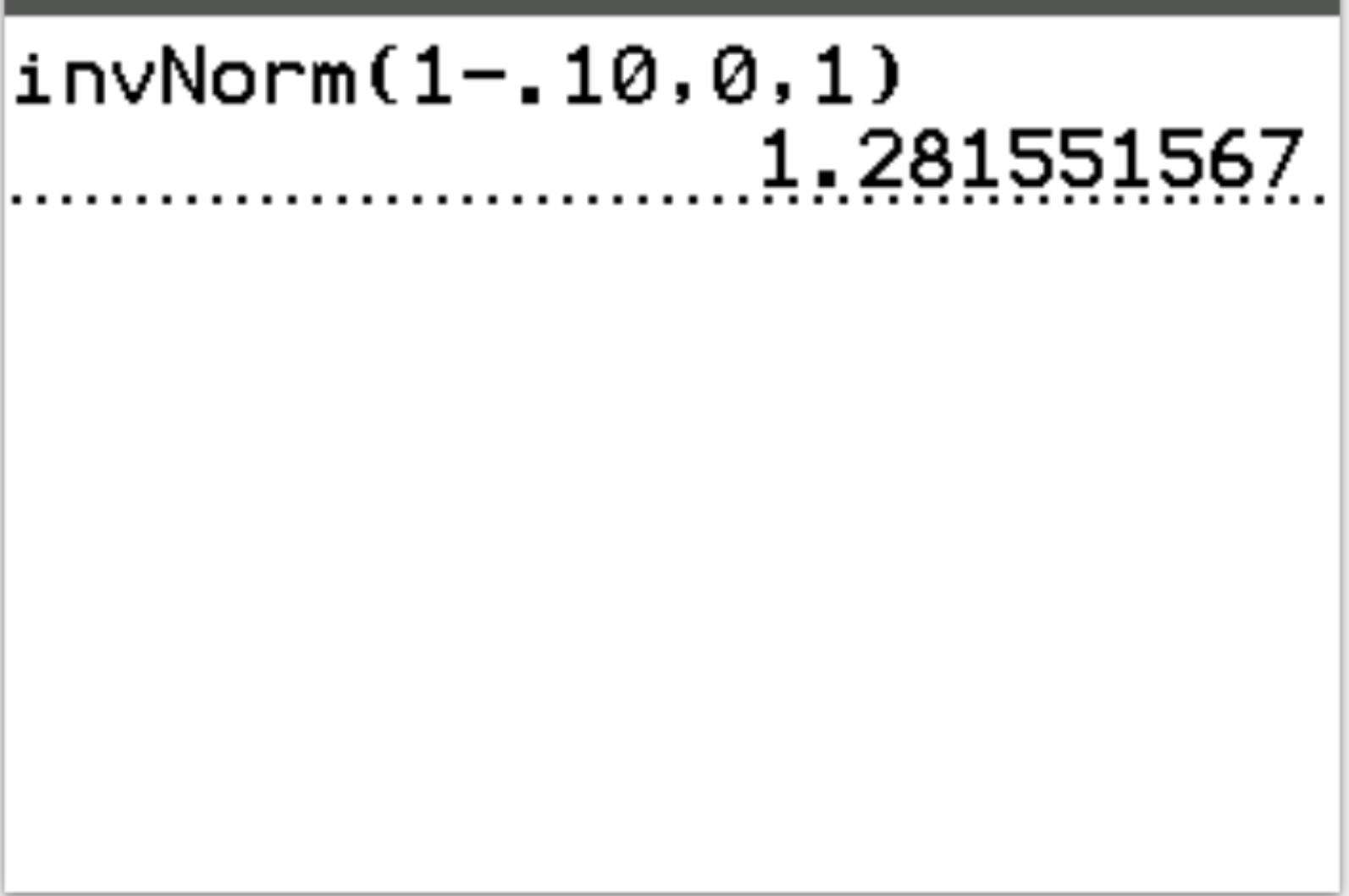

TI-84 Input:

invNorm(1-.10, 0, 1)

Answer: The resulting Z critical value is 1.2816.

Interpretation: The critical boundary for the test is Z = 1.2816. If the calculated test statistic exceeds 1.2816, the result falls definitively within the right-tailed rejection region, thereby establishing statistical significance at the α = 0.10 level.

Example 3: Calculating the Z Critical Value for a Two-Tailed Test

A two-tailed hypothesis test is required when the alternative hypothesis suggests that the population parameter is simply different from the hypothesized value, without specifying a direction (it could be greater than or less than). In this common scenario, the total rejection region (α) is mandated to be divided equally and symmetrically between the two extreme tails of the distribution.

To locate the pair of critical values, we must first divide the total Significance Level (α) by two. This creates two distinct critical regions: α/2 in the far left tail (associated with a negative Z-score) and α/2 in the far right tail (associated with a positive Z-score). We can efficiently use the invNorm() function by inputting α/2 to find the negative critical value directly. Due to the perfect symmetry of the standard normal curve, the positive critical value will simply be the absolute value of the negative result.

Question: Find the Z critical values for a two-tailed test with a Significance Level (α) of 0.05.

Procedure: We calculate the area in the left tail (the required input for invNorm()): α/2 = 0.05 / 2 = 0.025. This derived value is used as the probability argument.

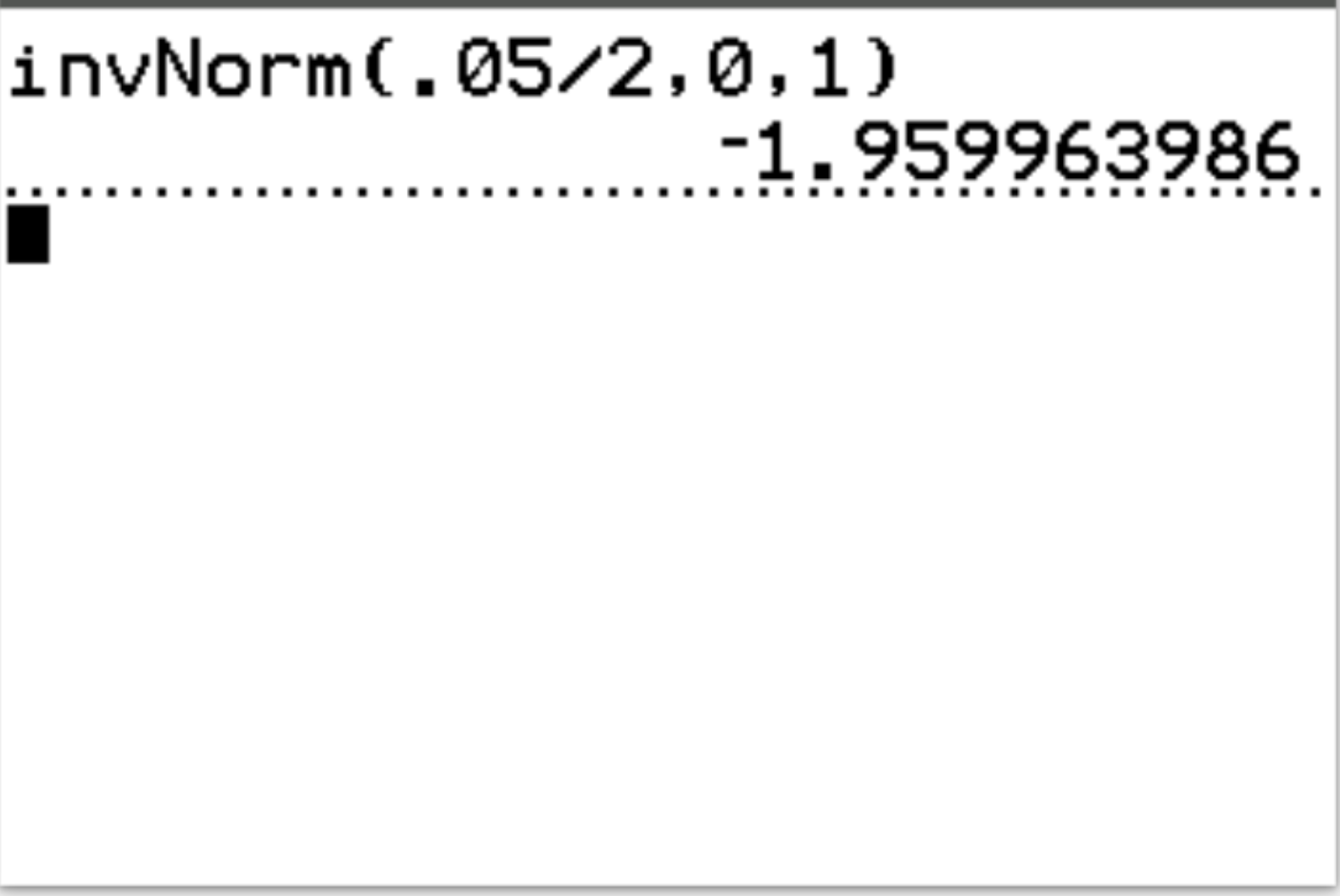

TI-84 Input:

invNorm(.05/2, 0, 1)

Answer: The calculator returns the negative critical value: -1.96. Given the symmetry, the positive critical value is 1.96. The pair of critical boundaries is thus -1.96 and 1.96.

Interpretation: These two critical boundaries define the central region of acceptance. If the calculated test statistic is less than -1.96 or greater than 1.96, the result falls into one of the designated rejection regions. If the test statistic lands outside this defined range, the observed difference is considered statistically significant at the α = 0.05 level, leading to the rejection of the null hypothesis.

Summary of Best Practices and Interpretation

Developing mastery over the invNorm() function on the TI-84 calculator is a foundational step toward making sound statistical decisions. The most critical principle to grasp is the intrinsic link between the specific type of hypothesis test being performed and the corresponding probability input required by the function. It is imperative to always remember that invNorm() calculates the Z-score based exclusively on the cumulative area to the left, which demands meticulous calculation of the input probability, particularly when dealing with right-tailed and two-tailed tests.

For efficient and quick reference during testing, here is a consolidated summary detailing the necessary probability inputs based on the chosen Significance Level (α):

1. For a Left-Tailed Test: Use the Significance Level (α) directly as the probability input (e.g., invNorm(α)).
2. For a Right-Tailed Test: Calculate 1 minus the Significance Level (1 – α) and use this result (e.g., invNorm(1-α)).
3. For a Two-Tailed Test: Calculate α divided by two (α/2) to find the negative critical value (e.g., invNorm(α/2)). The positive critical value is derived by taking the absolute value of this result, establishing the symmetrical pair.

By rigorously applying these established input rules and comparing the resulting Z critical value to the absolute magnitude of the calculated test statistic, analysts can ensure their statistical conclusions are both accurate and robust.
