Understanding and Resolving the “Aesthetics Length” Error in R’s ggplot2

Deconstructing the ‘Aesthetics Length’ Error in R and ggplot2

The error message R: Aesthetics must be either length 1 or the same as the data (N): fill is one of the most frequently encountered hurdles for users mastering the powerful visualization package, ggplot2. This seemingly cryptic message points directly to a fundamental conflict in how the user is attempting to assign visual properties—known as aesthetics—to the underlying data structure. When generating complex charts, such as grouped bar charts or boxplots that require distinct colors for multiple categories, developers often try to manually provide a list of colors (a vector) for the fill argument, leading to this precise numerical mismatch.

The core issue stems from ggplot2’s strict rules governing aesthetic assignment: any manually specified aesthetic value must either be applied uniformly across the entire dataset (meaning the input has a length of 1) or must correspond exactly, element-by-element, to the number of distinct graphical elements being generated. For instance, if you are plotting data that creates seven separate boxplots, ggplot2 requires either one color to be used for all seven or a color vector containing exactly seven unique color specifications. There is no middle ground or allowance for recycling the colors.

Attempting to violate this strict requirement immediately halts the plotting execution, triggering the specific error message. The crucial part of the error is the notation (N), which indicates the exact number of elements or groups that the visualization engine expects to receive an aesthetic mapping for. If your data is grouped into five distinct categories (N=5, such as five months or five experimental groups), the system demands five corresponding aesthetic inputs. Supplying fewer than N inputs, such as two, three, or four colors, will invariably result in this fault because the plotting engine cannot reliably determine how to assign the remaining colors.

Therefore, effective troubleshooting relies on correctly identifying the true dimensionality of the visualization. This requires determining precisely how many distinct graphical elements—be they bars, boxes, or points—are being produced by the geometric function (e.g., geom_bar() or geom_boxplot()). Once this group count (N) is established, the resolution is straightforward: either ensure the length of the manually specified color vector matches N, or simply revert to a single, uniform color assignment.

Distinguishing Data Mapping from Manual Aesthetic Assignment

The immense capability of ggplot2 is rooted in its adherence to the principles of the Grammar of Graphics, which dictates that plots are constructed by mapping variables contained within a data frame to visual properties like position, size, and color. These mappings are typically managed within the aes() function. However, the fill aesthetic can be specified in two fundamentally different locations: inside aes() (for automatic, data-driven mapping) or directly inside a geometry function (for static, manual assignment).

The ‘Aesthetics length’ error is almost exclusively encountered when the fill argument is placed *outside* of aes(). When specified here, ggplot2 interprets the input not as a variable to be mapped, but as a constant value or a specific vector intended to override the default color scale. If the input is a single value (e.g., fill="gray"), this constant color is applied universally to all graphical elements. Conversely, if the input is a vector of values (e.g., fill=c("red", "blue", "green")), the system assumes the user intends to apply these colors sequentially to the grouped elements being generated by the geometry layer.

It is critical to understand that ggplot2 is designed to be unambiguous and will not attempt to guess the user’s intent. If the geometry function is instructed to generate, say, five distinct bars, and the user only supplies a three-color vector for fill, the system cannot deduce how to color the remaining two bars. Unlike some legacy graphical environments that might cycle through the short vector, ggplot2 immediately throws an error, demanding explicit instruction: either a length of 1 for uniform coloring or a complete vector matching the resulting number of groups (N).

This distinction is key to successful plotting. Setting fill = GroupingVariable inside aes() maps the variable itself to the color scale. This allows ggplot2 to automatically manage the scaling, legend creation, and color assignment based on the number of unique levels in the variable, typically resolving potential length errors. However, when the requirement is precise, hard-coded coloring (e.g., ensuring “Product A” is always ‘gold’ and “Product B” is always ‘silver’), manual assignment outside aes() is necessary, which then subjects the input to the stringent length check.

Reproducing the Error with the airquality Dataset

To fully illustrate this concept, we will use a common scenario involving the built-in airquality data set, a standard resource in the R environment. Our objective is to visualize the temperature distribution across different months using boxplots, grouping the data by the Month variable.

Before plotting, we inspect the structure of the airquality dataset to confirm the variables, particularly Month, which serves as our grouping factor.

#view first six lines of airquality dataset
head(airquality)

  Ozone Solar.R Wind Temp Month Day
1    41     190  7.4   67     5   1
2    36     118  8.0   72     5   2
3    12     149 12.6   74     5   3
4    18     313 11.5   62     5   4
5    NA      NA 14.3   56     5   5
6    28      NA 14.9   66     5   6

A quick inspection reveals that the Month variable contains values ranging from 5 to 9, corresponding to five unique months (May, June, July, August, September). Any visualization grouped by Month will therefore generate five distinct graphical elements (N=5). If we proceed to map Month to the x-axis and Temp to the y-axis, and then attempt to manually assign only two colors to the fill aesthetic, the length error is inevitably triggered.

library(ggplot2)

#attempt to create multiple boxplots with mismatched aesthetic length
ggplot(data = airquality, aes(x=as.character(Month), y=Temp)) +
    geom_boxplot(fill=c('steelblue', 'red'))

Error: Aesthetics must be either length 1 or the same as the data (5): fill

The error message explicitly highlights that the required length is 5—corresponding to the five unique boxplots being drawn—but the supplied color vector ('steelblue', 'red') has a length of 2. This numerical discrepancy is the sole cause of the execution failure. The ggplot2 engine requires either a single color to apply universally or a complete list of five colors corresponding to the five groups.

Solution 1: Achieving Length 1 for Uniform Aesthetics

The most straightforward and immediate way to bypass the ‘Aesthetics length’ error is to satisfy the first condition outlined in the error message: ensuring the aesthetic input has a length of 1. By providing only a single color value to the fill argument, we instruct ggplot2 to apply this uniform color across all generated graphical elements, regardless of how many distinct groups are present in the visualization.

This approach is highly effective when group differentiation is already clearly achieved by positional mapping (e.g., the separated boxplots along the x-axis) and distinct color coding is not crucial for the interpretation of the plot. It efficiently bypasses the rigorous vector length check, allowing the plot to render successfully while maintaining visual clarity based on the spatial separation of the data points.

We resolve the failing code block by replacing the two-element color vector with a single color string. Note that while we wrap the single color in c(), the resulting length of the input remains one, satisfying the requirement.

library(ggplot2)
ggplot(data = airquality, aes(x=as.character(Month), y=Temp)) +
    geom_boxplot(fill=c('steelblue'))

This modification results in a successfully rendered plot where every boxplot, irrespective of its corresponding month, is filled with the uniform color ‘steelblue’. This is often the preferred method for initial data exploration or when the color aesthetic is reserved for highlighting another dimension of the data or when adhering to a monochrome style guide. The image below illustrates the successful output using this technique.

Solution 2: Matching Aesthetic Length to Data Group Count (N)

The second, and often more desirable, solution is to satisfy the latter part of the error message: ensuring the aesthetic length is exactly the same as the resulting grouped data (N). This technique is essential when unique, manually selected colors are required for each category displayed on the plot, providing maximum control over the visual presentation. To implement this fix, the user must precisely determine the number of unique groups (N) and provide a corresponding vector containing N colors.

In our working example using the airquality dataset grouped by Month, we confirmed that N = 5. To correct the error, we must supply five unique color values to the fill argument within geom_boxplot(). It is crucial to remember that the order of the colors in the vector determines the assignment order to the categories, which typically follows the alphabetical or numerical order of the grouping variable’s levels unless a specific reordering has been applied.

We adjust the failing code to include five distinct colors, ensuring the vector length precisely matches the required length of 5. This explicit mapping satisfies the requirement of ggplot2, allowing it to assign a unique color to each of the five boxplots without ambiguity.

library(ggplot2)
ggplot(data = airquality, aes(x=as.character(Month), y=Temp)) +
    geom_boxplot(fill=c('steelblue', 'red', 'purple', 'green', 'orange'))

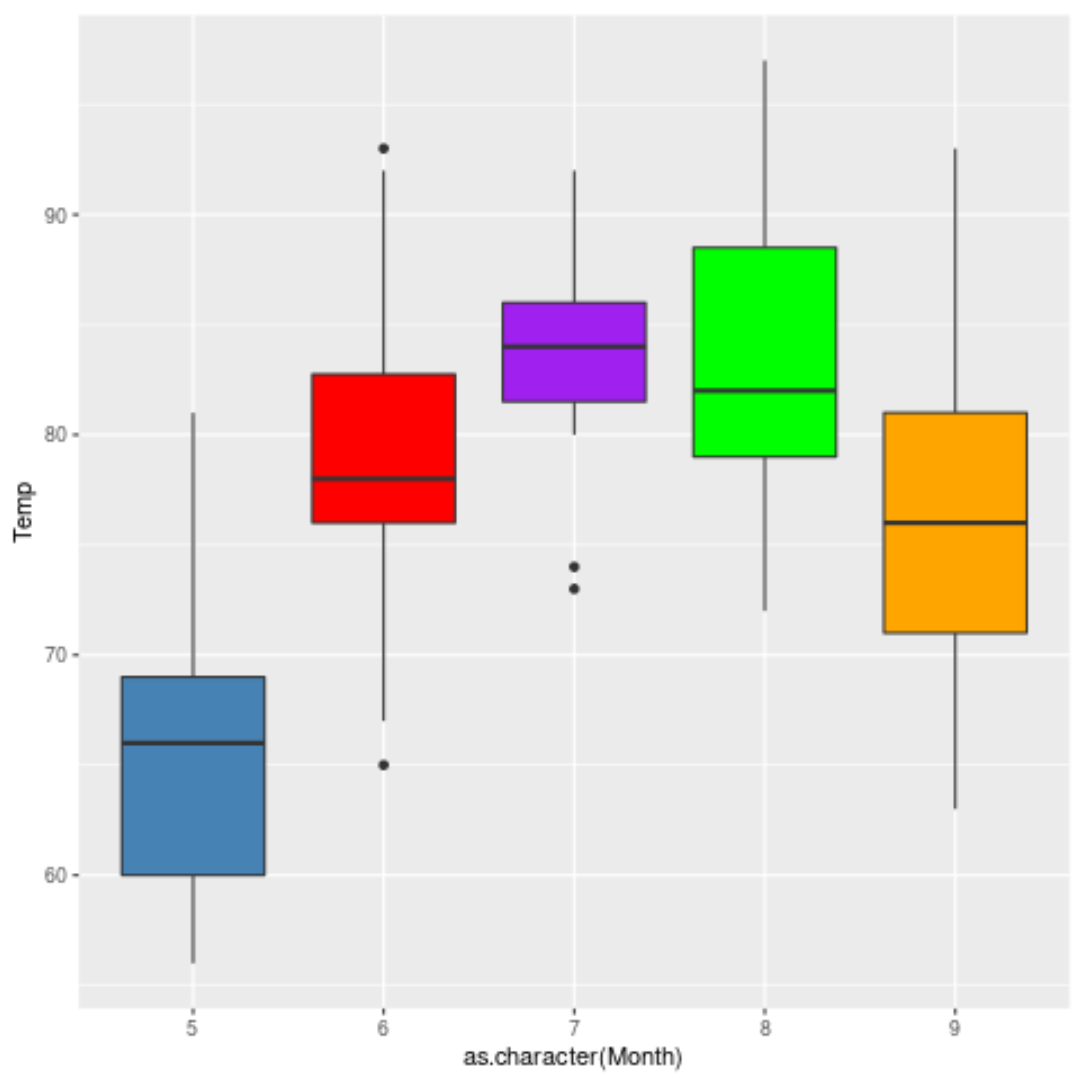

By supplying the correct number of colors, the mismatch is resolved. The visualization renders correctly, with each month’s boxplot displaying the uniquely specified color. This is the ideal methodology when high-precision, hard-coded color control is necessary for presentation or publication. The successful output demonstrating five uniquely colored boxplots is shown below.

This approach confirms that the error is fundamentally a constraint on the length of the aesthetic vector provided outside the aes() function. Once the explicit count requirement is met, the mapping proceeds without issue, yielding a visually richer graph compared to the uniform coloring method.

Advanced Techniques and Robust Aesthetic Management

While the two primary solutions immediately fix the length error, adopting advanced troubleshooting techniques ensures robustness, particularly when working with dynamic data sets or visualizations involving multiple layers or facets. One frequent source of complication is failing to account for missing values (NA) within the grouping factor, which might subtly alter the actual group count (N).

A key best practice before attempting manual aesthetic assignment is to always confirm the exact number of unique groups using utility functions. In R, the function length(unique(data$grouping_variable)) provides the definitive numerical count (N) required for the aesthetic vector. Relying on visual inspection alone can lead to recurring errors if the dataset is updated or expanded.

Furthermore, if the main objective is simply to assign unique colors to each group without manually selecting the exact hues, the most robust and flexible solution remains the data-driven mapping approach. This involves mapping the grouping variable directly to the fill aesthetic *inside* the aes() function, for example: aes(x=Month, y=Temp, fill=as.factor(Month)). This delegates the color management entirely to ggplot2‘s internal scaling mechanisms (like scale_fill_discrete()), which automatically generate the correct number of colors based on the distinct levels present in the variable, thereby eliminating the possibility of the length mismatch error.

Finally, for users who need manual color specification but demand greater reliability and control than a simple color vector offers, the use of dedicated scale functions is highly recommended. Specifically, scale_fill_manual() allows the user to specify both the values (the colors) and the corresponding labels (the levels of the grouping variable) that these colors should map to. This method provides the precision of manual assignment while retaining the structural robustness of ggplot2‘s mapping system, offering a superior solution for creating publication-quality graphics where specific color palettes must be maintained across various visualizations.

Additional Resources for R Error Resolution

Successfully navigating R and ggplot2 often requires familiarity with intricate error messages related to aesthetics and data structure management. The following resources provide detailed guidance on fixing other common issues encountered during statistical programming and visualization tasks:

• Tutorials on using scale_fill_manual() for precise color control and aesthetic mapping, offering a robust alternative to manual vector assignment.

• Documentation explaining data binding and variable mapping within the Grammar of Graphics framework.

• Guides for troubleshooting common vector indexing and data manipulation errors in base R.
