Fix: error in plot.new() : figure margins too large

Introduction: Understanding the Spatial Constraints of R Graphics

The process of generating visual data output in the R programming language is a core function for data scientists and statisticians. While R’s graphical system is powerful and flexible, users occasionally encounter peculiar error messages that halt the visualization pipeline. Among the most frequently reported issues encountered during attempts to render a new plot is a cryptic warning related to dimensional limitations.

This specific error, often seen when working within the RStudio integrated development environment (IDE), immediately stops plotting operations and presents the following message:

Error in plot.new() : figure margins too large

At its core, this error is not a programming bug but rather a conflict concerning the physical space allocated to the visualization. It signals that the current plotting canvas—the designated panel or graphics device where the output is expected to appear—is too restricted in size to accommodate the required figure margins. These margins are essential padding areas surrounding the actual data visualization, reserved for elements like axis labels, titles, and tick marks. If the available device space is insufficient for both the plot and these necessary annotations, the R graphics system fails to initialize the plot.

Because this issue is typically environmental or configuration-based, rather than a flaw in the underlying code, it is straightforward to resolve. This comprehensive guide provides a detailed technical explanation of the error’s origins and outlines three distinct, reliable methods—ranging from simple interface adjustments to advanced programmatic resets—to ensure your visualization workflow remains robust and uninterrupted.

Deconstructing the

Error in plot.new() : figure margins too large

Message

Effective troubleshooting begins with a clear understanding of the component responsible for generating the failure. The error message is generated by the plot.new() function, which is the foundational command R uses internally to prepare and initialize a new plotting region on the active graphical device. This critical initialization phase involves establishing the coordinate system and securing the necessary spatial area for the plot.new() function to draw the default or custom figure margins.

The phrase “figure margins too large” means that the default margin parameters, or perhaps customized settings inherited from a previous plotting command, demand more spatial capacity than the current graphical window can provide. This scenario most frequently arises when users have inadvertently minimized the RStudio Plot panel, or when running R scripts in headless or non-interactive environments where the plot window size is fixed and inherently small.

The R graphics system maintains a strict requirement: the dimensions of the plotting window must be greater than the combined size of the inner plot area plus the outer margins defined by the system. If this spatial requirement is violated—meaning the required margin space exceeds the available device space—the plot.new() initialization process cannot complete successfully, immediately throwing the error. Recognizing this fundamental relationship between required padding and available device dimensions is the key to selecting the correct resolution.

Step-by-Step Guide to Reproducing the Issue

To fully appreciate how this error manifests, we can observe its typical behavior in a standard interactive R session. Consider a common task: generating a basic scatterplot using a simple sequence of integers.

We attempt to execute the following standard command in the R console, expecting a visualization to appear in the plotting panel:

#attempt to create scatterplot
plot(1:30)

If the RStudio plotting panel has been severely constrained in its dimensions—perhaps accidentally collapsed or minimized to the bottom corner of the IDE—R will be unable to successfully allocate the necessary space to render the graphic. Instead of the expected visualization, the system returns the following definitive confirmation of the margin conflict:

Error in plot.new() : figure margins too large

The image provided below vividly demonstrates a typical scenario where the plotting panel—often located in the lower-right quadrant of RStudio—is clearly too small. This lack of real estate prevents the successful drawing of the default margins required for the plot, thus inhibiting successful rendering.

Solution 1: Immediate Resolution by Resizing the Plot Panel

The fastest and most direct method for resolving the “figure margins too large” error relies on addressing the root cause: physical space limitations. By simply increasing the physical size of the plotting area within the RStudio interface, we immediately remove the spatial constraint and allow the graphics system to proceed with initialization. This is often referred to as the “quick fix” because it requires no modification to the R code itself.

To execute this repair, users should navigate to the RStudio IDE, locate the Plot panel (usually situated alongside the Files, Packages, and Help tabs), and use the mouse to drag the borders of the panel outwards. This action should significantly enlarge the panel, effectively resizing the underlying IDE graphics device. This provides the necessary real estate for R to successfully draw the default figure margins, axes, and labels.

Once the panel size has been adequately increased, re-running the exact plotting command will typically succeed immediately, confirming that the issue was purely dimensional.

plot(1:30)

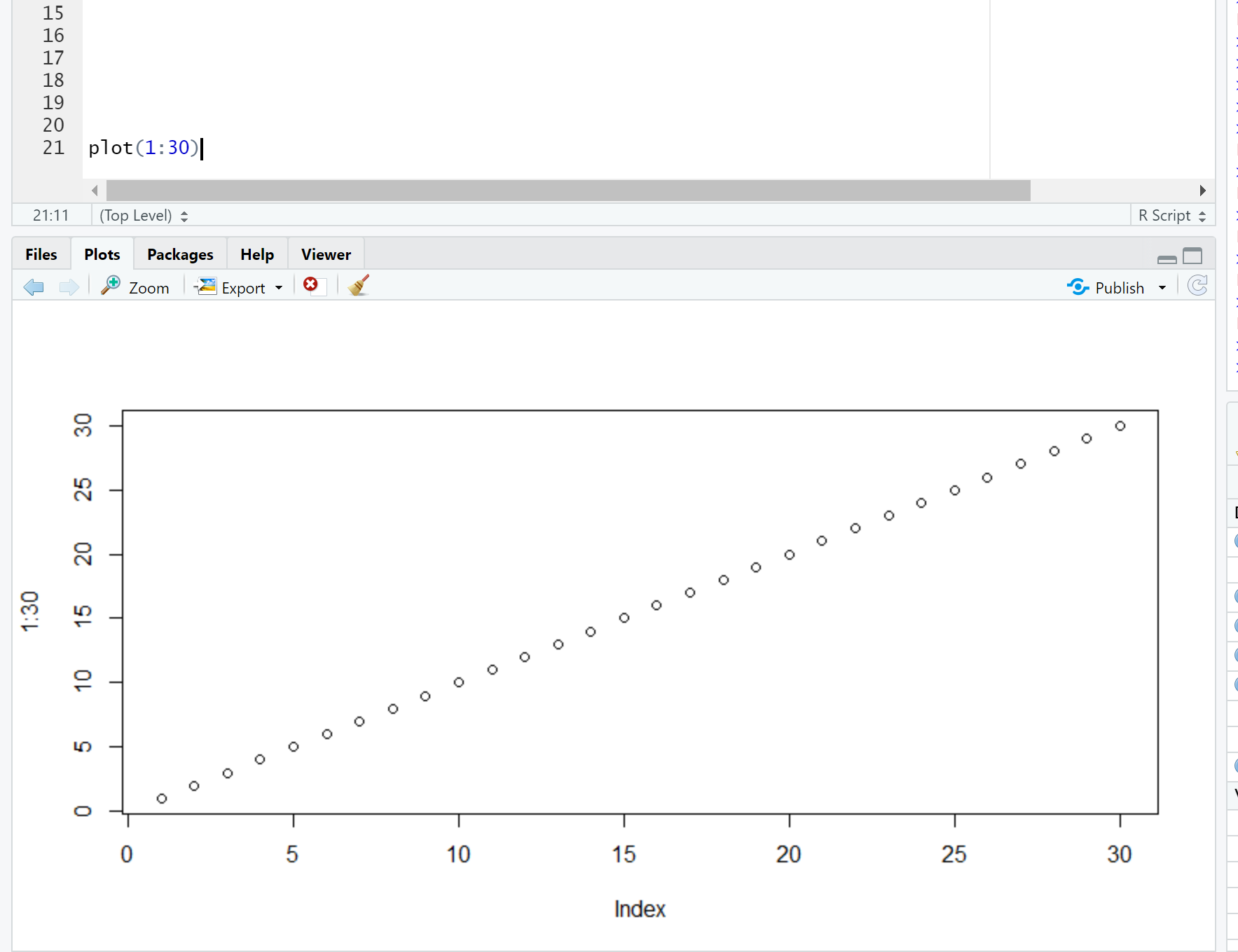

As the visual confirmation below illustrates, when sufficient space is provided, the plot renders flawlessly. This non-programmatic method is the recommended first step in troubleshooting, as it confirms whether the configuration of the graphical environment, rather than the code or persistent settings, was the source of the failure.

Solution 2: Programmatic Margin Control Using the par() Function

While manual resizing is effective in an interactive session, it is not always a viable solution, especially when generating graphics programmatically (e.g., within automated scripts) or when working in a constrained environment where the graphical device size cannot be physically adjusted. In these advanced scenarios, the reliable fix involves programmatically reducing the required size of the figure margins using the powerful par() function.

The par() function is central to customizing the plotting environment, allowing users to set or query various graphical parameters. The specific parameter required here is mar, which governs the margin sizes, measured in lines of text. The margin sizes are specified as a vector of four numerical values, strictly ordered to correspond to the bottom, left, top, and right margins, respectively.

By default, R requires significant padding for annotations. The standard default margin settings are typically:

• Bottom margin: 5.1 lines
• Left margin: 4.1 lines
• Top margin: 4.1 lines
• Right margin: 2.1 lines

To resolve the “figure margins too large” error programmatically, we can dramatically minimize these demands. By setting all margins to the minimal value of 1 line, we ensure that the required padding is significantly reduced, enabling the plot to fit successfully even within a severely confined device panel. It is crucial to remember that settings applied via par() remain active for all subsequent plots until they are explicitly modified again or until the graphics device is closed.

#adjust plot margins to 1 line on all sides
par(mar = c(1, 1, 1, 1))

#create scatterplot now with reduced margins
plot(1:30)

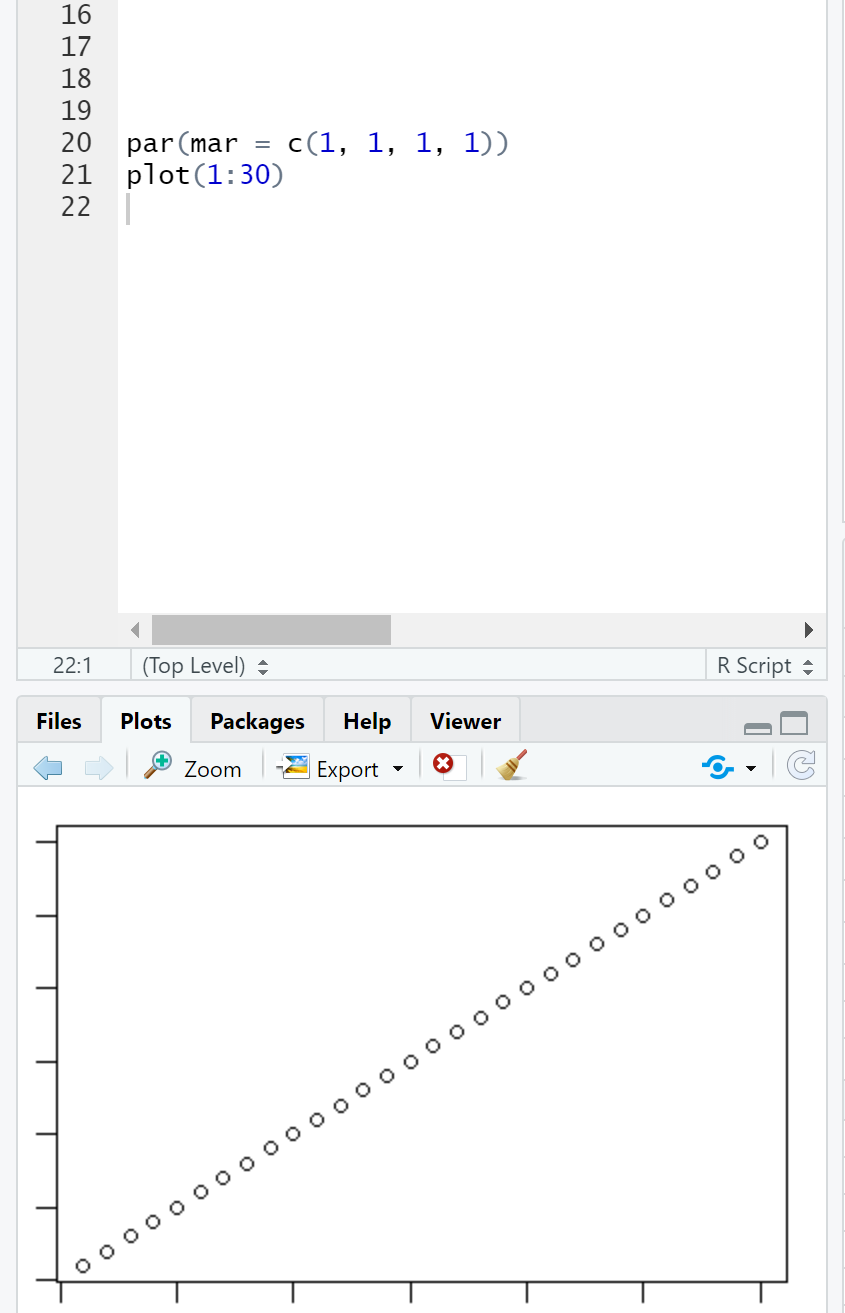

As demonstrated in the accompanying visualization, reducing the margins allows the plot to render successfully. Although the resulting plot may appear slightly cramped against the edges of the panel due to the minimal padding, the primary objective is achieved: the dimensional conflict is bypassed. This programmatic margin reduction offers a robust and flexible alternative when manual resizing is impractical.

Solution 3: Forcibly Resetting the Graphics Device with dev.off()

In complex plotting scenarios, particularly after running routines that involve multiple plots, custom layouts (such as layout()), or external device calls (like png() or pdf()), users may find that neither manual resizing nor margin adjustment resolves the persistent error. This often indicates that the R session is managing an orphaned or corrupt graphics device. This device may be holding onto incompatible or failed settings from a previous operation, which prevents any new plot initialization.

When the entire graphics system appears unstable or holds onto conflicting state parameters, the most drastic yet reliable solution is to forcibly close the current plotting device and initiate a fresh environment. This system reset is achieved using the dev.off() function.

Executing dev.off() closes the currently active graphics device, effectively purging any residual or corrupt plot parameters—including any custom par() settings that might be interfering with the plot.new() initialization.

dev.off()

Upon running this command, R typically prints a numerical value corresponding to the device that was shut down (e.g., [1] 2, meaning device 2 was closed). If you receive a warning such as “cannot shut down device 1 (the null device),” it simply confirms that no active device was running initially, which is harmless. Once the device environment has been reset, the user can safely attempt the original plotting command again. This third method serves as the ultimate “nuclear option” for persistent graphics environment conflicts.

Conclusion: Best Practices for Robust R Visualization Workflows

The “Error in plot.new() : figure margins too large” is a remarkably common obstacle for R users, but it is fundamentally a spatial constraint rather than a logical error. Understanding this dependency on the output device’s spatial constraints is key to effective mitigation.

We have detailed three essential methods for resolving this issue:

1. Manual Panel Resizing: The quickest and simplest fix for interactive RStudio sessions, directly addressing the physical constraint.
2. Programmatic Margin Reduction: Using par(mar = ...) to minimize the required margin space, ideal for scripts or constrained device sizes.
3. Device Reset: Utilizing dev.off() to clear orphaned or corrupt graphics devices, serving as the fix for persistent, environment-level errors.

To minimize the occurrence of this error and maintain a seamless visualization workflow, consider integrating the following preventative best practices into your R routine:

1. Always ensure the RStudio plot panel is maximized or has substantial default space allocated before executing commands that generate complex or margin-heavy plots.
2. If you use the par() function to modify margins or other parameters for a specific visualization, always structure your code to save the original settings beforehand and restore them immediately afterward. This prevents temporary customizations from interfering with subsequent plots.
3. When generating output for publication or external viewing, explicitly define the dimensions of the graphics device using dedicated functions like png(), jpeg(), or pdf() before calling plot(). This guarantees that the output device meets the necessary size requirements upfront.

By mastering these troubleshooting techniques and adopting these preventative measures, you can ensure a cleaner, more reliable, and ultimately more efficient experience when generating high-quality graphics within the R environment.
