Understanding and Resolving the ‘Error in plot.window(…): need finite ‘xlim’ values’ in R

In the dynamic field of statistical computing and data visualization, practitioners utilizing the R programming environment frequently encounter diagnostic messages during the plotting process. While R is celebrated for its powerful graphics capabilities, certain fundamental data incompatibilities can halt visualization routines. One of the most specific and frequently encountered obstacles that interrupts the graphical rendering process is the following error message:

Error in plot.window(...) : need finite 'xlim' values

This error is not merely a bug; it is a critical indication that the data provided for the horizontal axis (the x-axis) does not conform to the strict mathematical requirements of R’s base graphics system. Specifically, the plotting function attempts to define the numerical boundaries of the graph but fails because the input vector lacks measurable, real-number limits. This typically occurs when the vector contains non-numeric data types or is populated entirely by missing values.

To effectively debug and resolve this issue, one must understand that R’s core plotting functions demand the ability to calculate a definable minimum and maximum value to set the plot window coordinates. If these coordinates cannot be established as finite numbers—that is, if they result in infinity or are undefined—the graphical device cannot be initialized, and the process terminates immediately. This comprehensive guide explores the technical mechanisms behind this error and provides targeted, practical solutions for the two primary scenarios where this visualization failure arises.

The Core Mechanics: Why `plot.window` Demands Finite Limits

The core of the problem lies within the internal R function, plot.window, which is essential for initializing the coordinate system of any graphical output. Before a single data point or label is drawn on the canvas, this function determines the numerical space where the visualization will reside. It relies fundamentally on the graphical parameter xlim, which governs the range of values displayed along the x-axis.

The explicit requirement for “finite ‘xlim’ values” stems from the geometric necessity of defining a measurable, continuous, real-number space for data visualization. When the base plotting function attempts to determine the minimum (`min()`) and maximum (`max()`) values of the supplied x-vector, it must receive two bounded, real numbers. If the input data is non-numeric, or if it consists solely of values that R considers mathematically non-finite (like `NA` or `Inf`), the range calculation fails, preventing the engine from scaling the data points correctly to fit the viewport.

This strict requirement enforces mathematical integrity in R visualizations. Unlike certain spreadsheet or visualization software that might automatically coerce categorical data into arbitrary numerical indices, R’s base plotting engine requires explicit numerical input for continuous axes. Violating this requirement—either through improper data types or severe data incompleteness—results in an immediate halt of the plotting procedure, signaling the error through the reference to plot.window. Understanding this dependency is the first step toward successful debugging in the R environment.

Scenario 1: Data Type Mismatch (Non-Numeric Inputs)

One of the most common triggers for the `finite ‘xlim’` error is the attempt to plot categorical data that has been incorrectly stored as a character vector onto an axis designed for continuous, numerical measurement. R’s versatile plot() function is generic, meaning its behavior changes based on the data type it receives. However, when expecting a standard scatterplot or line graph, it assumes the coordinates defining the axes are numeric.

When R encounters strings (e.g., names, labels, or categories) in the x-vector, it cannot assign a quantifiable magnitude or order that allows for minimum and maximum calculation. Consequently, the automatic determination of the xlim parameter fails because strings cannot be mapped to a continuous numerical range.

Consider the following demonstration, where the user attempts to create a visualization using character labels for the x-axis:

# Define data with character labels
x <- c('A', 'B', 'C', 'D', 'E', 'F')
y <- c(3, 6, 7, 8, 14, 19)

# Attempt to create a standard scatterplot
plot(x, y)

Error in plot.window(...) : need finite 'xlim' values

The resolution involves transforming the data on the x-axis into a format that R recognizes as numerical. If these categories represent sequential points or discrete groups, they must be converted into numerical indices or factors. For simple scatterplots, replacing the character labels with corresponding sequential numerical values is the simplest fix:

# Define two numeric vectors
x <- c(1, 2, 3, 4, 5, 6)
y <- c(3, 6, 7, 8, 14, 19)

# Successful creation of scatterplot
plot(x, y)

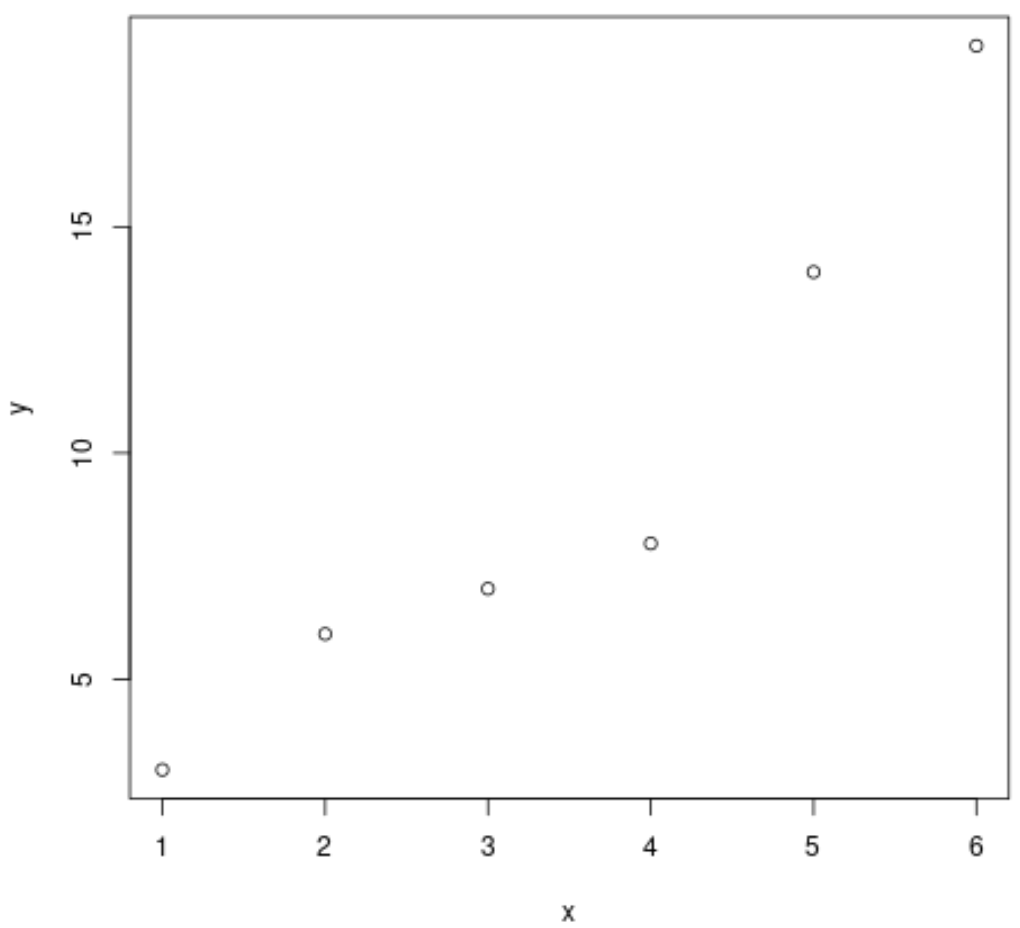

By supplying a numeric vector, the plotting function successfully calculates the finite range (1 to 6) and establishes the necessary coordinate system, thereby allowing the visualization to proceed without error. If the intent is to plot truly categorical data, the user should consider converting the character vector to a factor and utilizing appropriate discrete visualization methods, such as bar plots or box plots, instead of relying on the generic scatterplot expectation.

Scenario 2: Data Completeness Failure (All Missing Values)

The second significant cause of the `finite ‘xlim’` error relates directly to data completeness, specifically when the vector intended for the x-axis is comprised entirely of missing values. In R, missing values are universally represented by NA values. While R plotting functions are generally capable of handling scattered NAs by ignoring the corresponding data points, they become critically incapacitated if the entire dataset lacks valid coordinates.

If R attempts to calculate the range for a vector where every element is NA, the min() and max() functions will return NA or non-finite results. Since the plot.window function requires two specific, finite numbers to establish the axis limits, the presence of an entirely missing vector immediately triggers the error.

Consider the scenario where data extraction or cleaning has failed, leaving the x-coordinates entirely undefined:

# Define data where x-coordinates are entirely missing
x <- c(NA, NA, NA, NA, NA, NA)
y <- c(3, 6, 7, 8, 14, 19)

# Attempt to create scatterplot
plot(x, y)

Error in plot.window(...) : need finite 'xlim' values

The plotting engine, unable to determine any real-number boundary for the range, cannot proceed. In actual data analysis, this scenario necessitates a return to the data preparation phase, either by identifying the source of the missingness or by employing data imputation techniques.

To resolve the immediate plotting failure, the missing vector must be replaced or augmented with data that includes finite, numeric elements. This ensures that a proper minimum and maximum can be calculated:

# Define two numeric vectors with finite values
x <- c(1, 5, 9, 13, 19, 22)
y <- c(3, 6, 7, 8, 14, 19)

# Successful creation of scatterplot
plot(x, y)

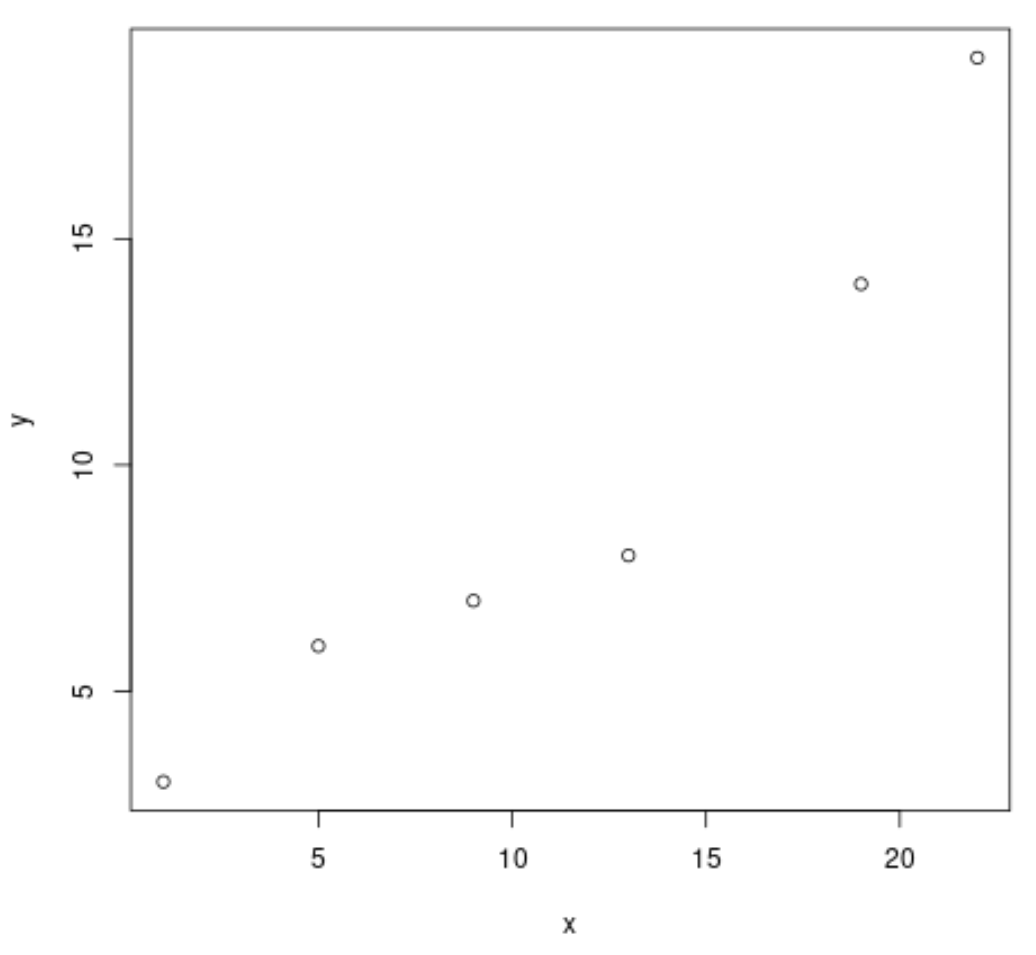

By ensuring the input is a valid numeric vector containing finite elements, R successfully calculates the range (1 to 22), initializes the coordinate system, and completes the visualization process.

Diagnostic Techniques: Proactively Identifying Non-Finite Data

Prevention is the most effective strategy when dealing with visualization errors. Data practitioners should incorporate proactive checks into their workflow to ensure that data destined for continuous axes meets the “finite” requirement. R provides several powerful functions for diagnosing data type and completeness issues before calling plot().

The first step is always to verify the data type. If a vector is accidentally stored as a character vector, the plotting failure is guaranteed. Use the class() function to inspect the variable:

# Check data type
class(x)
# Expected output for plotting: "numeric" or "integer"

If the class is reported as “character,” conversion is mandatory. If the conversion fails (e.g., using as.numeric() on non-coercible strings), R will introduce NAs. This leads to the second critical check: identifying missing or non-finite values. Use is.na() and is.finite() to inspect the vector’s contents.

The following R code snippet is a highly effective diagnostic tool. It checks for the presence of NAs and also verifies if all values are finite (e.g., not infinity):

# Check for any missing values
sum(is.na(x))

# Check how many values are NOT finite (including NA, NaN, and Inf)
sum(!is.finite(x))

# Check if the minimum and maximum are finite (the ultimate test for plot.window)
is.finite(min(x, na.rm = TRUE)) && is.finite(max(x, na.rm = TRUE))

If the result of the final check is FALSE, the plotting function will fail. By integrating these preliminary checks, analysts can quickly determine if the vector contains problematic data and address the type or completeness issues before any visualization attempt, saving significant debugging time.

Best Practices for Data Preparation and Error Prevention

The recurrence of the `finite ‘xlim’` error underscores the necessity of rigorous data preparation before visualization in R. Establishing robust data cleaning protocols is crucial for ensuring that input vectors meet the mathematical requirements of the plotting system. Data integrity is the foundation upon which reliable statistical outputs are built.

To proactively mitigate this and similar plotting failures, data practitioners should adhere to the following best practices, focusing on type consistency and completeness:

1. Validate and Coerce Data Types Explicitly: Always confirm that vectors designated for continuous axes are stored as numeric or integer. If a column is mistakenly read as a character, use functions like as.numeric() for conversion. Be mindful of non-coercible elements; if R encounters a string that cannot be mathematically interpreted (e.g., a header row or a stray text label), it will introduce NA values. After coercion, always re-check the resulting vector for unexpected NAs, as this failure mode can lead directly back to Scenario 2.

2. Manage Missing Data Rigorously: Before plotting, assess the level of missingness using sum(is.na(x)). If this sum equals the length of the vector, plotting will inevitably fail. Depending on the analysis context, the user must either remove observations that lack valid x-coordinates or employ statistical imputation methods to estimate and replace the missing values. If partial data is missing, ensure that plot() or specialized plotting functions are configured to handle NAs gracefully (often by default, but sometimes requiring explicit parameters).

3. Correctly Handle Categorical Variables: If the x-axis inherently represents discrete categories (such as groups, treatments, or names), it should be converted into a factor. Using a character vector with the generic plot(x, y) function will default to the scatterplot logic and fail. Instead, when using factors, R automatically switches to appropriate methods like bar plots, box plots, or specific scatterplot treatments (e.g., using stripchart) that do not rely on calculating a continuous numerical range from the input data.

4. Avoid Infinite or Undefined Values: In rare cases, mathematical operations (such as division by zero) can introduce non-finite values like Inf (Infinity) or NaN (Not a Number) into the vector. While NAs are the most common source of range failure, Inf values also prevent the establishment of a finite xlim. Use is.finite() to identify and remove or replace these elements before attempting visualization.

By integrating these steps into the preprocessing workflow, data users can reliably ensure that their input vectors provide the base plotting system with the necessary finite numerical range required to set the plot.window boundaries successfully, leading to consistent and error-free visualization in R.

Additional Resources for R Error Handling and Visualization

For users seeking to deepen their understanding of error handling and visualization techniques in R, mastering data type management and missing data imputation is paramount. These skills are fundamental to moving beyond basic plotting errors and achieving advanced data representation.

The following resources offer detailed guidance on related R programming fundamentals:

• How to handle non-finite axis limits in base R plots using the xlim and ylim parameters directly.
• Techniques for coercing R data types correctly, focusing on the differences between character, factor, and numeric vector conversions.
• Detailed guides on managing and imputing missing data, exploring packages such as mice or tidyr for complex data cleaning tasks.

These resources provide deeper dives into the core principles of the R language that underpin successful and robust data visualization practices.
