Fix: error in xy.coords(x, y, xlabel, ylabel, log) : ‘x’ and ‘y’ lengths differ

One of the most frequent and challenging runtime errors encountered during basic data visualization in R relates directly to the fundamental principle of coordinate alignment: mismatched data lengths. This specific issue arises when the core plotting mechanisms are unable to establish a correct one-to-one pairing between the coordinates intended for the X and Y axes. This misalignment immediately halts the execution of plotting commands, resulting in a descriptive, yet frustrating, error message.

Error in xy.coords(x, y, xlabel, ylabel, log) :
  'x' and 'y' lengths differ

This critical error is generated internally by the xy.coords function, a utility central to processing and validating coordinate data before any graphical output can be rendered. Fundamentally, the appearance of this message signals an unsuccessful attempt to construct a two-dimensional visualization—such as a scatterplot—using two variables that do not possess an equal number of elements. In this comprehensive guide, we will dissect the precise conditions that trigger this error and outline two robust, reliable methods for rectifying the length disparity, ensuring your plotting commands execute successfully and produce accurate visualizations.

The Core Requirements of R’s Plotting Environment

When you initiate the generation of visualizations within R, functions like plot() operate under a strict structural prerequisite: the input data designated for the horizontal (X) and vertical (Y) axes must be perfectly pairable. In R, the data inputs used for these graphical operations are typically housed in atomic vectors. A vector is defined as an ordered sequence of elements that share the same basic data type, and its length is determined by the total count of elements it contains.

For any standard two-dimensional plot, it is mandatory that every single value in the x vector corresponds uniquely to one value in the y vector. This correspondence is the mechanism that establishes the required set of ordered pairs (x_i, y_i) that precisely define the location of each point on the resultant graph. If the R environment detects that the number of elements in x (its length) is unequal to the number of elements in y (its length), the plotting process is immediately aborted because the intended coordinate pairing becomes ambiguous, incomplete, or statistically unsound.

The crucial internal component responsible for enforcing this consistency check is the xy.coords function. This function is specifically engineered to coerce, validate, and standardize input coordinates for a wide variety of base R graphical commands. When this function identifies a length mismatch between the supplied coordinate inputs, it promptly halts the execution and issues the explicit error message, thereby preventing the creation of a misleading or fragmented visualization based on mismatched data cardinality.

Diagnosing the ‘x’ and ‘y’ Lengths Differ Error

The error message 'x' and 'y' lengths differ is exceptionally clear, directly highlighting the root problem: an inequality in the total count, or cardinality, of the two primary data structures intended for plotting. In practical data analysis, this disparity most often arises from common issues such as data entry or transcription errors, unintended side effects during complex data cleaning processes, or flawed subsetting operations applied unevenly across variables during the crucial data preparation phase.

When R attempts to map the coordinates required for visualizations like a scatterplot, it strictly adheres to the principle of one-to-one correspondence. If vector x contains N elements and vector y contains M elements, and N is mathematically not equal to M, R lacks the necessary information to logically pair the remaining elements. The software cannot determine which y-value should map to the surplus x-values, or vice versa. For a successful visualization to proceed, R demands that the lengths of the two input coordinate vectors must be absolutely identical.

It is worth noting the context of this error: it typically applies to operations involving raw vectors or columns extracted directly from data frames using base plotting functions. While R often employs a mechanism known as vector recycling during standard mathematical operations when lengths are mismatched (e.g., adding a vector of length 1 to a vector of length 10), this recycling behavior is intentionally suppressed or flagged as an error by core plotting functions. This strict policy is enforced to maintain data integrity and prevent the generation of potentially inaccurate or highly misleading visual interpretations.

Replicating the Coordinate Length Mismatch

To provide a clear, practical demonstration of how this execution error is triggered, we will intentionally define two simple vectors, x and y, ensuring they possess deliberately unequal lengths. In the example below, observe that x contains four specific values, whereas y contains six distinct values, setting up the exact failure condition.

# Define x (length 4) and y (length 6) variables
x <- c(2, 5, 5, 8)
y <- c(22, 28, 32, 35, 40, 41)

# Attempt to create scatterplot of x vs. y
plot(x, y)

Error in xy.coords(x, y, xlabel, ylabel, log) :
  'x' and 'y' lengths differ

As anticipated, the attempt to execute the plot() function fails instantly because the lengths of the coordinate inputs are inconsistent. Before proceeding to the effective resolution methods, the best practice is always to confirm the precise length of each variable using R’s built-in length() function. This diagnostic step is absolutely crucial, as it confirms which variable is responsible for the discrepancy and informs the necessary corrective action that must be taken.

We can definitively confirm the disparity by executing the length check shown below. This output substantiates the problem identified by the xy.coords function, proving that the inputs are indeed incompatible for coordinate plotting.

# Print length of x
length(x)

[1] 4

# Print length of y
length(y)

[1] 6

# Check if length of x and y are equal
length(x) == length(y)

[1] FALSE

The resulting output [1] FALSE provides irrefutable confirmation that the length of x (4) is not equal to the length of y (6), fully justifying the error message returned by the plotting routine.

Solution 1: Achieving Perfect Vector Equality

The most direct, statistically responsible, and frequently required solution involves rigorously ensuring that both input vectors contain the exact, identical number of observations. This approach is preferred because it maintains the maximum integrity of the underlying dataset by ensuring every intended data point is correctly represented in the visualization. Resolving the disparity often requires a careful inspection of the raw data source to identify and correct any missing values, extraneous entries, or errors in data extraction that initially caused the length imbalance.

If analysis confirms that the shorter vector is genuinely missing corresponding data points, the ideal methodological approach is to append the necessary values to align it perfectly with the longer vector. If the data points are truly absent and cannot be reliably imputed, consider utilizing NA (Not Applicable) values as placeholders. For standard plotting purposes, the plot() function is usually designed to handle NA values gracefully by simply skipping that incomplete coordinate pair, which is generally an acceptable compromise when data is legitimately missing.

Returning to our replication example, where y had 6 elements and x had 4, we must modify x by adding two appropriate values. This modification brings its total length up to 6, thereby creating the perfect one-to-one correspondence that is absolutely necessary for successfully rendering a valid scatterplot.

# Define x and y variables to have the same length (6 each)
x <- c(2, 5, 5, 8, 9, 12)
y <- c(22, 28, 32, 35, 40, 41)

# Confirm that x and y are the same length
length(x) == length(y)

[1] TRUE

# Create scatterplot of x vs. y
plot(x, y)

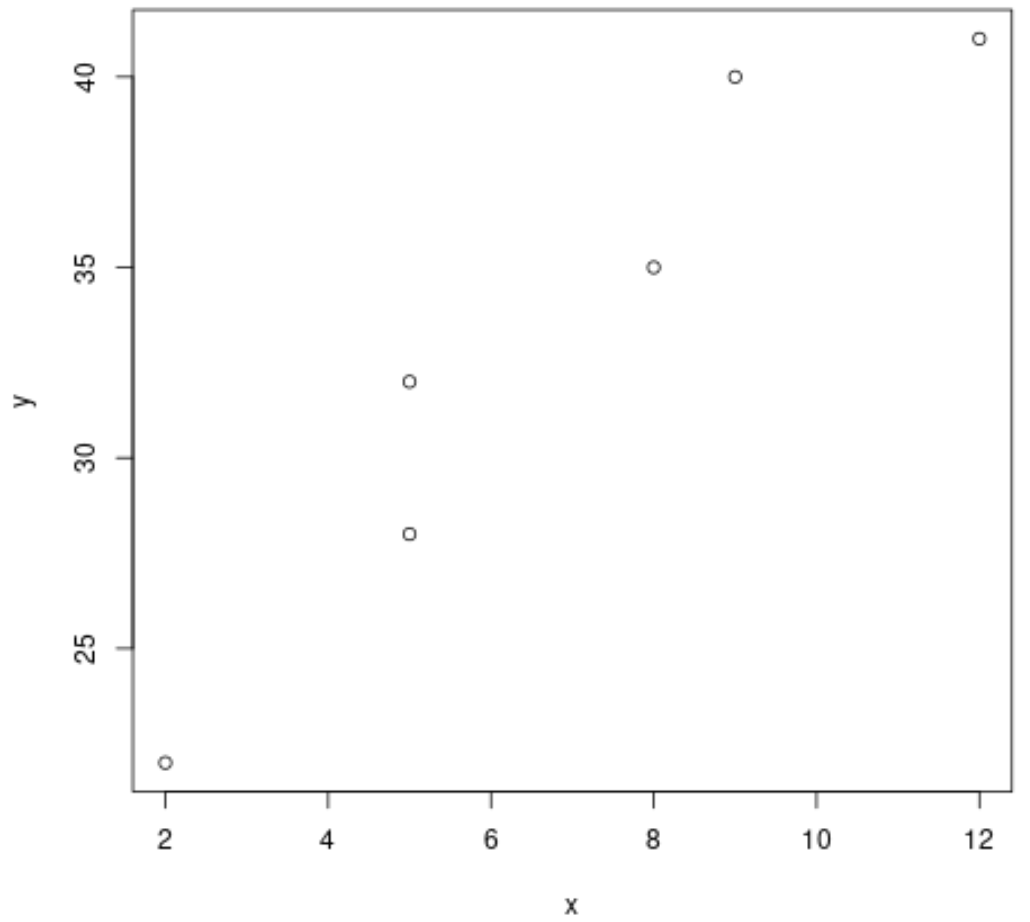

With the lengths now confirmed to be equal (6 elements in each vector), the plot() function executes successfully without generating the coordinate error, effectively generating the visualization based on the six corresponding data points.

Solution 2: Subsetting the Longer Vector for Alignment

In certain analytical scenarios, correcting the source data or finding the precise missing observations may prove infeasible, or perhaps the analysis only requires a visualization focusing on the complete subset of readily available paired data. In such cases, an highly effective and practical workaround involves applying subsetting logic to the longer vector, truncating its length to precisely match the cardinality of the shorter vector. This solution ensures compatibility at the cost of discarding some potentially valuable data points.

This technique is particularly useful when the user has high confidence in the first N data points of both variables, and the preference is to visualize only the portion where complete pairwise data exists, rather than halting the process entirely due to the error. However, users must exercise significant caution when implementing this solution, as permanently discarding observations might introduce selection bias or lead to potentially incomplete conclusions if the truncated data was statistically significant or representative of the overall population.

Given our original scenario where vector x has 4 values and vector y has 6 values, we instruct R to utilize all elements of x, but only the first 4 elements of y. We dynamically achieve this precise truncation by calculating the length of the shorter vector (using length(x)) and employing that resultant value to index the longer vector y. This is a powerful application of subsetting.

# Define x and y variables (original unequal lengths)
x <- c(2, 5, 5, 8)
y <- c(22, 28, 32, 35, 40, 41)

# Create scatterplot of first 4 pairwise values of x vs. y
plot(x, y[1:length(x)])

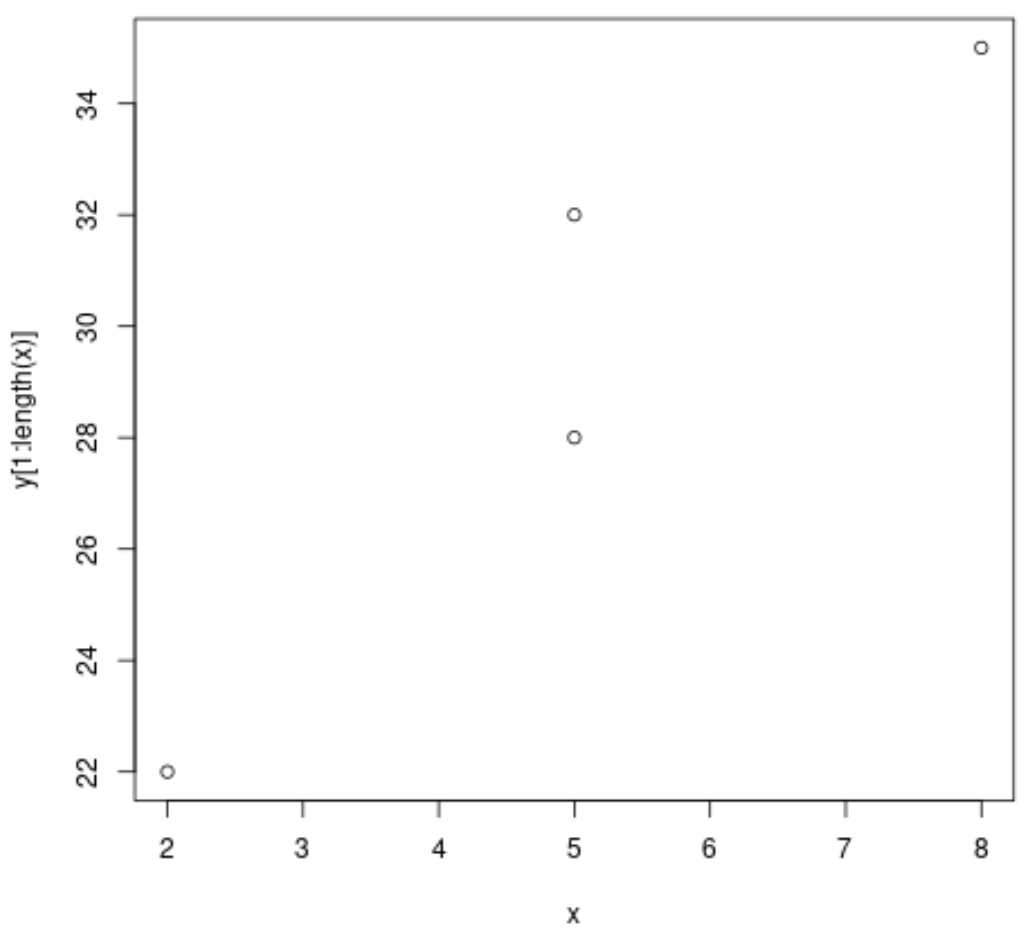

By using the expression y[1:length(x)], we effectively instruct R to truncate y, forcing it to use only its first four elements (22, 28, 32, 35). This truncated vector now pairs perfectly with the four elements in x. The plotting function then executes successfully, visualizing only the consistent data subset and resolving the length error.

It is critically important to recognize that only the first four corresponding points—(2, 22), (5, 28), (5, 32), and (8, 35)—were utilized to construct this scatterplot. The final two observations originally present in the y vector (40 and 41) were intentionally excluded and ignored entirely during the plotting process to achieve length alignment.

Establishing Best Practices for Data Hygiene in R

The persistent appearance of the 'x' and 'y' lengths differ error functions as an essential structural guardrail in R programming. It serves to reinforce the critical importance of robust data hygiene practices, particularly when preparing data for visualization and statistical modeling. Data structures used for analysis, most notably vectors and data frames, must meticulously maintain consistent internal alignment to ensure that all subsequent statistical calculations and graphical representations are accurate, meaningful, and reliable.

To proactively prevent this common error in future analysis workflows, consider adopting the following best practices:

1. Verification During Import: Always prioritize checking the dimensions of your data frame immediately following data import. Utilizing diagnostic functions such as dim() (to check rows and columns) or str() (to check structure and variable types) can flag structural issues early.
2. Automated Length Checks: If you are creating variables dynamically or performing complex transformations, it is highly recommended to integrate defensive programming mechanisms. Incorporate commands like stopifnot(length(x) == length(y)) into your script to halt execution and immediately highlight length discrepancies.
3. Utilizing Data Frames: Whenever practical, always store related data columns intended for plotting within a single R data frame structure. This structure inherently links columns by row number, making accidental length mismatches less probable, unless specific rows have been inadvertently removed from only one column.
4. Careful Subsetting and Filtering: When applying filters, conditional statements, or complex data transformations, ensure that the exact same filtering criteria are applied consistently across all variables that are destined to be plotted against each other. Inconsistent application of filters (e.g., removing observations with NA values from x but failing to do so for the corresponding observations in y) is the single most common cause of this runtime error.

By fundamentally prioritizing data alignment, meticulously checking data structure lengths, and thoroughly understanding the core requirements of coordinate-based plotting functions, users can effectively troubleshoot, manage, and ultimately prevent the frustrating Error in xy.coords, leading to far cleaner, more reliable, and statistically sound data analysis workflows.
