Understanding and Resolving the “geom_path” Error in ggplot2

Decoding the `geom_path` Error in R’s ggplot2

When developing professional data visualizations in R, particularly utilizing the highly versatile and acclaimed ggplot2 package, users frequently encounter specific diagnostic messages that, at first glance, can appear quite perplexing. One of the most common issues involves the error message: “geom_path: Each group consists of only one observation. Do you need to adjust the group aesthetic?” This warning typically surfaces when a developer attempts to construct a line chart, but the variable assigned to the x-axis, often representing time or sequence, has been classified as a discrete factor. This misclassification disrupts the sequential connectivity necessary for a continuous line plot.

This comprehensive article is dedicated to providing a clear, technical explanation of the mechanisms underlying this error. We aim to establish why ggplot2 interprets the data in this isolating manner, leading to fragmented results. Understanding the distinction between data types and their implications for graphical aesthetics is the key to mastering this visualization challenge.

By the conclusion of this guide, we will demonstrate a simple yet crucial adjustment to your plotting code that effectively transforms an undesired collection of isolated points—an unintended scatterplot—into the intended continuous line chart. This resolution is vital for ensuring the accuracy and interpretability of time-series and sequential data visualizations.

geom_path: Each group consists of only one observation. Do you need to adjust
the group aesthetic?

The Critical Role of Data Types: Factors, Numerics, and Sequential Plotting

The fundamental cause driving the “geom_path” error lies in how R variables are internally represented and subsequently processed by ggplot2. In R, variables are categorized into distinct data types, each carrying specific mathematical and structural implications. Factors are specifically engineered to manage categorical data, such as predefined levels or classifications, representing them as discrete, non-contiguous entities rather than points on a smooth numerical continuum.

In stark contrast, numeric variables (including integers and doubles) are designed for quantitative values that possess inherent order and often represent continuous or discretely ordered measures. This structure allows for mathematical operations and, critically for visualization, sequential interpretation. The geom_line() function, which is built upon `geom_path`, expects the x-axis variable to possess either this numerical continuity or an explicit grouping structure that dictates the order of connection.

When the x-axis variable is incorrectly designated as a factor, the internal logic of ggplot2 interprets each unique factor level (e.g., each year) as an independent, isolated category. Consequently, the system treats every data point as belonging to its own unique group. Since a line requires at least two points within the same group to be drawn, this segmentation prevents the formation of any continuous line, resulting in the error message and the visualization defaulting to a series of disconnected points. This misinterpretation is the direct trigger for the system’s advice to adjust the group aesthetic.

Practical Demonstration: Reproducing the Error with Factor Variables

To illustrate this concept clearly and reproduce the error under controlled conditions, we will construct a simple sample data frame in R. This data structure will simulate sales performance over a six-year period. It is essential for this demonstration that we explicitly define the year variable as a factor, thereby guaranteeing the occurrence of the “geom_path” error upon plotting.

# Create data frame
df <- data.frame(year=factor(c(2017, 2018, 2019, 2020, 2021, 2022)),
                 sales=c(23, 30, 35, 41, 48, 44))

# View data frame
df

  year sales
1 2017    23
2 2018    30
3 2019    35
4 2020    41
5 2021    48
6 2022    44

With our data frame df successfully constructed, the next logical step is to attempt the visualization. We will use standard ggplot2 syntax to create a line chart, aiming to observe the temporal trend in sales figures. This attempt is designed to fail due to the factor classification of the year variable.

library(ggplot2)

# Attempt to create line chart
ggplot(df, aes(year, sales)) +
  geom_point() +
  geom_line()

geom_path: Each group consists of only one observation. Do you need to adjust
the group aesthetic?

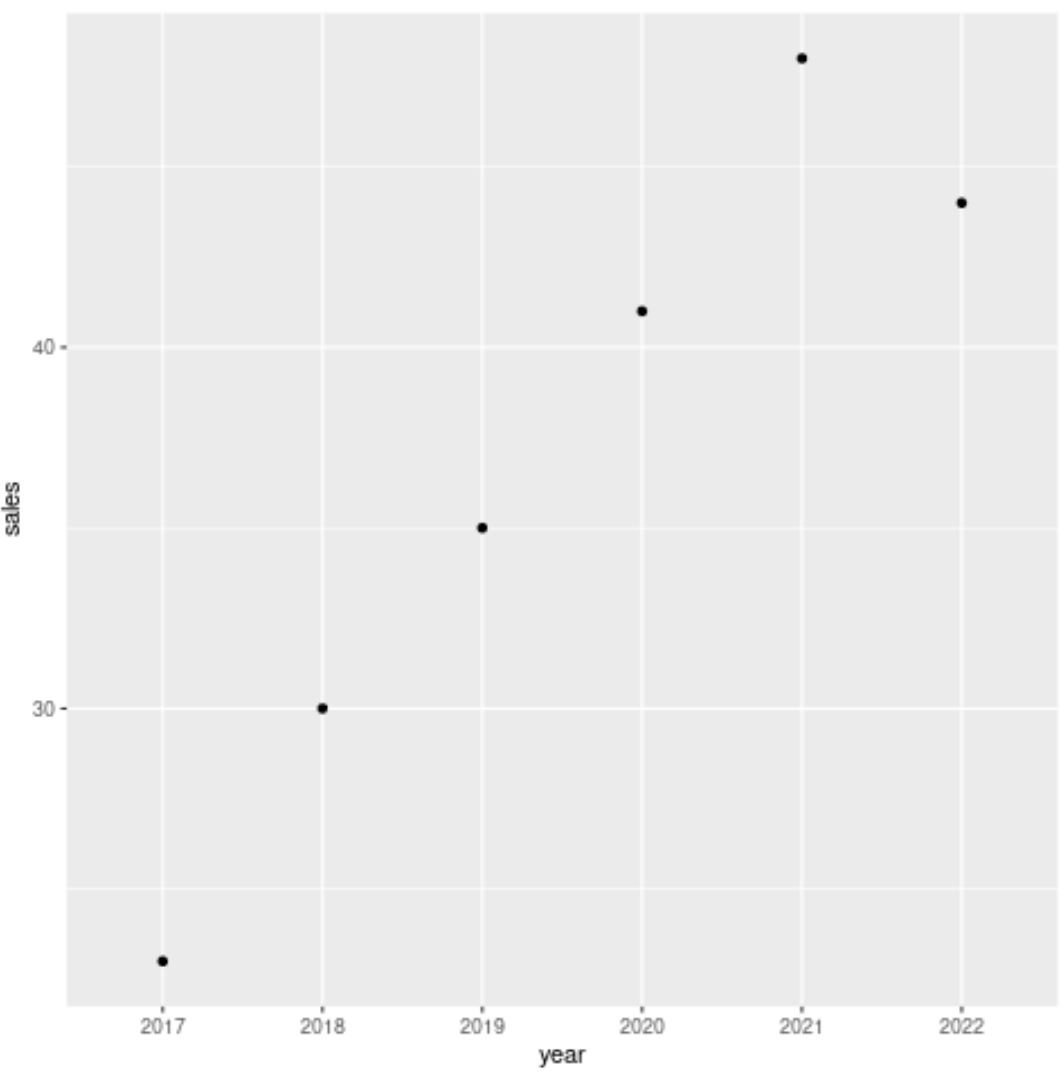

Executing the code above confirms our anticipation. The output fails to produce the desired continuous line chart. Instead, ggplot2 renders a simple scatterplot where each sales point stands isolated and unconnected. This visual evidence is immediately accompanied by the explicit warning, “geom_path: Each group consists of only one observation…,” which precisely identifies the grouping failure caused by the factor variable.

Root Cause Analysis: Why ggplot2 Fails to Draw a Continuous Line

The reason ggplot2 defaults to a scatterplot and simultaneously issues the “geom_path” warning is directly linked to the internal requirements of sequential geometries. The geom_line() function is engineered to connect data points that are recognized as belonging to a single, coherent logical group and are presented in a specific, determined order.

When the year variable is defined as a factor, the system automatically assigns a unique, discrete level to each year (2017, 2018, etc.). In the absence of any explicit instruction regarding connectivity, ggplot2 defaults to treating each unique combination of discrete aesthetics as its own group. Since the factor levels are all unique, each observation becomes a group unto itself.

The resulting consequence is that the plotting function determines it has zero ability to connect the points sequentially because no two points share the same grouping identity. The error message is therefore a precise instruction: the user must override the default grouping mechanism. The system advises adjusting the group aesthetic, which is the mechanism used in ggplot2 to define which observations should be linked together into a single graphical element.

The Definitive Solution: Applying the `group` Aesthetic

The most direct, efficient, and robust solution to rectify the “geom_path” error involves explicitly defining the group aesthetic within the aes() mapping of your ggplot2 call. This is accomplished by simply specifying group=1. This modification serves as a powerful override to the system’s default grouping behavior.

By issuing the directive group=1, we are instructing ggplot2 to ignore the discrete nature of the factor variable on the x-axis and, instead, treat all observations within the current data frame as components of a single, unified series. This critical unifying step permits the geom_line() function to correctly identify the ordered sequence of points and successfully construct a continuous line between them, based on the inherent ordering of the factor levels.

Let us apply this targeted fix to our previous example, modifying only the aesthetic mapping within the plot function:

library(ggplot2)

# Create line chart with group aesthetic
ggplot(df, aes(year, sales, group=1)) +
  geom_point() +
  geom_line()

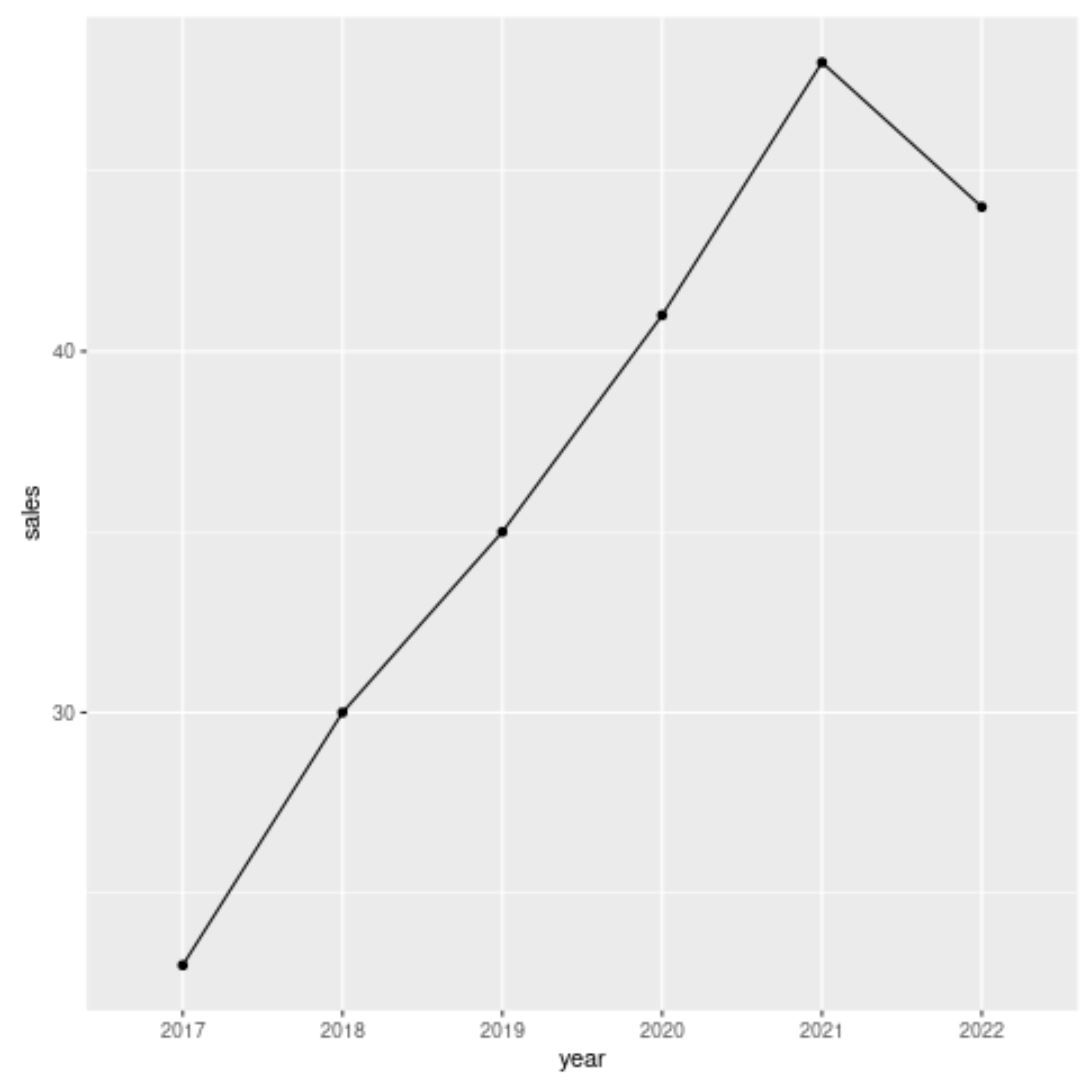

Upon executing this revised and corrected code, the output immediately changes. A properly rendered line chart is generated, successfully visualizing the sales trend across the years with a continuous path. Importantly, the troublesome “geom_path” error message is suppressed, confirming that the grouping issue, which was the root cause, has been successfully and elegantly resolved through the use of the universal group identifier.

Dissecting the `group=1` Parameter for Unified Lines

The group=1 parameter represents a universal identifier within the context of ggplot2 aesthetics. While seemingly simplistic, its functionality is profound: it explicitly forces the plotting engine to treat every observation currently being mapped as belonging to one single, cohesive series. This technique is indispensable when the visual intent—a continuous line—is at odds with the underlying structural nature of the x-axis variable, especially when that variable is a factor that should logically be continuous (like sequential years).

It is important to differentiate this universal grouping from more complex scenarios. In visualizations involving multiple separate series—for example, comparing sales trends of distinct product categories (A, B, and C) over the same time period—the group aesthetic would be mapped to the categorical variable itself (e.g., aes(year, sales, group=product_category)). This mapping directs the system to draw distinct, separate lines for each unique category, as they represent different logical series.

However, when the objective is simply to create one uninterrupted line that connects all available data points—as is the case when plotting sequential data stored as a factor—setting group=1 efficiently serves as the universal identifier. It unifies all observations within the data frame, ensuring the necessary connectivity required by the geom_path geometry.

Conclusion: Mastering Data Grouping for Effective Visualization

The error “geom_path: Each group consists of only one observation. Do you need to adjust the group aesthetic?,” though a frequent source of frustration for new users, serves as a crucial lesson in advanced visualization techniques. It highlights the critical interplay between R’s inherent data factor type and ggplot2’s expectation for continuous or explicitly grouped data in sequential plots.

By gaining a deep understanding of the distinctions between discrete factors and continuous numeric variables, and by correctly implementing the group aesthetic using the group=1 parameter, you can effectively circumvent this common visualization hurdle. This technique is a fundamental tool for accurately representing sequential trends in data where the x-axis has been inadvertently or necessarily typed as a factor.

Resolving this error not only fixes the immediate visual problem but also enhances your overall comprehension of how `ggplot2` processes aesthetic mappings and groups data for graphical representation. We strongly encourage users to consult the official documentation to explore further insights into grouping mechanisms and advanced plotting techniques, thereby empowering them to create sophisticated and highly informative data graphics.
